TASK 72-58-01-200-002 No. 5 Bearing Thermal Shield - Examine, Inspection-002

DMC:V2500-A0-72-58-0102-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-58-01-200-002 No. 5 Bearing Thermal Shield - Examine, Inspection-002

Effectivity

FIG/ITEM PART NO.

20-100

2A1353-01

20-100

2A2099-01

General

This TASK gives the procedure for the inspection of the No. 5 bearing heatshield. For the other parts of the No. 5 bearing compartment cover, refer to TASK 72-58-01-200-000 (INSPECTION/CHECK-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, TASK 70-02-02-350-501

Inspection of Parts, TASK 70-20-01-200-501

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-58-01-220-054 Examine the No. 5 Bearing Heatshields (20-100 and 20-100) for Dents, Wear, Rips or Cuts

    1. Refer to: Figure

      2. Examine the heatshields for dents, wear, rips or cuts.

        1. Dents.

          1. Smooth dents up to 0.125in. (3.175 mm) in depth

          1. Accept

          2. Other than (a)

          1. Repair, VRS3329 TASK 72-58-01-300-005 (REPAIR-005)

        2. Wear with foil not damaged

        1. Accept

        3. Rips, cuts or any other break in the foil

        1. Repair, VRS3329 TASK 72-58-01-300-005 (REPAIR-005)

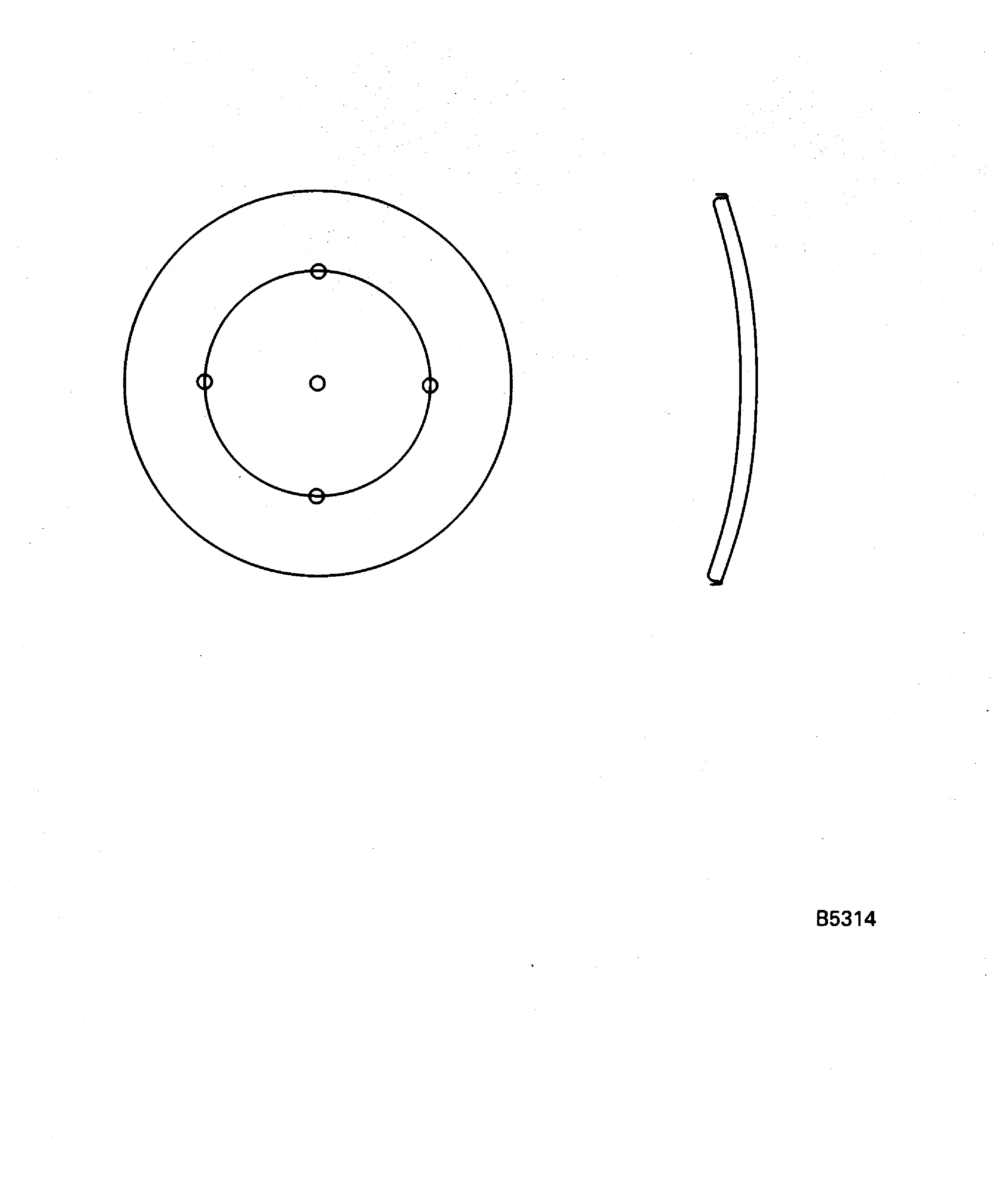

    2. Figure: No. 5 bearing heatshield inspection locations

    No. 5 bearing heatshield inspection locations

Requirements After Job Completion

Follow-On Conditions

NONE
