TASK 72-58-02-200-002 No. 5 Bearing Oil Nozzle - Examine, Inspection-002

DMC:V2500-A0-72-58-0201-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-58-02-200-002 No. 5 Bearing Oil Nozzle - Examine, Inspection-002

Effectivity

FIG/ITEM PART NO.

01-070

2A1211

General

This TASK gives the procedure for the inspection of the No. 5 bearing Nozzle. For other parts of the No. 5 bearing oil jet and filter, refer to TASK 72-58-02-200-000 (INSPECTION/CHECK-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the TASK 72-58-02-100-000 (CLEANING-000).

The procedure for those parts which must have a crack test is given in SUBTASK 75-58-02-230-052. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-58-02-230-052-001 Examine the No. 5 Bearing Nozzle (01-070) for Cracks

    1. Clean the Part. Refer to TASK 72-58-02-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant procedure.

        PART IDENT TASK/SUBTASK

        No. 5 bearing nozzle

        1. Cracked

        1. Reject

    2. SUBTASK 72-58-02-230-052-002 Examine the No. 5 Bearing Nozzle (01-070) for Cracks

    1. Clean the Part. Refer to TASK 72-58-02-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant procedure.

        PART IDENT TASK/SUBTASK

        No. 5 bearing nozzle

        1. Cracked

        1. Reject

    3. SUBTASK 72-58-02-220-053 Examine the No. 5 Bearing Nozzle (01-070) for Scratches, Wear and Sharp Edges on the Outside Diameter Surface and the Groove

    1. Refer to: Figure

      2. Examine the nozzle at location 1 for scratches, wear and sharp edges on the OD surface and the groove.

        1. Scratches.

          1. Up to 0.002 in. (0.051 mm) in depth with no high metal

          1. Accept

          2. Other than (a)

          1. Repair, VRS3241 TASK 72-58-02-300-002 (REPAIR-002)

        2. Wear that you can measure

        1. Reject

        3. Sharp edges

        1. Repair, VRS3241 TASK 72-58-02-300-002 (REPAIR-002)

    4. SUBTASK 72-58-02-220-054 Examine the No. 5 Bearing Nozzle (01-070) for Scratches, Wear and Sharp Edges on the Inside Diameter Surfaces

    1. Refer to: Figure

      2. Examine the nozzle at location 2 for scratches, wear and sharp edges on the ID surfaces.

        1. Scratches.

          1. Up to 0.002 in. (0.051 mm) in depth with no high metal

          1. Accept

          2. Other than (a)

          1. Repair, VRS3241 TASK 72-58-02-300-002 (REPAIR-002)

        2. Wear that you can measure

        1. Reject

        3. Sharp edges

        1. Repair, VRS3241 TASK 72-58-02-300-002 (REPAIR-002)

    5. SUBTASK 72-58-02-220-055 Examine the No. 5 Bearing Nozzle (01-070) for Damage and Blockage With a Flexible Video Borescope

    1. Refer to: Figure

      2. Examine the nozzle at locations 3 and 4 for damage and blockage.

        1. Damage such as nicks, dents or scratches that touch the edge of the metering hole

        1. Reject

        2. Blockage, coke or carbon

        1. Clean, TASK 72-58-02-100-000 (CLEANING-000)

    6. SUBTASK 72-58-02-220-058 Examine the No. 5 Bearing Nozzle (01-070) for Acceptable Limits

    1. Refer to Figure.

      2. Examine ID at Location 5.

        1. Limits between 0.413 and 0.417 in. (10.490 and 10.592 mm)

        1. Accept

        2. Limits other than (1)

        1. Reject

      3. Examine ID at Location 6.

        1. Limits between 0.378 and 0.382 in. (9.601 and 9.703 mm)

        1. Accept

        2. Limits other than (1)

        1. Reject

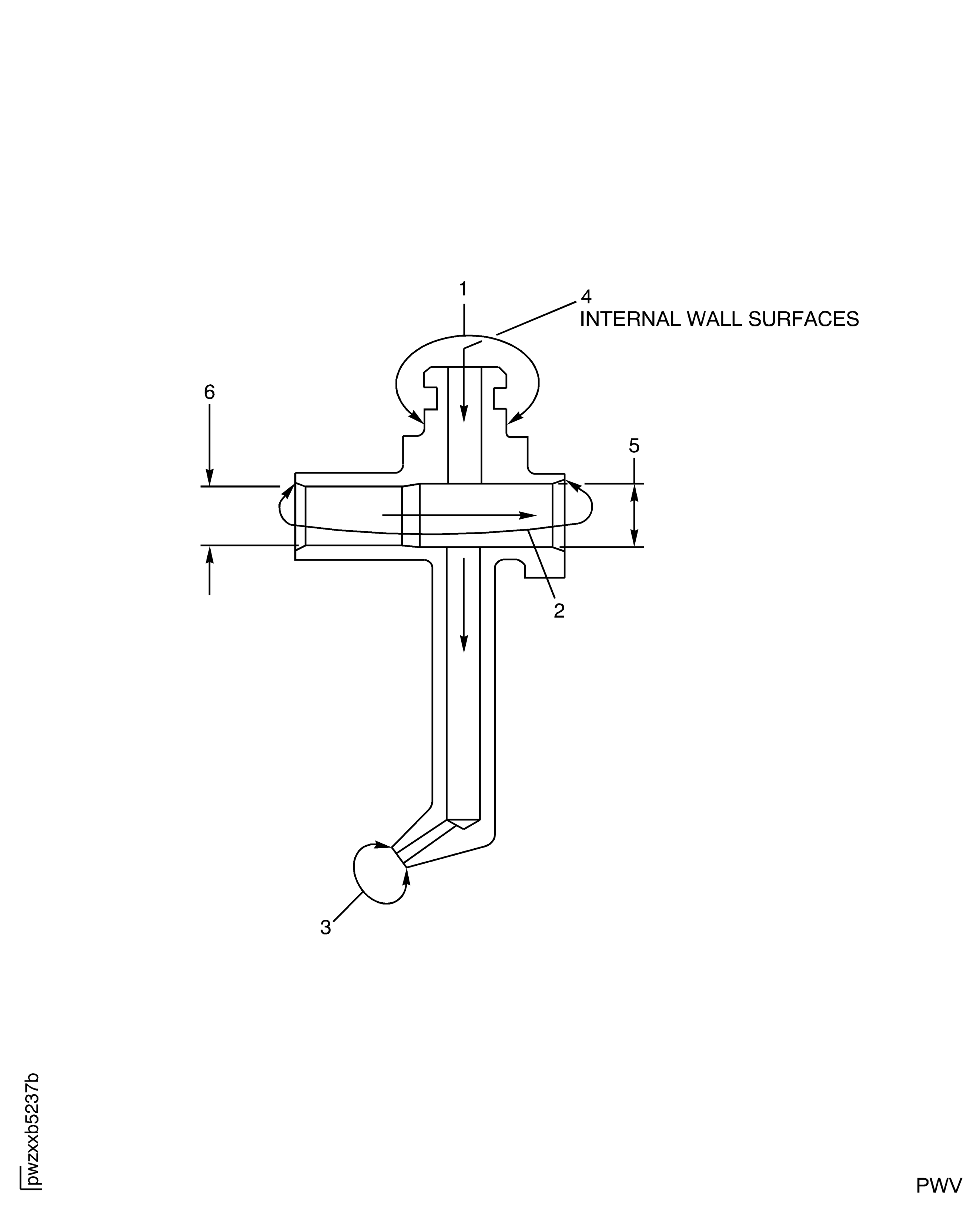

    7. Figure: No. 5 Bearing Nozzle Inspection Locations

    No. 5 Bearing Nozzle Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
