TASK 72-61-49-200-101 Gearbox Breather Outlet Oil Duct - Examine, Inspection-001

DMC:V2500-A0-72-61-4900-00A-310A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-61-49-200-101 Gearbox Breather Outlet Oil Duct - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-010

740-5720-505

General

This TASK gives the procedure of the gearbox breather outlet duct (01- 010).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The practices and processes referred to in the procedure are in the SPM.

All the parts must be cleaned before they are examined, refer to Cleaning-000 TASK 72-61-49-100-100.

All parts must be visually examined for damage, corrosion or wear. Defects which are not identified in the procedure must be referred to IAE.

The policy which is necessary for inspection is given in SPM TASK 70-20-01-220-501.

The procedure for those parts which must have a crack test is given in Step Do the test before the part is visually examined. The limits for cracks are given in the SUBTASK for each part.

Before the part is discarded, make sure there are no repairs available. Refer to the instructions in the repair before a discarded part is used again or oversize parts are installed. Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

References

Refer to the SPM for data on these items.

Definitions of damage, refer to SPM TASK 70-02-02-350-501.

Record and control of the lives of parts, refer to SPM TASK 70-05-00-220-501.

Inspection of parts, refer to SPM TASK 70-22-00-220-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of testing for crack indications.

Chemical processes.

Surface protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-61-49-230-002 Examine the Gearbox Breather Outlet Duct (01-010) for Cracks

    1. Fluorescent penetrant examine for cracks. Refer to SPM TASK 70-23-01-230-501.

      2. Cracked.

        1. Not more than one crack on any bend or two cracks per duct and not less than 10.0 in. (254.0 mm) from other damage.

          1. Cracks in locations R and S, not more than 6.00 in. (152.4 mm) long.

          1. Repair, VRS2894 (Repair-003) TASK 72-61-49-300-003.

          2. More than in Step.

          1. Reject.

    2. SUBTASK 72-61-49-220-004 Examine the Gearbox Breather Outlet Duct (01-010) at Location R

    1. Refer to Figure.

      2. Nicked.

        1. One or more nicks and not less than 10.0 in. (254.0 mm) from other damage. Regard a line of nicks as a gouge.

          1. Not more than 0.010 in. (0.25 mm) deep.

          1. Repair, VRS2893 (Repair-002) TASK 72-61-49-300-002.

          2. More than in Step.

          1. Reject.

      3. Scratched.

        1. One or more scratches and not less than 10.0 in. (254.0 mm) from other damage.

          1. Not more than 0.005 in. (0.13 mm) deep and not more than 6.0 in. (152.4 mm) long.

          1. Repair, VRS2893 (Repair-002) TASK 72-61-49-300-002.

          2. More than in Step.

          1. Reject.

      4. Dented.

        1. Not more than two dents and not less than 10.00 in. (254.0 mm) from other damage.

          1. Not more than 0.010 in. (0.25 mm) deep with a smooth profile and a maximum area of 1.00 in. (25.4 mm) by 1.00 in. (25.4 mm).

          1. Accept.

          2. Other than in Step and with a maximum area of 2.00 in. (50.8 mm) by 2.00 in. (50.8 mm).

          1. Repair, VRS7503 (Repair-004) TASK 72-61-49-300-004.

        2. More than in Step.

        1. Reject.

      5. Gouged.

        1. One or more gouges and not less than 10.0 in. (254.0 mm) from other damage.

          1. Not more than 0.010 in. (0.25 mm) deep and not more than 6.0 in. (152.4 mm) long.

          1. Repair, VRS2893 (Repair-002) TASK 72-61-49-300-002.

          2. More than in Step.

          1. Reject.

    3. SUBTASK 72-61-49-220-005 Examine the Gearbox Breather Outlet Duct (01-010) at Location S

    1. Refer to Figure.

      2. Nicked.

        1. One or more nicks and not less than 10.0 in. (254.0 mm) from other damage. Regard a line of nicks as a gouge.

          1. Not more than 0.010 in. (0.25 mm) deep.

          1. Repair, VRS2893 (Repair-002) TASK 72-61-49-300-002.

          2. More than in Step.

          1. Reject.

      3. Scratched.

        1. One or more scratches and not less than 10.0 in. (254.0 mm) from other damage.

          1. Not more than 0.005 in. (0.13 mm) deep and not more than 6.0 in. (152.4 mm) long.

          1. Repair, VRS2893 (Repair-002) TASK 72-61-49-300-002.

          2. More than in Step.

          1. Reject.

      4. Dented.

        1. Not more than one dent and not less than 10.00 in. (254.0 mm) from other damage.

          1. Not more than 0.010 in. (0.25 mm) deep with a smooth profile and a maximum area of 1.00 in. (25.4 mm) by 1.00 in. (25.4 mm).

          1. Accept.

          2. Other than in Step and with a maximum area of 2.00 in. (50.8 mm) by 2.00 in. (50.8 mm).

          1. Repair, VRS7503 (Repair-004) TASK 72-61-49-300-004.

        2. More than in Step.

        1. Reject.

      5. Gouged.

        1. One or more gouges and not less than 10.0 in. (254.0 mm) from other damage.

          1. Not more than 0.010 in. (0.25 mm) deep and not more than 6.0 in. (152.4 mm) long

          1. Repair, VRS2893 (Repair-002) TASK 72-61-49-300-002.

        2. More than in Step.

        1. Reject.

    4. SUBTASK 72-61-49-220-006 Examine the Gearbox Breather Outlet Duct (01-010) End Fitting

    1. Refer to Figure.

      2. Scratched, nicked or gouged.

        1. Not more than 0.010 in. (0.25 mm) deep.

        1. Repair, VRS2893 (Repair-002) TASK 72-61-49-300-002.

        2. More than in Step.

        1. Reject.

    5. SUBTASK 72-61-49-220-007 Examine the Gearbox Breather Outlet Duct (01-010) Collar M

    1. Refer to Figure.

      2. Scratched, nicked or gouged.

        1. One or more scratches, nicks or gouges and not less than 5.0 in. (127.0 mm) from other damage.

          1. Not more than 0.010 in. (0.25mm) deep.

          1. Repair, VRS2893 (Repair-002) TASK 72-61-49-300-002.

          2. Not more than in Step.

          1. Reject.

    6. SUBTASK 72-61-49-220-008 Examine the Gearbox Breather Outlet Duct (01-010) Clamping Ring P

    1. Refer to Figure.

      2. Scratched, nicked or gouged.

        1. Not more than 0.010 in. (0.25 mm) deep.

        1. Repair, VRS2893 (Repair-002) TASK 72-61-49-300-002.

        2. More than in Step.

        1. Reject.

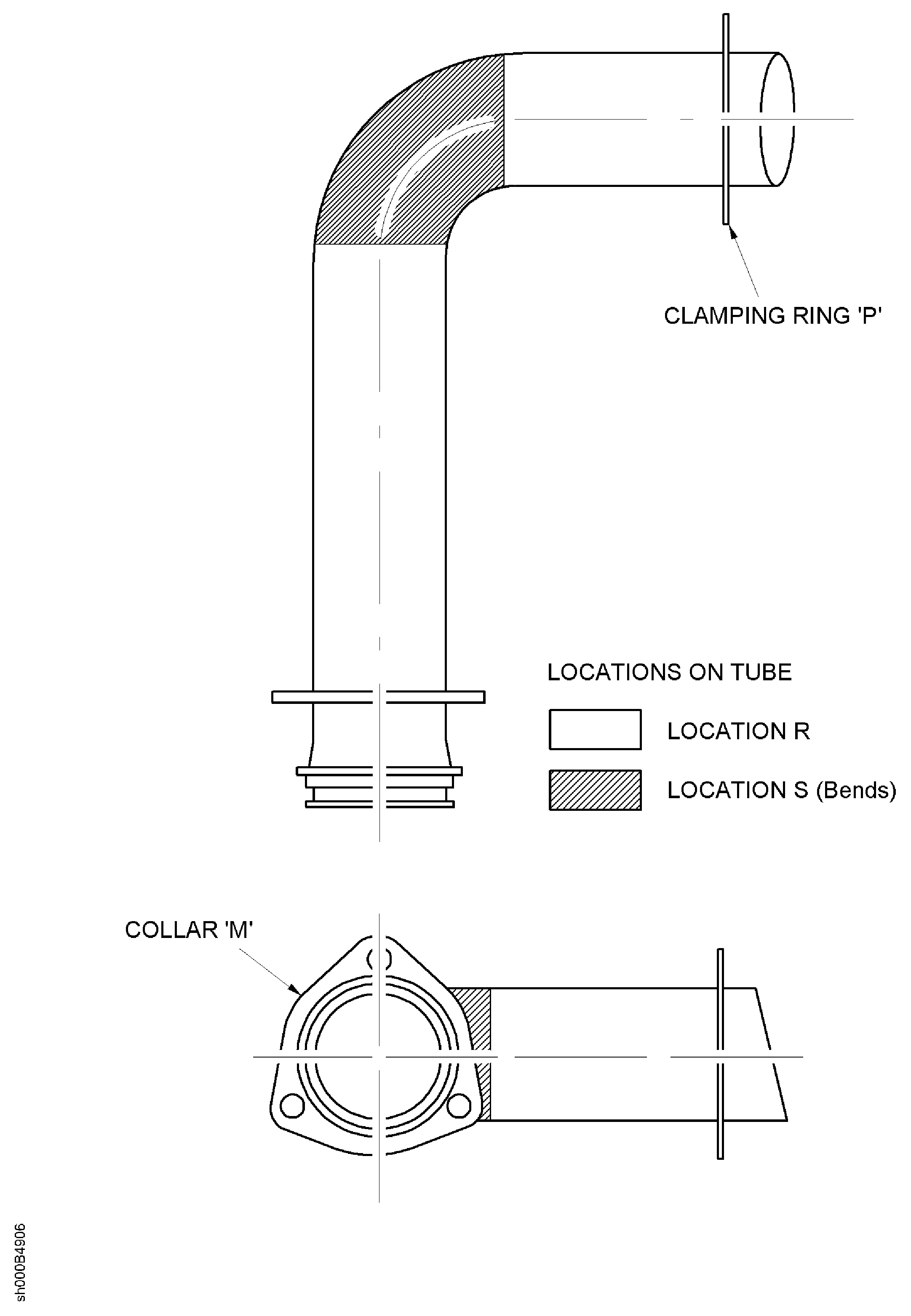

    7. Figure: Locations on the Gearbox Breather Outlet Duct

    Locations on the Gearbox Breather Outlet Duct

Requirements After Job Completion

Follow-On Conditions

NONE
