TASK 73-12-41-200-401 Fuel Pumps - Related Parts - Examine the Adapter Housing, Inspection-001

DMC:V2500-A0-73-12-4100-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-12-41-200-401 Fuel Pumps - Related Parts - Examine the Adapter Housing, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-160

5A0248

01-160

5A1401

01-160

5009090

General

This TASK gives the procedure for the inspection of the adapter housing.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before the part is examined. Refer to Cleaning-000 TASK 73-12-41-100-400.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step Do the test before the part is visually examined.

Do not discard any part until you are sure that there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-12-41-230-051 Examine the Adapter Housing for Cracks

    1. Clean the part. Refer to Cleaning-000 TASK 73-12-41-100-400.

      2. Do the crack test on the part that is given below:

        1. Adapter housing. Refer to SPM TASK 70-23-02-230-501.

          1. Cracked

          1. Reject

    2. SUBTASK 73-12-41-220-051 Examine the Adapter Housing Surfaces

    1. Refer to Figure.

      2. Examine all the surfaces which do not include the identified locations

        1. Nicked and scratched

        1. Repair, VRS1489 (Repair-001) TASK 73-12-41-300-001.

    3. SUBTASK 73-12-41-220-052 Examine the Adapter Housing Bolt Holes

    1. Refer to Figure.

      2. Examine the bolt holes at Location 1

        1. Burred

        1. Repair, VRS1489 (Repair-001) TASK 73-12-41-300-001.

        2. Scored and scratched

          1. Up to 0.005 in. (0.12 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1489 (Repair-001) TASK 73-12-41-300-001.

    4. SUBTASK 73-12-41-220-053 Examine the Adapter Housing Surface

    1. Refer to Figure.

      2. Examine the surface at Location 2

        1. Scored and scratched

          1. Up to 0.005 in. (0.12 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1489 (Repair-001) TASK 73-12-41-300-001.

          3. Galled

          1. Repair, VRS1489 (Repair-001) TASK 73-12-41-300-001.

    5. SUBTASK 73-12-41-220-054 Examine the Adapter Housing Flange Face

    1. Refer to Figure.

      2. Examine the flange face at Location 3

        1. Scored and scratched

        1. Repair, VRS1489 (Repair-001) TASK 73-12-41-300-001.

        2. Galled

        1. Repair, VRS1489 (Repair-001) TASK 73-12-41-300-001.

    6. SUBTASK 73-12-41-220-055 Examine the Adapter Housing Surfaces

    1. Refer to Figure.

      2. Examine the surfaces at Location 4

        1. Nicked and scratched

        1. Repair, VRS1489 (Repair-001) TASK 73-12-41-300-001.

    7. SUBTASK 73-12-41-220-056 Examine the Adapter Housing Seal Bore

    1. Refer to Figure.

      2. Examine the seal bore at Location 5

        1. Worn

          1. If the bore is between 4.2501 and 4.2520 in. (107.951 and 108.000 mm).

          1. Accept

          2. More than 4.2520 in. (108.000 mm)

          1. Reject

        2. Scored and scratched

          1. Up to 0.005 in. (0.12 mm) in depth

          1. Repair, VRS1489 (Repair-001) TASK 73-12-41-300-001.

          2. More than in Step.

          1. Reject

    8. SUBTASK 73-12-41-220-057 Examine the Adapter Housing Outside Diameter

    1. Refer to Figure.

      2. Examine the outside diameter at Location 6

        1. Worn

          1. If the outside diameter is between 4.5261 and 4.5270 in. (114.961 and 114.986 mm).

          1. Accept

          2. Less than 4.5261 in. (114.961 mm)

          1. Reject

        2. Scored and scratched

        1. Repair, VRS1489 (Repair-001) TASK 73-12-41-300-001.

    9. SUBTASK 73-12-41-220-058 Examine the Adapter Housing Sealing Groove

    1. Refer to Figure.

      2. Examine the sealing groove at Location 7

        1. Nicked and scratched

          1. Up to 0.005 in. (0.12 mm) in depth

          1. Repair, VRS1489 (Repair-001) TASK 73-12-41-300-001.

          2. More than in Step.

          1. Reject

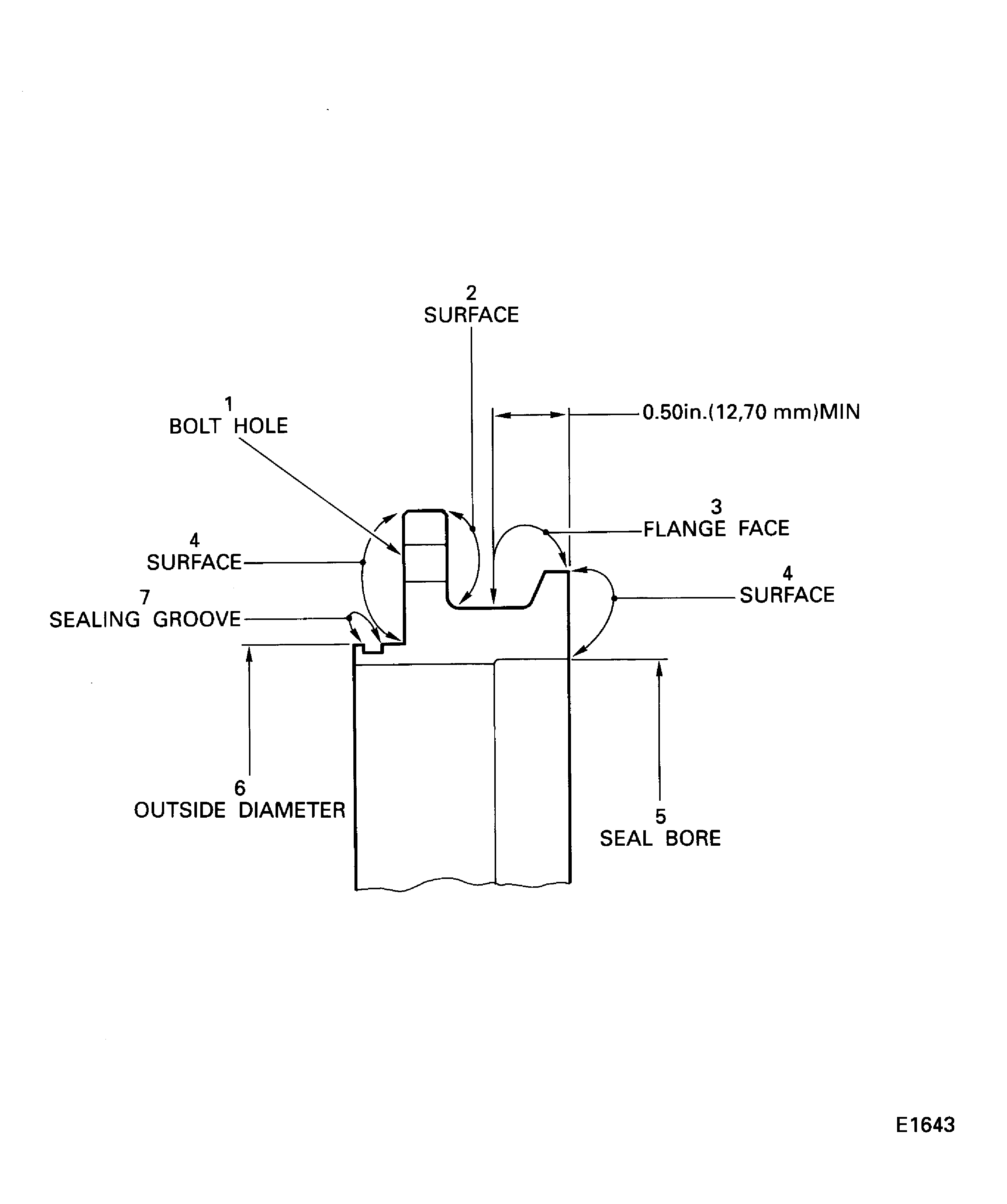

    10. Figure: Locations on the Adapter Housing

    Locations on the Adapter Housing
