TASK 73-22-35-840-001 EEC Data Entry Plug - Related Parts - Incorporate A New Electronic Engine Control (EEC) Configuration And Rework The Data Entry Plug Assembly To The SCN11E Software Configuration, Rework-001 - SBE 73-0015

DMC:V2500-A0-73-22-3500-00A-933A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-22-35-840-001 EEC Data Entry Plug - Related Parts - Incorporate A New Electronic Engine Control (EEC) Configuration And Rework The Data Entry Plug Assembly To The SCN11E Software Configuration, Rework-001 - SBE 73-0015

Effectivity

FIG/ITEM

PART NO.

01-100

5A9298

01-100

5A0357

General

The practices and procedures referred to in the procedure by the TASK number are in the SPM.

Refer to the indicated Service Bulletin for specific application requirements.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
TG-70 Strap wrenchLOCALTG-70 Strap wrench
IAE 1J12018 EEC harness wrench0AM53IAE 1J120181

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-138 LOCKWIRELOCALCoMat 02-138

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-22-35-050-051 Remove the Data Entry Plug Assembly

    1. Remove the lockwire from the data entry plug backshell and the connector.

      NOTE

      It is not necessary to remove the lockwire and loosen the backshell nut on the data entry plug for the engine serial numbers given in Step Do only the instructions given in paragraphs C. for these engines.

      2. Loosen the backshell nut, but do not remove the backshell.

      1. Use the TG-70 Strap wrench or equivalent.

      3. Disconnect the data entry plug assembly from the electrical engine control (EEC).

      1. Refer to Figure.

      2. NOTE

        Do not remove the data entry plug connecting chain from the flange FC to do the modification specified.

    2. SUBTASK 73-22-35-050-052 Remove the Electronic Engine Control (EEC)

      1. Remove the 2A2039 electronic engine control (EEC)

      1. Refer to Figure.

      2. Do the procedure given in TASK 72-00-32-050-001.

    3. SUBTASK 73-22-35-350-057-001 Rework the Data Entry Plug Assemblies for Engine Serial Numbers V0014 Thru V0096 Except Engine Serial Numbers V0034, V0039, V0051, V0053, V0054, V0055, V0058, V0060, V0061, V0081 and V0085

      NOTE

      It is not necessary to disassemble these data entry plugs. It is necessary to identify these data entry plugs with the correct part number and rating number and replace the engine identification plate.

      1. Identify the 5A9298 data entry plug as follows:

      1. Refer to Figure.

      2. Do the procedure given in SPM TASK 70-09-00-400-501 and use the vibration peen method.

        3. Mark the new part number adjacent to the part number that was there before

        1. NUMBER BEFORE: 5A9298.

        2. NEW NUMBER: 5A0431.

        4. Mark -00 adjacent to the rating number

        1. RATING NUMBER BEFORE: 1.

        2. NEW RATING NUMBER: 1-00.

      2. Replace the 5A9036 engine identification plate as follows:

      1. Refer toFigure.

        2. Remove the four bolts that hold the engine identification plate to the bracket located on the fan case at the 9 o'clock position.

        1. Give the old engine identification plate to your IAE representative.

      3. Get the new 5A9036 engine identification plate from your IAE representative with the correct engine serial number, and take-off rating for your engine.

      4. CAUTION

        MAKE SURE THE DATA ON THE NEW ENGINE IDENTIFICATION PLATE IS CORRECT FOR THE ENGINE YOU INSTALL IT ON.

        Install the new engine identification plate to the bracket with the 4W0102 bolts (4 off).

      5. Torque the bolts to between 32 and 36 lbfin (3.61 and 4.07 Nm).

    4. SUBTASK 73-22-35-350-057-002 Rework the Data Entry Plug Assemblies for Engine Serial Numbers V0034, V0039, V0051, V0053, V0054, V0055, V0058, V0060, V0061, V0081 and V0085

      1. Do a modification on the 5A9298 data entry plug as follows:

      1. Refer to Figure.

      2. Remove the connector assembly from the backshell.

      3. Remove the anti-vibration rubber.

      4. Give the old connector assembly to your IAE representative.

      5. Get the new connector assembly from your IAE representative.

      6. CAUTION

        MAKE SURE THE NEW CONNECTOR ASSEMBLY IS CORRECT FOR THE ENGINE YOU INSTALL IT ON. THE NEW CONNECTOR ASSEMBLY IS NOT IDENTIFIED WITH THE ENGINE SERIAL NUMBER.

        Align and install the anti-vibration rubber on the jumper ends of the new connector assembly.

      7. Install the connector assembly and anti-vibration rubber into the backshell and tighten the backshell nut with your fingers.

      2. Identify the 5A9298 data entry plug as follows:

      1. Refer to Figure.

      2. Do the procedure given in SPM TASK 70-09-00-400-501 and use the vibration peen method.

        3. Mark the new part number adjacent to the part number that was there before.

        1. NUMBER BEFORE: 5A9298.

        2. NEW NUMBER: 5A0431.

        4. Mark -01 adjacent to the rating number.

        1. RATING NUMBER BEFORE: 1.

        2. NEW RATING NUMBER: 1-01.

      3. Replace the 5A9036 engine identification plate as follows:

      1. Refer to Figure.

        2. Remove the four bolts that hold the engine identification plate to the bracket located on the fan case at the 9 o'clock position.

        1. Give the old engine identification plate to your IAE representative.

      3. Get the new 5A9036 engine identification plate from your IAE representative with the correct engine serial number, and take-off rating for your engine.

      4. CAUTION

        MAKE SURE THE DATA ON THE NEW ENGINE IDENTIFICATION PLATE IS CORRECT FOR THE ENGINE YOU INSTALL IT ON.

        Install the new engine identification plate to the bracket with the 4W0102 bolts (4 off).

      5. Torque the bolts to between 32 and 36 lbfin (3.61 and 4.07 Nm).

    5. SUBTASK 73-22-35-350-057-003 Rework the Data Entry Plug Assemblies for Engine Serial Numbers V0097 thru V0121

      1. Do a modification on the 5A0357 data entry plug as follows:

      1. Refer to Figure.

      2. Remove the connector assembly from the backshell.

      3. Remove the anti-vibration rubber.

      4. Give the old connector assembly to your IAE representative.

      5. Get the new connector assembly from your IAE representative.

      6. CAUTION

        MAKE SURE THE NEW CONNECTOR ASSEMBLY IS CORRECT FOR THE ENGINE YOU INSTALL IT ON. THE NEW CONNECTOR ASSEMBLY IS NOT IDENTIFIED WITH THE ENGINE SERIAL NUMBER.

        Align and install the anti-vibration rubber on the jumper ends of the new connector assembly.

      7. Install the connector assembly and anti-vibration rubber into the backshell and tighten the backshell nut with your fingers.

      2. Identify the 5A0357 data entry plug as follows:

      1. Refer to Figure.

      2. Do the procedure given in SPM TASK 70-09-00-400-501 and use the vibration peen method.

        3. Mark the new part number adjacent to the part number that was there before.

        1. NUMBER BEFORE: 5A0357.

        2. NEW NUMBER: 5A0432.

        4. Mark -00 adjacent to the rating number.

        1. RATING NUMBER BEFORE: 1.

        2. NEW RATING NUMBER: 1-00.

      3. Replace the 5A9036 engine identification plate as follows:

      1. Refer to Figure.

        2. Remove the four bolts that hold the engine identification plate to the bracket located on the fan case at the 9 o'clock position

        1. Give the old engine identification plate to your IAE representative.

      3. Get the new 5A9036 engine identification plate from your IAE representative with the correct engine serial number, and take-off rating for your engine.

      4. CAUTION

        MAKE SURE THE DATA ON THE NEW ENGINE IDENTIFICATION PLATE IS CORRECT FOR THE ENGINE YOU INSTALL IT ON.

        Install the new engine identification plate to the bracket with the 4W0102 bolts (4 off).

      5. Torque the bolts to between 32 and 36 lbfin (3.61 and 4.07 Nm).

    6. SUBTASK 73-22-35-450-051 Install a New Electronic Engine Control (EEC)

      1. Install the new 2A2189 electronic engine control (EEC).

      1. Refer to Figure.

      2. Do the procedure given in TASK 72-00-32-450-001.

    7. SUBTASK 73-22-35-450-052 Connect the Data Entry Plug Assembly to the Electronic Engine Control (EEC)

      1. Connect the data entry plug assembly to the electronic engine control (EEC).

      1. Refer to Figure.

        2. Tighten and torque the data entry plug to 32 lbfin (3.6 Nm).

        1. Use the IAE 1J12018 EEC harness wrench. Refer to the procedure given in SPM TASK 70-41-00-400-501.

        3. Tighten and torque the backshell nut to between 53 and 58 lbfin (5.99 and 6.55 Nm).

        1. Refer to Figure.

        2. Use the TG-70 Strap wrench or equivalent.

        3. Refer to the procedure given in SPM TASK 70-09-00-400-501.

        4. Safety the backshell nut to the connector.

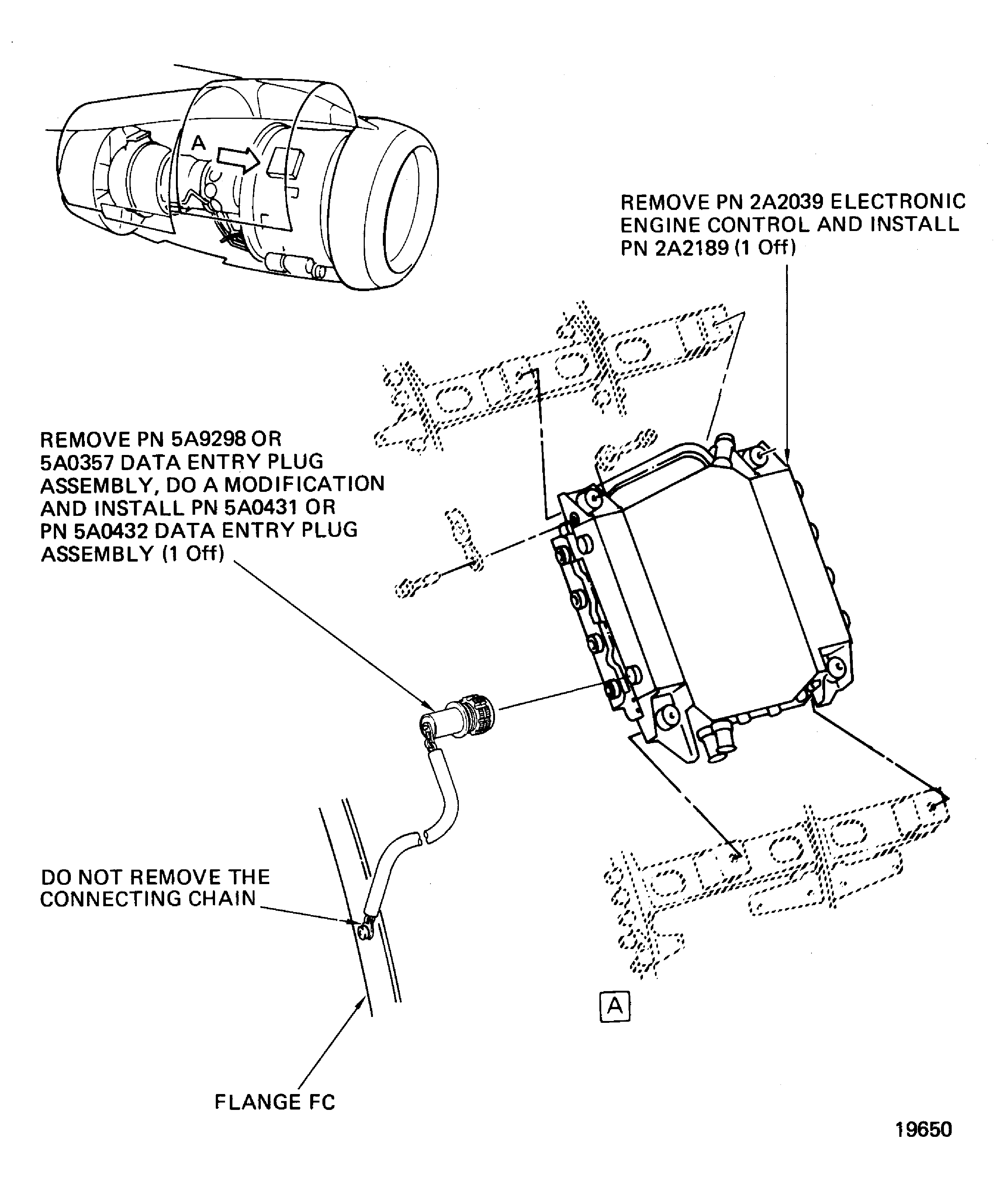

    8. Figure: Location Of Electronic Engine Control And Data Entry Plug Assembly

    Location Of Electronic Engine Control And Data Entry Plug Assembly

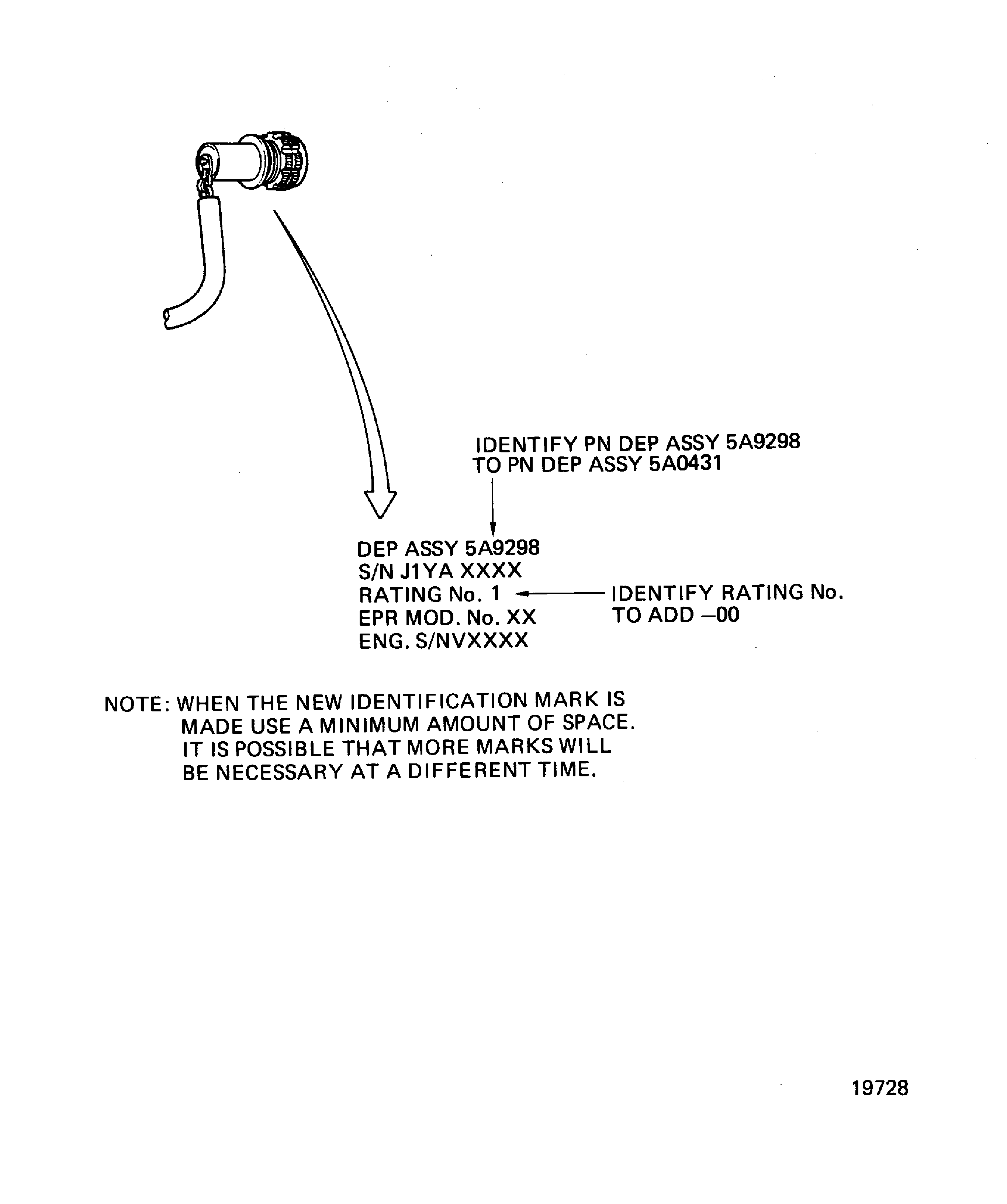

    Figure: Identification Of 5A9298 Data Entry Plug With No Modification

    Identification Of 5A9298 Data Entry Plug With No Modification

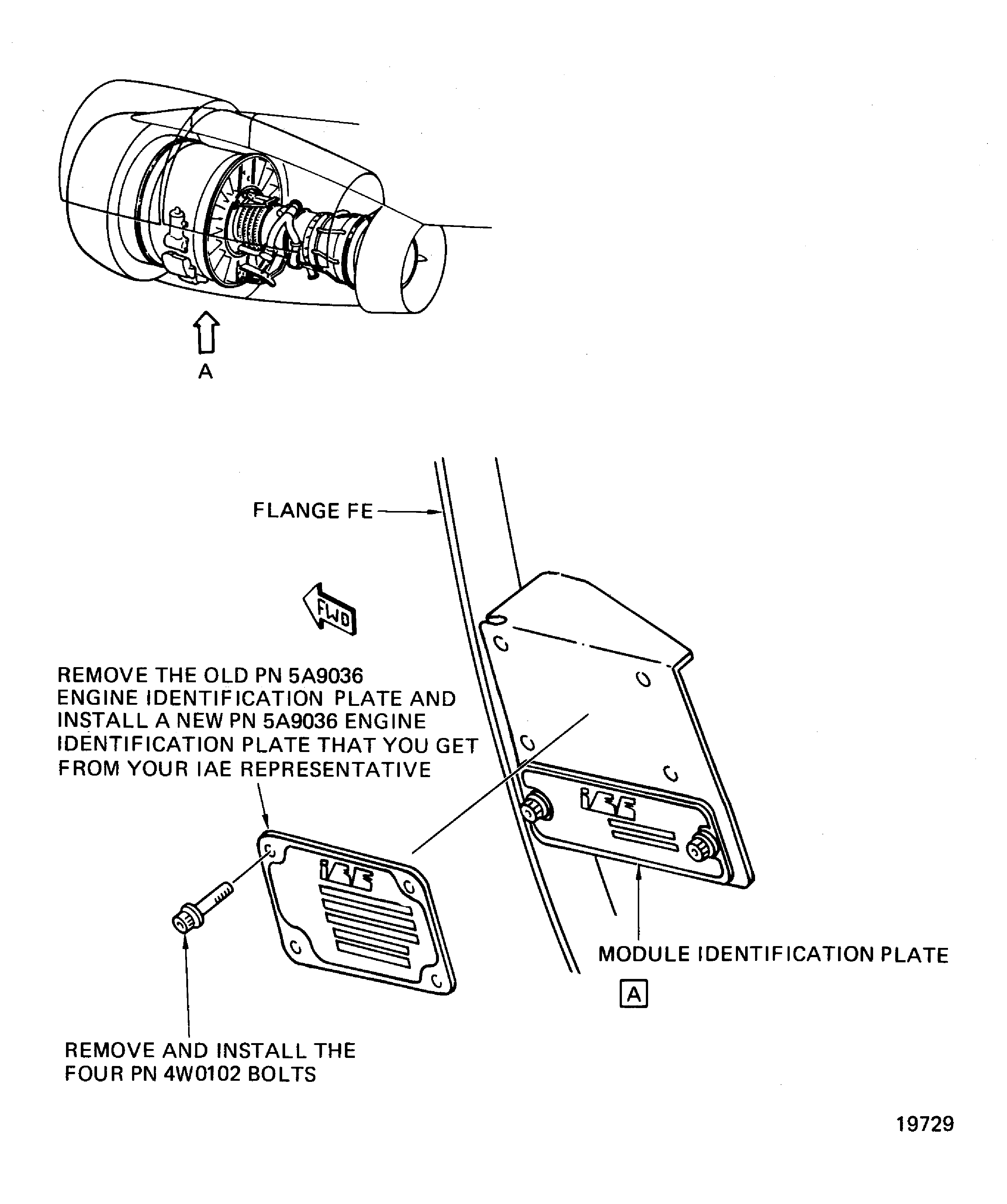

    Figure: Location Of The Engine Identification Plate

    Location Of The Engine Identification Plate

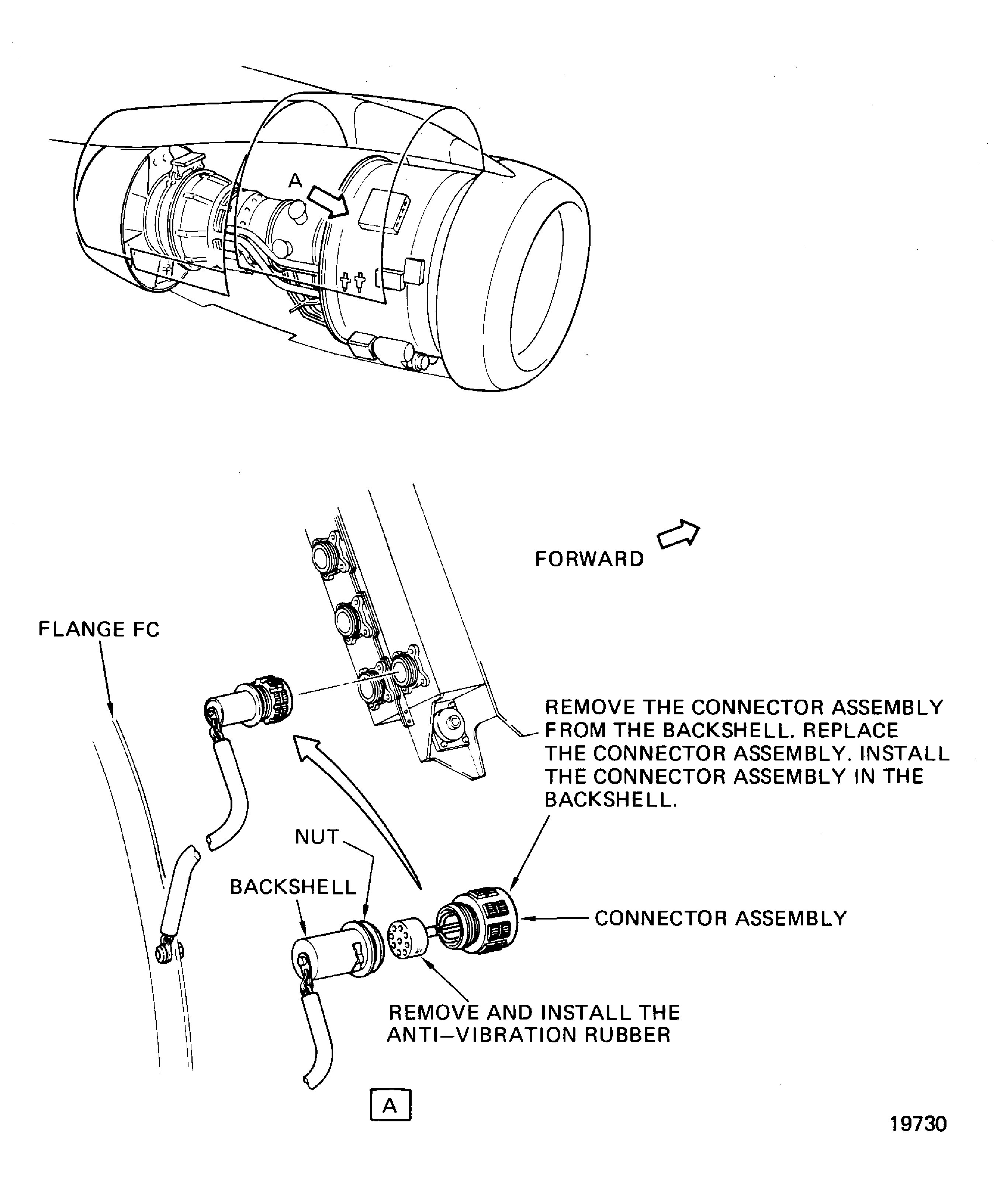

    Figure: Data Entry Plug Assembly

    Data Entry Plug Assembly

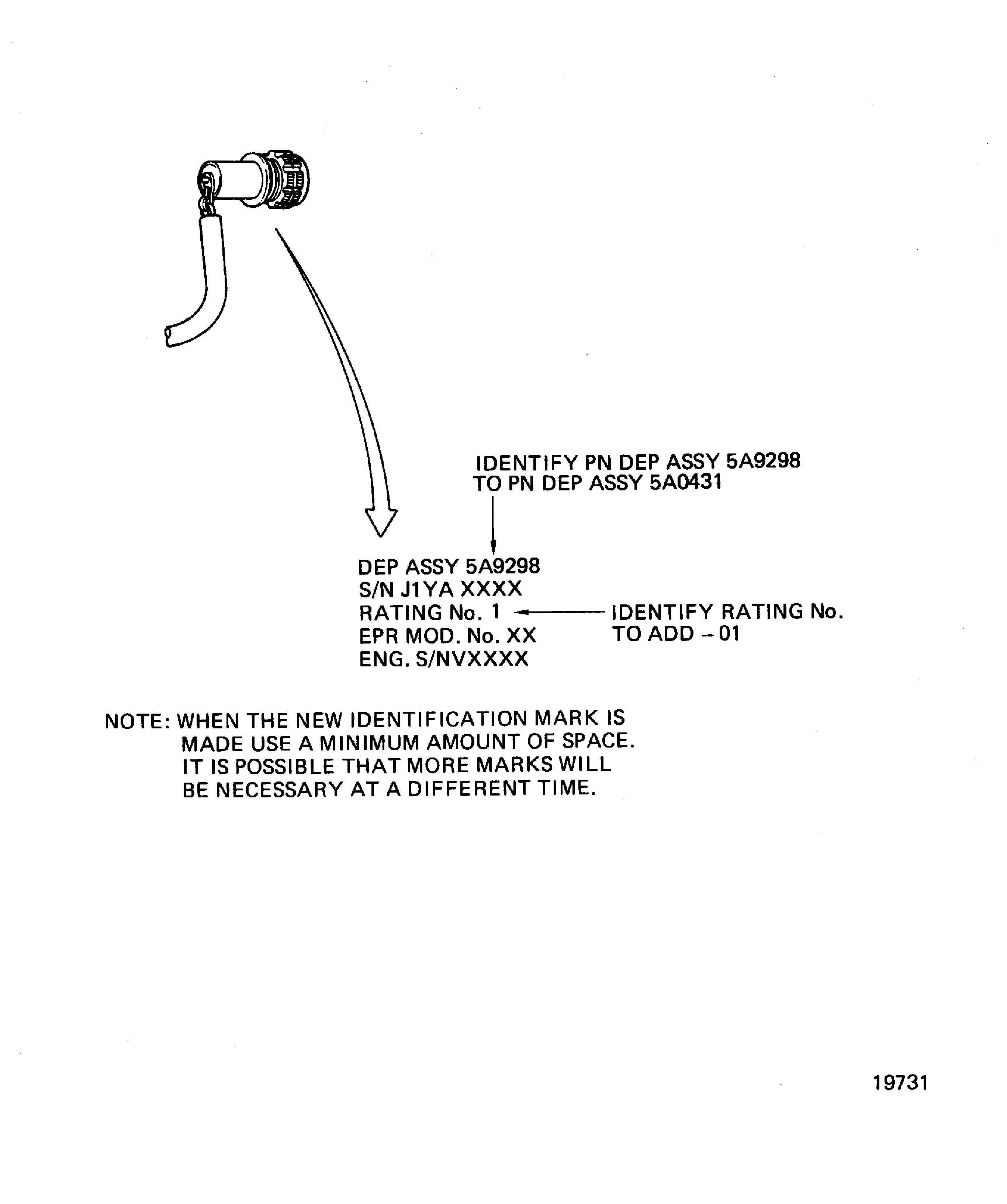

    Figure: Identification of 5A9298 Data Entry Plug Assembly With A Modification

    Identification of 5A9298 Data Entry Plug Assembly With A Modification

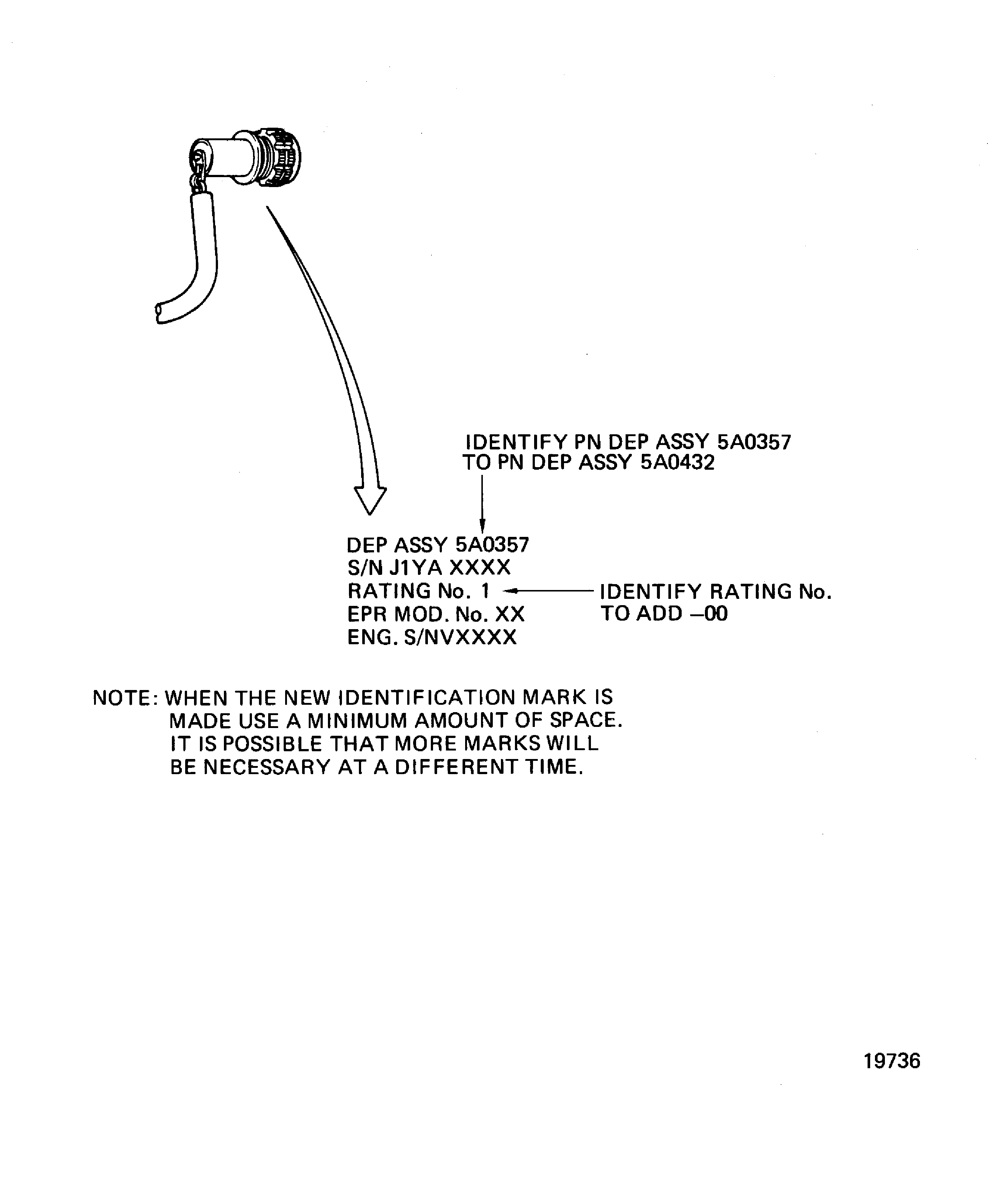

    Figure: Identification of 5A0357 Data Entry Plug Assembly With A Modification

    Identification of 5A0357 Data Entry Plug Assembly With A Modification

Requirements After Job Completion

Follow-On Conditions

NONE
