TASK 73-22-51-200-102-A00 P4.9 Air Sensor Tubes and Manifolds - Examine the Adapter, Inspection-002

Effectivity

FIG/ITEM

PART NO.

01-310

4P8089

01-310A

4P8105

General

This TASK gives the procedure for the inspection of the adapter. For the other parts of the P4.9 sensor and manifold refer to Inspection-000 TASK 73-22-51-200-100.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to SPM TASK 70-11-03-300-503.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SPM TASK 70-23-00-230-501. Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage SPM TASK 70-02-02-350-501.

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501.

Inspection of Parts, SPM TASK 70-20-00-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications.

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop Inspection EquipmentLOCALWorkshop Inspection Equipment
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent Penetrant Inspection Equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-22-51-230-052 Examine the Adapter (01-310, 01-310A) for Cracks

    1. Clean the parts. Refer to Cleaning-000 TASK 73-22-51-100-100.

      2. Do the test for cracks on the parts that are given below. Use the applicable penetrant inspection procedure.

        1. Adapter. Refer to SPM TASK 70-23-01-230-501.

          1. Cracked

          1. Reject

          2. Trough porosity

          1. Reject

    2. SUBTASK 73-22-51-220-057 Examine the Adapter (01-310, 01-310A) Flange

    1. Refer to Figure.

      2. Examine the bolt holes at location 1.

        1. Burred

          1. Any burrs

          1. Repair, VRS5180 (Repair-002) TASK 73-22-51-300-002.

      3. Examine the flange surface at location 2.

        1. Nicked, scored, dented.

          1. Up to 0.008 in. (0.20 mm) in depth.

          1. Accept

          2. More than Step.

          1. Repair, VRS5180 (Repair-002) TASK 73-22-51-300-002.

    3. SUBTASK 73-22-51-220-058 Examine the Adapter (01-310, 01-310A) Adapter Bores at Location 3

    1. Refer to Figure.

      2. Plugged

      1. Clear with air blast.

    4. SUBTASK 73-22-51-220-059 Examine the Adapter (01-310, 01-310A) End Fittings

    1. Refer to Figure.

      2. Examine the seal surface at location 4.

        1. Nicked, scored, dented.

          1. Up to 0.004 in. (0.10 mm) in depth, not extended across the seal surface.

          1. Accept

          2. More than Step.

          1. Repair, VRS5180 (Repair-002) TASK 73-22-51-300-002.

      3. Examine the threads at location 5.

        1. Threads

          1. Pick-up

          1. Repair, VRS5180 (Repair-002) TASK 73-22-51-300-002.

          2. Crossed or stripped

          1. Reject

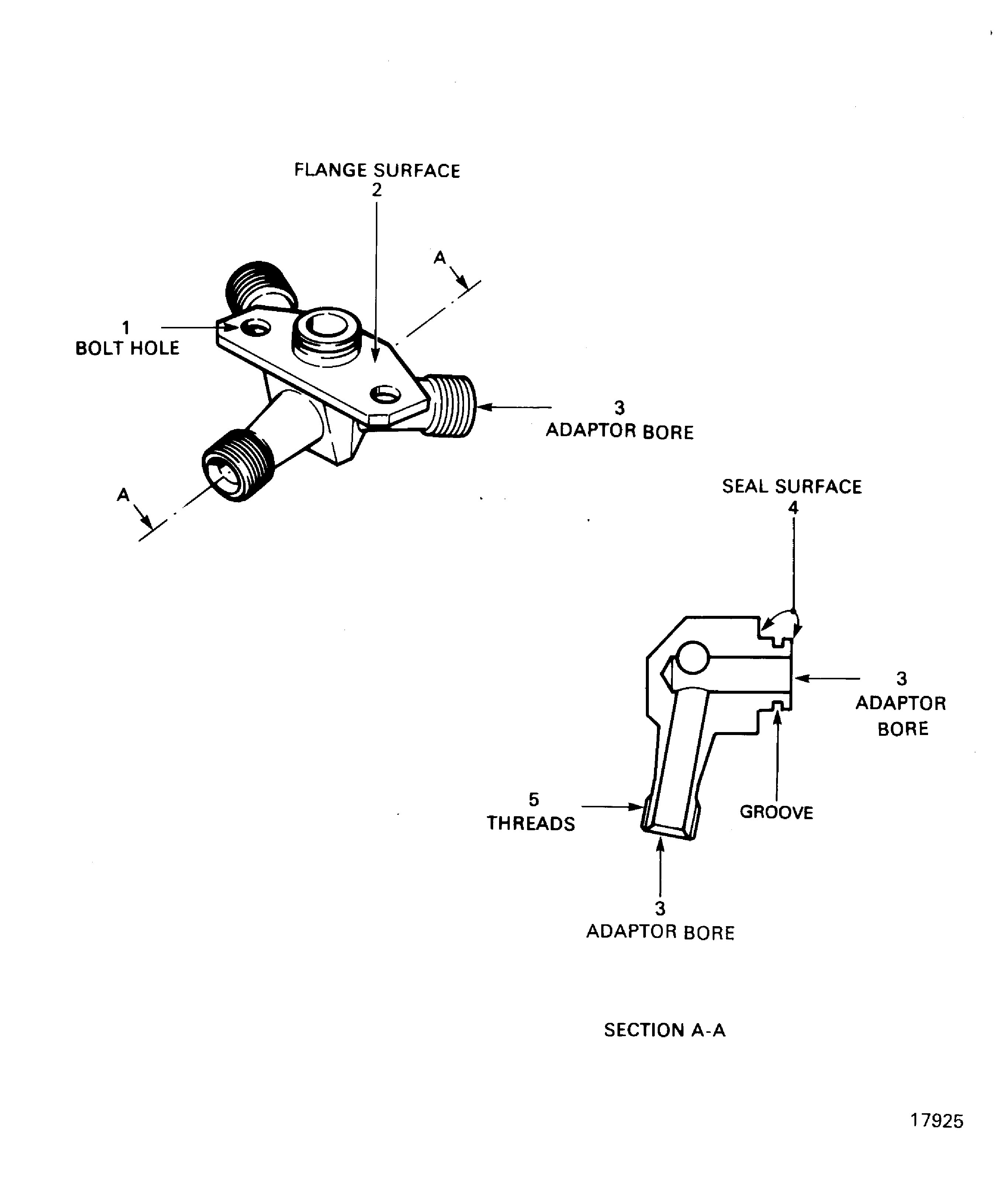

    5. Figure: Locations on the Adapter
