TASK 75-00-49-200-401 Engine Air Off-Take Ducts - Related Parts - Examine The Bracket, Inspection-001

DMC:V2500-A0-75-00-4900-00A-310A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-00-49-200-401 Engine Air Off-Take Ducts - Related Parts - Examine The Bracket, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-670

5W2076

General

This TASK gives the procedure for the inspection of the bracket. For the other engine air off-take duct parts, refer to Inspection-000 TASK 75-00-49-200-400 and Inspection-000 TASK 75-00-49-200-100 in the Component Maintenance Manual (CMM-THDV2500- 1IA).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to Cleaning-000 TASK 75-00-49-100-400.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Reference

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-00-49-220-063 Examine the Bracket (01-670) Surface

    1. Refer to Figure.

      2. Examine all the surface

        1. Cracked

          1. Any cracks

          1. Reject

        2. Nicked

          1. Any nicks

          1. Repair, VRS1641 (Repair-010) TASK 75-00-49-300-010.

        3. Dented

          1. Any dents

          1. Repair, VRS1641 (Repair-010) TASK 75-00-49-300-010.

        4. Scratched

          1. Any scratches

          1. Repair, VRS1641 (Repair-010) TASK 75-00-49-300-010.

    2. SUBTASK 75-00-49-220-064 Examine the Bracket (01-670) Bolt Hole

    1. Refer to Figure.

      2. Examine the bolt hole at locations 1 and 2

        1. Wear

          1. The worn hole is less than one point two times of the nominal diameter and the distance between the worn hole and the edge of the bracket is more than 0.066 in. (1.68 mm)

          1. Accept

          2. Other than in Step.

          1. Reject

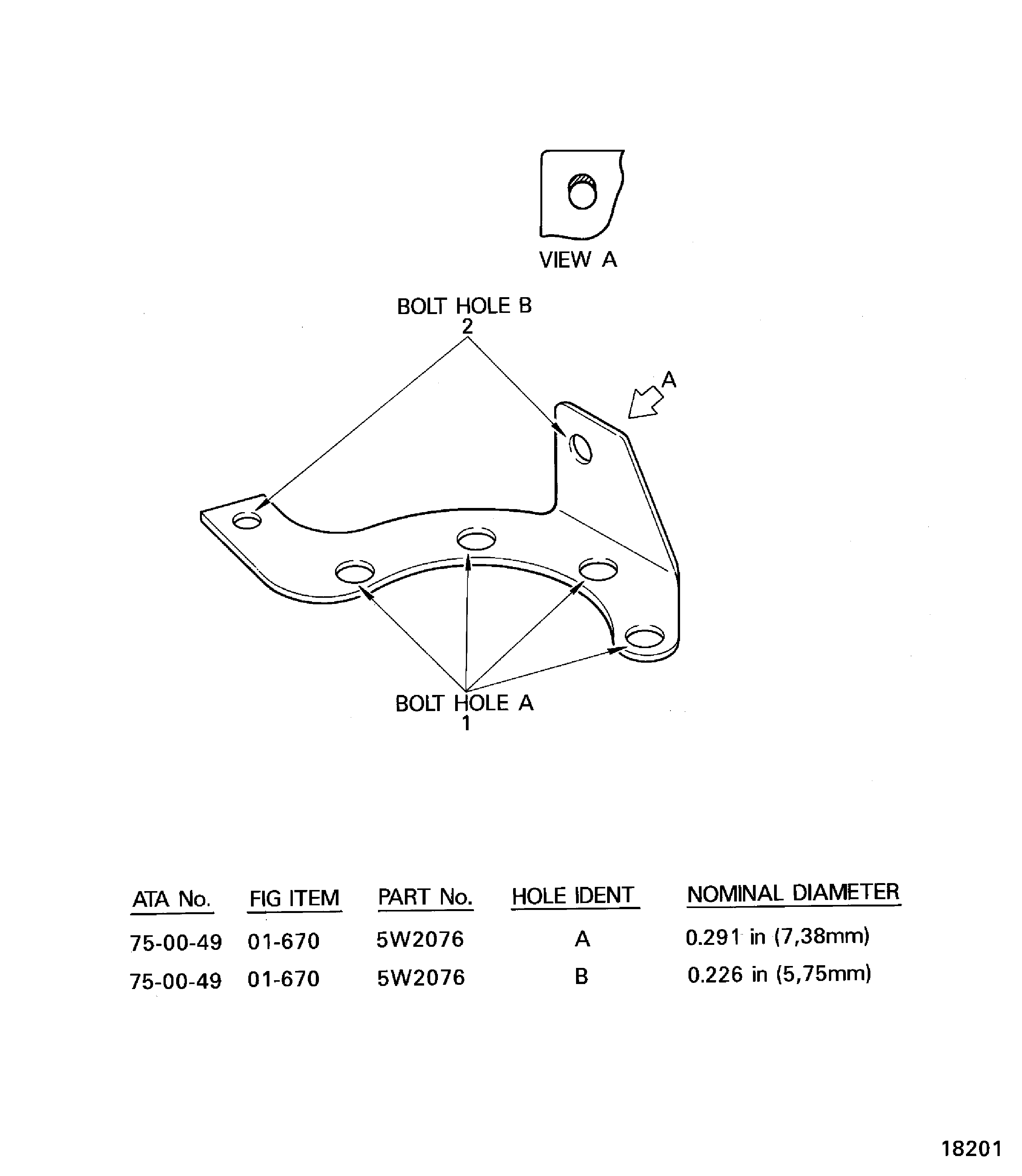

    3. Figure: Inspection Of The Bracket

    Inspection Of The Bracket

Requirements After Job Completion

Follow-On Conditions

NONE
