TASK 79-11-41-200-402 Oil Tank - Related Parts - Examine The Cover Assembly, Inspection-002

DMC:V2500-A0-79-11-4100-01A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 79-11-41-200-402 Oil Tank - Related Parts - Examine The Cover Assembly, Inspection-002

Effectivity

FIG/ITEM

PART NO.

01-410

4B7250

General

This TASK gives the procedure for the inspection of the cover assembly. For the other parts of the oil tank assembly, refer to Inspection- 000 TASK 79-11-41-200-400.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in the repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-00-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications.

Chemical Processes.

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 79-11-41-230-052 Do a Crack Test on the Cover Assembly (Fluorescent Penetrant)

    1. Clean the parts. Refer to Cleaning-000 TASK 79-11-41-100-400.

      2. Do the test for cracks on the part that is given below.

        1. Cover Assembly

          1. Refer to SPM TASK 70-23-01-230-501.

            1. Cracked

            1. Reject

            2. Trough porosity

            1. Reject

    2. SUBTASK 79-11-41-220-065 Examine the Cover Assembly All Areas

      1. Evident cracks.

      1. Reject

    3. SUBTASK 79-11-41-220-066 Examine the Cover Assembly Machined Surfaces at Location 1

    1. Refer to Figure.

      2. Nicked, scored, dented or scratched.

        1. Not more than 0.008 in. (0.20 mm) in depth.

        1. Accept

        2. More than Step.

        1. Repair, VRS5217 (Repair-016) TASK 79-11-41-300-016.

    4. SUBTASK 79-11-41-220-067 Examine the Cover Assembly Machined Seal Surfaces at Location 2

    1. Refer to Figure.

      2. Nicked, scored, dented or scratched.

        1. Not more than 0.004 in. (0.10 mm) in depth, not extended across the seal surface.

        1. Accept.

        2. More than Step.

        1. Repair, VRS5217 (Repair-016) TASK 79-11-41-300-016.

    5. SUBTASK 79-11-41-220-068 Examine the Cover Assembly Mouting Face at Location 3

    1. Refer to Figure.

      2. Perpendicularity.

        1. Not more than 0.001 in. (0.025 mm) FIR in relation to surface B.

        1. Reject.

        2. More than Step.

        1. Repair, VRS5219 (Repair- 018) TASK 79-11-41-300-018.

    6. SUBTASK 79-11-41-220-069 Examine the Cover Assembly Piloting Diameter at Location 4

    1. Refer to Figure.

      2. Diameter.

        1. Between 2.992 and 2.990 in. (75.996 and 75.946 mm).

        1. Accept.

        2. Less than 2.990 in. (75.946 mm).

        1. Repair, VRS5218 (Repair- 017) TASK 79-11-41-300-017.

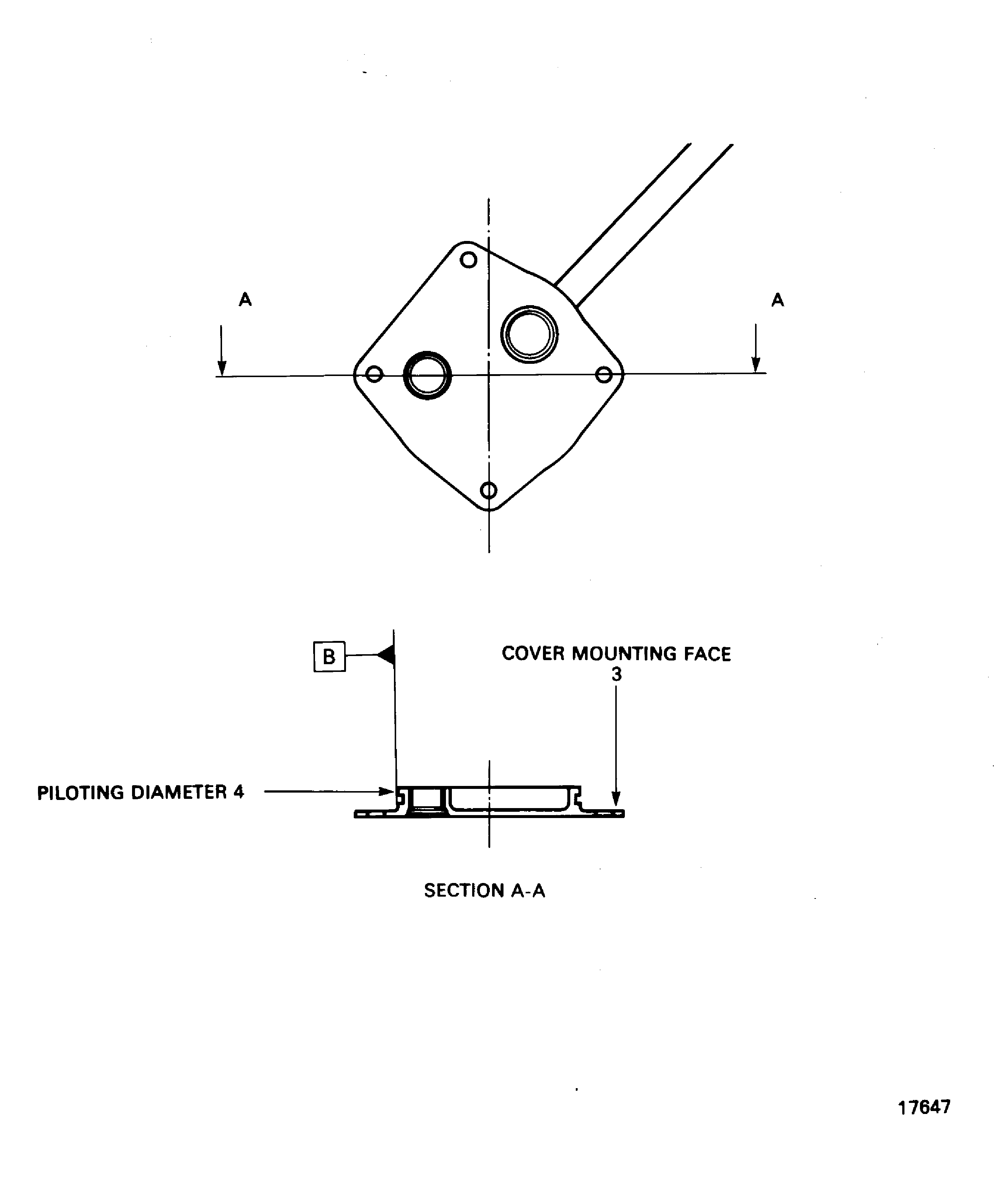

    7. Figure: Locations On The Cover Assembly

    Locations On The Cover Assembly

    Figure: Locations On The Cover Assembly

    Locations On The Cover Assembly

Requirements After Job Completion

Follow-On Conditions

NONE
