ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE

DMC:V2500-A1-71-52-43-01A-941A-D|Issue No:002.00|Issue Date:2014-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B71524301ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE72-0023aa
000SBE0023-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0022ab
000SBE0022-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0047ac
000SBE0047-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE72-0081ad
000SBE0081-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE71-0063ae
000SBE0063-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0158af
000SBE0158-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE71-0067ag
000SBE0067-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE72-0132ah
000SBE0132-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0156ai
000SBE0156-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0236aj
000SBE0236-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE71-0111ak
000SBE0111-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0270al
000SBE0270-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE75-0035am
000SBE0035-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0271an
000SBE0271-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0374ao
000SBE0374-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE79-0087ap
000SBE0087-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE71-0303aq
000SBE0303-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE72-0553ar
000SBE0553-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-COREas

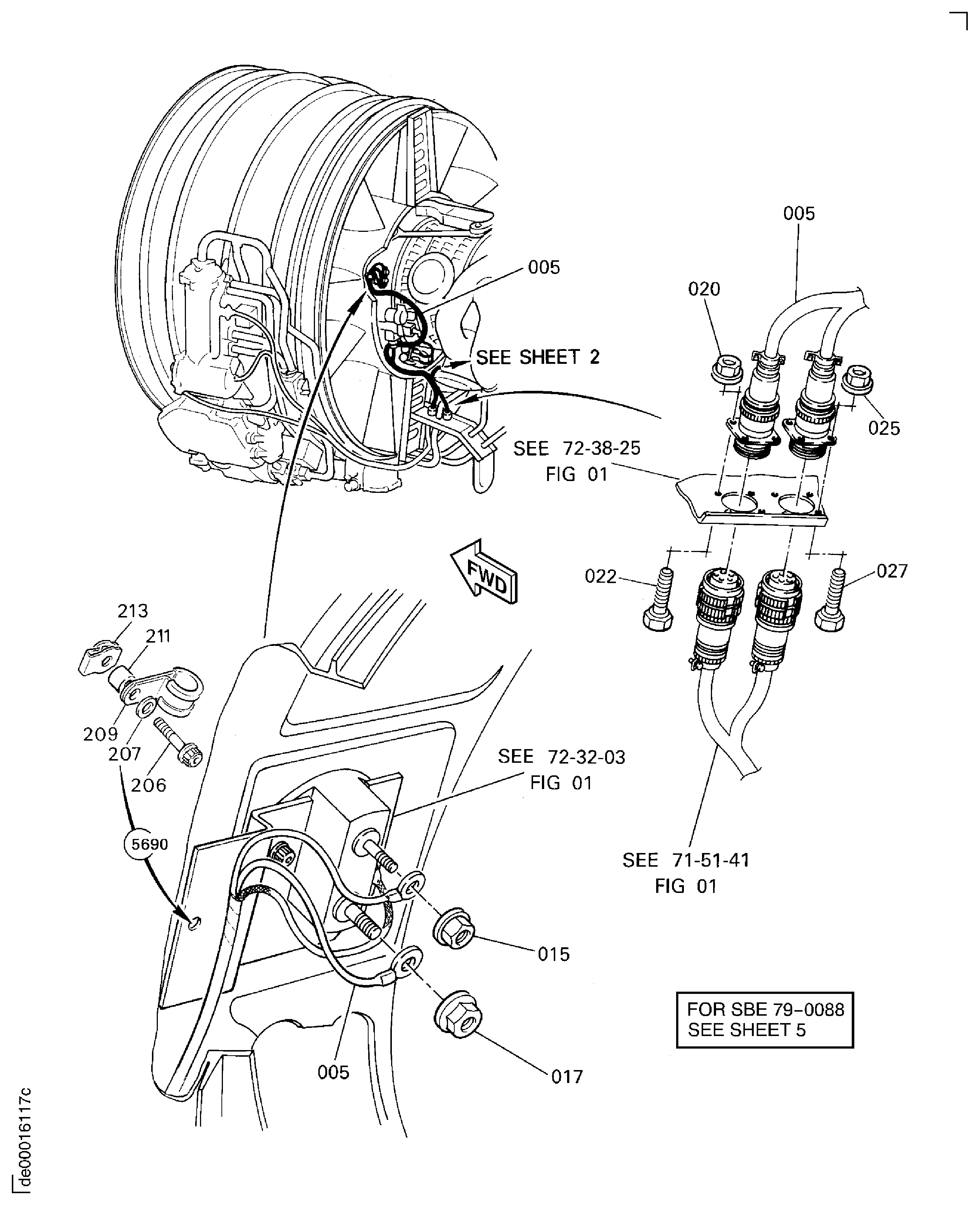

0050052A1497• HARNESS - CORE,WIRING
PRE SBE70-0156		aa-ak1
005005A6A4718• HARNESS - ASSY CORE
POST SBE70-0156
PRE SBE71-0111		aa-ak1
005005B6A5554• HARNESS - ASSY
POST SBE71-0111
PRE SBE70-0270		aa-ap1
005005C6A5554• HARNESS - ASSY
POST SBE70-0270
PRE SBE70-0374		aa-ap1
005005D6A4718• HARNESS - ASSY CORE
POST SBE70-0270
PRE SBE70-0374		am-ao1
005005E6A5699• HARNESS - ASSY CORE EEC
POST SBE70-0374
PRE SBE79-0087		aa-as1
005005F6A8171• HARNESS - ASSY CORE EEC
POST SBE79-0087		aa-as1
006006AS27832• NUT - ASSEMBLED WASHER
U1653
POST SBE72-0023		ab-as4
007007AN960C8• WASHER - FLAT
81352
POST SBE72-0023
PRE SBE72-0081		ab-as6
007007AMS9321-08• WASHER
96906
POST SBE72-0081		ab-as6

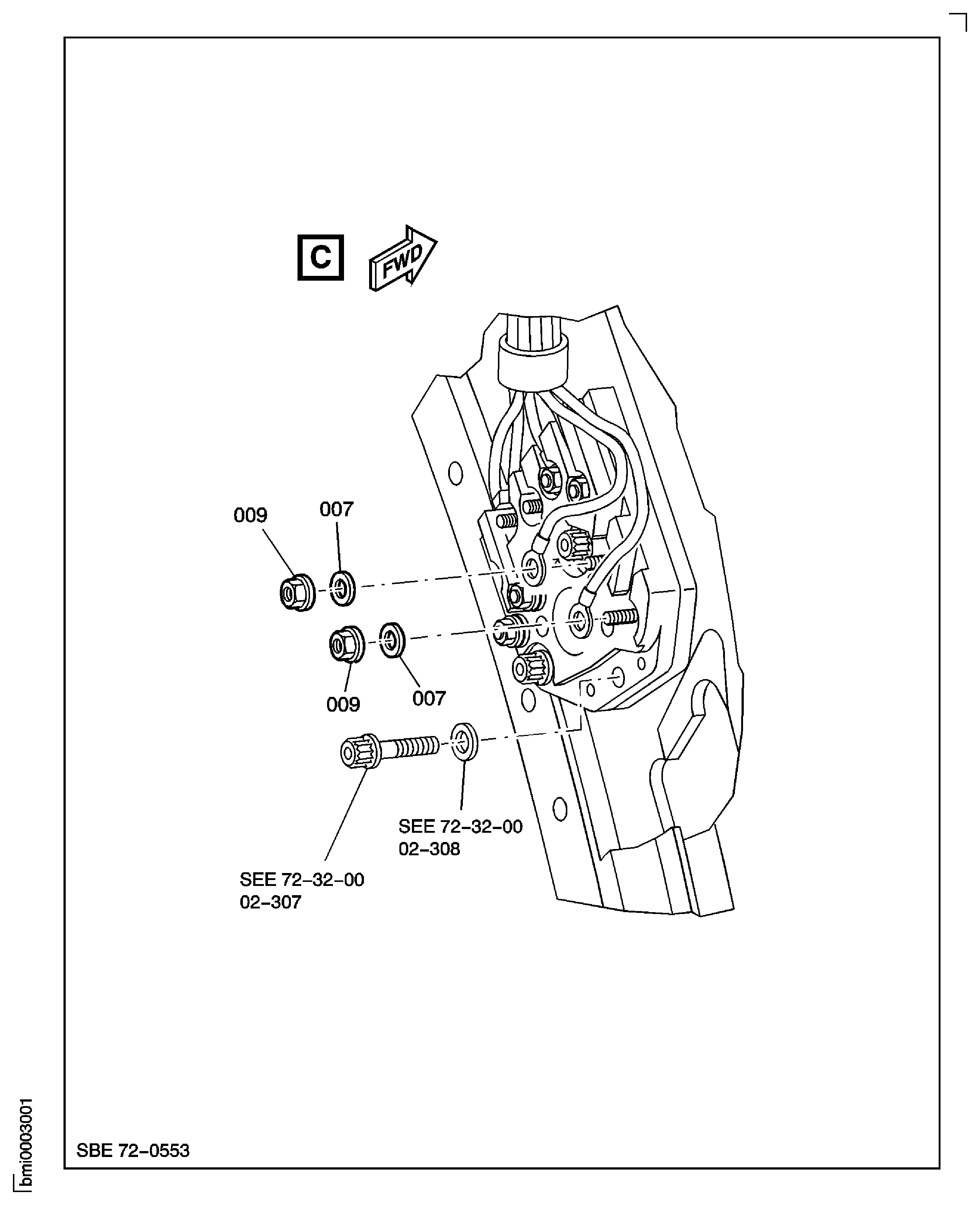

009009AS27831• NUT - .138 DIA
U1653
POST SBE72-0023		ab-as2
0150152A1446• NUT
PRE SBE70-0236		aa-as1
015015AAS27832• NUT
U1653
POST SBE70-0236		aa-as1
0170172A1447• NUT
PRE SBE70-0236		aa-as1
017017AU128443• NUT - .190 DIA
POST SBE70-0236		aa-as1
020020AS27831• NUT - .138 DIA
U1653		aa-as4
022022AS36607• SCREW - HEX HD, .138 DIA X .438
U1653		aa-as4
025025AS27831• NUT - .138 DIA
U1653		aa-as4
027027AS36607• SCREW - HEX HD, .138 DIA X .438
U1653		aa-as4
0300304W0103• BOLT - .190 DIA X .500aa-as1
032032AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
032032A5W1086• WASHER
POST SBE70-0022		aa-as1
0340344W0001• NUT - .190 DIAaa-as1
0540544W0103• BOLT - .190 DIA X .500
PRE SBE75-0035		aa-am1
054054A4W0102• BOLT - .190 DIA X .438
POST SBE75-0035		an-as1
055055AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-am1
055055A5W1086• WASHER
POST SBE70-0022
PRE SBE75-0035		aa-am1
057057JM44LC39H105RG• CLAMP
22175
PRE SBE70-0158		aa-af1
057057AJM44LC39H106RG• CLAMP
22175
POST SBE70-0158
PRE SBE71-0067		ag-as1
057057BTA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067		ag-as1
-057057CAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT TA025074-07
POST SBE71-0067		ag-asREF
0610614W0043• NUT - .190 DIAaa-as1
073073JM44LC39H106RG• CLAMP
22175
PRE SBE71-0067		aa-ap1
073073ATA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067
PRE SBE79-0087		aa-ap1
-073073BAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT AS62507
POST SBE71-0067
PRE SBE79-0087		aa-apREF
073073CAS62507• CLAMP - 11.13 MM (0.438)
U1653
ALT TA025074-07
POST SBE79-0087		ah-ap1
1101104W0112• BOLT - .190 DIA X 1.062
PRE SBE79-0087		aa-ap1
111111AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ap1
111111A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-ap1
113113JM44LC39H113RG• CLAMP
22175
PRE SBE71-0067		aa-ap1
113113ATA025074-16• CLAMP - 1.000 DIA
84971
ALT AS61914
POST SBE71-0067
PRE SBE79-0087		aa-ap1
-113113BAS61914• CLAMP - 25.40 MM (1.000)
U1653
ALT TA025074-16
POST SBE71-0067
PRE SBE79-0087		aa-apREF
1151155W1030• SPACER - (10MM)
PRE SBE79-0087		aa-ap1
1171174W0001• NUT - .190 DIA
PRE SBE79-0087		aa-ap1
1181184W0115• BOLT - .190 DIA X 1.250
PRE SBE79-0087		aa-ap1
118118A4W0111• BOLT - .190 DIA X 1.000
POST SBE79-0087		aq-as1
119119AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as2
119119A5W1086• WASHER
POST SBE70-0022		aa-as2
120120JM44LC39H101RG• CLAMP
22175
PRE SBE71-0067		aa-ap1
120120ATA025074-01• CLAMP - .062 DIA
84971
ALT AS61931
POST SBE71-0067
PRE SBE79-0087		aa-ap1
-120120BAS61931• CLAMP - 1.58 MM (.062)
U1653
ALT AS62501
POST SBE71-0067
PRE SBE79-0087		aa-apREF
120120CAS62501• CLAMP - 1.57 MM (0.062)
U1653
ALT TA025074-01
POST SBE79-0087		ah-ap1
121121JM44LC39H113RG• CLAMP
22175
PRE SBE71-0067		aa-ap1
121121ATA025074-17• CLAMP - 1.062 DIA
84971
ALT AS61915
POST SBE71-0067
PRE SBE79-0087		aa-ap1
-121121BAS61915• CLAMP - 26.97 MM (1.062)
U1653
ALT AS62516
POST SBE71-0067
PRE SBE79-0087		aa-apREF
121121CAS62516• CLAMP - 25.40 MM (1.000)
U1653
ALT TA025074-17
POST SBE79-0087		ah-ap1
1231235W1030• SPACER - (10MM)aa-as1
1251254W0001• NUT - .190 DIAaa-as1
1901904W0103• BOLT - .190 DIA X .500aa-as1
191191AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
191191A5W1086• WASHER
POST SBE70-0022		aa-as1
193193JM44LC39H101RG• CLAMP
22175
PRE SBE71-0067		aa-as1
193193ATA025074-01• CLAMP - .062 DIA
84971
ALT AS61931
POST SBE71-0067		aa-as1
-193193BAS61931• CLAMP - 1.58 MM (.062)
U1653
ALT TA025074-01
POST SBE71-0067		aa-asREF
1971974W0001• NUT - .190 DIAaa-as1
1981984W0103• BOLT - .190 DIA X .500aa-as1
199199AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
199199A5W1086• WASHER
POST SBE70-0022		aa-as1
201201JM44LC39H101RG• CLAMP
22175
PRE SBE71-0067		aa-as1
201201ATA025074-01• CLAMP - .062 DIA
84971
ALT AS61931
POST SBE71-0067		aa-as1
-201201BAS61931• CLAMP - 1.58 MM (.062)
U1653
ALT TA025074-01
POST SBE71-0067		aa-asREF
2052054W0001• NUT - .190 DIAaa-as1
2062064W0114• BOLT - .190 DIA X 1.188aa-as1
207207AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
207207A5W1086• WASHER
POST SBE70-0022		aa-as1
209209JM44LC39H101RG• CLAMP
22175
PRE SBE71-0067		aa-as1
209209ATA025074-04• CLAMP - .250 DIA
84971
ALT AS61902
POST SBE71-0067		aa-as1
-209209BAS61902• CLAMP - 6.35 MM (0.250)
U1653
ALT TA025074-04
POST SBE71-0067		aa-asREF
2112115W1031• SPACER - (15MM)aa-as1
2132134W0043• NUT - .190 DIAaa-as1
2142144W0104• BOLT - .190 DIA X .562aa-as1
215215AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
215215A5W1086• WASHER
POST SBE70-0022		aa-as1
217217JM44LC39H110RG• CLAMP
22175
PRE SBE71-0067		aa-as1
217217ATA025074-12• CLAMP - .750 DIA
84971
ALT AS61910
POST SBE71-0067		aa-as1
-217217BAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		aa-asREF
2212214W0001• NUT - .190 DIAaa-as1
2222224W0104• BOLT - .190 DIA X .562aa-as1
223223AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
223223A5W1086• WASHER
POST SBE70-0022		aa-as1
225225JM44LC39H110RG• CLAMP
22175
PRE SBE71-0067		aa-as1
225225ATA025074-12• CLAMP - .750 DIA
84971
ALT AS61910
POST SBE71-0067		aa-as1
-225225BAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		aa-asREF
2292294W0001• NUT - .190 DIAaa-as1
2302304W0104• BOLT - .190 DIA X .562
PRE SBE79-0087		aa-ap1
231231AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ap1
231231A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-ap1
233233JM44LC39H102RG• CLAMP
22175
PRE SBE71-0067		aa-an1
233233ATA025074-09• CLAMP - .562 DIA
84971
ALT AS61907
POST SBE71-0067
PRE SBE70-0271		aa-an1
-233233BAS61907• CLAMP - 14.27 MM (O.562)
U1653
ALT TA025074-04
POST SBE71-0067
PRE SBE70-0271		aa-anREF
233233CTA025074-04• CLAMP - .250 DIA
84971
ALT AS61902
POST SBE70-0271
PRE SBE79-0087		ah-an1
-233233DAS61902• CLAMP - 6.35 MM (0.250)
U1653
ALT TA025074-09
POST SBE70-0271
PRE SBE79-0087		ah-anREF
2372374W0043• NUT - .190 DIA
PRE SBE79-0087		aa-ap1
2382384W0104• BOLT - .190 DIA X .562aa-as1
239239AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
239239A5W1086• WASHER
POST SBE70-0022		aa-as1
241241JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-as1
241241ATA025074-09• CLAMP - .562 DIA
84971
ALT AS61907
POST SBE71-0067		aa-as1
-241241BAS61907• CLAMP - 14.27 MM (O.562)
U1653
ALT TA025074-09
POST SBE71-0067		aa-asREF
2452454W0001• NUT - .190 DIAaa-as1
2622624W0104• BOLT - .190 DIA X .562
PRE SBE79-0087		aa-ap1
262262A4W0102• BOLT - .190 DIA X .438
POST SBE79-0087		aq-as1
263263AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ap1
263263A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-ap1
265265JM44LC39H106RG• CLAMP
22175
PRE SBE71-0067		aa-ap1
265265ATA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067
PRE SBE79-0087		aa-ap1
-265265BAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT AS62507
POST SBE71-0067
PRE SBE79-0087		aa-apREF
265265CAS62507• CLAMP - 11.13 MM (0.438)
U1653
ALT TA025074-07
POST SBE79-0087		ah-ap1
2692694W0001• NUT - .190 DIAaa-as1
2702704W0104• BOLT - .190 DIA X .562aa-as1
271271AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ap1
271271A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-ap1
273273JM44LC39H106RG• CLAMP
22175
PRE SBE71-0067		aa-ap1
273273ATA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067
PRE SBE79-0087		aa-ap1
-273273BAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT TA025074-07
POST SBE71-0067
PRE SBE79-0087		aa-apREF
2772774W0001• NUT - .190 DIA
PRE SBE79-0087		aa-ap1
3023024W0104• BOLT - .190 DIA X .562aa-as1
303303AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
303303A5W1086• WASHER
POST SBE70-0022		aa-as1
305305JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-as1
305305ATA025074-08• CLAMP - .500 DIA
84971
ALT AS61906
POST SBE71-0067		aa-as1
-305305BAS61906• CLAMP - 12.70 MM (0.500)
U1653
ALT TA025074-08
POST SBE71-0067		aa-asREF
3093094W0001• NUT - .190 DIAaa-as1

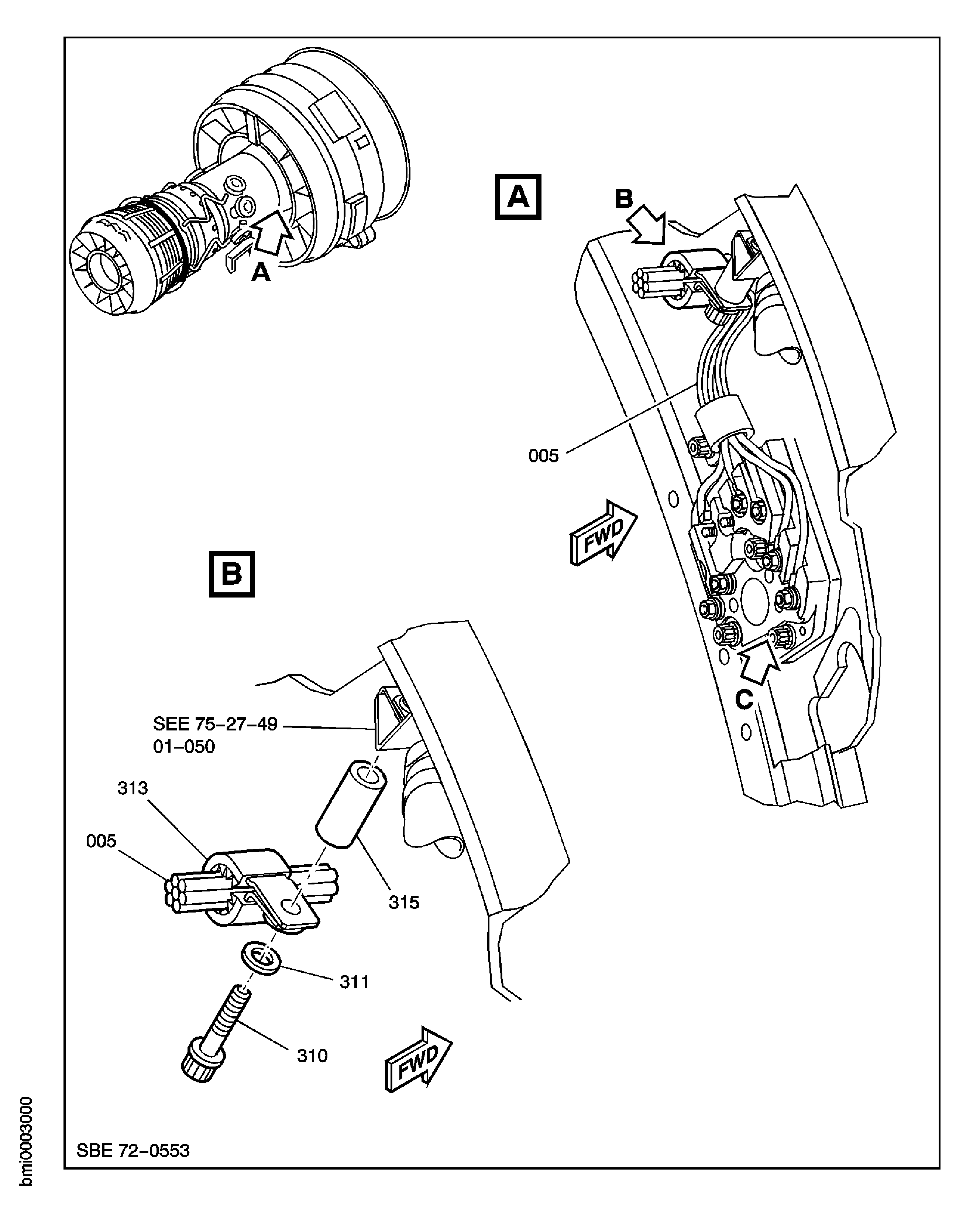

3103104W0112• BOLT - .190 DIA X 1.062
PRE SBE71-0303		aa-aq1
310310AAS21425• BOLT - .190 DIA X 1.562
U1653
POST SBE71-0303
PRE SBE72-0553		ar1
310310B4W0112• BOLT - .190 DIA X 1.062
POST SBE72-0553		as1
311311AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-aq1
311311A5W1086• WASHER
POST SBE70-0022
PRE SBE71-0303		aa-aq1
311311B5W1086• WASHER
POST SBE72-0553		as1
313313JM44LC39H103RG• CLAMP
22175
PRE SBE71-0067		aa-ar1
313313ATA025074-06• CLAMP - .375 DIA
84971
ALT AS61904
POST SBE71-0067
PRE SBE72-0553		aa-ar1
-313313BAS61904• CLAMP - 9.53 MM (0.375)
U1653
ALT TA025074-06
POST SBE71-0067
PRE SBE72-0553		aa-arREF
313313CAS61904• CLAMP - 9.53 MM (0.375)
U1653
POST SBE72-0553		as1
314314UP10480• SPACER - 15MM
POST SBE71-0303
PRE SBE72-0553		ar1
3153155W1030• SPACER - (10MM)aa-as1
315315AUP10479• SPACER - 10MM
POST SBE72-0553		as1
3173174W0043• NUT - .190 DIAaa-as1
3183184W0112• BOLT - .190 DIA X 1.062aa-as1
319319AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
319319A5W1086• WASHER
POST SBE70-0022		aa-as1
321321JM44LC39H103RG• CLAMP
22175
PRE SBE71-0067		aa-as1
321321ATA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067		aa-as1
-321321BAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT TA025074-07
POST SBE71-0067		aa-asREF
3233235W1030• SPACER - (10MM)aa-as1
3253254W0043• NUT - .190 DIAaa-as1
3583584W0105• BOLT - .190 DIA X .625
PRE SBE72-0132		aa-ah1
358358A4W0103• BOLT - .190 DIA X .500
POST SBE72-0132		aa-as1
359359AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
359359A5W1086• WASHER
POST SBE70-0022
PRE SBE72-0132		aa-as1
359359BK8831• WASHER - .190 DIA X 0,51 THK
POST SBE72-0132		aa-as2
361361JM44LC39H106RG• CLAMP
22175
PRE SBE71-0067		aa-ah1
361361ATA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067
PRE SBE72-0132		aa-ah1
-361361BAS61905• CLAMP - 11.13 MM (O.436)
U1653
POST SBE71-0067
PRE SBE72-0132		aa-ahREF
3653654W0001• NUT - .190 DIAaa-as1
3663664W0103• BOLT - .190 DIA X .500
PRE SBE72-0132		aa-ah1
366366A4W0102• BOLT - .190 DIA X .438
POST SBE72-0132		aa-as1
367367AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
367367A5W1086• WASHER
POST SBE70-0022
PRE SBE72-0132		aa-as1
367367BK8831• WASHER - .190 DIA X 0,51 THK
POST SBE72-0132		aa-as1
369369JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-as1
369369ATA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067		aa-as1
-369369BAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT TA025074-07
POST SBE71-0067		aa-asREF
373373AS41104• NUT - .190 DIA
U1653
PRE SBE70-0047		aa-as1
373373A4W0043• NUT - .190 DIA
POST SBE70-0047		aa-as1
3743744W0113• BOLT - .190 DIA X 1.125
PRE SBE72-0132		aa-ah1
374374A4W0102• BOLT - .190 DIA X .438
POST SBE72-0132		aa-as1
375375AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
375375A5W1086• WASHER
POST SBE70-0022
PRE SBE72-0132		aa-as1
375375BK8831• WASHER - .190 DIA X 0,51 THK
POST SBE72-0132		aa-as2
377377JM44LC39H104RG• CLAMP
22175
PRE SBE70-0158		aa-af1
377377AJM44LC39H105RG• CLAMP
22175
POST SBE70-0158
PRE SBE71-0067		ag-as1
377377BTA025074-05• CLAMP - .313 DIA
84971
ALT AS61903
POST SBE71-0067		ag-as1
-377377CAS61903• CLAMP - 7.92 MM (0.312)
U1653
ALT TA025074-05
POST SBE71-0067		ag-asREF
3793795W1031• SPACER - (15MM)
PRE SBE72-0132		aa-ah1
3813814W0001• NUT - .190 DIAaa-as1
3823824W0113• BOLT - .190 DIA X 1.125
PRE SBE70-0158		aa-af1
382382A4W0115• BOLT - .190 DIA X 1.250
POST SBE70-0158
PRE SBE72-0132		aa-ah1
382382B4W0103• BOLT - .190 DIA X .500
POST SBE72-0132		aa-as1
383383AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
383383A5W1086• WASHER
POST SBE70-0022
PRE SBE72-0132		aa-as1
383383BK8831• WASHER - .190 DIA X 0,51 THK
POST SBE72-0132		aa-as2
385385JM44LC39H104RG• CLAMP
22175
PRE SBE71-0067		aa-as1
385385ATA025074-04• CLAMP - .250 DIA
84971
ALT AS61902
POST SBE71-0067		aa-as1
-385385BAS61902• CLAMP - 6.35 MM (0.250)
U1653
ALT TA025074-04
POST SBE71-0067		aa-asREF
3873875W1031• SPACER - (15MM)
PRE SBE72-0132		aa-ah1
3893894W0001• NUT - .190 DIAaa-as1
3903904W0104• BOLT - .190 DIA X .562aa-as1
391391AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
391391A5W1086• WASHER
POST SBE70-0022		aa-as1
393393JM44LC39H108RG• CLAMP
22175
PRE SBE71-0067		aa-as1
393393ATA025074-09• CLAMP - .562 DIA
84971
ALT AS61907
POST SBE71-0067		aa-as1
-393393BAS61907• CLAMP - 14.27 MM (O.562)
U1653
ALT TA025074-09
POST SBE71-0067		aa-asREF
3973974W0001• NUT - .190 DIAaa-as1
3983984W0104• BOLT - .190 DIA X .562aa-as1
399399AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
399399A5W1086• WASHER
POST SBE70-0022		aa-as1
401401JM44LC39H108RG• CLAMP
22175
PRE SBE71-0067		aa-as1
401401ATA025074-09• CLAMP - .562 DIA
84971
ALT AS61907
POST SBE71-0067		aa-as1
-401401BAS61907• CLAMP - 14.27 MM (O.562)
U1653
ALT TA025074-09
POST SBE71-0067		aa-asREF
4054054W0001• NUT - .190 DIAaa-as1
4064064W0105• BOLT - .190 DIA X .625aa-as1
407407AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
407407A5W1086• WASHER
POST SBE70-0022		aa-as1
409409JM44LC39H108RG• CLAMP
22175
PRE SBE71-0067		aa-as1
409409ATA025074-09• CLAMP - .562 DIA
84971
ALT AS61907
POST SBE71-0067		aa-as1
-409409BAS61907• CLAMP - 14.27 MM (O.562)
U1653
ALT TA025074-09
POST SBE71-0067		aa-asREF
4134134W0001• NUT - .190 DIAaa-as1
4144144W0104• BOLT - .190 DIA X .562aa-as1
415415AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
415415A5W1086• WASHER
POST SBE70-0022		aa-as1
417417JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-as1
417417ATA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067		aa-as1
-417417BAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT TA025074-07
POST SBE71-0067		aa-asREF
4214214W0001• NUT - .190 DIAaa-as1
4224224W0105• BOLT - .190 DIA X .625
PRE SBE79-0087		aa-ap1
422422A4W0102• BOLT - .190 DIA X .438
POST SBE79-0087		aq-as1
423423AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ap2
423423A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-ap2
425425JM44LC39H101RG• CLAMP
22175
PRE SBE71-0067		aa-ap1
425425ATA025074-02• CLAMP - .125 DIA
84971
ALT AS61932
POST SBE71-0067
PRE SBE79-0087		aa-ap1
-425425BAS61932• CLAMP - 3.18 MM (.125)
U1653
ALT AS62506
POST SBE71-0067
PRE SBE79-0087		aa-apREF
425425CAS62506• CLAMP - 9.53 MM (0.375)
U1653
ALT TA025074-02
POST SBE79-0087		ah-ap1
4294294W0001• NUT - .190 DIA
PRE SBE79-0087		aa-ap1
429429A4W0043• NUT - .190 DIA
POST SBE79-0087		aq-as1
4304304W0105• BOLT - .190 DIA X .625
PRE SBE79-0087		aa-ap1
430430A4W0102• BOLT - .190 DIA X .438
POST SBE79-0087		aq-as1
431431AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ap2
431431A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-ap2
433433JM44LC39H101RG• CLAMP
22175
PRE SBE71-0067		aa-ap1
433433ATA025074-02• CLAMP - .125 DIA
84971
ALT AS61932
POST SBE71-0067
PRE SBE79-0087		aa-ap1
-433433BAS61932• CLAMP - 3.18 MM (.125)
U1653
ALT AS62506
POST SBE71-0067
PRE SBE79-0087		aa-apREF
433433CAS62506• CLAMP - 9.53 MM (0.375)
U1653
ALT TA025074-02
POST SBE79-0087		ah-ap1
4374374W0001• NUT - .190 DIA
PRE SBE79-0087		aa-ap1
437437A4W0043• NUT - .190 DIA
POST SBE79-0087		aq-as1
4384384W0104• BOLT - .190 DIA X .562
PRE SBE79-0087		aa-ap1
438438A4W0102• BOLT - .190 DIA X .438
POST SBE79-0087		aq-as1
439439AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ap1
439439A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-ap1
441441JM44LC39H105RG• CLAMP
22175
PRE SBE71-0067		aa-ap1
441441ATA025074-02• CLAMP - .125 DIA
84971
ALT AS61932
POST SBE71-0067
PRE SBE79-0087		aa-ap1
-441441BAS61932• CLAMP - 3.18 MM (.125)
U1653
ALT AS62508
POST SBE71-0067
PRE SBE79-0087		aa-apREF
441441CAS62508• CLAMP - 12.70 MM (0.500)
U1653
ALT TA025074-02
POST SBE79-0087		ah-ap1
4454454W0001• NUT - .190 DIA
PRE SBE79-0087		aa-ap1
445445A4W0043• NUT - .190 DIA
POST SBE79-0087		aq-as1
4464464W0107• BOLT - .190 DIA X .750aa-as1
447447AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as2
447447A5W1086• WASHER
POST SBE70-0022		aa-as2
449449JM44LC39H106RG• CLAMP
22175
PRE SBE71-0067		aa-as1
449449ATA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067		aa-as1
-449449BAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT TA025074-07
POST SBE71-0067		aa-asREF
4534534W0001• NUT - .190 DIAaa-as1
4544544W0112• BOLT - .190 DIA X 1.062aa-as1
455455AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-as1
455455A5W1086• WASHER
POST SBE70-0022		aa-as1
457457JM44LC39H105RG• CLAMP
22175
PRE SBE70-0158		aa-af1
457457AJM44LC39H106RG• CLAMP
22175
POST SBE70-0158
PRE SBE71-0067		ag-as1
457457BTA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067		ag-as1
-457457CAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT TA025074-07
POST SBE71-0067		ag-asREF
4594595W1030• SPACER - (10MM)aa-as1
4614614W0043• NUT - .190 DIAaa-as1
4624624W0109• BOLT - .190 DIA X .875
Optional Part
4W0109
PRE SBE79-0087		aa-ap1
463463AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ap1
463463A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-ap1
465465JM44LC39H113RG• CLAMP
22175
PRE SBE71-0067		aa-ap1
465465ATA025074-16• CLAMP - LOOP STYLE,CUSHION, 1.000 DIA
84971
ALT AS61914
POST SBE71-0067
PRE SBE79-0087		aa-ap1
-465465BAS61914• CLAMP - LOOP STYLE,CUSHION, 25.40 MM (1.000)
U1653
ALT TA025074-16
POST SBE71-0067
PRE SBE79-0087		aa-apREF
4674675W1029• SPACER - SLEEVE, (5MM)
PRE SBE79-0087		aa-ap1
4694694W0001• NUT - .190 DIA
Optional Part
4W0001
PRE SBE79-0087		aa-ap1
4704704W0105• BOLT - .190 DIA X .625
Optional Part
4W0105
PRE SBE79-0087		aa-ap1
471471AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ap1
471471A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-ap1
473473JM44LC39H113RG• CLAMP
22175
PRE SBE71-0067		aa-ap1
473473ATA025074-16• CLAMP - LOOP STYLE,CUSHION, 1.000 DIA
84971
ALT AS61914
POST SBE71-0067
PRE SBE79-0087		aa-ap1
-473473BAS61914• CLAMP - LOOP STYLE,CUSHION, 25.40 MM (1.000)
U1653
ALT TA025074-16
POST SBE71-0067
PRE SBE79-0087		aa-apREF
4774774W0001• NUT - .190 DIA
Optional Part
4W0001
PRE SBE79-0087		aa-ap1
4864864W0107• BOLT - .190 DIA X .750
Optional Part
4W0107
POST SBE71-0063
PRE SBE71-0111		af-ak1
4874875W1086• WASHER
POST SBE71-0063
PRE SBE71-0111		af-ak2
488488JM44LC39H106RG• CLAMP - LOOP
22175
POST SBE71-0063
PRE SBE71-0111		af-ak1
489489JM44LC39H106RG• CLAMP - LOOP
22175
POST SBE71-0063
PRE SBE71-0111		af-ak1
4934934W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE71-0063
PRE SBE71-0111		af-ak1
5025024W0107• BOLT - .190 DIA X .750
Optional Part
4W0107
POST SBE71-0063
PRE SBE71-0111		af-ak1
5035034W2621• WASHER
Optional Part
4W2621
POST SBE71-0063
PRE SBE71-0111		af-ak2
505505JM44LC39H110RG• CLAMP - LOOP
22175
POST SBE71-0063
PRE SBE71-0111		af-ak1
5095094W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE71-0063
PRE SBE71-0111		af-ak1
5105104W0107• BOLT - .190 DIA X .750
Optional Part
4W0107
POST SBE71-0063
PRE SBE71-0111		af-ak1
5115114W2621• WASHER
Optional Part
4W2621
POST SBE71-0063
PRE SBE71-0111		af-ak2
513513JM44LC39H110RG• CLAMP - LOOP
22175
POST SBE71-0063
PRE SBE71-0111		af-ak1
5175174W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE71-0063
PRE SBE71-0111		af-ak1
5345344W0108• BOLT - .190 DIA X .812
Optional Part
4W0108
POST SBE79-0087		aq-as1
537537AS62507• CLAMP - LOOP,STYLE,CUSHION, 11.13 MM (0.438)
U1653
POST SBE79-0087		aq-as1
539539LK69353• SPACER
POST SBE79-0087		aq-as1
5415414W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE79-0087		aq-as1
545545AS62502• CLAMP - LOOP,STYLE,CUSHION, 3.17 MM (0.125)
U1653
POST SBE79-0087		aq-as1
561561AS62507• CLAMP - LOOP,STYLE,CUSHION, 11.13 MM (0.438)
U1653
POST SBE79-0087		aq-as1
570570AS62507• CLAMP - LOOP,STYLE,CUSHION, 11.13 MM (0.438)
U1653
POST SBE79-0087		aq-as1
5755754W0115• BOLT - .190 DIA X 1.250
POST SBE79-0087		aq-as1
576576K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		aq-as1
578578AS62515• CLAMP - 23.83 MM (0.938)
U1653
POST SBE79-0087		aq-as1
580580UP10481• SPACER - 20MM
POST SBE79-0087		aq-as1
5825824W0001• NUT - .190 DIA
POST SBE79-0087		aq-as1
5835834W0103• BOLT - .190 DIA X .500
POST SBE79-0087		aq-as1
584584K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		aq-as1
586586AS62515• CLAMP - 23.83 MM (0.938)
U1653
POST SBE79-0087		aq-as1
5905904W0001• NUT - .190 DIA
POST SBE79-0087		aq-as1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE

EEC HARNESS CORE

EEC HARNESS CORE

EEC HARNESS CORE

EEC HARNESS CORE

EEC HARNESS CORE

EEC HARNESS CORE

EEC HARNESS CORE

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:22175
Enterprise Name:J AND M PRODUCTS INC
BU Name:J AND M PRODUCTS INC
Street:2435 N NAOMI STREET
City:BURBANK
State:CA
Zip Code:91504-3425
Country:USA
Manufacturer Code:84971
Enterprise Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:TA MFG LTD
Street:28065 WEST FRANKLIN PARKWAY,VALENCIA
City:SANTA CLARITA
State:CALIFORNIA
Zip Code:GL1 2BS
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:2A1446
Part Name:NUT
Manufacturer Code:0AM53
Part Number:2A1447
Part Name:NUT
Manufacturer Code:0AM53
Part Number:2A1497
Part Name:HARNESS - CORE WIRING
Manufacturer Code:0AM53
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0043
Part Name:NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS41104NUT - 0.19 DIAU1653
Part Number:4W0102
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0342BOLT - .190 DIA X .4380AM53
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:4W0104
Part Name:BOLT - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0344BOLT , BIHEX HD - .190 DIA X .5620AM53
Part Number:4W0105
Part Name:BOLT - MACHINE DOUBLE HEX, .190 DIA X .625
Manufacturer Code:0AM53
Part Number:4W0107
Part Name:BOLT - MACHINE DOUBLE HEX, .190 DIA X .750
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21412BOLT - 0.190 DIA X 0.750U1653
Part Number:4W0108
Part Name:BOLT - .190 DIA X .812
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21413BOLT - 0.190 DIA X 0.812U1653
Part Number:4W0109
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .875
Manufacturer Code:0AM53
Part Number:4W0111
Part Name:BOLT - 0.190 DIA X 1.000
Manufacturer Code:0AM53
Part Number:4W0112
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.062
Manufacturer Code:0AM53
Part Number:4W0113
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.125
Manufacturer Code:0AM53
Part Number:4W0114
Part Name:BOLT - MACHINE DOUBLE HEX, 190 DIA X 1.188
Manufacturer Code:0AM53
Part Number:4W0115
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.250
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0355BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.2500AM53
Part Number:4W0342
Part Name:BOLT - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0102BOLT, MACHINE DOUBLE HEX - .190 DIA X .4380AM53
Part Number:4W0344
Part Name:BOLT , BIHEX HD - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0104BOLT - .190 DIA X .5620AM53
Part Number:4W0355
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.250
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0115BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.2500AM53
Part Number:4W2621
Part Name:WASHER
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS12943WASHER - FLAT U1653
Part Number:5W1029
Part Name:SPACER, SLEEVE, (5MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10478SPACER, (5MM)0AM53
Part Number:5W1030
Part Name:SPACER, SLEEVE, (10MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10479SPACER - 10MM0AM53
Part Number:5W1031
Part Name:SPACER, SLEEVE - (15MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10480SPACER - 15MM0AM53
Part Number:5W1032
Part Name:SPACER - (20MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10481SPACER - 20MM0AM53
Part Number:5W1086
Part Name:WASHER
Manufacturer Code:0AM53
Part Number:6A4718
Part Name:HARNESS - CORE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A5554
Part Name:HARNESS - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A5699
Part Name:HARNESS - CORE ELECTRONIC ENGINE CONTROL, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A8171
Part Name:HARNESS - CORE ELECTRONIC ENGINE CONTROL, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Link not Found
Part Number:AS12943
Part Name:WASHER - FLAT
Manufacturer Code:U1653
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS21407
Part Name:BOLT - 0.19 DIA X 0.438
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-05BOLT96906
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21412
Part Name:BOLT - 0.190 DIA X 0.750
Manufacturer Code:U1653
Part Number:AS21413
Part Name:BOLT - 0.190 DIA X 0.812
Manufacturer Code:U1653
Part Number:AS21425
Part Name:BOLT, BIHEX HD, .190 DIA X 1.562
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS27831
Part Name:NUT - 0.138 DIA
Manufacturer Code:U1653
Part Number:AS27832
Part Name:NUT - WASHER, ASSEMBLED
Manufacturer Code:U1653
Part Number:AS36607
Part Name:SCREW - 0.138 DIA X 0.438
Manufacturer Code:U1653
Part Number:AS41104
Part Name:NUT - 0.19 DIA
Manufacturer Code:U1653
Part Number:AS61902
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
TA025074-04CLAMP - LOOP, CUSHION, 6.35 MM (0.250)84971
Part Number:AS61903
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-05CLAMP - LOOP, CUSHION, 0.313 DIA84971
Part Number:AS61904
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61905
Part Name:CLAMP, LOOP, 11.13 MM (0.436)
Manufacturer Code:U1653
Part Number:AS61906
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61907
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61910
Part Name:CLAMP - 19.05 MM (0.750)
Manufacturer Code:U1653
Part Number:AS61914
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61915
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61931
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-01CLAMP - 0.062 DIA84971
Link not Found
Part Number:AS61932
Part Name:CLAMP - LOOP 3.18 MM (.125)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
TA025074-02CLAMP - 0.125 DIA84971
Part Number:AS62501
Part Name:CLAMP - 1.57 MM (0.062)
Manufacturer Code:U1653
Part Number:AS62502
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS62506
Part Name:CLAMP - 9.53 MM (0.375)
Manufacturer Code:U1653
Part Number:AS62507
Part Name:CLAMP - LOOP, CUSHION, 11.13 MM (0.438)
Manufacturer Code:U1653
Part Number:AS62508
Part Name:CLAMP - 12.70 MM (0.500)
Manufacturer Code:U1653
Part Number:AS62515
Part Name:CLAMP - 23.83 MM (0.938)
Manufacturer Code:U1653
Part Number:AS62516
Part Name:CLAMP - 25.40 MM (1.000)
Manufacturer Code:U1653
Part Number:JM44LC39H101RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H102RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H103RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H104RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H105RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H106RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H107RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H108RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H110RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H113RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:K8831
Part Name:WASHER - .190 DIA X 0.51 THK
Manufacturer Code:0AM53
Part Number:LK69353
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:MS9321-08
Part Name:WASHER
Manufacturer Code:96906
Part Number:MS9556-05
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Link not Found
Part Number:TA025074-01
Part Name:CLAMP - 0.062 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61931CLAMP - LOOP, CUSHIONU1653
Link not Found
Part Number:TA025074-02
Part Name:CLAMP - 0.125 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61932CLAMP - LOOP 3.18 MM (.125)84971
AS61932CLAMP - LOOP 3.18 MM (.125)U1653
Link not Found
Part Number:TA025074-04
Part Name:CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61902CLAMP - LOOP, CUSHIONU1653
Link not Found
Part Number:TA025074-05
Part Name:CLAMP - LOOP, CUSHION, 0.313 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61903CLAMP - LOOP, CUSHIONU1653
Link not Found
Part Number:TA025074-06
Part Name:CLAMP - LOOP, CUSHION, 0.375 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-07
Part Name:CLAMP, LOOP, CUSHION 0.438 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-08
Part Name:CLAMP - LOOP, CUSHION, 0.5 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-09
Part Name:CLAMP - 0.562 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-12
Part Name:CLAMP - LOOP, CUSHION, 0.75 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-16
Part Name:CLAMP - LOOP, CUSHION, 1.000 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-17
Part Name:CLAMP - LOOP, CUSHION, 1.062 DIA
Manufacturer Code:84971
Part Number:U128443
Part Name:NUT - 0.19 DIA
Manufacturer Code:0AM53
Part Number:UP10478
Part Name:SPACER, (5MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1029SPACER, SLEEVE, (5MM)0AM53
Part Number:UP10479
Part Name:SPACER - 10MM
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1030SPACER, SLEEVE, (10MM)0AM53
Part Number:UP10480
Part Name:SPACER - 15MM
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1031SPACER, SLEEVE - (15MM)0AM53
Part Number:UP10481
Part Name:SPACER - 20MM
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1032SPACER - (20MM)0AM53
