TASK 72-00-40-420-003-A00 HP System Module - Install The HP System Module (Vertical), Installation-005

DMC:V2500-A1-72-00-4000-03B-720A-B|Issue No:003.00|Issue Date:2017-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-00-40-420-003-A00 HP System Module - Install The HP System Module (Vertical), Installation-005

General

Transporation covers/blanks must be removed immediately before installation.

This TASK gives the procedure to install the HP system module in the vertical position. Other related TASKS are:

TASK 72-00-40-560-006 Turn the LP compressor/intermediate case module and the HP system module from the vertical to the horizontal.

Fig. /item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig. /item number.

For standard torque data and procedures, refer to SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-400-501

Special torque data is identified with the symbol * after the torque value.

Assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and attach parts. Use the correct color of air drying enamel. Refer to SPM TASK 70-38-21-380-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1F10052 Two cables sling0AM53IAE 1F100521
IAE 1P16046 Removal/Installation fixture0AM53IAE 1P160461
IAE 1P16057 Tie-rod adapter0AM53IAE 1P160571
IAE 1P16543 Removal/Installation fixture0AM53IAE 1P165431
IAE 1R18075 Support pedestal0AM53IAE 1R180751
IAE 1R18090 Safety support stand0AM53IAE 1R180901
IAE 1R18091 Support stand0AM53IAE 1R180911
IAE 1R18228 Torque spanner0AM53IAE 1R182281
IAE 1R18229 Index unit0AM53IAE 1R182291
IAE 1R18230 Wrench0AM53IAE 1R182301
IAE 1R18234 Support rod0AM53IAE 1R182343
IAE 1R18236 Alignment tool0AM53IAE 1R182361
IAE 1R18247 Rigging pin0AM53IAE 1R18247
IAE 1R18254 Rigging pin0AM53IAE 1R182541
IAE 1R18673 Dummy stub shaft0AM53IAE 1R186731

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-002 SOLVENT, DELETED.LOCALCoMat 01-002
CoMat 07-038 AIR DRYING ENAMELk3504CoMat 07-038
CoMat 10-070 ANTI-SEIZE COMPOUNDLOCALCoMat 10-070
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077
CoMat 04-005 JOINTING COMPOUND, MEDIUM GRADELOCALCoMat 04-005

Spares

NONE

Safety Requirements

NONE

Procedure

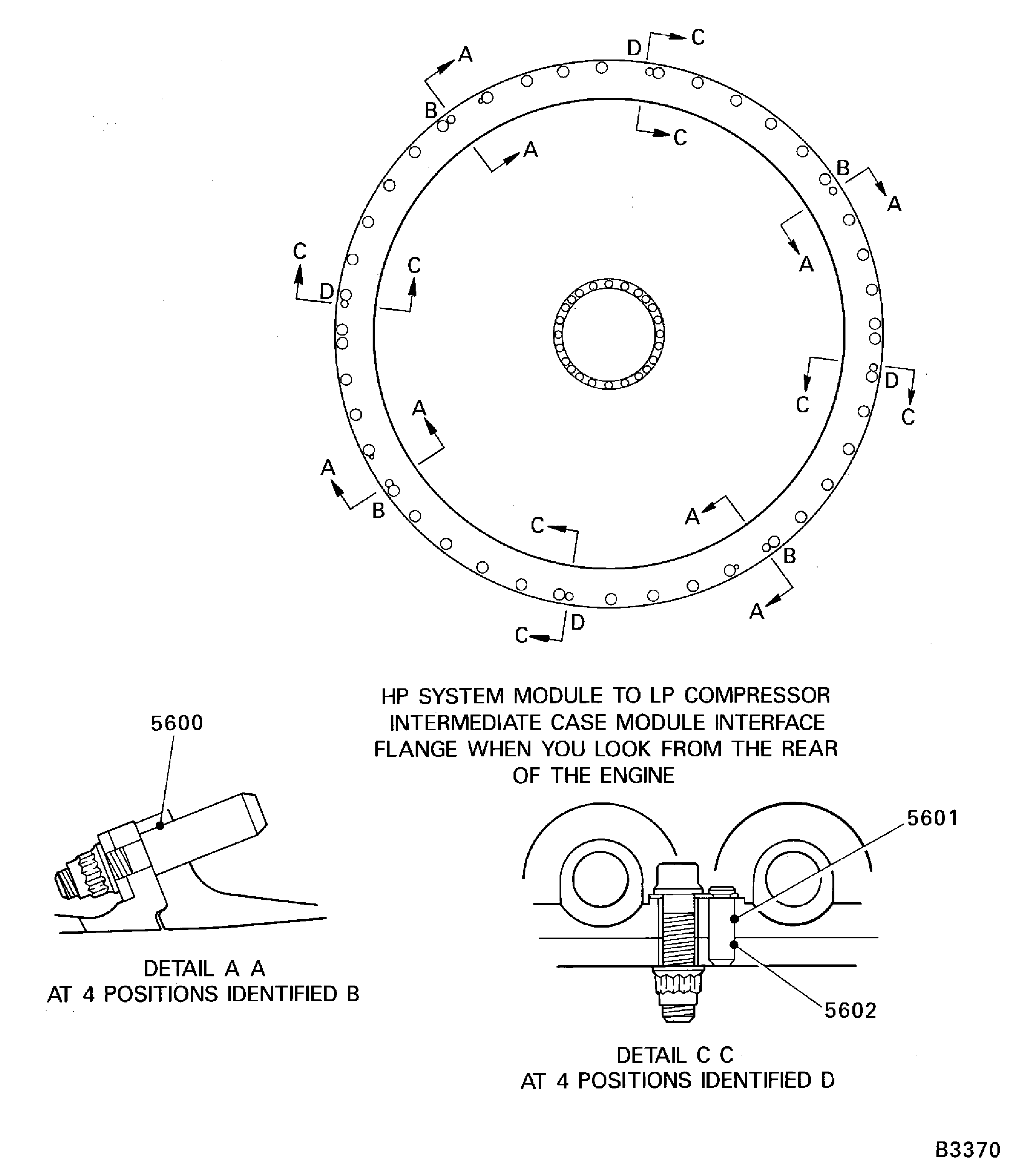

    1. SUBTASK 72-00-40-220-076 Reference Fits and Clearances of the HP System Module to the LP Compressor/Intermediate Case Module Interface at Location 5600

    1. Refer to Figure.

    2. Reference dimensions at location 5600. If required use the data written as a note in TASK 72-41-31-200-000 and TASK 72-32-03-200-000.

      Table 1. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      Non-select

      REJECT IF

      MORE THAN

      LOCATION 5600

      HP Compressor Front Cases Front Location Hole Bore To LP Compressor/Intermediate Case Module Rear Face Location Dowels Diameter

      Location Hole Bore

      0.4755

      0.4770

      0.0019

      Location Dowel Diameter

      0.4730

      0.0039

      0.4736

      Table 2. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      Non-select

      REJECT IF

      MORE THAN

      LOCATION 5600

      HP Compressor Front Cases Front Location Hole Bore To LP Compressor/Intermediate Case Module Rear Face Location Dowels Diameter

      Location Hole Bore

      12.080

      12.116

      0.050

      Location Dowel Diameter

      12.015

      0.101

      12.030

    2. SUBTASK 72-00-40-220-077 Reference Fits and Clearances of the HP System Module to the LP Compressor/Intermediate Case Module Interface at Location 5601

    1. Refer to Figure.

    2. Reference dimensions at location 5601. If required use the data written as a note in TASK 72-41-31-200-000 and TASK 72-00-40-200-000.

      Table 3. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      Non-select

      REJECT IF

      MORE THAN

      LOCATION 5601

      HP Compressor Front Cases Dowel Pin Hole Bore To Dowel Pin Diameter

      Dowel Pin Hole Bore

      0.2389

      0.2401

      0.0018

      Dowel Pin Diameter

      0.2366

      0.0034

      0.2371

      Table 4. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      Non-select

      REJECT IF

      MORE THAN

      LOCATION 5601

      HP Compressor Front Cases Dowel Pin Hole Bore To Dowel Pin Diameter

      Dowel Pin Hole Bore

      6.070

      6.100

      0.046

      Dowel Pin Diameter

      6.012

      0.088

      6.024

    3. SUBTASK 72-00-40-220-078 Reference Fits and Clearances of the HP System Module to the LP Compressor/Intermediate Case Module Interface at Location 5602

    1. Refer to Figure.

    2. Reference dimensions at location 5602. If required use the data written as a note in TASK 72-00-40-200-000 and TASK 72-32-03-200-000.

      Table 5. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      Non-select

      REJECT IF

      MORE THAN

      LOCATION 5602

      LP Compressor/Intermediate Case Module Rear Face Dowel Pin Hole Bore To Dowel Pin Diameter

      Dowel Pin Hole Bore

      0.2389

      0.2401

      0.0018

      Dowel Pin Diameter

      0.2366

      0.0034

      0.2371

      Table 6. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      Non-select

      REJECT IF

      MORE THAN

      LOCATION 5602

      LP Compressor/Intermediate Case Module Rear Face Dowel Pin Hole Bore To Dowel Pin Diameter

      Dowel Pin Hole Bore

      6.070

      6.100

      0.046

      Dowel Pin Diameter

      6.012

      0.088

      6.024

    4. SUBTASK 72-00-40-420-115 Install the HP Compressor Support Rods

    1. Refer to Figure.

    2. Make sure the variable stator vanes (VSV) are in the low speed position.

    3. Install IAE 1R18247 Rigging pin 1 off through the bracket and in to the HP compressor case to lock the VSVs.

    4. Remove the six bolts ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-122), the two brackets ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-115 and ENGINE-HP COMPRESSOR SPLIT CASES 01-118) and the three blanks ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-120) from the HP compressor front cases.

      5. Install the IAE 1R18234 Support rod 3 off.

      1. Turn the adjustment handle to retract the blade of the tool.

      2. Carefully install the support rods through the holes in the HP compressor lower split case. Make sure the blades are rearwards.

      3. Safety the support rods to the HP compressor lower split case with the six tool bolts.

      4. Turn the adjustment handle until the blades touch the HP compressor stage 3 disk and lightly tighten.

    5. SUBTASK 72-00-40-420-116 Install the Remove/Install Fixture and the Tie-Rod Adapter to the HP System Module Rear Flange

    1. Refer to Figure.

      2. Attach IAE 1P16057 Tie-rod adapter 1 off on to the center ring (Part of IAE 1P16046 Removal/Installation fixture or IAE 1P16543 Removal/Installation fixture 1 off).

      1. Put the puck and shaft through the center ring until the tie-rod adapter touches the rear face of the center ring.

      2. Align the two holes on the tie-rod adapter with two opposite holes in the center ring. Install the two tool screws. Tighten the screws.

      3. Move the locknut until it is adjacent to the wrench location.

      4. Push the tie-rod adapter in to the engine until the puck engages on the HP compressor front shoulder. At the same time push the center ring over the HP compressor shaft until it touches the stage 2 HP turbine disk.

      5. NOTE

        If necessary use a wrench on the wrench location so that the shaft does not turn.

        Turn the locknut until the puck is against the HP compressor front shoulder. Tighten the locknut.

      6. Attach a hoist to the IAE 1F10052 Two cables sling 1 off and attach the lift sling to the remove/install fixture trunnions.

      7. Lift the remove/install fixture and move it adjacent to the rear of the HP system module. Make sure the hand knobs are rearwards.

      8. Move the remove/install fixture over the center ring until it touches the HP turbine case rear flange.

      9. Put the upper split ring on to the front of the HP turbine case rear flange. Install 12 of the tool bolts and 12 of the tool nuts.

      10. Put the lower split ring on to the front of the HP turbine case rear flange. Install 13 of the tool bolts and 13 of the tool nuts.

    6. SUBTASK 72-00-40-420-117 Remove the HP System Module from the Build Stand

    1. Refer to Figure.

    2. Remove the HP compressor/support ring bolts.

    3. Lift and remove the HP system module from the build stand.

    7. SUBTASK 72-00-40-420-118 Remove the Dummy Stub Shaft from the HP System Module

    1. Refer to Figure.

    2. Lower the HP system module on to IAE 1R18075 Support pedestal 1 off. Do not release the hold on the HP system module.

    3. NOTE

      The 20 curvic coupling bolts remain with the dummy stub shaft.

      Release the 20 curvic coupling tool bolts.

    4. Lift and remove the HP system module from the dummy stub shaft.

      5. Install the curvic protector on to the dummy stub shaft.

      1. Align the location pins on the dummy stub shaft with the applicable location holes in the curvic protector.

      2. Secure the curvic protector with three of the dummy stub shaft curvic coupling tool bolts and the curvic protector nuts.

    8. SUBTASK 72-00-40-420-119 Prepare the Curvic Couplings for Assembly

    1. Refer to Figure and Figure.

    2. Lower the HP system module on to the IAE 1R18090 Safety support stand 1 off.

    3. The HP system module front flange should touch the safety support stand pads. Do not release the lift sling hold.

    4. Remove the curvic protector from the No. 3 bearing rotor center curvic coupling on the LP compressor/Intermediate case module.

      5. Clean the curvic teeth on the HP compressor stage 3 disk and the No. 3 bearing rotor center curvic couplings.

      1. WARNING

        WHEN YOU USE COMAT 01-002 INHIBITED AND STABILIZED TRICHLOROETHANE YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

        Use a soft brush and apply CoMat 01-002 SOLVENT, DELETED. to the curvic teeth.

      2. Dry the curvic teeth with a clean dry air blast.

    6. Apply CoMat 10-077 APPROVED ENGINE OILS to the threads and abutment faces of the curvic bolts.

    7. Install the curvic bolts ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-010) in to the No. 3 bearing rotor center curvic coupling. Use IAE 1R18230 Wrench 1 off.

    9. SUBTASK 72-00-40-420-120 Prepare the HP System Module and LP Compressor/Intermediate Case for Assembly

    1. Refer to Figure, Figure and Figure.

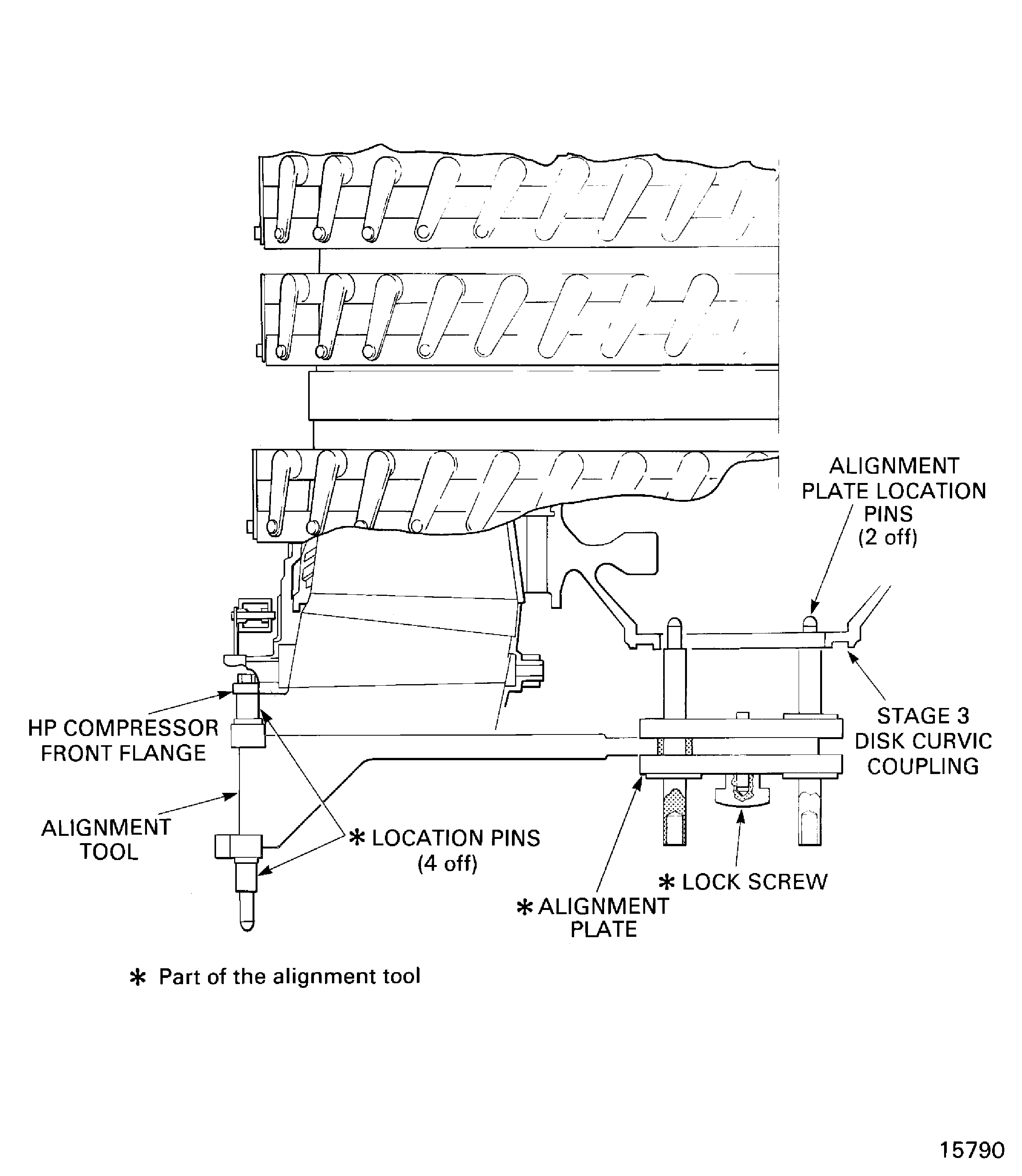

      2. Install IAE 1R18236 Alignment tool 1 off on to the HP system module front flange.

      1. Position the alignment tool TDC alignment mark adjacent to hole No. 5 on the HP system module. Make sure the lockscrew is to the front. Make sure the lockscrew is loose.

      2. Align the alignment tool location pins with hole No. 5 and the adjacent Y position. Insert the two location pins in to the HP system module front flange. At the same time insert the alignment plate location pins in to the applicable location holes in the curvic coupling.

      3. Tighten the lockscrew to lock the alignment tool in to this position.

      4. Remove the alignment tool.

      3. Install the alignment tool on to the LP compressor/intermediate case module.

      1. Position the locked alignment tool TDC alignment mark adjacent to hole No. 5 on the LP compressor/intermediate case module rear flange. Make sure the lockscrew is to the front.

      2. Align the alignment tool location pins with hole No.5 and the adjacent Y position. Carefully rotate the LP stub shaft and rotor center until the No. 3 bearing rotor center curvic coupling location pins are aligned with the alignment plate location holes.

      3. Insert the alignment tool location pins in to the LP compressor/intermediate case rear flange holes. At the same time position the alignment plate location holes over the No. 3 bearing rotor center curvic coupling location pins.

      4. Remove the alignment tool. Do not move the curvic coupling.

    4. Carefully lower the HP system module over the LP compressor/intermediate case module. Keep sufficient space between the HP system module and the LP compressor/intermediate case module to allow the support rod at position No. 1 to be removed.

    10. SUBTASK 72-00-40-420-121 Lower the HP System Module on to the LP Compressor/Intermediate Case Module

    1. Refer to Figure.

    2. Align the location pins on the LP compressor/intermediate case module with the location holes in the HP system module. Make sure the No.5 hole positions are also aligned.

    3. Carefully lower the HP system module on to the LP Compressor/Intermediate case module.

    11. SUBTASK 72-00-40-420-122-A00 Install the Parts that Attach the LP Compressor/Intermediate Case Module to the HP System Module (Pre SBE 72-0290)

    1. Refer to Figure.

    2. NOTE

      There is a countersunk hole in the head of the bolts.

      Install the four bolts ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-050), the four lock plates ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-080), the four pins ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-082) and the four nuts ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-030) at the position Y.

    3. Tighten the bolts in sequence to move the two modules together.

    4. Torque the bolts to 180 lbfin to 210 lbfin (20 Nm to 25 Nm) in sequence.

      5. Install the remaining bolts and nuts.

      1. Install the 37 bolts ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-050) and the 37 nuts ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-030).

      2. Torque all of the 37 bolts and nuts to 180 lbfin to 220 lbfin (20 Nm to 25 Nm) in the sequence shown.

    12. SUBTASK 72-00-40-420-122-B00 Install the Parts that Attach the LP Compressor/Intermediate Case Module to the HP System Module (SBE 72-0290)

    1. Refer to Figure.

    2. NOTE

      There is no countersunk hole in the head of the bolts.

      Lubricate the 41 bolts ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-050) with CoMat 10-070 ANTI-SEIZE COMPOUND. SPM TASK 70-41-02-410-501.

      3. Install four of the bolts ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-050) with the four lock plates ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-080), the four pins ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-082) and four of the nuts ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-030), at the four positions identified Y. Figure.

      1. Tighten the four nuts and bolts evenly in sequence to move the two modules together.

      2. Torque the four bolts to 315 lbfin (36 Nm) in sequence.

      4. Install the remaining 37 bolts ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-050) and the 37 nuts ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-030).

      1. Torque the 37 nuts and bolts to 315 lbfin (36 Nm) evenly and in the sequence shown. Figure.

    13. SUBTASK 72-00-40-420-123 Torque the No. 3 Bearing Rotor Center and the HP Compressor Stage 3 Disk Curvic Coupling Bolts,.nd

    1. Refer to Figure and Figure.

    2. Use IAE 1R18230 Wrench 1 off to engage the 20 bolts ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE (72-00-40, 01-010) and tighten them lightly.

    3. CAUTION

      WHEN YOU TORQUE THE BOLTS IT IS IMPORTANT THAT THE TORQUE VALUE IS ON THE INCREASE. A NEW BOLT MUST BE INSTALLED IF THE TORQUE VALUE IS CONSTANT OR DECREASES.
      THE BOLTS MUST NOT BE POWER WRENCHED.

      Install the IAE 1R18229 Index unit 1 off on to the front face of the LP stubshaft and rotor center. Make sure that the hole No. 3 is at the top. Safety the index unit on to the LP stub shaft and rotor center with the location pin.

    4. Install IAE 1R18228 Torque spanner 1 off on to the index unit and the curvic bolt. Make sure that the spanner is in the hole No. 1.

      5. Use the sequence shown on Figure.nd on the index unit to do the subsequent three steps.

      1. Torque all the bolts to 62 * lbfin (7.1 Nm).

      2. Torque all the bolts to 78 * lbfin (8.8 Nm).

      3. Torque all the bolts to 155 * lbfin (17.51 Nm).

      6. Make sure that the 20 bolts are at the necessary torque of 155 * lbfin (17.51 Nm).

      1. Torque the bolt at the No. 1 position.

      2. Torque the bolt that is adjacent to the first bolt when you move in a clockwise direction.

      3. Do Step again until all of the bolts have been torqued.

    7. Remove the torque spanner. Release and remove the index ring.

    14. SUBTASK 72-00-40-420-124 Remove the Hoist, the Remove/Install Fixture, the Tie-Rod Adapter and the HP Compressor Support Rods and

    1. Refer to Figure and Figure

      2. Remove the support rods.

      1. Turn the adjustment handle to retract the blade.

      2. Release the six support rod tool bolts.

      3. Remove the support rods.

        4. Install one of the blanks ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-120), the bracket ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-115) and two of the bolts ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-122) in to the HP compressor at location C.

        1. Put a thin layer of CoMat 04-005 JOINTING COMPOUND, MEDIUM GRADE on to the bracket where it touches the blank.

        2. Install the blank, the bracket and the bolts.

        3. Torque the bolts to 85 lbfin to 105 lbfin (10 Nm to 12 Nm).

        5. Install one of the blanks ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-120), the bracket ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-118) and two of the bolts ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-122) in the HP compressor at location A.

        1. Put a thin layer of CoMat 04-005 JOINTING COMPOUND, MEDIUM GRADE on the bracket where it touches the blank.

        2. Install the blank, bracket and the bolts.

        3. Torque the bolts to 85 lbfin to 105 lbfin (10 Nm to 12 Nm).

      6. Install the other blank ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-120) and the other bolts ENGINE-HP COMPRESSOR SPLIT CASES (72-41-31, 01-122) in to the HP compressor at location B. Torque the bolts to 85 lbfin to 105 lbfin (10 Nm to 12 Nm).

      7. Remove the rigging pin from the bracket on the stage 3 unison ring.

      3. Remove the remove/install fixture and the tie-rod adapter from the rear of the HP system module.

      1. Adjust the height of the hoist to hold the weight of the remove/install fixture.

      2. Remove the 25 nuts and the 25 bolts which safety the remove/install fixture to the HP turbine case. Remove the two split rings.

      3. Release the locknut on the end of the tie-rod shaft.

      4. Remove the two screws that safety the tie-rod adapter on to the remove/install fixture.

      5. Move the shaft in to the engine to disengage the puck from the HP compressor shaft front shoulder.

      6. Remove the tie-rod adapter from the module.

      7. Remove the remove/install fixture from the module and put it on to a suitable work surface. Remove the hoist and the lift sling.

    15. Figure: Locations for the fits and clearances

    Locations for the fits and clearances

    Figure: Install the support rods in to the HP compressor front cases

    Sheet 1

    Legend
    Install the support rods in to the HP compressor front cases

    Sheet 1

    Close

    Figure: Install the support rods in to the HP compressor front cases

    Sheet 2

    Legend
    Install the support rods in to the HP compressor front cases

    Sheet 2

    Close

    Figure: Install the remove/install fixture and the tie-rod adapter on to the HP system module

    Sheet 1

    Legend
    Install the remove/install fixture and the tie-rod adapter on to the HP system module

    Sheet 1

    Close

    Figure: Install the remove/install fixture and the tie-rod adapter on to the HP system module

    Sheet 2

    Legend
    Install the remove/install fixture and the tie-rod adapter on to the HP system module

    Sheet 2

    Close

    Figure: Remove the HP system module from the build stand

    Remove the HP system module from the build stand

    Figure: Remove the dummy stub shaft from the stage 3 disk curvic coupling

    Remove the dummy stub shaft from the stage 3 disk curvic coupling

    Figure: Install the HP system module on the safety support stand

    Install the HP system module on the safety support stand

    Figure: Set the alignment tool on the HP system module

    Set the alignment tool on the HP system module

    Figure: Set the alignment tool on the HP system module

    Sheet 2

    Legend
    Set the alignment tool on the HP system module

    Sheet 2

    Close

    Figure: LP compressor/intermediate case module to HP system module flange hole positions

    LP compressor/intermediate case module to HP system module flange hole positions

    Figure: Lightly tighten the stage 3 HP compressor curvic bolts

    Lightly tighten the stage 3 HP compressor curvic bolts

    Figure: Torque the stage 3 HP compressor curvic bolts

    Sheet 1

    Legend
    Torque the stage 3 HP compressor curvic bolts

    Sheet 1

    Close

    Figure: Torque the stage 3 HP compressor curvic bolts

    Sheet 2

    Legend
    Torque the stage 3 HP compressor curvic bolts

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to add IAE 1P16543 as an option to IAE 1P16046. (14VC396)

Change Type:

Updated fits and clearances table to standards. (Editorial)

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Manufacturer Code:X111X
Supply Number:CoMat 01-002
Type:sp01
Supply Short Name:CoMat 01-002 SOLVENT, DELETED.
Supply Name:CoMat 01-002 SOLVENT, DELETED.
Specification Groups:
Doc NumberType
wiring harnesses. Where CoMat 01‐002 is specified to clean mechanical components, use one or more of the solvents that SPM TASK 70‐11‐26‐300‐503 specifies as applicable.DELETED. Where CoMat 01‐002 is specified to clean electrical contacts or wiring harnesses, use one or more of the solvents that SPM TASK 70‐11‐57‐110‐501 specifies to clean electrical contacts or
Suppliers:
ManufacturerRemarks
X111X
Manufacturer Code:LOCAL
Supply Number:CoMat 04-005
Type:sp01
Supply Short Name:CoMat 04-005 JOINTING COMPOUND, MEDIUM GRADE
Supply Name:CoMat 04-005 JOINTING COMPOUND, MEDIUM GRADE
Specification Groups:
Doc NumberType
OMAT: 4/47 (RR REF)HYLOMAR AEROGRADE (PL32), MEDIUM GRADE
JCR-026 (JAEC REF)HYLOMAR AEROGRADE (PL32), MEDIUM GRADE
DTD 900/4586 (RR REF, MOD UK REF)HYLOMAR AEROGRADE (PL32), MEDIUM GRADE
MSRR 9055 (RR REF)HYLOMAR AEROGRADE (PL32), MEDIUM GRADE
Suppliers:
ManufacturerRemarks
LOCAL
460Y4
CJ731
K3237
Manufacturer Code:00BB6
Supply Number:CoMat 07-038
Type:sp01
Supply Short Name:CoMat 07-038 AIR DRYING ENAMEL
Supply Name:CoMat 07-038 AIR DRYING ENAMEL
Specification Groups:
Doc NumberType
OMAT:7/22B (RR REF)IP9138 R1
JCR-029 (JAEC REF)
Suppliers:
ManufacturerRemarks
00BB6
K3504
Manufacturer Code:X222X
Supply Number:CoMat 10-070
Type:sp01
Supply Short Name:CoMat 10-070 ANTI-SEIZE COMPOUND
Supply Name:CoMat 10-070 ANTI-SEIZE COMPOUND
Specification Groups:
Doc NumberType
DELETED. USE COMAT 10-070A
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:X333X
Supply Number:CoMat 10-077
Type:sp01
Supply Short Name:CoMat 10-077 APPROVED ENGINE OILS
Supply Name:CoMat 10-077 APPROVED ENGINE OILS
Specification Groups:
Doc NumberType
For V2500-A1/A5/D5 models - Refer to V2500 Service Bulletin ENG-79-0108
For V2500-E5 model - Refer to Service Bulletin E5-79-0001
Suppliers:
ManufacturerRemarks
X333X
Manufacturer Code:0AM53
Tool Number:IAE 1F10052
Tool Name:IAE 1F10052 Two cables sling
Manufacturer Code:0AM53
Tool Number:IAE 1P16046
Tool Name:IAE 1P16046 Removal/Installation fixture
Manufacturer Code:0AM53
Tool Number:IAE 1P16057
Tool Name:IAE 1P16057 Tie-rod adapter
Manufacturer Code:0AM53
Tool Number:IAE 1P16543
Tool Name:IAE 1P16543 Removal/Installation fixture
Manufacturer Code:0AM53
Tool Number:IAE 1R18075
Tool Name:IAE 1R18075 Support pedestal
Manufacturer Code:0AM53
Tool Number:IAE 1R18090
Tool Name:IAE 1R18090 Safety support stand
Manufacturer Code:0AM53
Tool Number:IAE 1R18091
Tool Name:IAE 1R18091 Support stand
Manufacturer Code:0AM53
Tool Number:IAE 1R18228
Tool Name:IAE 1R18228 Torque spanner
Manufacturer Code:0AM53
Tool Number:IAE 1R18229
Tool Name:IAE 1R18229 Index unit
Manufacturer Code:0AM53
Tool Number:IAE 1R18230
Tool Name:IAE 1R18230 Wrench
Manufacturer Code:0AM53
Tool Number:IAE 1R18234
Tool Name:IAE 1R18234 Support rod
Manufacturer Code:0AM53
Tool Number:IAE 1R18236
Tool Name:IAE 1R18236 Alignment tool
Manufacturer Code:0AM53
Tool Number:IAE 1R18247
Tool Name:IAE 1R18247 Rigging pin
Manufacturer Code:0AM53
Tool Number:IAE 1R18254
Tool Name:IAE 1R18254 Rigging pin
Manufacturer Code:0AM53
Tool Number:IAE 1R18673
Tool Name:IAE 1R18673 Dummy stub shaft
