DMC:V2500-A1-72-32-25-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72322502 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE72-0010 | aa | ||
| SBE0010-01 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE72-0090 | ab | ||
| SBE0090-01 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE70-0091 | ac | ||
| SBE0091-01 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE72-0132 | ad | ||
| SBE0132-01 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE70-0857 | ae | ||
| SBE0857-01 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE72-0478 | af | ||
| SBE0478-01 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE72-0568 | ag | ||
| SBE0568-01 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE72-0622 | ah | ||
| SBE0622-01 | ENGINE-NO.3 BEARING REAR OIL SEAL | ai | ||
| 100 | 2A1794 | • SEAL - ASSY NO.3 BRG PRE SBE72-0010 | aa-ad | 1 |
| 100A | 2A1289 | • SEAL - ASSY NO.3 BRG POST SBE72-0010 PRE SBE72-0132 | aa-ad | 1 |
| 100B | 2A2370 | • SEAL - ASSY,#3 BRG POST SBE72-0132 PRE SBE72-0478 | ae-af | 1 |
| 100C | 2A3891 | • SEAL - ASSY,#3 BRG POST SBE72-0478 PRE SBE72-0568 | ag | 1 |
| 100D | 2A2370 | • SEAL - ASSY,#3 BRG POST SBE72-0568 PRE SBE72-0622 | ah | 1 |
| 100E | 2A4287 | • SEAL - ASSY,#3 BRG POST SBE72-0622 | ai | 1 |
| 150 | 2A1786 | • • SEAL - A/O FACE PRE SBE72-0478 | aa-af | 1 |
| 150A | 2A3854 | • • SEAL - A/O FACE POST SBE72-0478 PRE SBE72-0568 | ag | 1 |
| 150B | 2A1786 | • • SEAL - A/O FACE POST SBE72-0568 PRE SBE72-0622 | ah | 1 |
| 150C | 2A4286 | • • SEAL - A/O FACE POST SBE72-0622 | ai | 1 |
| 170 | 2A1783 | • • • GUIDE - SEAL SPRING | aa-ai | 12 |
| 200 | 2A1787 | • • PIN - BRG SEAL PRE SBE72-0132 | aa-ad | 4 |
| 200A | 2A2060 | • • PIN - #3 BRG SEAL POST SBE72-0132 | ae-ai | 4 |
| 210 | 2A1788 | • • SPACER - SLEEVE PRE SBE72-0132 | aa-ad | 2 |
| 210A | 2A2059 | • • SPACER - SLEEVE POST SBE72-0132 | ae-ai | 2 |
| 220 | 2A1789 | • • COLLAR - RETAINING | aa-ai | 4 |
| 230 | 2A1790 | • • SEAL - RING HOLDER PRE SBE72-0010 | aa-ad | 1 |
| 230A | 2A1288 | • • SEAL - RING HOLDER POST SBE72-0010 PRE SBE72-0132 | aa-ad | 1 |
| 230B | 2A1916 | • • SEAL - RING HOLDER,#3 BRG POST SBE72-0132 | ae-ai | 1 |
| 240 | 2A1792 | • • SPRING - HELICAL COMPRESSION | aa-ai | 12 |
| 250 | 2A1793 | • • SEAL - RING PRE SBE70-0091 | aa-ad | 1 |
| 250A | 2A1793 | • • SEAL - RING POST SBE70-0091 PRE SBE72-0132 | aa-ad | 1 |
| 250B | 2A1962 | • • SEAL - PLAIN POST SBE72-0132 | ae-ai | 1 |
| 252 | 2A1793P5 | • • SEAL - RING, 6.9910 X.158 X.1775 POST SBE70-0091 PRE SBE72-0132 | ad | 1 |
| 254 | 2A1793P10 | • • SEAL - RING, 6.9910 X.163 X.1775 POST SBE70-0091 PRE SBE72-0132 | ad | 1 |
| 256 | 2A1793P15 | • • SEAL - RING, 6.9910 X.168 X.1775 POST SBE70-0091 PRE SBE72-0132 | ad | 1 |
| 258 | 2A1793P20 | • • SEAL - RING, 6.9910 X.173 X.1775 POST SBE70-0091 PRE SBE72-0132 | ad | 1 |
| 260 | 616195 | • • RIVET - SPLIT 77445 | aa-ai | 4 |
| 270 | MS21209F4-10 | • • INSERT - SCREW THREAD 96906 PRE SBE72-0132 | aa-ad | 4 |
| 270A | MS21209F4-15 | • • INSERT - SCREW THREAD 96906 POST SBE72-0132 | ae-ai | 4 |
| 350 | AS3209-265 | • PACKING - PREFORMED U1653 PRE SBE70-0857 | aa-ai | 1 |
| 350A | ST1946-265 | • PACKING - PREFORMED 77445 POST SBE70-0857 | aa-ai | 1 |
| 400 | 2A1796 | • SEAT PRE SBE72-0090 | aa-ai | 1 |
| 400A | 2A1799 | • SEAT - #3 BRG SEAL POST SBE72-0090 | aa-ai | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

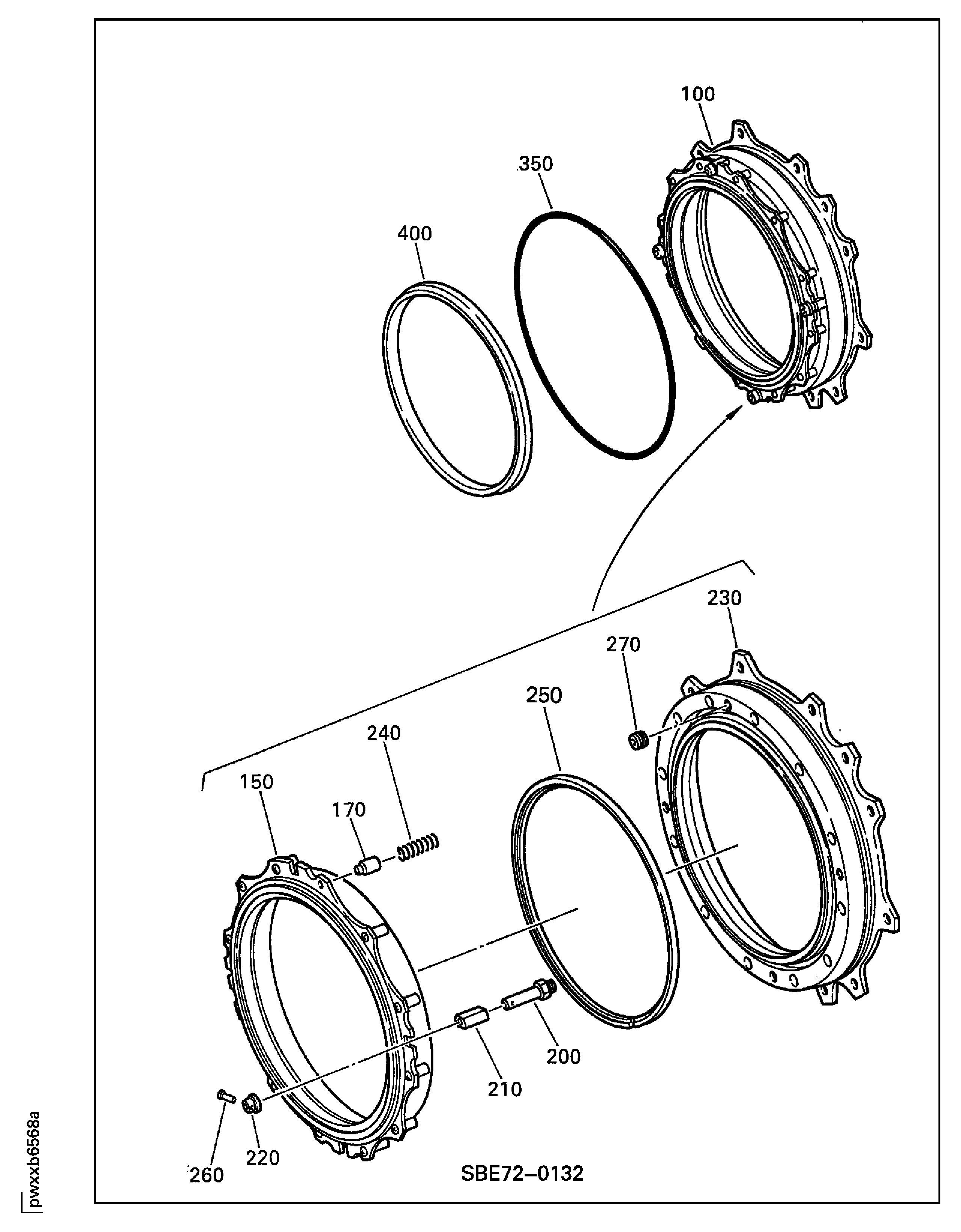

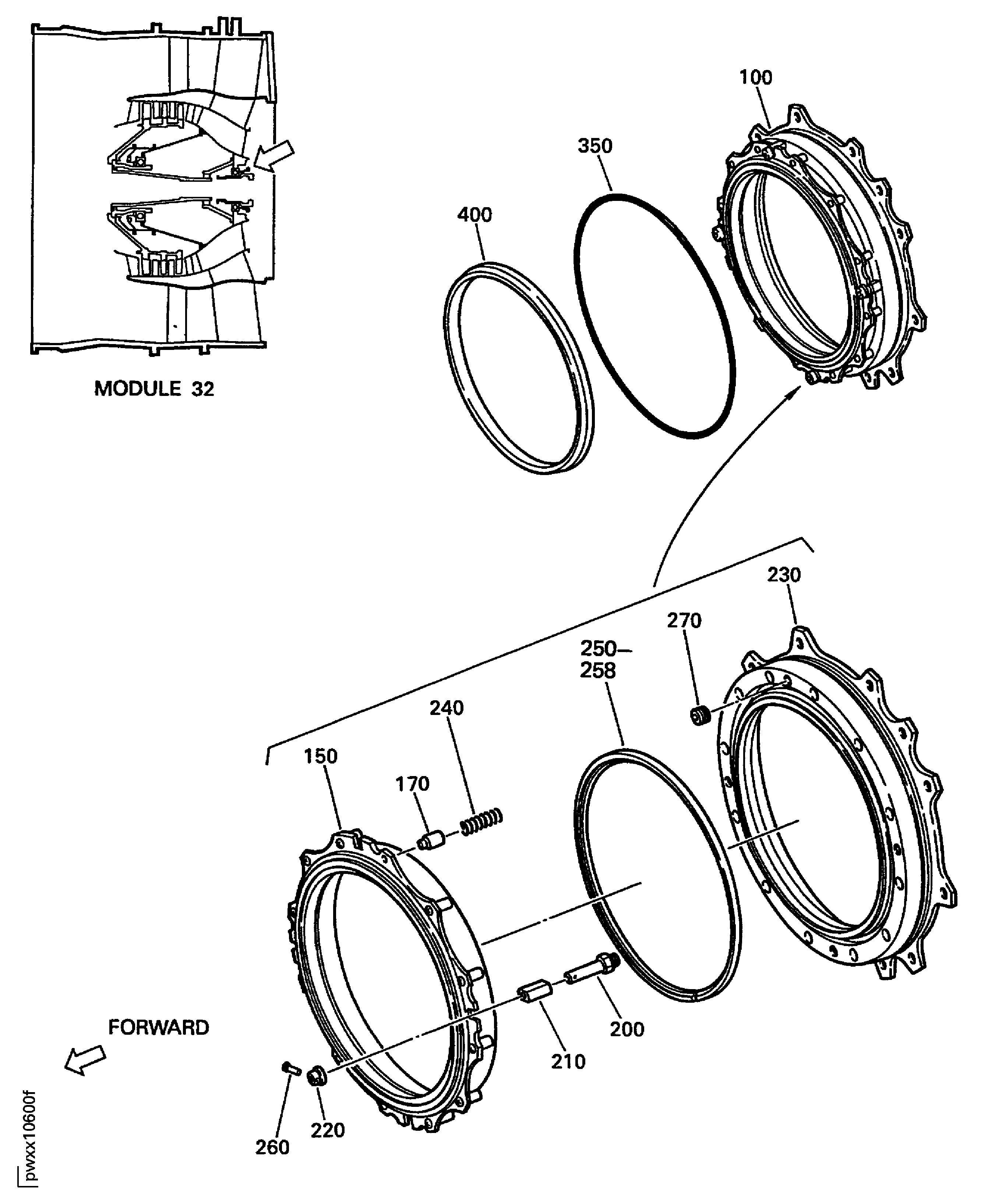

Figure: ENGINE-NO.3 BEARING REAR OIL SEAL
