DMC:V2500-A1-72-41-21-04A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| B72412104 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0034 | aa | ||
| SBE0034-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0154 | ab | ||
| SBE0154-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE70-0331 | ac | ||
| SBE0331-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE70-0256 | ad | ||
| SBE0256-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0182 | ae | ||
| SBE0182-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE70-0353 | af | ||
| SBE0353-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0263 | ag | ||
| SBE0263-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE70-0502 | ah | ||
| SBE0502-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE70-0645 | ai | ||
| SBE0645-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE70-0709 | aj | ||
| SBE0709-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0612 | ak | ||
| SBE0612-01 | ENGINE-HP COMPRESSOR RING CASES | al | ||
| 094 | 6A3425 | • STRIP - INSULATION PRE SBE72-0612 | aa-al | 3 |
| 094A | 6B1373 | • STRIP - INSULATION STAGE 11 POST SBE72-0612 | aa-al | 3 |
| 096 | 6A3423 | • STRIP - INSULATION PRE SBE72-0612 | aa-al | 1 |
| 096A | 6B1371 | • STRIP - INSULATION STAGE 11 POST SBE72-0612 | aa-al | 1 |
| 098 | 6A3424 | • STRIP - INSULATION PRE SBE72-0612 | aa-al | 1 |
| 098A | 6B1372 | • STRIP - INSULATION STAGE 11 POST SBE72-0612 | aa-al | 1 |
| 280 | 6A3400 | • LINER | aa-al | 1 |
| 290 | 6A3401 | • LINER | aa-al | 1 |
| 300 | 6A3654 | • RING - ST.10-R/PATH | aa-al | 1 |
| 328 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 | aa-al | 4 |
| 329 | 4W2622 | • WASHER Optional Part 4W2622 | aa-al | 4 |
| 330 | UP11194 | • STOP | aa-al | 4 |
| 340 | 6A3402 | • LINER | aa-al | 1 |
| 350 | 6A3389 | • CASE - ASSY PRE SBE72-0154 | aa-ab | 1 |
| 350A | 6A5436 | • CASE - ASSY POST SBE72-0154 PRE SBE72-0182 | ac-ae | 1 |
| 350B | 6A5676 | • CASE - ASSY H.P. COMPRESSOR R POST SBE72-0182 | ac-al | 1 |
| 364 | UP11144 | • • SPACER - REAR FLANGE,(VRS6253) PRE SBE72-0182 | ***** | 1 |
| 364A | UP60487 | • • SPACER POST SBE72-0182 | af-al | 20 |
| 364B | UP60487 | • • SPACER - ,(VRS6253) POST SBE70-0353 | ***** | 1 |
| 370 | 6A5437 | • • CASE POST SBE70-0256 | ae-al | 1 |
| 401 | AS16247 | • • • RIVET - SOLID UNIVERSAL HD, .094 DIA U1653 POST SBE72-0154 | ac-al | 48 |
| 402 | AS16247 | • • • RIVET - SOLID UNIVERSAL HD,(VRS6331), .094 DIA U1653 | ***** | 1 |
| 403 | AS16288 | • • • RIVET - SOLID UNIVERSAL HD,(VRS6331) U1653 | ***** | 1 |
| 404 | 6A7415 | • • • RETAINER POST SBE70-0709 | ak-al | 1 |
| 406 | 6A1252 | • • • RING - SEALING STG 10,(VRS6331) PRE SBE70-0256 | ***** | 1 |
| 406A | 6A1252 | • • • RING - SEALING STG 10 ALT 6A4184 POST SBE70-0256 PRE SBE70-0502 | ***** | 1 |
| 406B | 6A4184 | • • • RING ALT 6A1252 POST SBE70-0256 PRE SBE70-0502 | ae-ah | 1 |
| 406C | 6A5703 | • • • RING POST SBE70-0502 | ***** | 1 |
| 450 | 6A3029 | • HEATSHLD - RETAINER ASSY OF | aa-al | 2 |
| 456 | AS16246 | • • RIVET - SOLID UNIVERSAL HD U1653 POST SBE70-0645 | aj-al | 1 |
| 457 | AS16287 | • • RIVET - SOLID UNIVERSAL HD, .126 DIA X .276 U1653 POST SBE70-0645 | aj-al | 1 |
| 460 | 6A6518 | • • PLATE POST SBE70-0645 | aj-al | 1 |
| 500 | 6A3030 | • HEATSHLD - ASSY OF | aa-al | 2 |
| 508 | AS16246 | • • RIVET - SOLID UNIVERSAL HD U1653 POST SBE70-0353 | ag-al | 1 |
| 509 | AS16287 | • • RIVET - SOLID UNIVERSAL HD, .126 DIA X .276 U1653 POST SBE70-0353 | ag-al | 1 |
| 511 | 6A5667 | • • PLATE POST SBE70-0353 | ag-al | 1 |
| 520 | 6A3021 | • HEATSHLD - ASSY OF PRE SBE72-0034 | aa-al | 1 |
| 520A | 6A3979 | • HEATSHLD - ASSY OF POST SBE72-0034 | aa-al | 1 |
| 540 | 6A3403 | • LINER | aa-al | 1 |
| 550 | 6A3655 | • RING - ST.11-R/PATH | aa-al | 1 |
| 588 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 | aa-al | 4 |
| 589 | 4W2622 | • WASHER Optional Part 4W2622 | aa-al | 4 |
| 590 | UP11194 | • STOP | aa-al | 4 |
| 600 | 6A3390 | • CASE - ASSY | aa-al | 1 |
| 616 | AS44750 | • • NUT - SELF LOCKING SHANK,(VRS6219), .190 DIA U1653 | ***** | 1 |
| 690 | 6A3404 | • LINER | aa-al | 1 |
| 700 | 6A3656 | • RING - ST.12-R/PATH | aa-al | 1 |
| 745 | 6A2506 | • RING PRE SBE70-0331 | aa-al | 1 |
| 745A | 6A5757 | • RING - SEALING POST SBE70-0331 | aa-al | 1 |
| 750 | 6A2856 | • RING - CROSS KEY LOC. PRE SBE72-0263 | aa-ag | 1 |
| 750A | 6A5737 | • RING POST SBE72-0263 | ah-al | 1 |
| 800 | 6A3406 | • HEATSHLD - ASSY OF | aa-al | 1 |
| 820 | 6A3405 | • HEATSHLD - ASSY OF | aa-al | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

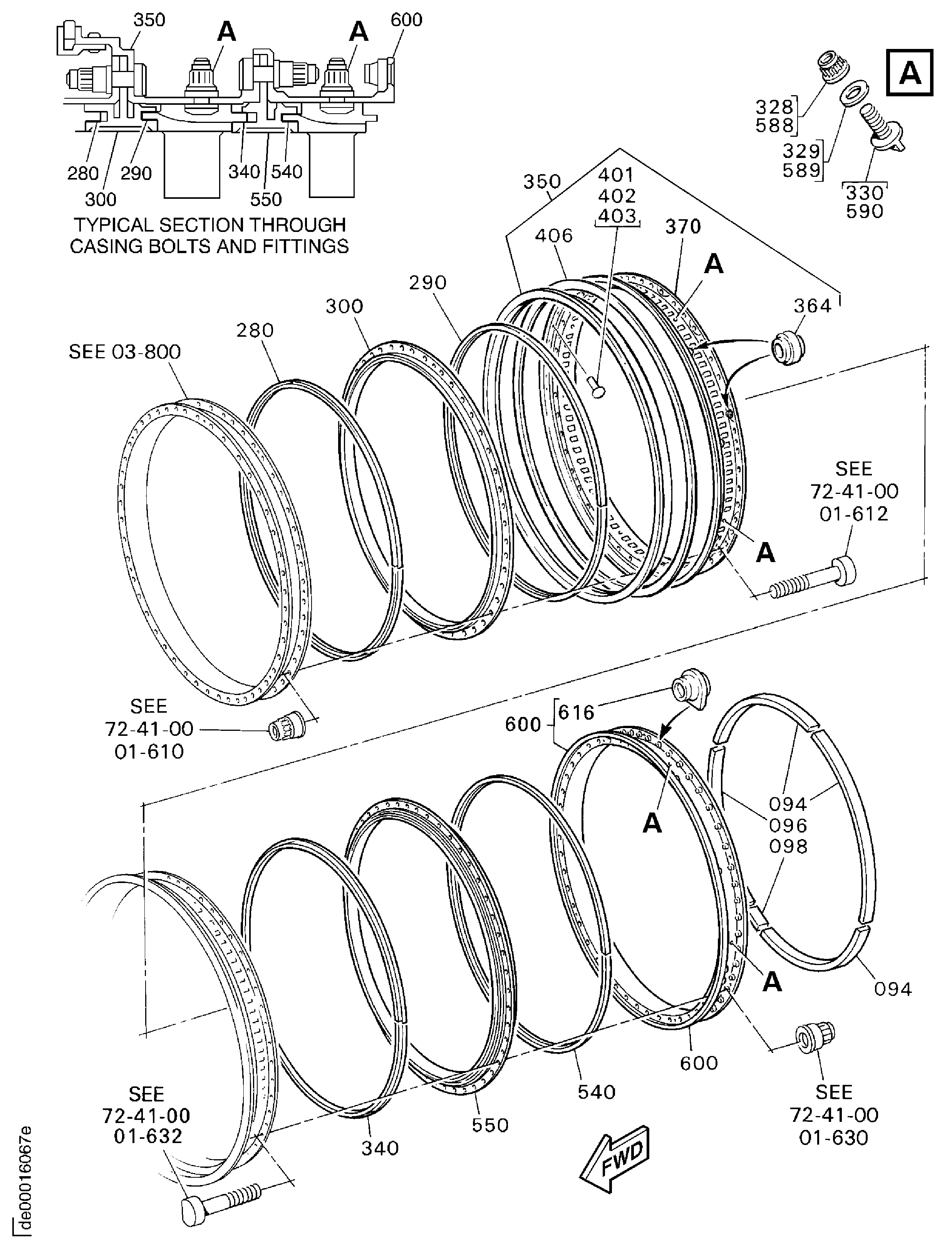

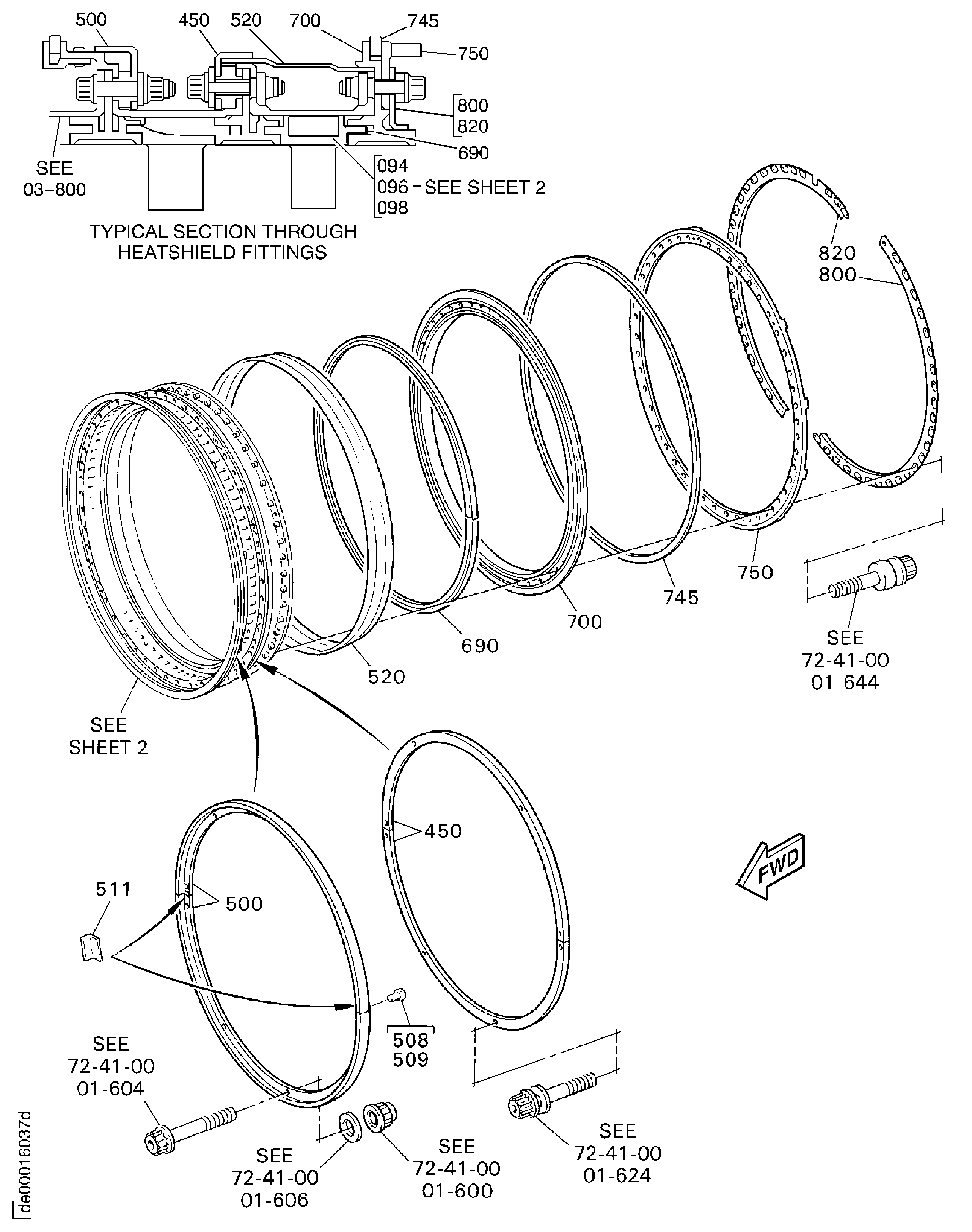

Figure: ENGINE-HP COMPRESSOR RING CASES
HP COMPRESSOR RING CASES
HP COMPRESSOR RING CASES
