DMC:V2500-A1-72-50-24-01A-941A-DIssue No:002.00Issue Date:2018-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72502401 | ENGINE - LP TURBINE INNER STATIC SEALS, PRE SBE70-0072 | aa | ||
| SBE0072-01 | ENGINE - LP TURBINE INNER STATIC SEALS, PRE SBE72-0125 | ab | ||
| SBE0125-01 | ENGINE - LP TURBINE INNER STATIC SEALS, PRE SBE72-0138 | ac | ||
| SBE0138-01 | ENGINE - LP TURBINE INNER STATIC SEALS, PRE SBE70-0504 | ad | ||
| SBE0504-01 | ENGINE - LP TURBINE INNER STATIC SEALS, PRE SBE70-0634 | ae | ||
| SBE0634-01 | ENGINE - LP TURBINE INNER STATIC SEALS, PRE SBE72-0294 | af | ||
| SBE0294-01 | ENGINE - LP TURBINE INNER STATIC SEALS, PRE SBE70-0821 | ag | ||
| SBE0821-01 | ENGINE - LP TURBINE INNER STATIC SEALS, PRE SBE72-0359 | ah | ||
| SBE0359-01 | ENGINE - LP TURBINE INNER STATIC SEALS, PRE SBE72-0588 | ai | ||
| SBE0588-01 | ENGINE - LP TURBINE INNER STATIC SEALS | aj | ||
| 010 | 3A0771 | • DUCT SEGMENT - INNER, ASSEMBLY OF PRE SBE70-0634 | aa-ae | 12 |
| 010A | 3A0108 | • DUCT SEGMENT - INNER, ASSEMBLY OF POST SBE70-0634 | af-aj | 12 |
| -010B | 3A2493 | • DUCT POST SBE72-0294 | ag-aj | REF |
| -020 | 3A0772 | • • DUCT SEGMENT - INNER, ASSEMBLY OF | aa-aj | REF |
| 031 | 3A1585 | • • SEAL SEGMENT - HONEYCOMB | ***** | 1 |
| 035 | 3A0773 | • • SEAL - AIR PRE SBE70-0634 | aa-ae | 1 |
| 036 | 3A2429 | • • SEAL- AIR | aa-aj | 1 |
| 070 | 3A0112 | • SEAL - STRIP PRE SBE70-0504 | aa-aj | 12 |
| 070A | 3A2427 | • SEAL - STRIP POST SBE70-0504 | aa-aj | 12 |
| 100 | 3A0104 | • SUPPORT - DIFFUSER, ASSEMBLY OF PRE SBE70-0072 | aa-aj | 1 |
| 100A | 3A1564 | • SUPPORT - DIFFUSER, ASSEMBLY OF POST SBE70-0072 PRE SBE72-0125 | aa-aj | 1 |
| 100B | 3A2201 | • SUPPORT - DIFFUSER, ASSEMBLY OF ALT 3A2202 POST SBE72-0125 PRE SBE72-0359 | aa-aj | 1 |
| 100C | 3A2202 | • SUPPORT - DIFFUSER, ASSEMBLY OF ALT 3A2201 POST SBE72-0125 PRE SBE72-0359 | aa-aj | 1 |
| 100D | 3A2525 | • SUPPORT - DIFFUSER, ASSEMBLY OF ALT 3A2529 POST SBE72-0359 | aa-aj | 1 |
| -100E | 3A2529 | • SUPPORT - DIFFUSER, ASSEMBLY OF ALT 3A2525 POST SBE72-0359 | aa-aj | REF |
| -110 | 3A0106 | • • SUPPORT - DIFFUSER, ASSEMBLY OF PRE SBE70-0072 | aa-ah | REF |
| -110A | 3A1565 | • • SUPPORT - DIFFUSER, ASSEMBLY OF POST SBE70-0072 PRE SBE72-0359 | aa-ah | REF |
| -110B | 3A2526 | • • SUPPORT - DIFFUSER, ASSEMBLY OF POST SBE72-0359 | ai-aj | REF |
| 120 | 3A0121 | • • PIN - SHOULDER, HEADLESS | aa-aj | 1 |
| 130 | 494677 | • • NUT - OPTION 77445 PRE SBE72-0125 | aa-ag | 29 |
| 130A | ST1578 | • • NUT OPTION 77445 POST SBE72-0125 PRE SBE70-0821 | aa-ag | 29 |
| 130B | ST1578-10 | • • NUT OPTION 77445 POST SBE70-0821 | ah-aj | 29 |
| 170 | 3A0113 | • RING - SUPPORT ASSEMBLY OF PRE SBE72-0138 | aa-ac | 1 |
| 170A | 3A1560 | • RING - SUPPORT ASSEMBLY OF POST SBE72-0138 PRE SBE72-0359 | ad-aj | 1 |
| 170B | 3A2523 | • RING - SUPPORT ASSEMBLY OF POST SBE72-0359 | ad-aj | 1 |
| 170C | 3A2527 | • RING - SUPPORT ASSEMBLY OF POST SBE72-0359 | ai-aj | 1 |
| 190 | 3A0115 | • • KEY - SPACER | aa-aj | 29 |
| 250 | 3A0961 | • RING - AIR SEAL, 3RD STAGE, ASSEMBLY OF PRE SBE70-0072 PRE SBE72-0588 | aa | 1 |
| 250A | 3A1566 | • RING - AIR SEAL, 3RD STAGE, ASSEMBLY OF POST SBE70-0072 PRE SBE72-0588 | ab-ai | 1 |
| 250B | 3A3109 | • RING - AIR SEAL, 3RD STAGE, ASSEMBLY OF ALT 3A3108 POST SBE72-0588 | aj | 1 |
| 250C | 3A3108 | • RING - AIR SEAL, 3RD STAGE, ASSEMBLY OF ALT 3A3109 POST SBE72-0588 | aj | 1 |
| 260 | ST1449-06 | • BOLT - MACHINE, DOUBLE HEXAGON, 250-28 77445 | aa-aj | 29 |
| -290 | 3A0962 | • • RING - AIR, SEAL PRE SBE70-0072 | aa | REF |
| -290A | 3A1567 | • • RING - AIR, SEAL POST SBE70-0072 | ab-aj | REF |
| 296 | 3A1586 | • • SEAL SEGMENT - HONEYCOMB POST SBE70-0032 PRE SBE72-0588 | ***** | 1 |
| 296A | 3A3110 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | aj | 1 |
| 306 | 3A1587 | • • SEAL SEGMENT - HONEYCOMB POST SBE70-0032 PRE SBE72-0588 | ***** | 1 |
| 306A | 3A3111 | • • SEAL - HONEYCOMB POST SBE72-0588 | aj | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

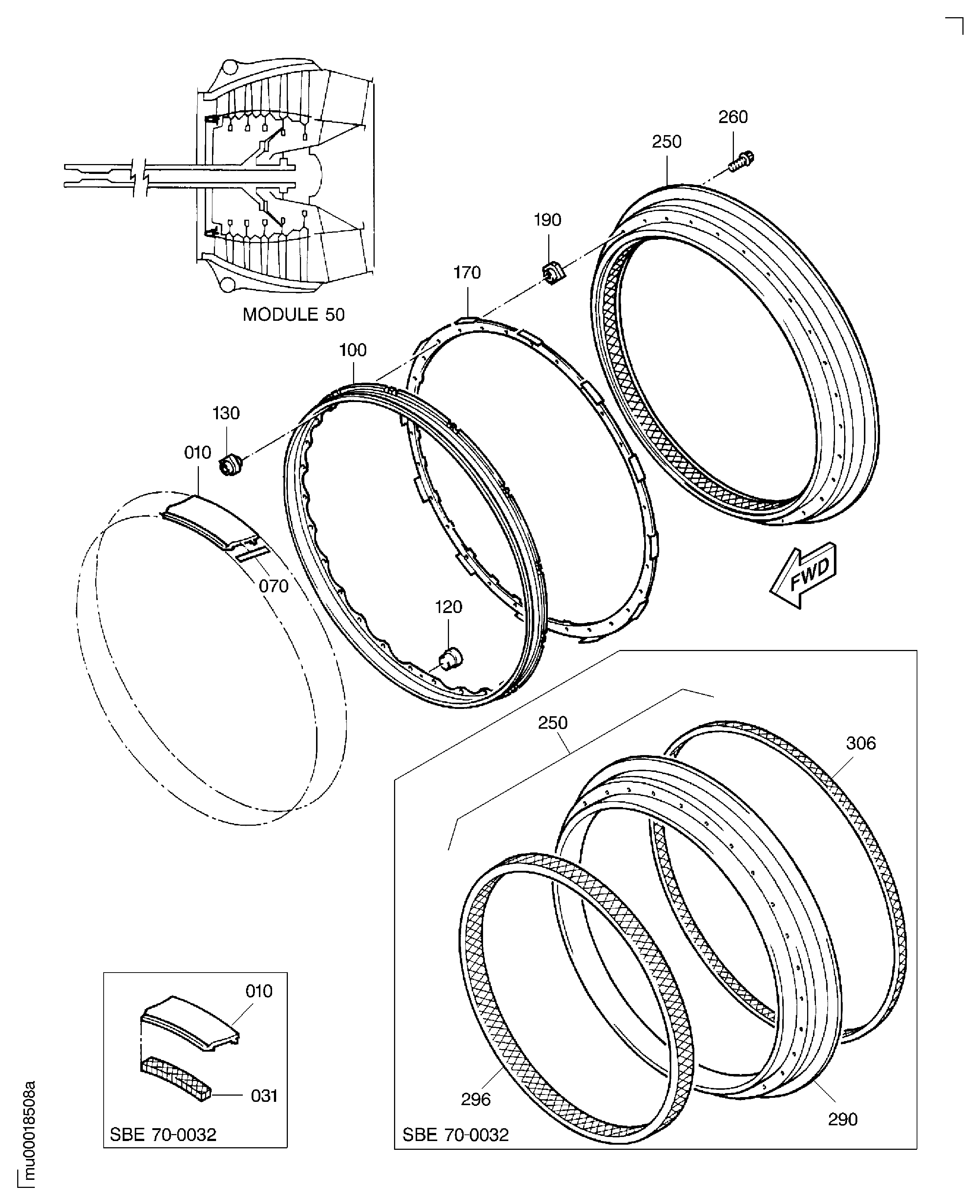

Figure: ENGINE-LP TURBINE INNER STATIC SEALS
LPT INNER STATIC SEALS
