DMC:V2500-A1-73-22-52-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73225201 | ENGINE FUEL AND CONTROL-FUEL METERING UNIT, PRE SBE73-0017 | aa | ||
| SBE0017-01 | ENGINE FUEL AND CONTROL-FUEL METERING UNIT, PRE SBE73-0047 | ab | ||
| SBE0047-01 | ENGINE FUEL AND CONTROL-FUEL METERING UNIT, PRE SBE73-0091 | ac | ||
| SBE0091-01 | ENGINE FUEL AND CONTROL-FUEL METERING UNIT, PRE SBE73-0107 | ad | ||
| SBE0107-01 | ENGINE FUEL AND CONTROL-FUEL METERING UNIT, PRE SBE73-0122 | ae | ||
| SBE0122-01 | ENGINE FUEL AND CONTROL-FUEL METERING UNIT, PRE SBE73-0181 | af | ||
| SBE0181-01 | ENGINE FUEL AND CONTROL-FUEL METERING UNIT | ag | ||
| 100 | FMU500MK3 | • METERING - UNIT 81349 PRE SBE73-0017 | aa-ag | 1 |
| 100A | FMU500MK3 | • METERING - UNIT 81349 POST SBE73-0017 PRE SBE73-0047 | aa-ag | 1 |
| 100B | FMU500MK4 | • METER - UNIT,FUEL 81349 POST SBE73-0047 PRE SBE73-0091 | aa-ag | 1 |
| 100C | FMU500MK4 | • METER 81349 POST SBE73-0091 PRE SBE73-0107 | aa-ag | 1 |
| 100D | FMU500MK4 | • METER 81349 POST SBE73-0107 PRE SBE73-0122 | aa-ag | 1 |
| 100E | FMU500MK4 | • METER 81349 POST SBE73-0122 PRE SBE73-0181 | aa-ag | 1 |
| 100F | FMU500MK4 | • METER 81349 POST SBE73-0181 | aa-ag | 1 |
| 120 | 4W0255 | • BOLT - .3125 DIA X 3.250 Optional Part 4W0255 | aa-ag | 4 |
| 130 | AS43013-125 | • RING - SEALING TOROIDAL, 2109225 U1653 | aa-ag | 1 |
| -300 | AS43013-112 | • RING - SEALING TOROIDAL, 12.37 MM I/D X 2.62 MM U1653 (SEE 73-11-49-20-516 ) | aa-ag | REF |
| -310 | AS43013-120 | • RING - SEALING TOROIDAL U1653 (SEE 73-11-49-26-108 ) | aa-ag | REF |
| -320 | AS43013-116 | • RING - SEALING TOROIDAL, 18.72 MM I/DIA X 2,62 U1653 (SEE 73-11-49-07-108 ) | aa-ag | REF |
| -330 | AS43013-112 | • RING - SEALING TOROIDAL, 12.37 MM I/D X 2.62 MM U1653 (SEE 73-11-49-10-108 ) | aa-ag | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

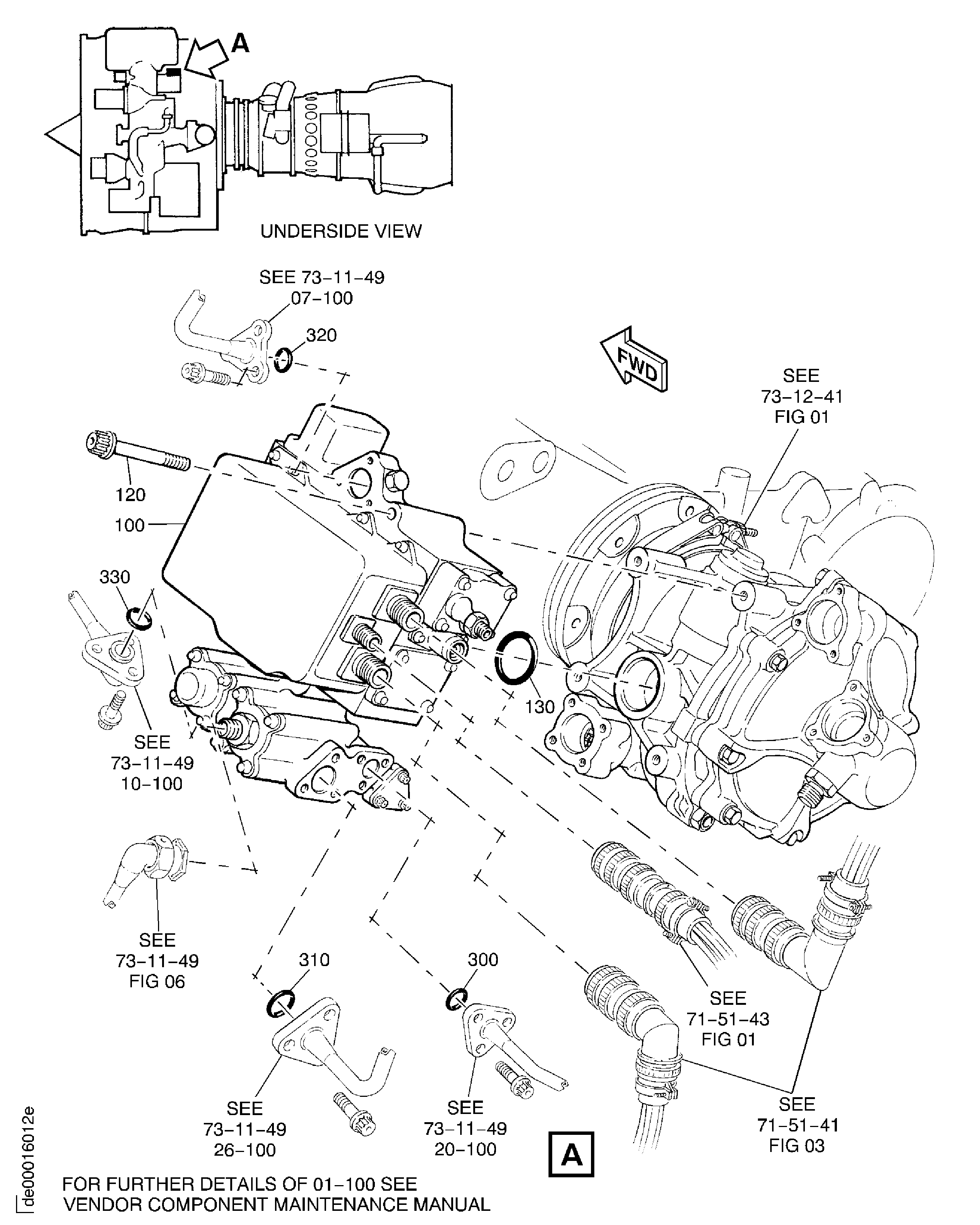

Figure: ENGINE FUEL AND CONTROL-FUEL METERING UNIT
FUEL METERING UNIT
