DMC:V2500-A1-75-31-42-01A-941A-DIssue No:002.00Issue Date:2016-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75314201 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE70-0029 | aa | ||
| SBE0029-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE70-0049 | ab | ||
| SBE0049-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE70-0047 | ac | ||
| SBE0047-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE70-0099 | ad | ||
| SBE0099-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE70-0158 | ae | ||
| SBE0158-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE72-0051 | af | ||
| SBE0051-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE75-0019 | ag | ||
| SBE0019-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE75-0023 | ah | ||
| SBE0023-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE72-0132 | ai | ||
| SBE0132-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE70-0272 | aj | ||
| SBE0272-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE75-0041 | ak | ||
| SBE0041-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE72-0233 | al | ||
| SBE0233-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE75-0068 | am | ||
| SBE0068-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE75-0076 | an | ||
| SBE0076-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE75-0115 | ao | ||
| SBE0115-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR, PRE SBE72-0664 | ap | ||
| SBE0664-01 | AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR | aq | ||
| 080 | 5W8269 | • BRACKET PRE SBE70-0158 | aa-ap | 1 |
| 080A | 6A4681 | • BRACKET POST SBE70-0158 | aa-ap | 1 |
| 100 | 1666MK2 | • ACTUATOR - MASTER-LPC BLEED K0131 PRE SBE75-0019 | aa-ah | 1 |
| 100A | 1666MK3 | • ACTUATOR - MASTER LPC BLEED (5L0032) K0131 POST SBE75-0019 PRE SBE75-0023 | aa-ah | 1 |
| 100B | 1666MK4 | • ACTUATOR - MASTER LPC BLEED K0131 POST SBE75-0023 PRE SBE75-0041 | ai-ak | 1 |
| 100C | 1666MK5 | • ACTUATOR - MASTER LPC BLEED K0131 REF No. 5L0059 POST SBE75-0041 PRE SBE75-0068 | al-ao | 1 |
| 100D | 1666MK5 | • ACTUATOR K0131 REF No. 5L0059 | al-ao | 1 |
| 100E | 1666MK5 | • ACTUATOR K0131 REF No. 5L0059 | al-ao | 1 |
| 100F | 1666MK6 | • ACTUATOR - MASTER BSBVA K0131 POST SBE75-0115 | al-ap | 1 |
| 110 | 4W0169 | • BOLT - .250 DIA X .938 | aa-ap | 4 |
| 110A | AS21013 | • BOLT - .250 DIA X .812 U1653 | aa-ap | 4 |
| 115 | AS44692 | • WASHER U1653 | aa-ap | 1 |
| 125 | 5A9016 | • BOLT | aa-ap | 1 |
| 126 | 1666-4001 | • • ADAPTOR - UNION K5294 POST SBE70-0099 | ae-ap | 1 |
| 128 | STD831-1 | • • RING - SEALING TOROIDAL U1602 POST SBE70-0099 PRE SBE72-0664 | ae-ap | 1 |
| 128A | STD1031-4908 | • • RING - SEALING TOROIDAL K0400 POST SBE72-0664 | aq | 1 |
| 131 | 1666-4003 | • • ADAPTOR - UNION K5294 POST SBE70-0099 | ae-ap | 1 |
| 133 | STD831-16 | • • RING - SEALING TOROIDAL K0131 POST SBE70-0099 PRE SBE72-0664 | ae-ap | 1 |
| 133A | STD1031-4907 | • • RING - SEALING TOROIDAL U1602 POST SBE72-0664 | aq | 1 |
| 136 | 1666-4003 | • • ADAPTOR - UNION K5294 POST SBE70-0099 | ae-ap | 1 |
| 138 | STD831-16 | • • RING - SEALING TOROIDAL K0131 POST SBE70-0099 PRE SBE72-0664 | ae-ap | 1 |
| 138A | STD1031-4907 | • • RING - SEALING TOROIDAL U1602 POST SBE72-0664 | aq | 1 |
| 141 | 1666-4003 | • • ADAPTOR - UNION K5294 POST SBE70-0099 PRE SBE75-0019 | ae-ap | 1 |
| 141A | 1666-3003 | • • VALVE - A/O K0131 POST SBE75-0019 | ae-ap | 1 |
| 143 | STD831-16 | • • RING - SEALING TOROIDAL K0131 POST SBE70-0099 PRE SBE72-0664 | ae-ap | 1 |
| 143A | STD1031-4907 | • • RING - SEALING TOROIDAL U1602 POST SBE72-0664 | aq | 1 |
| 146 | AS27467 | • • UNION - DOUBLE ENDED TUBE NO.4 BRG OIL WEEPLINE U1653 POST SBE70-0099 | ae-ap | 1 |
| 148 | STD831-11 | • • RING - SEALING TOROIDAL U1602 POST SBE70-0099 PRE SBE72-0664 | ae-ap | 1 |
| 148A | STD1031-4905 | • • RING - SEALING TOROIDAL U1602 POST SBE72-0664 | aq | 1 |
| 180 | 6A2168 | • BRACKET POST SBE72-0132 PRE SBE70-0272 | aj | 1 |
| 180A | 6A4652 | • BRACKET - ASSY POST SBE70-0272 | ak-ap | 1 |
| 200 | 5A8602 | • BRACKET - ASSY MASTER | aa-ap | 1 |
| 200A | 5A9028 | • BRACKET - A/O BSBVA MASTER PRE SBE70-0029 | aa-aj | 1 |
| 200B | 5A0347 | • BRACKET - A/O BSBVA MASTER POST SBE70-0029 PRE SBE70-0272 | aa-aj | 1 |
| 210 | 4W0169 | • BOLT - .250 DIA X .938 | aa-ap | 4 |
| 210A | AS21026 | • BOLT - .250 DIA X 1.625 U1653 PRE SBE72-0051 | aa-af | 4 |
| 210B | AS43326 | • BOLT U1653 POST SBE72-0051 PRE SBE70-0272 | ag-aj | 4 |
| 230 | AGS3782 | • • INSERT - SCREW THREAD, .250-28 X 2.5D U1653 | aa-ap | 4 |
| 230A | AGS3782 | • • INSERT - SCREW THREAD, .250-28 X 2.5D U1653 | aa-ap | 4 |
| 250 | 5A8603 | • GUIDE - A/O ROD MASTER | aa-ap | 1 |
| 250A | 5A9013 | • GUIDE - A/O BSBVA MASTER PRE SBE70-0049 | aa-aj | 1 |
| 250B | 5A0334 | • GUIDE POST SBE70-0049 PRE SBE70-0272 | aa-aj | 1 |
| 250C | 6A6435 | • GUIDE - PLATE BSBVA MASTER POST SBE72-0233 | am-ap | 1 |
| 250D | 6A6436 | • GUIDE - PLATE BSBVA MASTER POST SBE72-0233 | am-ap | 1 |
| 260 | 4W0001 | • NUT - .190 DIA | aa-ap | 3 |
| 263 | AS41104 | • NUT - .190 DIA U1653 PRE SBE70-0047 | aa-aj | 1 |
| 263A | 4W0043 | • NUT - .190 DIA POST SBE70-0047 PRE SBE70-0272 | aa-aj | 1 |
| 265 | 4W0105 | • BOLT - .190 DIA X .625 | aa-ap | 3 |
| 265A | AS20909 | • BOLT - .190 DIA X .562 U1653 PRE SBE70-0272 | aa-aj | 1 |
| 267 | 4W2621 | • WASHER PRE SBE70-0272 | aa-aj | 1 |
| 400 | 6A5478 | • BRACKET - ASSY OF POST SBE70-0272 | ak-ap | 1 |
| 410 | AS43316 | • BOLT - BIHEX HD, .250 DIA X 1.000 U1653 POST SBE70-0272 | ak-ap | 2 |
| 411 | AS43317 | • BOLT - BIHEX HD, .250 DIA X 1.062 U1653 POST SBE70-0272 | ak-ap | 2 |
| 438 | AS52761 | • • INSERT - SCREW THREAD, .250 DIA U1653 POST SBE70-0272 | ak-ap | 2 |
| 440 | AS44806 | • • PIN - SHOULDER,HEADLESS U1653 POST SBE70-0272 | ak-ap | 1 |
| -600 | MS9967-012 | • PACKING 96906 (SEE 73-11-49-12-096 ) | aa-ap | REF |
| -610 | MS9967-011 | • PACKING 96906 (SEE 73-11-49-14- 096 ) | aa-ap | REF |
| -620 | MS9967-011 | • PACKING 96906 Optional Part MS9967-011 (SEE 73-11-49-16-096 ) | aa-ap | REF |
| -630 | MS9967-011 | • PACKING 96906 Optional Part MS9967-011 (SEE 73-11-49-15-096 ) | aa-ap | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

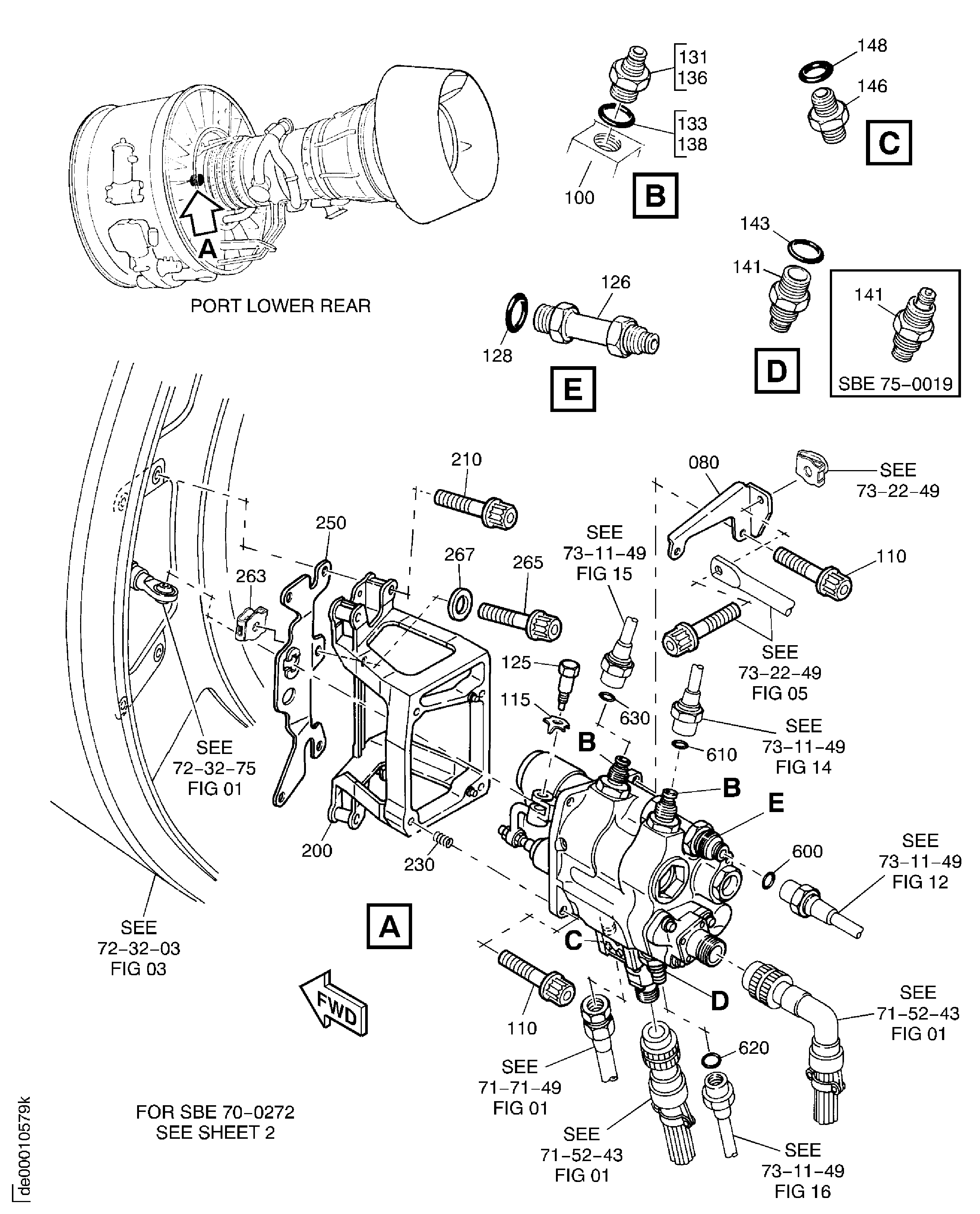

Figure: "AIR-LP COMPRESSOR BLEED,MASTER ACTUATOR

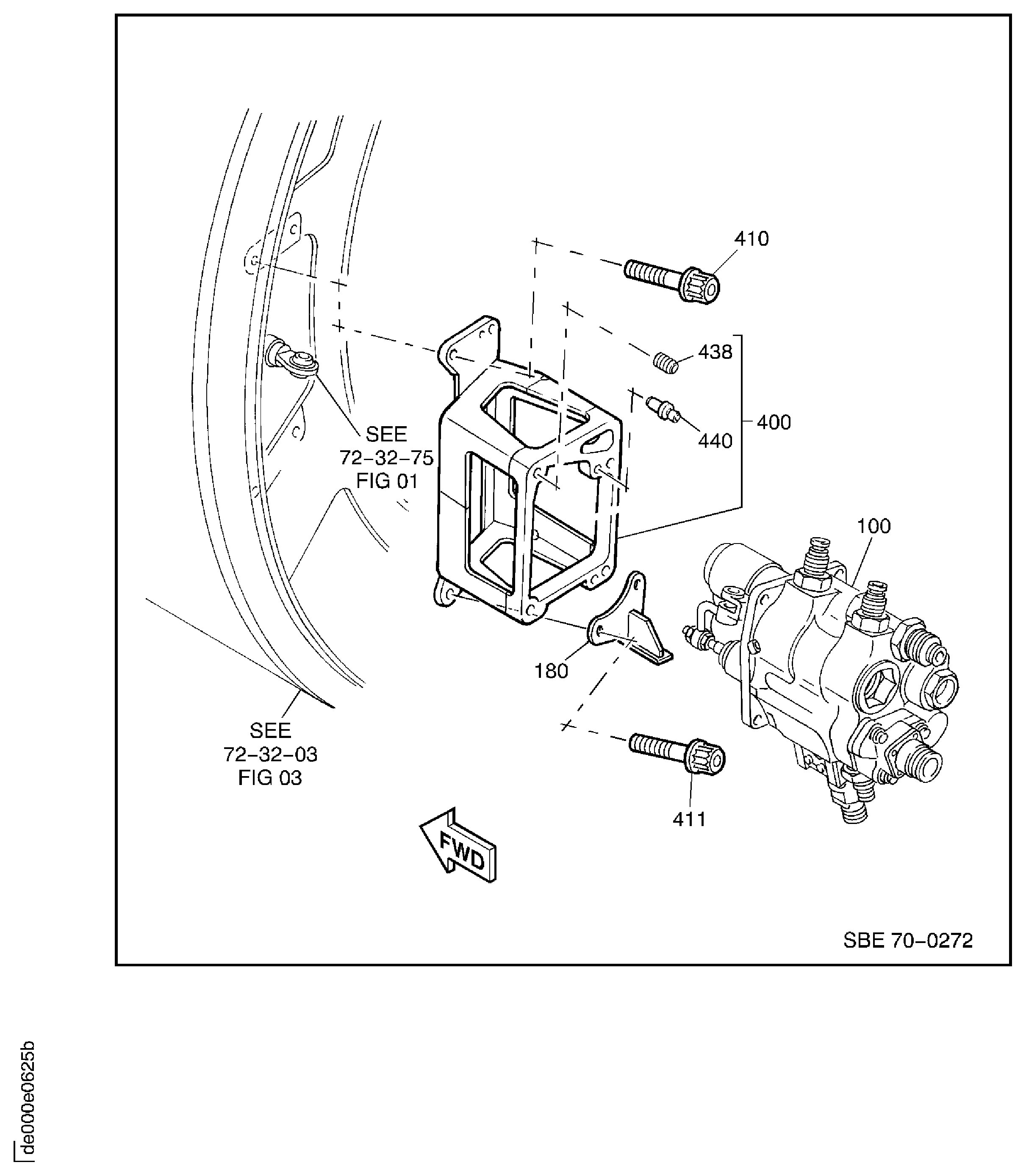

LPC BLEED MASTER ACTUATOR
LPC BLEED MASTER ACTUATOR
