EXHAUST-COMMON NOZZLE EXHAUST COLLECTOR

DMC:V2500-A1-78-11-11-01A-941A-D|Issue No:002.00|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B78111101EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN78-0047aa
000SBN0047-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0119ab
000SBN0119-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN78-0006ac
000SBN0006-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0167ad
000SBN0167-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0265ae
000SBN0265-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0173af
000SBN0173-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN78-0070ag
000SBN0070-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0424ah
000SBN0424-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0540ai
000SBN0540-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0515aj
000SBN0515-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0763ak
000SBN0763-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0796al
000SBN0796-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0610am
000SBN0610-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0843an
000SBN0843-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0880ao
000SBN0880-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN78-0208ap
000SBN0208-01EXHAUST - COMMON NOZZLE EXHAUST COLLECTORaq
-001001740-1093-505COMMON - NOZZLE, INSTALL
51563		aa-aqREF
-001001A740-1093-507COMMON - NOZZLE, INSTALL
51563
PRE SBN70-0173		aa-afREF
-001001B740-1093-513COMMON - NOZZLE, INSTALL
51563
POST SBN78-0047
PRE SBN70-0265		ab-aeREF
-001001C740-1093-515NOZZLE - COMMON, INSTALL
51563
POST SBN70-0265
PRE SBN70-0540		af-aiREF
-001001D740-1093-509COMMON - NOZZLE, INSTALL
51563
POST SBN70-0173		ag-aqREF
-001001E740-1093-517NOZZLE - COMMON, INSTALL
51563
POST SBN70-0540
PRE SBN70-0763		aj-akREF
-001001F740-1093-519NOZZLE - COMMON, INSTALL
51563
POST SBN70-0540
PRE SBN70-0763		aj-akREF
-001001G740-1093-507COMMON - NOZZLE, INSTALL
51563
ALT 745-1100-505
POST SBN70-0763
PRE SBN78-0208		al-aqREF
-001001H745-1100-505NOZZLE - COMMON, INSTALL
51563
ALT 745-1100-503
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001J745-1100-503NOZZLE - COMMON, INSTALL
51563
ALT 740-1093-501
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001K740-1093-501COMMON - NOZZLE, INSTALL
51563
ALT 740-1093-507
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001L740-1093-511COMMON - NOZZLE, INSTALL
51563
ALT 745-1100-505
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001M745-1100-505NOZZLE - COMMON, INSTALL
51563
ALT 745-1100-503
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001N745-1100-503NOZZLE - COMMON, INSTALL
51563
ALT 745-1100-501
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001P745-1100-501NOZZLE - COMMON, INSTALL
51563
ALT 740-1093-511
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001Q740-1093-513COMMON - NOZZLE, INSTALL
51563
ALT 745-1100-505
POST SBN70-0763
PRE SBN78-0208		aj-akREF
-001001R745-1100-505NOZZLE - COMMON, INSTALL
51563
ALT 745-1100-503
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001S745-1100-503NOZZLE - COMMON, INSTALL
51563
ALT 745-1100-501
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001T745-1100-501NOZZLE - COMMON, INSTALL
51563
ALT 740-1093-513
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001U740-1093-519NOZZLE - COMMON, INSTALL
51563
ALT 745-1100-505
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001V745-1100-505NOZZLE - COMMON, INSTALL
51563
ALT 745-1100-503
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001W745-1100-503NOZZLE - COMMON, INSTALL
51563
ALT 745-1100-501
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001X745-1100-501NOZZLE - COMMON, INSTALL
51563
ALT 740-1093-519
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001Y740-1093-517NOZZLE - COMMON, INSTALL
51563
ALT 745-1100-505
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001Z745-1100-505NOZZLE - COMMON, INSTALL
51563
ALT 745-1100-503
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001AA745-1100-503NOZZLE - COMMON, INSTALL
51563
ALT 745-1100-501
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001AB745-1100-501NOZZLE - COMMON, INSTALL
51563
ALT 740-1093-517
POST SBN70-0763
PRE SBN70-0763		aj-akREF
-001001AC740M0009-501NOZZLE - COMMON, INSTALL
51563
POST SBN78-0208		al-aqREF
-001001AD740M0009-503NOZZLE - COMMON, INSTALL
51563
POST SBN78-0208		aj-akREF
005005NAS1081C4A4• SET SCREW - BLANKING
80205
POST SBN78-0006		ad-aq4
-006006740-0394-505• MARKING - INSTALL V2500
51563
POST SBN70-0119		ac-aqREF
008008740-0394-43• • DECAL - HOIST POINT CNA
51563
POST SBN70-0119		ac-aq2
010010740-1094-501• COMMON - NOZZLE, ASSEMBLY OF
51563		aa-aq1
010010A740-1094-503• NOZZLE - COMMON, ASSEMBLY OF
51563
PRE SBN70-0173		aa-af1
010010B740-1094-509• COMMON - NOZZLE, ASSEMBLY OF
51563
POST SBN78-0047
PRE SBN70-0167		ab-ae1
010010C740-1094-513• COMMON - NOZZLE, ASSEMBLY OF
51563
POST SBN70-0167
PRE SBN70-0265		ab-ae1
010010D740-1094-515• NOZZLE - COMMON, ASSEMBLY OF
51563
POST SBN70-0265
PRE SBN78-0070		af-ag1
010010E740-1094-505• COMMON - NOZZLE, ASSEMBLY OF
51563
POST SBN70-0173		ag-aq1
010010F740-1094-519• NOZZLE - COMMON, ASSEMBLY OF
51563
POST SBN78-0070
PRE SBN70-0424		af-aq1
010010G740-1094-517• NOZZLE - COMMON, ASSEMBLY OF
51563
POST SBN70-0424		af-aq1
010010H740-1094-517• NOZZLE - COMMON, ASSEMBLY OF
51563
POST SBN70-0540		aj-aq1
010010J740-1094-519• NOZZLE - COMMON, ASSEMBLY OF
51563
POST SBN70-0540
PRE SBN70-0540		*****1
010010K745-1101-507• NOZZLE - COMMON, ASSEMBLY OF
51563
POST SBN70-0880		ap-aq1
02002077711-4-6• BOLT
56878		aa-aq56
020020A84828-4-7• BOLT
56878		aa-aq49
020020B275B0304-8• BOLT
51563
ALT 77711-4-8
POST SBN78-0208		aq49
-020020C77711-4-8• BOLT
56878
ALT 275B0304-8
POST SBN78-0208		aqREF
025025NAS1587-4C• WASHER
80205		aa-aq49
03003080562CT428• NUT
56878
PRE SBN70-0173		aa-af49
030030A80562CT428• NUT
56878
PRE SBN70-0173		aa-af49
030030B80562AT428• NUT
56878
PRE SBN70-0173		aa-af49
040040NS202941-4• NUT - ANCHOR
56878
POST SBN70-0173
PRE SBN78-0208		ag-aq49
040040AMS21060-4• NUT - ANCHOR
96906
ALT S700N1362-4
POST SBN78-0208		ag-aq49
-040040BS700N1362-4• NUT - ANCHOR
51563
ALT MS21060-4
POST SBN78-0208		ag-aqREF
050050MS20427M3• RIVET
96906
POST SBN70-0173
PRE SBN70-0610		ag-aq98
050050AMS20427M3-7• RIVET
96906
POST SBN70-0610		ag-aq98
050050BNAS1200-3-7• RIVET
80205
POST SBN78-0208		aq98
-070070714845• • NUT OPTION
77445		aa-aqREF
-085085740-1118-507• • SEAL - ASSEMBLY OF
51563
POST SBN70-0515		ak-aqREF
260260740-1007-43• • • PIECE - TAIL
51563
POST SBN70-0880		ap-aq1
431431S700S0497-90• • • SHIM - LAMINATED
51563
POST SBN70-0796		am-aq4
-710710745-1102-505• • • STRUT - ASSEMBLY OF
51563
POST SBN70-0843
PRE SBN70-0880		aoREF
750750NAS7503U4• • • SCREW
80205
POST SBN70-0540		aj-aq8
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

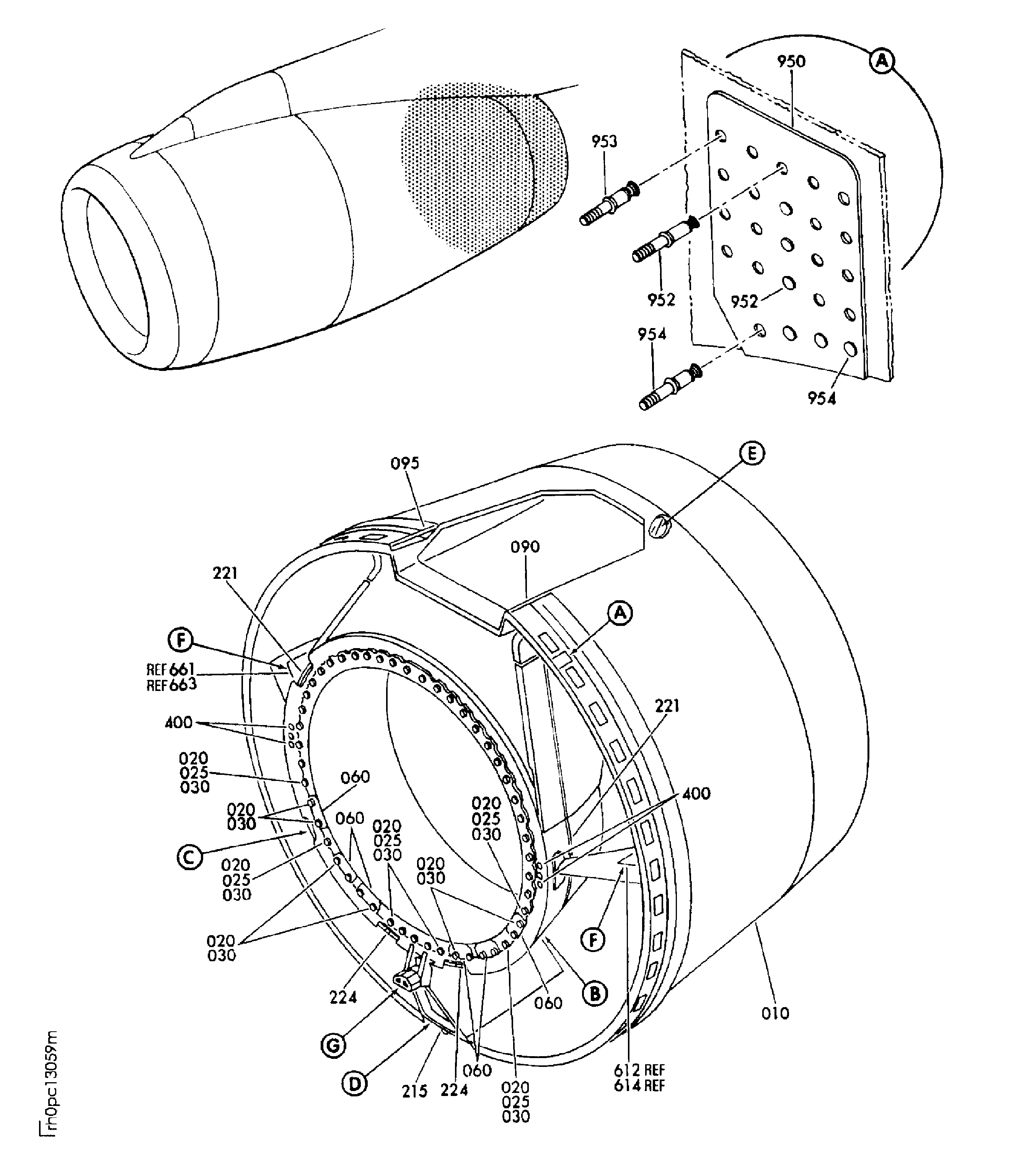

Figure: EXHAUST-COMMON NOZZLE EXHAUST COLLECTOR

Common Nozzle Installation

Change Type:

Updated Quantity.

Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:56878
Enterprise Name:SPS TECHNOLOGIES INC
BU Name:SPS TECHNOLOGIES INC
Department:AERO/INDS PRODUCTS DIV
Street:301 HIGHLAND AVENUE
City:JENKINTOWN
State:PA
Zip Code:19046
Country:USA
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Manufacturer Code:80205
Enterprise Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Part Number:275B0304-8
Part Name:BOLT
Manufacturer Code:51563
Part Number:714845
Part Name:NUT OPTION
Manufacturer Code:77445
Part Number:740-0394-43
Part Name:DECAL - HOIST POINT CNA
Manufacturer Code:51563
Part Number:740-0394-505
Part Name:MARKING - INSTALL V2500
Manufacturer Code:51563
Part Number:740-1007-43
Part Name:PIECE - TAIL
Manufacturer Code:51563
Part Number:740-1093-501
Part Name:COMMON - NOZZLE, INSTALL
Manufacturer Code:51563
Part Number:740-1093-505
Part Name:COMMON - NOZZLE, INSTALL
Manufacturer Code:51563
Part Number:740-1093-507
Part Name:COMMON - NOZZLE, INSTALL
Manufacturer Code:51563
Part Number:740-1093-509
Part Name:COMMON - NOZZLE, INSTALL
Manufacturer Code:51563
Part Number:740-1093-511
Part Name:COMMON - NOZZLE, INSTALL
Manufacturer Code:51563
Part Number:740-1093-513
Part Name:COMMON - NOZZLE, INSTALL
Manufacturer Code:51563
Part Number:740-1093-515
Part Name:NOZZLE - COMMON, INSTALL
Manufacturer Code:51563
Part Number:740-1093-517
Part Name:NOZZLE - COMMON, INSTALL
Manufacturer Code:51563
Part Number:740-1093-519
Part Name:NOZZLE - COMMON, INSTALL
Manufacturer Code:51563
Part Number:740-1094-501
Part Name:COMMON - NOZZLE, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-1094-503
Part Name:NOZZLE - COMMON, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-1094-505
Part Name:COMMON - NOZZLE, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-1094-509
Part Name:COMMON - NOZZLE, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-1094-513
Part Name:COMMON - NOZZLE, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-1094-515
Part Name:NOZZLE - COMMON, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-1094-517
Part Name:NOZZLE - COMMON, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-1094-519
Part Name:NOZZLE - COMMON, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-1118-507
Part Name:SEAL - ASSEMBLY OF
Manufacturer Code:51563
Part Number:740M0009-501
Part Name:NOZZLE - COMMON, INSTALL
Manufacturer Code:51563
Part Number:740M0009-503
Part Name:NOZZLE - COMMON, INSTALL
Manufacturer Code:51563
Part Number:745-1100-501
Part Name:NOZZLE - COMMON, INSTALL
Manufacturer Code:51563
Part Number:745-1100-503
Part Name:NOZZLE - COMMON, INSTALL
Manufacturer Code:51563
Part Number:745-1100-505
Part Name:NOZZLE - COMMON, INSTALL
Manufacturer Code:51563
Part Number:745-1101-507
Part Name:NOZZLE - COMMON, ASSEMBLY OF
Manufacturer Code:51563
Part Number:745-1102-505
Part Name:STRUT - ASSEMBLY OF
Manufacturer Code:51563
Part Number:77711-4-6
Part Name:BOLT
Manufacturer Code:56878
Part Number:77711-4-8
Part Name:BOLT
Manufacturer Code:56878
Part Number:80562AT428
Part Name:NUT
Manufacturer Code:56878
Part Number:80562CT428
Part Name:NUT
Manufacturer Code:56878
Part Number:84828-4-7
Part Name:BOLT
Manufacturer Code:56878
Part Number:MS20427M3-7
Part Name:RIVET
Manufacturer Code:96906
Part Number:MS20427M3
Part Name:RIVET
Manufacturer Code:96906
Part Number:MS21060-4
Part Name:NUT - ANCHOR
Manufacturer Code:96906
Part Number:NAS1081C4A4
Part Name:SET SCREW - BLANKING
Manufacturer Code:80205
Part Number:NAS1200-3-7
Part Name:RIVET
Manufacturer Code:80205
Part Number:NAS1587-4C
Part Name:WASHER
Manufacturer Code:80205
Part Number:NAS7503U4
Part Name:SCREW
Manufacturer Code:80205
Part Number:NS202941-4
Part Name:NUT - ANCHOR
Manufacturer Code:56878
Part Number:S700N1362-4
Part Name:NUT - ANCHOR
Manufacturer Code:51563
Part Number:S700S0497-90
Part Name:SHIM - LAMINATED
Manufacturer Code:51563
