TASK 72-32-00-030-004-C00 LPC/Intermediate Case Module - Remove The Panel Rubber Seals, Middle Liner Panel, And Rear Liner Panels, Disassembly-004

General

This TASK gives the procedure to remove the middle liner panel, the rear liner panels and panel rubber seals.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved penetrating oil before the removal of threaded parts. Let the parts soak before removal. For the approved oils and procedures, refer to the SPM TASK 70-64-00-640-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

The No. 1 strut, which is the top position strut of the fan frame assembly, is identified by the five pressure tubes on the No.1 strut leading edge.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-030-157 Remove the Middle Liner Panel and the Rear Liner Panels from the Fan Case

    1. Refer to Figure and Figure.

    2. Make sure that the fan frame and the fan case assembly is installed horizontally on the turnover stand refer to TASK 72-32-00-030-003-B00 (DISASSEMBLY-003, CONFIG-002).

    3. Make sure that the work mat is in position in the fan case. Refer to TASK 72-32-00-030-003-B00 (DISASSEMBLY-003, CONFIG-002).

      4. Remove the middle liner panel and the 10 rear liner panels from the fan case.

      1. Remove the 38 screws (02-820) which attach the middle liner panel and the nine rear panels to the fan case.

      2. Remove the middle liner panel and the nine rear panels from the fan case.

      3. Remove the four screws (02-825) which attach the rear liner panel to the fan case.

      4. Remove the rear liner panel from the fan case.

    2. SUBTASK 72-32-00-030-225-A00 Remove the Panel Rubber Seals (Pre SBE 72-0156)

    1. Refer to Figure, Figure and Figure.

    2. Remove the screws and the nuts which attach the 10 panel rubber seals to the fan case.

      3. Remove the panel rubber seals.

      1. CAUTION

        CAREFULLY USE A THIN BLADE CUTTER. THE CUTTER CAN CAUSE DAMAGE TO THE SURFACE OF THE PANEL RUBBER SEALS AND THE FAN CASE.

        Cut the silicone compound between the panel rubber seals and the fan case if the silicone compound prevents removal of the panel rubber seals. Use a thin blade cutter or an equivalent hand tool.

    3. SUBTASK 72-32-00-030-225-B00 Remove the Panel Rubber Seals (SBE 72-0156)

      SBE 72-0156: Replace the fan case No.1 rubber seal

    1. Refer to Figure, Figure, Figure and Figure.

    2. Remove the screws and the nuts which attach the 10 panel rubber seals to the fan case.

      3. Remove the panel rubber seals.

      1. CAUTION

        CAREFULLY USE A THIN BLADE CUTTER. THE CUTTER CAN CAUSE DAMAGE TO THE SURFACE OF THE NO. 1 PANEL RUBBER SEAL AND THE FAN FRAME NO. 1 STRUT.

        Cut the silicone compound between the No. 1 panel rubber seal and the fan frame No. 1 strut if the silicone compound prevents removal of the panel rubber seal. Use a thin blade cutter or an equivalent hand tool.

      2. CAUTION

        CAREFULLY USE A THIN BLADE CUTTER. THE CUTTER CAN CAUSE DAMAGE TO THE SURFACE OF THE PANEL RUBBER SEALS AND THE FAN CASE.

        Cut the silicone compound between the panel rubber seals and the fan case if the silicone compound prevents removal of the panel rubber seals. Use a thin blade cutter or an equivalent hand tool.

    4. SUBTASK 72-32-00-030-226-A00 Remove the Unwanted Silicone Compound from the Panel Rubber Seals and the Fan Case (Pre SBE 72-0156)

    1. Refer to Figure.

    2. CAUTION

      CAREFULLY USE A SCRAPER. THE SCRAPER CAN CAUSE DAMAGE TO THE SURFACE OF THE PANEL RUBBER SEALS AND THE FAN CASE.

      Use a scraper or an equivalent hand tool to remove the silicone compound from these:

      - the rear ends of the No. 1 thru 10 panel rubber seals.

      - the fan case.

    5. SUBTASK 72-32-00-030-226-B00 Remove the Unwanted Silicone Compound from the Panel Rubber Seals, Fan Case and the Fan Frame No. 1 Strut (SBE 72-0156)

      SBE 72-0156: Replace the fan case No. 1 rubber seal

    1. Refer to Figure and Figure.

    2. CAUTION

      CAREFULLY USE A SCRAPER. THE SCRAPER CAN CAUSE DAMAGE TO THE SURFACE OF THE PANEL RUBBER SEAL, THE FAN CASE AND THE FAN FRAME NO.1 STRUT.

      Use a scraper or an equivalent hand tool to remove the silicone compound from these:

      - the front end of the No. 1 panel rubber seal.

      - the rear ends of the No. 1 thru 10 panel rubber seals.

      - the fan case.

      - the fan frame No. 1 strut.

    6. SUBTASK 72-32-00-030-158-A00 Remove the FEGVs from the Fan Case

    1. Procedure transferred to TASK 72-32-00-030-002-B00 (DISASSEMBLY-002, CONFIG-002).

    7. SUBTASK 72-32-00-030-158-B00 Remove the FEGVs from the Fan Case

    1. Procedure transferred to TASK 72-32-00-030-002-B00 (DISASSEMBLY-002, CONFIG-002).

    8. SUBTASK 72-32-00-030-159-A00 Remove the Rear Fairing from the LP Compressor Bleed Duct

    1. Procedure transferred to TASK 72-32-00-030-002-B00 (DISASSEMBLY-002, CONFIG-002).

    9. SUBTASK 72-32-00-030-159-B00 Remove the Rear Fairing from the LP Compressor Bleed Duct

    1. Procedure transferred to TASK 72-32-00-030-002-B00 (DISASSEMBLY-002, CONFIG-002).

    10. Figure: Remove the middle liner panel and the rear liner panels from the fan case

    Sheet 1

    Legend
    Remove the middle liner panel and the rear liner panels from the fan case

    Sheet 1

    Close

    Figure: Remove the middle liner panel and the rear liner panels from the fan case

    Sheet 2

    Legend
    Remove the middle liner panel and the rear liner panels from the fan case

    Sheet 2

    Close

    Figure: Remove the panel rubber seals from the fan case

    Remove the panel rubber seals from the fan case

    Figure: Remove the screws and the nuts which attach the panel rubber seals to the fan case

    Remove the screws and the nuts which attach the panel rubber seals to the fan case

    Figure: SBE 72-0156: Remove silicone compound from the No.1 panel rubber seal and the fan frame No.1 strut

    SBE 72-0156: Remove silicone compound from the No.1 panel rubber seal and the fan frame No.1 strut

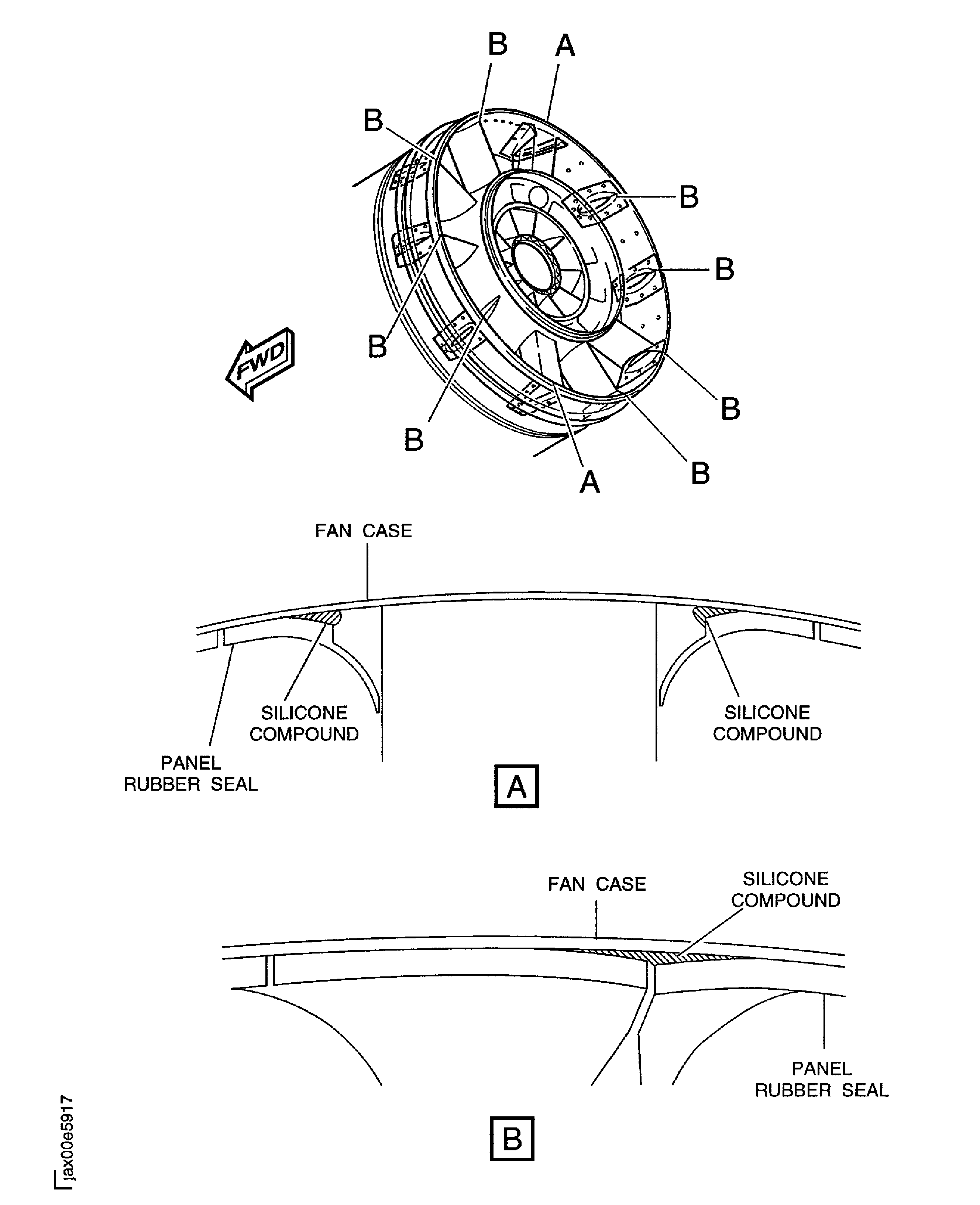

    Figure: Remove silicone compound from the panel rubber seals and the fan case

    Remove silicone compound from the panel rubber seals and the fan case

    Figure: Pre SBE 70-0377: Remove the FEGVs from the fan case

    Pre SBE 70-0377: Remove the FEGVs from the fan case

    Figure: SBE 70-0377: Remove the FEGVs from the fan case

    SBE 70-0377: Remove the FEGVs from the fan case

    Figure: Pre SBE 72-0155: Remove the rear fairing from the LP compressor bleed duct

    Pre SBE 72-0155: Remove the rear fairing from the LP compressor bleed duct

    Figure: SBE 72-0155: Remove the rear fairing from the LP compressor bleed duct

    SBE 72-0155: Remove the rear fairing from the LP compressor bleed duct
