TASK 72-32-00-030-006-B00 LPC/Intermediate Case Module - Remove The LPC Booster Stage Assembly, Disassembly-006

DMC:V2500-A5-72-32-0000-06A-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-32-00-030-006-B00 LPC/Intermediate Case Module - Remove The LPC Booster Stage Assembly, Disassembly-006

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved penetrating oil before the removal of threaded parts and parts with an interference fit. Let the parts soak before removal. For the approved penetrating oils and procedures, refer to the SPM TASK 70-64-00-640-501.

This TASK gives the procedure to remove the LP compressor booster stage assembly. For the removal of the other parts of the LP compressor/intermediate case module, refer to TASK 72-32-00-030-000 (DISASSEMBLY-000).

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1J12139 Puller bolt set0AM53IAE 1J121391
IAE 1J12188 Puller bolt0AM53IAE 1J121881
IAE 1J12507 Guide pin0AM53IAE 1J125071
IAE 1J12541 Holding support0AM53IAE 1J125411
IAE 1J12533 Storage stand0AM53IAE 1J125331
IAE 1J13103 Vertical sling0AM53IAE 1J131031

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-030-163 Prepare the Fan Frame Assembly

    1. Refer to Figure.

    2. Make sure that the FEGVs are removed.

    3. CAUTION

      REMOVE THE FEGVS BEFORE YOU REMOVE THE LP COMPRESSOR BOOSTER STAGE ASSEMBLY. THE REAR CASE OF THE LP COMPRESSOR BOOSTER STAGE ASSEMBLY HITS THE FEGVS AND CAN CAUSE DAMAGE TO THE LP COMPRESSOR BOOSTER ASSEMBLY AND THE FEGVS.

      Remove the FEGVs if they are installed. Refer to TASK 72-32-00-030-004-C00 (DISASSEMBLY-004, CONFIG-003).

    4. Turn the fan frame assembly to the vertical with the front end up. Refer to TASK 72-32-00-030-005-B00 (DISASSEMBLY-005, CONFIG-002).

    2. SUBTASK 72-32-00-030-164 Install the Holding Supports to the LP Compressor Booster Stage Assembly (LPC Assembly)

    1. Refer to Figure and Figure.

      2. Attach the four holding supports (part of the IAE 1J12541 Holding support 1 off) to the moment weight mounting flange of the LPC assembly, Figure.

      1. Attach each support (part of the holding support) to the moment weight mounting flange with the adapter and the two wing nuts. Tighten the wing nuts.

      3. Release the LP compressor booster stage assembly from the LP compressor stage 2.5 vanes, Figure.

      1. Remove the 62 bolts and washers which attach the rear LP compressor case to the LP compressor stage 2.5 vanes.

      2. Install the four puller bolts (part of the IAE 1J12139 Puller bolt set 1 off) into four of the eight threads in the LP compressor stage 2.5 vanes. The four puller bolts must be installed at 90 degrees apart from each other.

      3. Tighten the four puller bolts equally until the front LP compressor case touches the holding supports.

    4. Attach the front LP compressor case to the holding supports with the four screws, four nuts and the eight washers, Figure. Tighten the screws.

    5. Remove the four puller bolts.

    3. SUBTASK 72-32-00-030-165 Remove the LP Compressor Booster Stage Assembly (LPC Assembly) from the Rotor Center Shaft

    1. Refer to Figure and Figure.

    2. NOTE

      Hold the disk to prevent the rotation of it while you turn each bolt.

      Remove the 24 bolts which attach the disk of the LPC assembly to the rotor center shaft, Figure.

    3. Install the three aligning pins (part of the IAE 1J12507 Guide pin 1 off) into three of the 24 nuts of the rotor center shaft. The three aligning pins must be installed at 120 degrees apart from each other.

      4. Use the three puller bolts (part of the IAE 1J12188 Puller bolt 1 off) to release the disk from the rotor center shaft.

      1. Install the three puller bolts into three of the six threads in the disk flange. The three puller bolts must be installed at 120 degrees apart from each other.

      2. NOTE

        Hold the disk to prevent the rotation of it while you turn each puller bolt.

        Tighten the three puller bolts equally until the disk is released from the rotor center shaft.

      3. Remove the puller bolts.

      5. Install the IAE 1J13103 Vertical sling 1 off on to the front flange of the disk.

      1. Install the three eye bolts (part of the vertical sling) into three of the six threads in the disk flange. The three eye bolts must be equally apart.

      2. Attach the three hooks (part of the vertical sling) to the eye bolts.

    6. Attach a hoist to the vertical sling.

    7. Slowly lift the LPC assembly until it is clear of the rotor center shaft and move it to the IAE 1J12533 Storage stand 1 off, Figure.

    8. Remove the hoist from the vertical sling.

    9. Remove the vertical sling.

    10. Remove the three aligning pins from the nuts of the rotor center shaft, Figure.

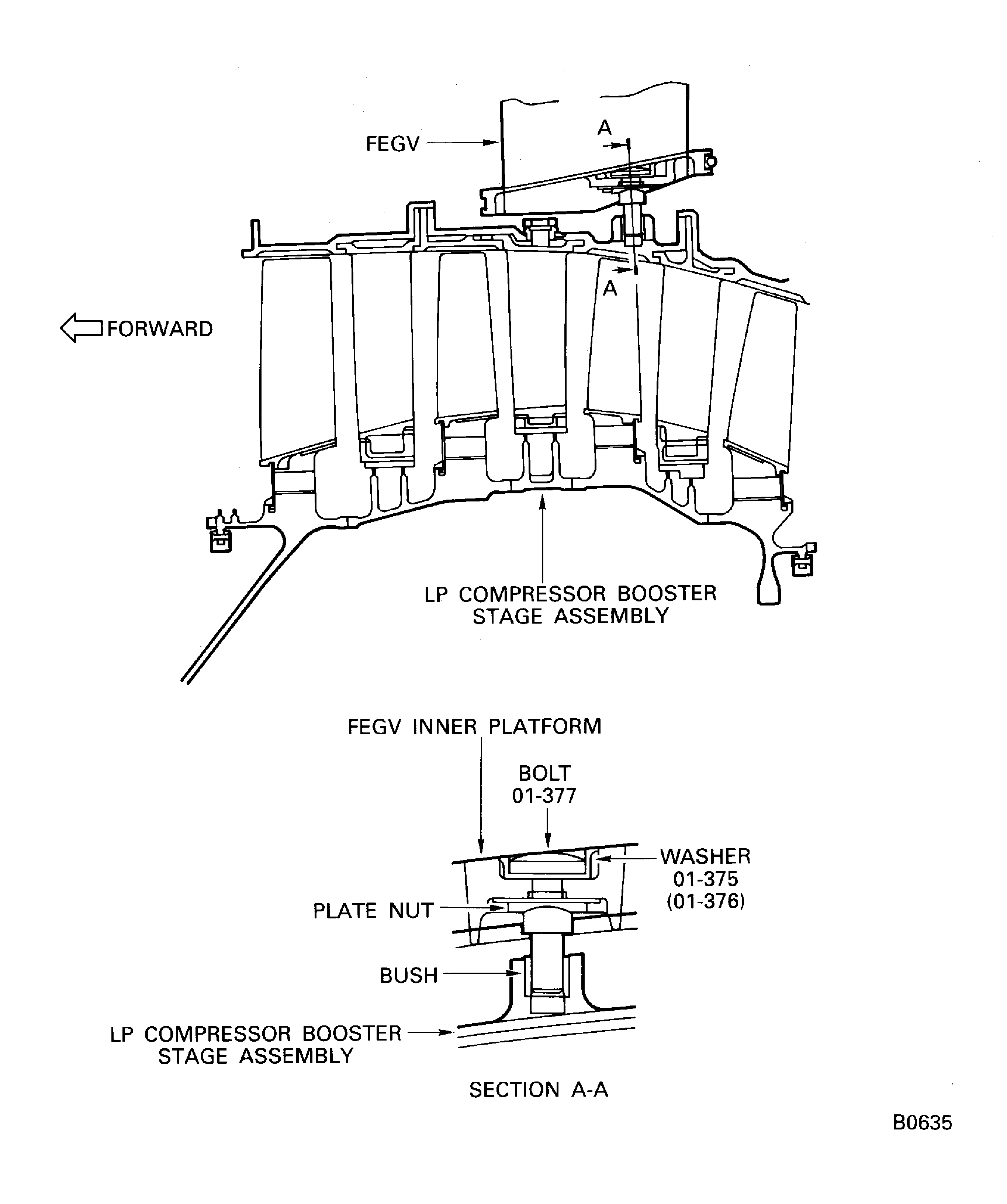

    4. Figure: Make sure that the FEGVs are removed

    Make sure that the FEGVs are removed

    Figure: Install the holding supports to the LP compressor booster stage assembly

    Install the holding supports to the LP compressor booster stage assembly

    Figure: Remove the LP compressor booster stage assembly from the rotor center shaft and the LP compressor stage 2.5 vanes

    Remove the LP compressor booster stage assembly from the rotor center shaft and the LP compressor stage 2.5 vanes

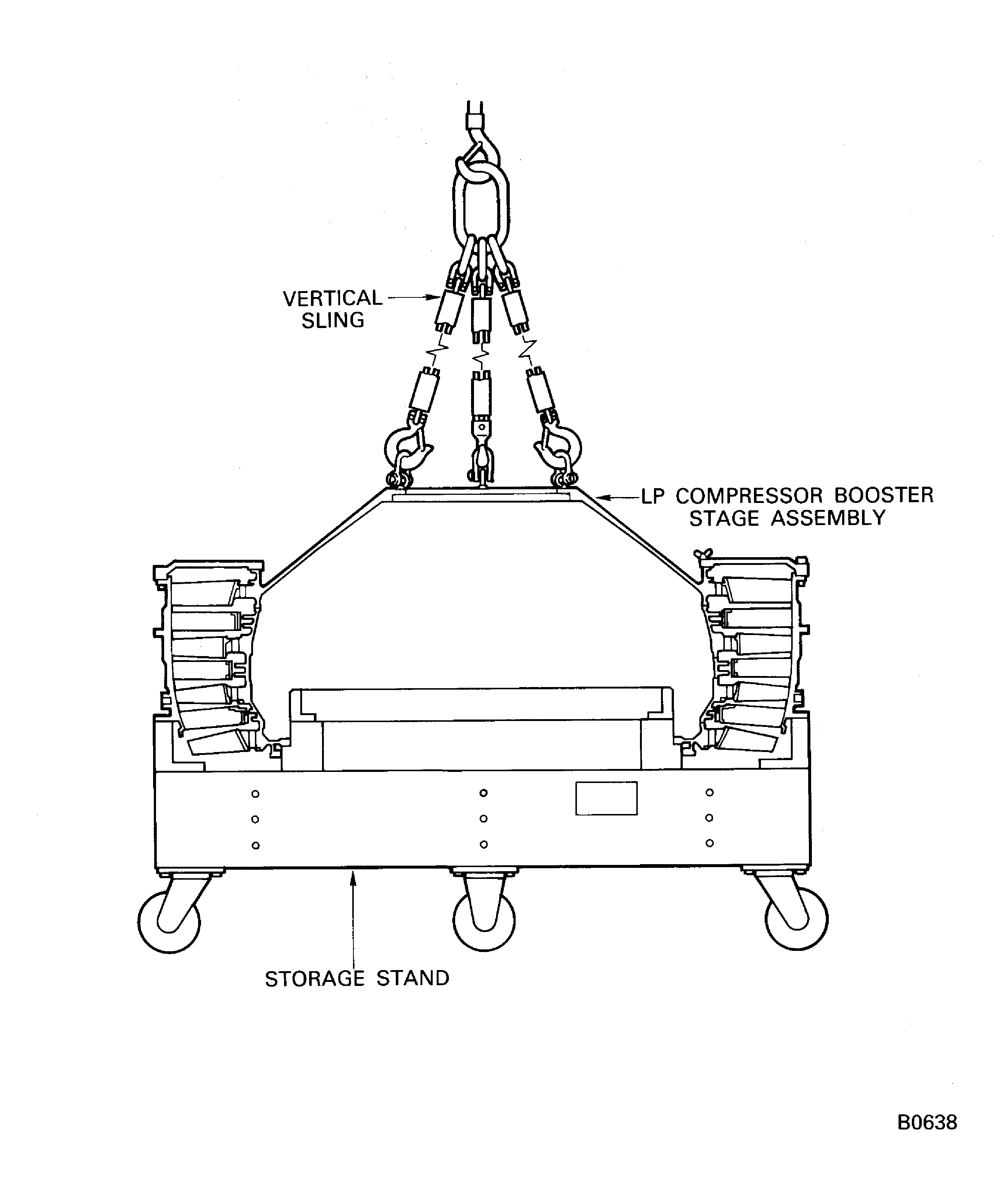

    Figure: Install the LP compressor booster stage assembly on to the storage stand

    Install the LP compressor booster stage assembly on to the storage stand
