TASK 72-41-34-200-016-B00 HPC Stage 3 Vane Ring Centralizing Pad And Housing - Examine, Inspection-016

DMC:V2500-A5-72-41-3443-00B-300A-C|Issue No:003.00|Issue Date:2021-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-41-34-200-016-B00 HPC Stage 3 Vane Ring Centralizing Pad And Housing - Examine, Inspection-016

Effectivity

FIG/ITEM

PART NO.

03-680

6B1066

03-730

6B1067

General

This TASK gives the procedure for the inspection of the Stage 3 centraliser support assembly.

Fig/item numbers in parentheses in the procedure agree with those used in the EIPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the EIPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a subsequent date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Definition of Damage, SPM TASK 70-02-02-350-501.

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these item refer to the SPM:

Method of Testing for Crack Indications.

Chemical Processes.

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-230-179 Examine the Stage 3 Centraliser Support Assembly for Cracks

    1. Clean the parts. Refer to TASK 72-41-34-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below.

        PART IDENT

        TASK/SUBTASK

        Stage 3 centraliser support assembly

        SPM TASK 70-23-02-230-501

        1. Cracked

        1. Reject

    2. SUBTASK 72-41-34-220-633 Examine the Stage 3 Centraliser Block Outer Surfaces at Locations 1, 2 and 3

    1. Refer to Figure and Figure.

      2. Nicked.

        1. Not more than 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      3. Scored.

        1. Not more than 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      4. Galled.

        1. Not more than 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

    3. SUBTASK 72-41-34-220-636 Examine the Stage 3 Centraliser Support Assembly Pads at Locations 4 and 5

    1. Refer to Figure and Figure.

      2. Loose.

      1. Repair, VRS9539 TASK 72-41-34-300-065 (REPAIR-065).

      3. Bearing surface.

        1. Scored.

          1. Not more than 0.005 in. (0.13 mm) in depth.

          1. Accept.

          2. More than in Step.

          1. Repair, VRS9539 TASK 72-41-34-300-065 (REPAIR-065).

        2. Nicks.

          1. Not more than 0.005 in. (0.13 mm) in depth.

          1. Accept.

          2. More than in Step.

          1. Repair, VRS9539 TASK 72-41-34-300-065 (REPAIR-065).

        3. Chipped.

          1. Not more than 0.010 in. (0.25 mm) in depth at the edges which projects not more than 10 percent in to the bearing surface.

          1. Accept.

          2. Less than in Step.

          1. Repair, VRS9539 TASK 72-41-34-300-065 (REPAIR-065).

        4. Wear.

          1. If the thickness of the pad dimension A is 0.012 in. (0.30 mm) or more.

          1. Accept.

          2. Less than in Step.

          1. Repair, VRS9539 TASK 72-41-34-300-065 (REPAIR-065).

    4. SUBTASK 72-41-34-220-638 Examine the Stage 3 Centraliser Support Assembly Bolt Threads ((72-41-34,03-680) and (72-41-34,03-730)) at Locations 6

    1. Refer to Figure and Figure.

      2. Crossed

      1. Reject

      3. Stripped

      1. Reject

      4. Pick-up

      1. Reject

    5. SUBTASK 72-41-34-220-639 Examine the Stage 3 Centraliser Support Assembly Bolt (72-41-34,03-680) at Locations 7

    1. Refer to Figure.

      2. Scored

      1. Reject

      3. Worn.

        1. If the diameter of the bolt is 0.2489 in. (6.322 mm) or more

        1. Accept

        2. Less than in Step

        1. Reject

    6. SUBTASK 72-41-34-220-640 Examine the Stage 3 Centraliser Support Assembly Bolts (72-41-34,03-730) at Locations 8

    1. Refer to Figure.

      2. Scored

      1. Reject

      3. Worn.

        1. If the diameter of the bolt is 0.1891 in. (4.803 mm) or more

        1. Accept

        2. Less than in Step

        1. Reject

    7. SUBTASK 72-41-34-220-641 Examine the Stage 3 Centraliser Support Assembly Remaining Surfaces

      1. Nicked.

        1. Not more than 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      2. Scored.

        1. Not more than 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      3. Galled.

        1. Not more than 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

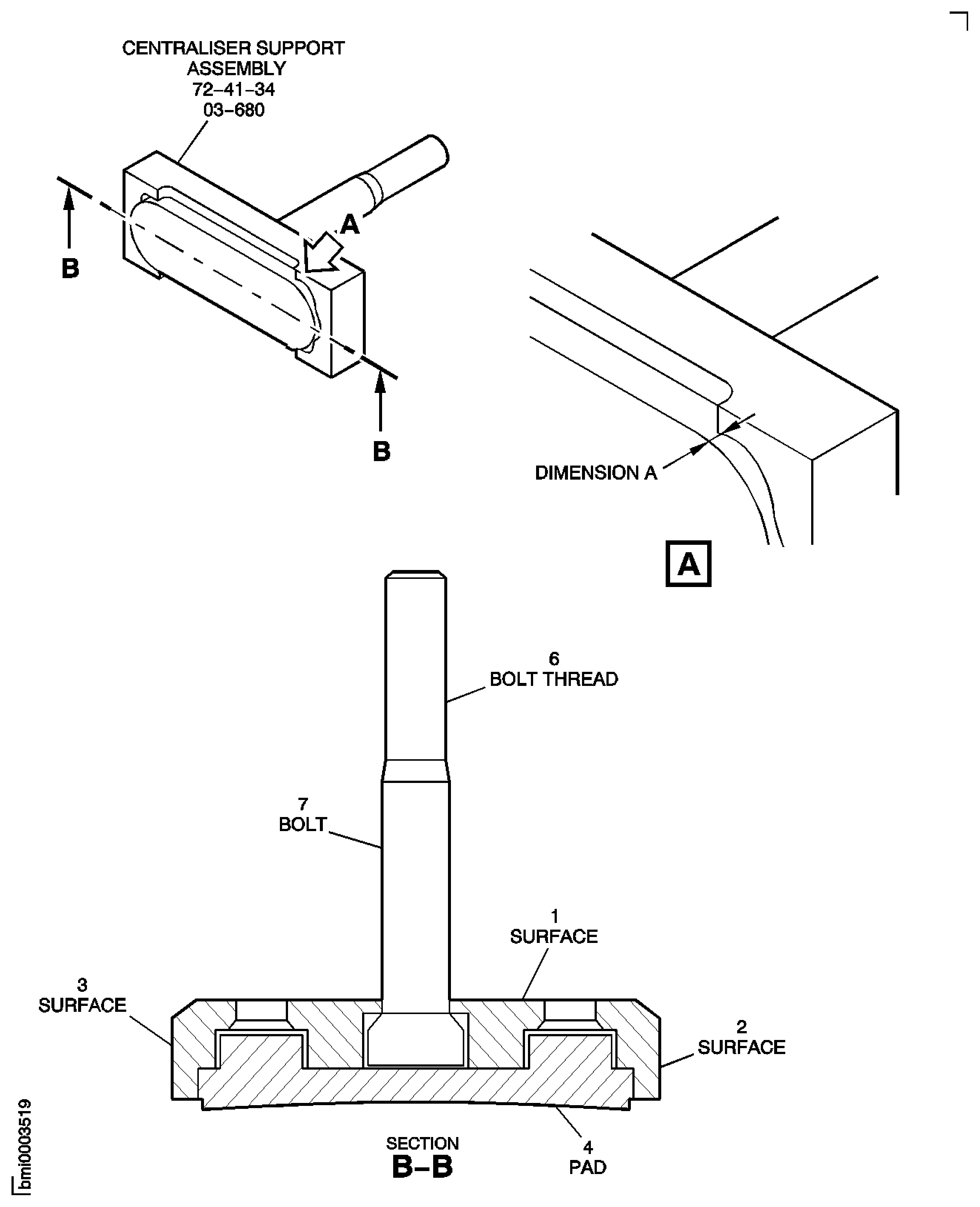

    8. Figure: Stage 3 Centaliser Support Assembly - Inspection Locations

    Stage 3 Centaliser Support Assembly - Inspection Locations

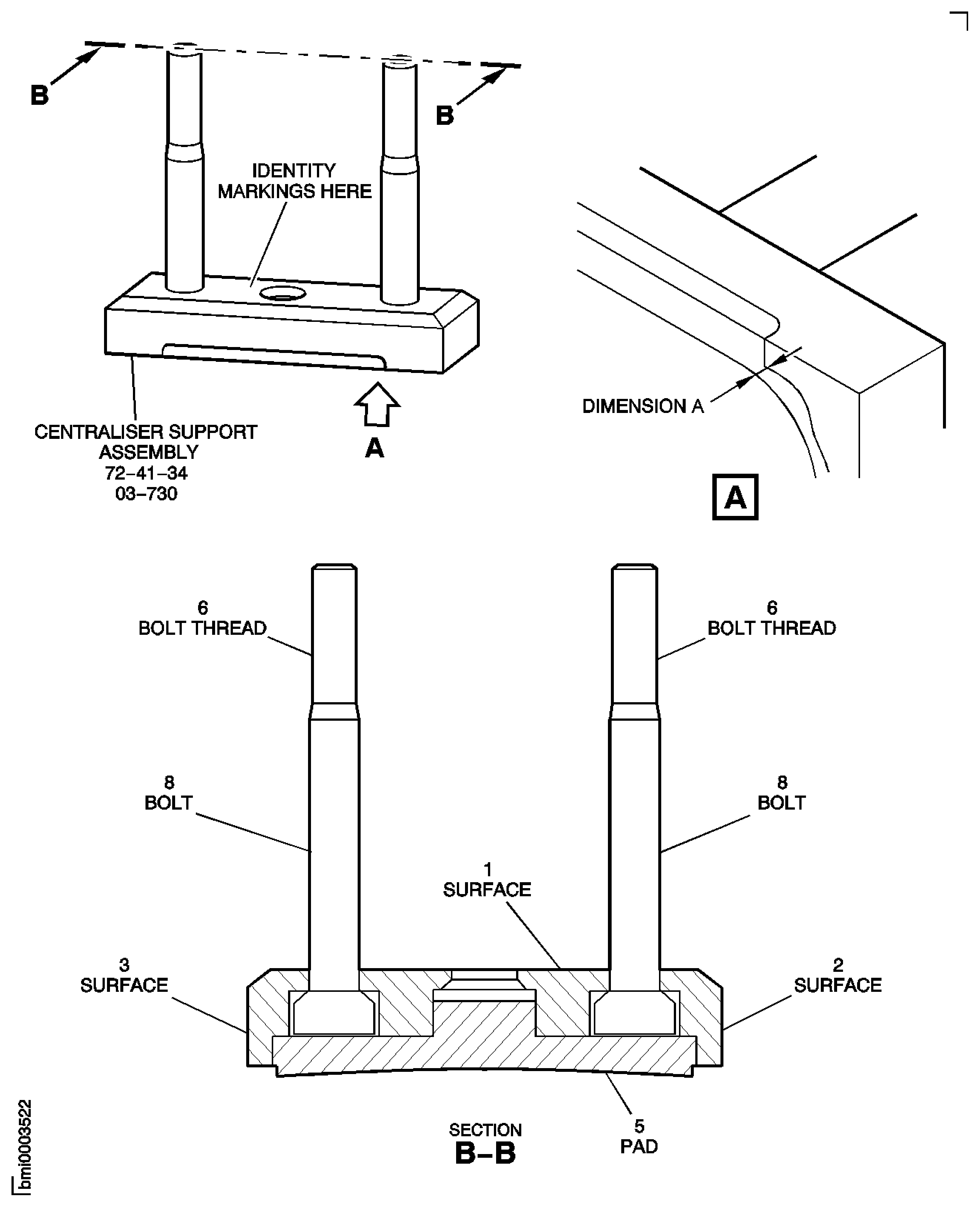

    Figure: Stage 3 Centaliser Support Assembly - Inspection Locations

    Stage 3 Centaliser Support Assembly - Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised to correct SPM task reference. (19VG362)
