| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B73225201 | ENGINE - FUEL AND CONTROL - FUEL METERING UNIT, PRE SBE73-0057 | aa | |
| - | SBE0057-01 | ENGINE - FUEL AND CONTROL - FUEL METERING UNIT, PRE SBE73-0091 | ab | |
| - | SBE0091-01 | ENGINE - FUEL AND CONTROL - FUEL METERING UNIT, PRE SBE73-0107 | ac | |
| - | SBE0099-01 | ENGINE - FUEL AND CONTROL - FUEL METERING UNIT, PRE SBE73-0123 | ad | |
| - | SBE0107-01 | ENGINE - FUEL AND CONTROL - FUEL METERING UNIT, PRE SBE73-0099 | ae | |
| - | SBE0117-01 | ENGINE - FUEL AND CONTROL - FUEL METERING UNIT, PRE SBE73-0123 | af | |
| - | SBE0123-01 | ENGINE - FUEL AND CONTROL - FUEL METERING UNIT, PRE SBE73-0150 | ag | |
| - | SBE0127-01 | ENGINE - FUEL AND CONTROL - FUEL METERING UNIT, PRE SBE73-0150 | ah | |
| - | SBE0150-01 | ENGINE - FUEL AND CONTROL - FUEL METERING UNIT, PRE SBE73-0171 | ai | |
| - | SBE0171-01 | ENGINE - FUEL AND CONTROL - FUEL METERING UNIT, PRE SBE73-0173 | aj | |
| - | SBE0173-01 | ENGINE - FUEL AND CONTROL - FUEL METERING UNIT | ak | |
| 100 | FMU530MK1 | • FUEL - METERING UNIT 81349 | aa-ak/01 | 1 |
| 100A | FMU530MK2 | • FUEL - METERING UNIT K0131 | aa-ak/04 | 1 |
| 100B | FMU540MK2 | • FUEL - METERING UNIT K0131 | aa-ak/03 | 1 |
| 100C | FMU550MK1 | • METERING -UNIT, FUEL K0131 | aa-ak/02 | 1 |
| 100D | FMU560MK1 | • FUEL - METERING UNIT K0131 | aa-ak/02 | 1 |
| 120 | 4W0258 | • BOLT - 0.3125 DIA X 3.625 Optional Part AS48258 | aa-ak/02 | 4 |
| 130 | AS43013-128 | • RING - SEALING, TOROIDAL U1653 | aa-ak/02 | REF |
| -300 | AS43013-112 | • RING - 12.37 MM ID X 2.62 MM U1653 (SEE 73-11-49-20-516) | aa-ak/02 | REF |
| -310 | AS43013-120 | • RING - SEALING, TOROIDAL U1653 (SEE 73-11-49-26-108) | aa-ak/02 | REF |
| -320 | AS43013-118 | • RING - SEALING, TOROIDAL U1653 (SEE 73-11-49-07-108 ) | aa-ak/02 | REF |
| -330 | AS43013-112 | • RING - 12.37 MM ID X 2.62 MM U1653 (SEE 73-11-49-10-108) | aa-ak/02 | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

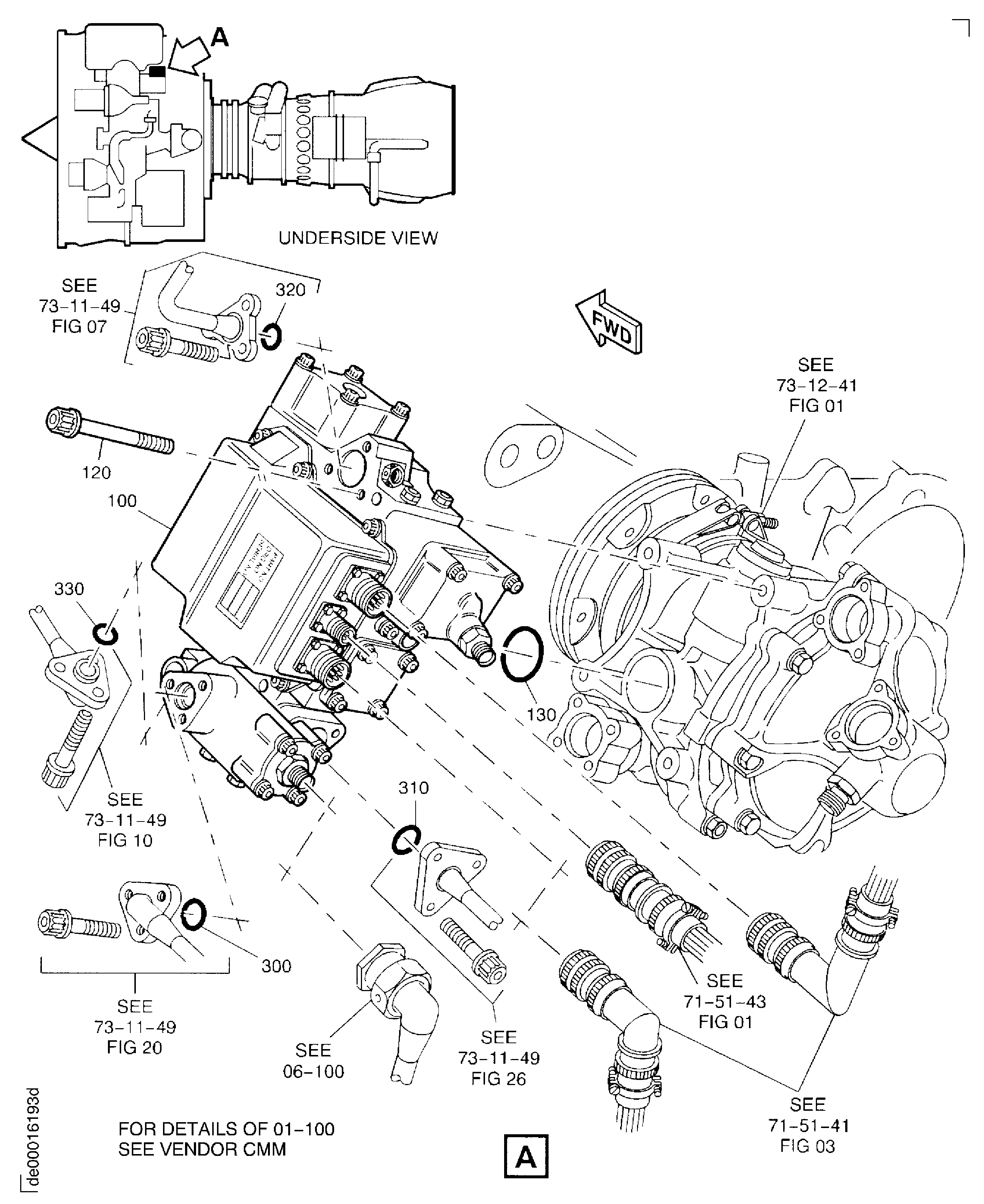

Figure: Fuel Metering Unit
Fuel Metering Unit
