TASK 29-11-49-200-101 Engine Hydraulic Suction Tube - Examine, Inspection-001

DMC:V2500-A0-29-11-4901-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 29-11-49-200-101 Engine Hydraulic Suction Tube - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

03-100

740-5600-505

General

This TASK gives the procedure for the inspection of the hydraulic suction tube.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. The TASK numbers of the practices and processes referred to in the procedure are in the SPM.

The policy which is necessary for inspection in given in the SPM TASK 70-20-01-200-501.

All parts must be cleaned before they are examined, refer to Cleaning-000 TASK 29-11-49-100-100.

All parts must be visually examined for damage, corrosion and wear. Defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step Do the test before the part is visually examined. The limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

Reference

Refer to the SPM for data on these items.

Definitions of Damage, TASK 70-02-02-350-501.

Record and Control of the Lives of Parts, TASK 70-05-00-220-501.

Chemical Processes, TASK 70-11-00-110-501.

Inspection of Parts, Refer to SPM 70-22-00-220-501.

Methods of Testing for Crack Indications, TASK 70-23-00-230-501.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 29-11-49-230-051 Examine the Hydraulic Suction Tube (03-100) and all Welds for Cracks

      1. Fluorescent penetrant examine for cracks. Refer to SPM TASK 70-23-01-230-501.

        1. Cracked

        1. Reject

        2. Defective weld

        1. Reject

    2. SUBTASK 29-11-49-220-051 Examine the Hydraulic Suction Tube (03-100) at Locations R and S

    1. Refer to Figure.

      2. Kinked

      1. Reject

      3. Nicked

        1. Up to 0.003 in. (0.07 mm) deep

        1. Accept

        2. More than in Step

        1. Reject

      4. Rubbed

        1. Up to 0.003 in. (0.07 mm) deep

        1. Accept

        2. More than in Step

        1. Reject

      5. Scratched

        1. Up to 0.003 in. (0.07 mm) deep

        1. Accept

        2. More than in Step

        1. Reject

      6. Distorted

        1. At location S

          1. Up to 0.038 in. (0.95 mm) deep

          1. Accept

          2. More than in Step

          1. Reject

    3. SUBTASK 29-11-49-220-052 Examine the Hydraulic Suction-Tube (03-100) Connectors at Locations T and U

    1. Refer to Figure.

      2. Nicked

        1. Up to 0.010 in. (0.25 mm) deep

        1. Repair, VRS2929 (Repair-004) TASK 29-11-49-300-004.

        2. More than in Step

        1. Reject

      3. Burred

      1. Repair, VRS2929 (Repair-004) TASK 29-11-49-300-004.

      4. Damaged

        1. Damage to the lock-wire holes.

        1. Repair, VRS2929 (Repair-004) TASK 29-11-49-300-004.

        2. Damage to the threads.

        1. Repair, VRS2929 (Repair-004) TASK 29-11-49-300-004.

    4. SUBTASK 29-11-49-220-053 Examine the Hydraulic Suction-Tube (03-100) Sealing Faces M and N

    1. Refer to Figure.

      2. Scratched

        1. Circumferential scratches up to 0.010 in. (0.25 mm) deep

        1. Accept

        2. Other than in Step

        1. Reject

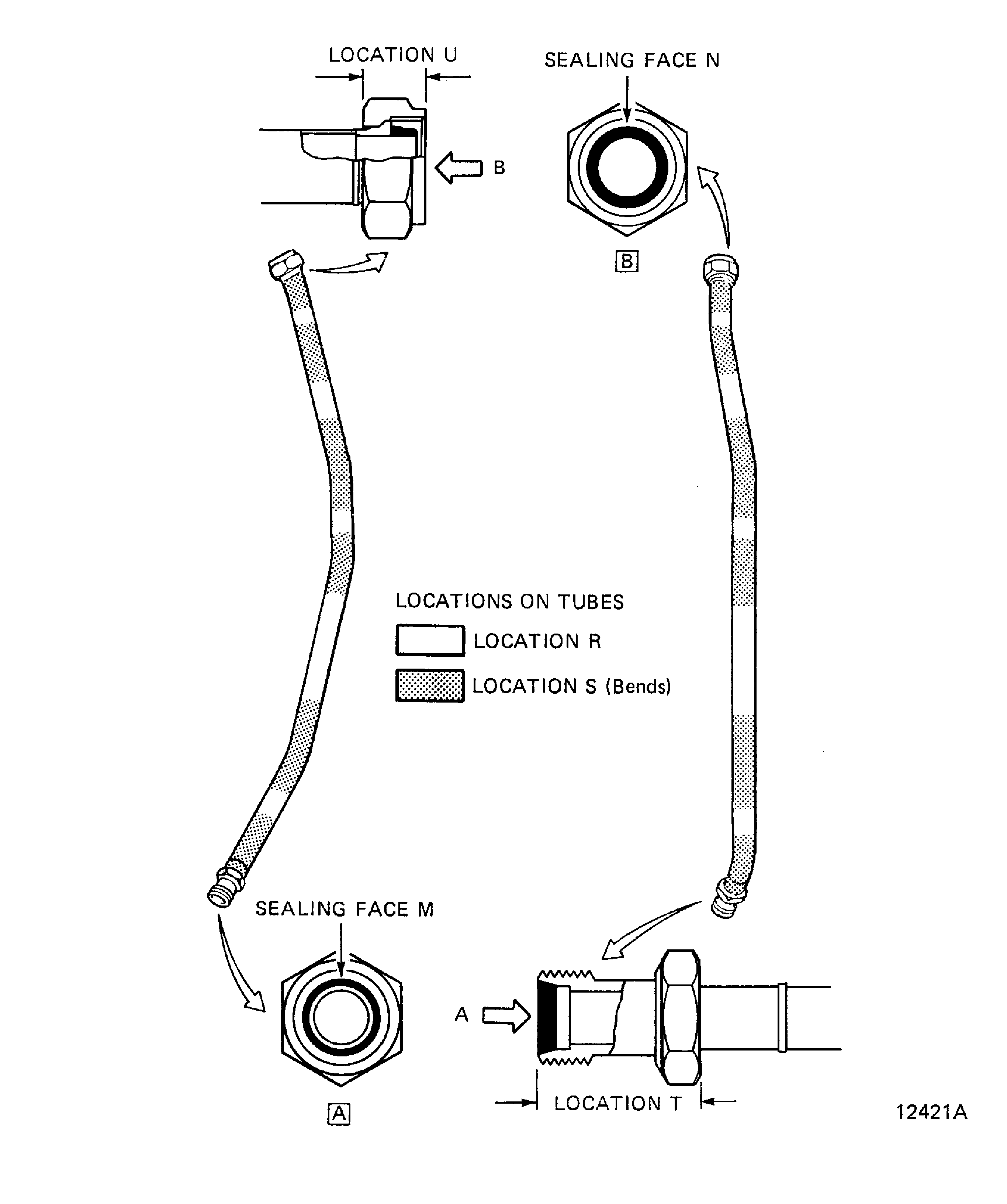

    5. Figure: Locations on the Hydraulic Suction Tube (03-100)

    Locations on the Hydraulic Suction Tube (03-100)

Requirements After Job Completion

Follow-On Conditions

NONE
