TASK 71-51-42-200-401 EEC Fan Harness And Ignition Supply Harness - Related Parts - Examine The EEC And Ignition Supply Harness Raceways, Inspection-001

Effectivity

FIG/ITEM

PART NO.

05-100

740-5452-503

05-300

740-5424-505

General

NOTE

The consumable materials are given in the related SPM TASK.

This TASK gives the procedure for the inspection of the EEC and Ignition supply harness raceway. For the other EEC and Ignition supply harness parts, refer to TASK 71-51-42-200-400 (71-51-42, Inspection/Check-000, Page 801) and Inspection/Check-000 TASK 71-51-42-200-300 in the Component Maintenance Manual - Electrical Harnesses and Cables (CMM-EHC-V2500-1IA) .

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

The policy which is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before they are examined, refer to Cleaning-000 TASK 71-51-42-100-400.

All the parts must be visually examined for damage, corrosion and wear.

Defects which are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in the relevant SUBTASK. Do a crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which must be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the SPM.

References

Refer to the SPM for data on these items:

Definition of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications.

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-51-42-230-001 Examine the Raceway for Cracks

    1. Clean the part. Refer to Cleaning-000 TASK 71-51-42-100-400.

      2. Do the crack test on the parts that are given below. Use the applicable penetrant inspection procedure.

        1. Raceway (05-100 or 05-300). Refer to SPM TASK 70-23-00-230-501.

          1. Cracked

          1. Reject

    2. SUBTASK 71-51-42-220-001 Examine the Surfaces of the Raceway

    1. Refer to Figure.

      2. Distorted

        1. With no decrease in function.

        1. Accept

        2. Limits more than in Step.

        1. Reject

      3. Nicked, scratched or scored.

        1. Not more than 0.002 in. (0.05 mm) in depth.

        1. Accept

        2. Limits more than in Step.

        1. SPM VRS7001 (Repair-001) TASK 70-35-24-300-501.

    3. SUBTASK 71-51-42-220-002 Examine the Raceway Clips

    1. Refer to Figure.

      2. Cracked or damaged.

      1. SPM VRS7001 (Repair-001) TASK 70-35-24-300-501.

      3. Bent or distorted.

      1. SPM VRS7001 (Repair-001) TASK 70-35-24-300-501.

    4. SUBTASK 71-51-42-220-003 Examine the Raceway Bolt Holes

    1. Refer to Figure.

      2. Worn

        1. The distance between edge and worn hole is not less than 0.05 in. (1.3 mm).

        1. Accept

        2. Less than 0.05 in. (1.3 mm).

        1. SPM VRS7001 (Repair-001) TASK 70-35-24-300-501.

      3. Burred

      1. SPM VRS7001 (Repair-001) TASK 70-35-24-300-501.

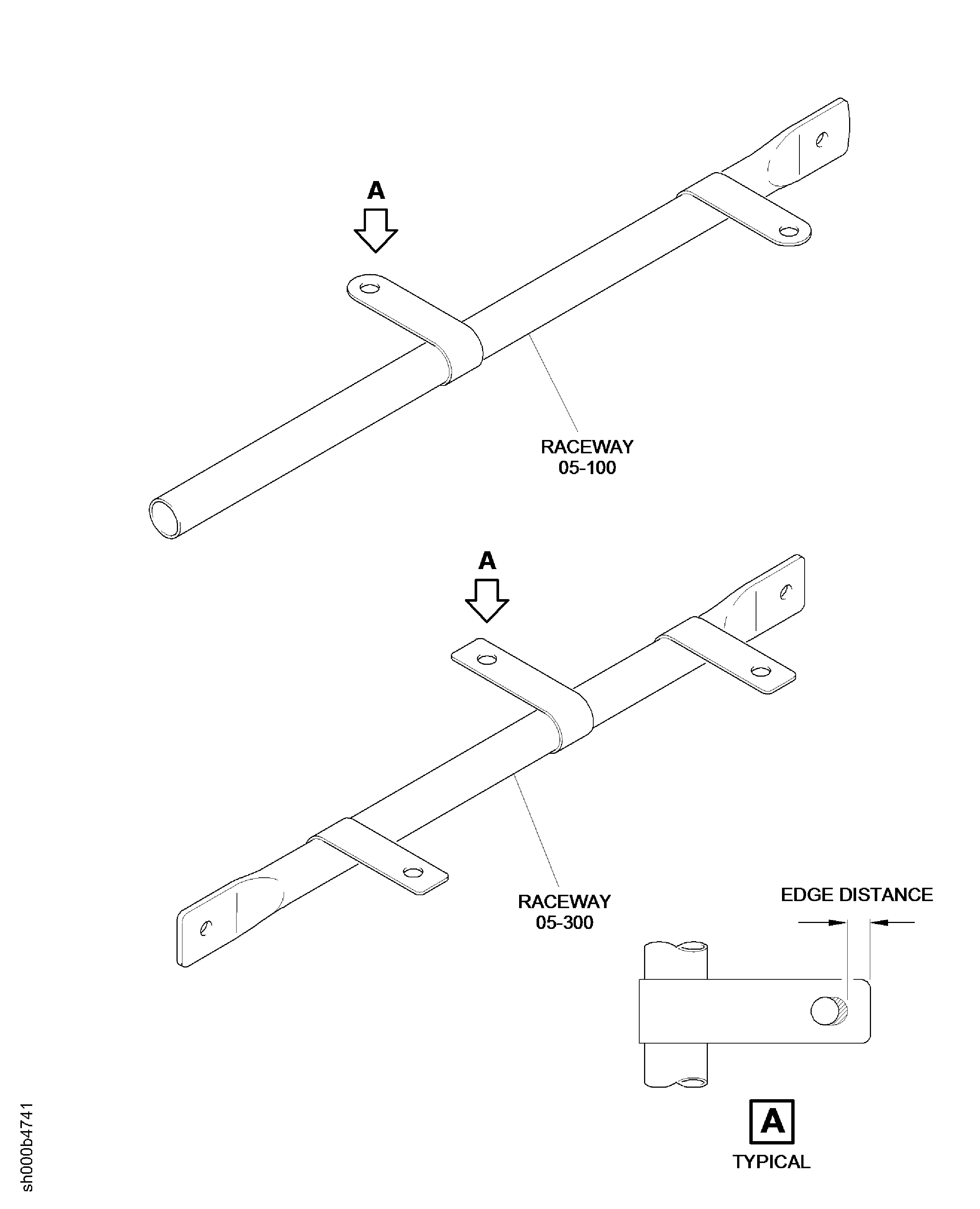

    5. Figure: Inspection of the Raceway

    Inspection of the Raceway

Requirements After Job Completion

Follow-On Conditions
