TASK 72-32-24-200-001-B00 No. 3 Bearing - Examine, Inspection-001

DMC:V2500-A0-72-32-2400-00B-300A-C|Issue No:004.00|Issue Date:2019-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-24-200-001-B00 No. 3 Bearing - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-100

2A1165

01-100

2A1170

01-100

2A3851

01-100

2A4022

01-100

2A4170

01-100

2A4235

01-100

2A4585

01-100

2A4586

01-100

2A4587

General

This TASK gives the procedure for the inspection of the No. 3 bearing.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in SPM.

References

Refer to SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501.

Marking of Parts, SPM TASK 70-09-00-400-501.

Procedure to Vapor Degrease, SPM TASK 70-11-01-300-503.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Inspection of Ball and Roller Bearing, SPM TASK 70-29-01-290-501.

Some data on these items is contained in this TASK. For more data on these items refer to SPM.

Chemical Processes.

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 2P16259 Inspection weight0AM53IAE 2P162591
IAE 2P16380 Inspection gage0AM53IAE 2P163801
IAE 2P16381 Graduated ring0AM53IAE 2P163811
Rockwell hardness testerLOCAL

No specific

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-177 PETROLEUM (SOLVENT)23373CoMat 01-177
CoMat 10-061 STODDARD SOLVENTLOCALCoMat 10-061
CoMat 12-015 CORROSION PREVENTIVE, FINGERPRINT REMOVERLOCALCoMat 12-015
CoMat 12-016 CORROSION PREVENTIVE THIN FILM2H517CoMat 12-016

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-24-220-058 Examine the No. 3 Bearing (01-100) for the Visual Defects

      1. Examine the bearing for the visual defects by the procedure given in SPM TASK 70-29-01-290-501.

        1. Visual defects.

          1. Limits given in SPM TASK 70-29-01-290-501.

          1. Accept.

          2. Other than Step.

          1. Reject.

    2. SUBTASK 72-32-24-220-059 Examine the No. 3 Bearing (01-100) for the Average Inner Diameter

    1. Refer to Figure.

      2. Examine the bearing for the average inner diameter at location 3 on each of the land surfaces.

        1. If the average dimension at locations 4 and 6 is between 5.9832 in. and 5.9840 in. (151.973 and 151.994 mm).

        1. Accept.

        2. Other than Step.

        1. Reject.

    3. SUBTASK 72-32-24-220-060 Examine the No. 3 Bearing (01-100) for the Average Outer Diameter

    1. Refer to Figure.

      2. Examine the bearing average outer diameter at Location 1.

        1. If the average dimension is between 8.8389 in. and 8.8396 in. (224.508 and 224.526 mm).

        1. Accept.

        2. Other than Step.

        1. Reject.

    4. SUBTASK 72-32-24-220-061 Examine the No. 3 Bearing (01-100) for the Internal Radial Clearance

      1. Examine the bearing for the internal radial clearance by the procedure given in SPM TASK 70-29-01-290-501. Use a 60 lb (27.24 kg) radial load.

        1. If the clearance is between 0.0091 in. and 0.0111 in. (0.23114 and 0.28194 mm).

        1. Accept.

        2. other than Step.

        1. Reject.

    5. SUBTASK 72-32-24-220-064 Examine the No. 3 Bearing (01-100) for the Hardness of the Inner and Outer Races

      NOTE

      Only do the hardness check if the bearing shows signs of high temperature discoloration.

    1. Refer to Figure.

      2. Examine the bearing for hardness at locations 2, 7 and 8. Use a Rockwell hardness tester, or equivalent. Do the test on a non-functional surface.

        1. If the hardness is between 60 and 62 HRC average or 59 and 63 HRC absolute.

        1. Accept.

        2. Other than Step.

        1. Reject.

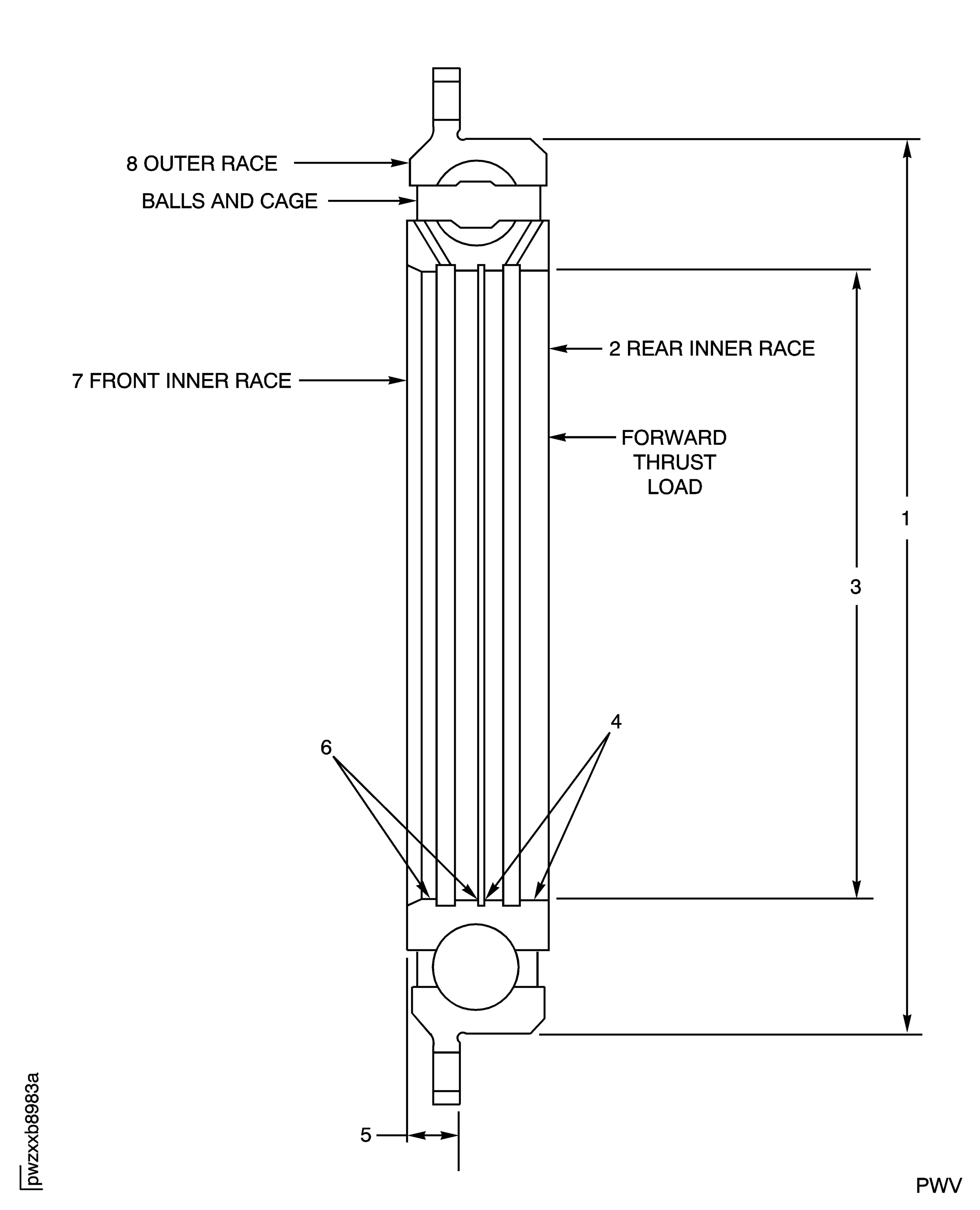

    6. Figure: No. 3 Bearing Inspection Locations

    No. 3 Bearing Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
