TASK 72-32-26-200-003-A00 Gearbox Driving Bevel Gearshaft (83T) - Examine, Inspection-003

DMC:V2500-A0-72-32-2603-00A-300A-C|Issue No:002.00|Issue Date:2016-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-26-200-003-A00 Gearbox Driving Bevel Gearshaft (83T) - Examine, Inspection-003

Effectivity

FIG/ITEM PART NO.

01-400

5A6189

General

This TASK gives the procedure for the inspection of the 83T wheel bevel gear shaft. For the other internal gearbox driving gear parts, refer to TASK 72-32-26-200-000 (INSPECTION/CHECK-000)

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-26-100-000 (CLEANING-000)

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, TASK 70-02-02-350-501

Inspection of Parts, TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-011 MAGNETIC PARTICLES, FLUORESCENT, DRY POWDERLOCALCoMat 06-011

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-26-240-052 Examine the 83T Wheel Bevel Gear Shaft (01-400) for Cracks

    1. Clean the part. Refer to TASK 72-32-26-100-000 (CLEANING-000).

      NOTE

      During magnetic inspection, it is recommended to use CoMat 06-011 MAGNETIC PARTICLES, FLUORESCENT, DRY POWDER.

      2. Do the crack test on the part that is given below. Use the applicable magnetic inspection procedure.

        PART IDENT

        PROCEDURE

        CURRENT/INSPECT

        TASK/SUBTASK

        83T wheel bevel gear shaft

        TB using continuous wet or simultaneous inking with the CoMat 06-011 MAGNETIC PARTICLES, FLUORESCENT, DRY POWDER

        1000 amp

        Shaft outside diameter. Visually examine for longitudinal and radial defects. Do the check for doubtful indications using low power magnification. If necessary, examine under white light at X15 binocular.

        TASK 70-24-01-240-501

        1-turn solenoid continuous wet or simultaneous inking

        2500 amp

        Flange area. Examine as for shaft outside diameter 12000 A/T Do again the magnetization and inspection along shaft length. Visually examine for circumferential defects. Do the check for doubtful indications using low power magnification. If necessary, examine under white light at X15 binocular

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-26-220-063 Examine the 83T Wheel Bevel Gear Shaft (01-400) all the Surface

    1. Refer to Figure.

      2. Examine all the surface which does not include the identified locations.

        1. Any nicks, dents or scratches

        1. Repair, VRS1240 TASK 72-32-26-300-005 (REPAIR-005)

    3. SUBTASK 72-32-26-220-064 Examine the 83T Wheel Bevel Gear Shaft (01-400) Teeth

    1. Refer to Figure.

      2. Examine the teeth at location 6.

        1. Pitted.

          1. Up to 0.01 in. (0.25 mm) in depth and the total pitted area is not more than 20 percent of each tooth

          1. Accept

          2. More than in Step

          1. Reject

    4. SUBTASK 72-32-26-220-065 Examine the 83T Wheel Bevel Gear Shaft (01-400) Splines

    1. Refer to Figure.

      2. Examine the splines at location 8.

        1. Galled

        1. Repair, VRS1240 TASK 72-32-26-300-005 (REPAIR-005)

        2. Scored

        1. Repair, VRS1240 TASK 72-32-26-300-005 (REPAIR-005)

    5. SUBTASK 72-32-26-220-066 Examine the 83T Wheel Bevel Gear Shaft (01-400) Face

    1. Refer to Figure.

      2. Examine the face at location 7.

        1. Galled

        1. Repair, VRS1240 TASK 72-32-26-300-005 (REPAIR-005)

      3. Examine the face at location 5.

        1. Galled

        1. Repair, VRS1240 TASK 72-32-26-300-005 (REPAIR-005)

    6. SUBTASK 72-32-26-220-067 Examine the 83T Wheel Bevel Gear Shaft (01-400) Oil Holes

    1. Refer to Figure.

      2. Examine the oil holes at location 3.

        1. Plugged

        1. Clean with air blast

    7. SUBTASK 72-32-26-220-068 Examine the 83T Wheel Bevel Gear Shaft (01-400) Bearing Location Diameter at Location 2

    1. Refer to Figure.

      2. Worn at location 2.

        1. If the bearing location diameter is between 5.9093 and 5.9096 in. (150.094 and 150.106 mm)

        1. Accept

        2. Less than 5.9093 in. (150.094 mm)

        1. Reject

    8. SUBTASK 72-32-26-220-069 Examine the 83T Wheel Bevel Gear Shaft (01-400) Snap Diameter

    1. Refer to Figure.

      2. Examine the snap diameter at location 1.

        1. Worn.

          1. If the snap diameter is between 5.2363 and 5.2369 in. (133.000 and 133.018 mm)

          1. Accept

          2. More than 5.2369 in. (133.018 mm)

          1. Reject

        2. Galled

        1. Repair, VRS1240 TASK 72-32-26-300-005 (REPAIR-005)

    9. SUBTASK 72-32-26-220-070 Examine the 83T Wheel Bevel Gear Shaft (01-400) Inner Diameter

    1. Refer to Figure.

      2. Examine the inner diameter at location 4.

        1. Worn.

          1. If the snap diameter is between 5.5512 and 5.5518 in. (141.000 and 141.018 mm)

          1. Accept

          2. More than 5.5518 in. (141.018 mm)

          1. Reject

        2. Scored

        1. Repair, VRS1240 TASK 72-32-26-300-005 (REPAIR-005)

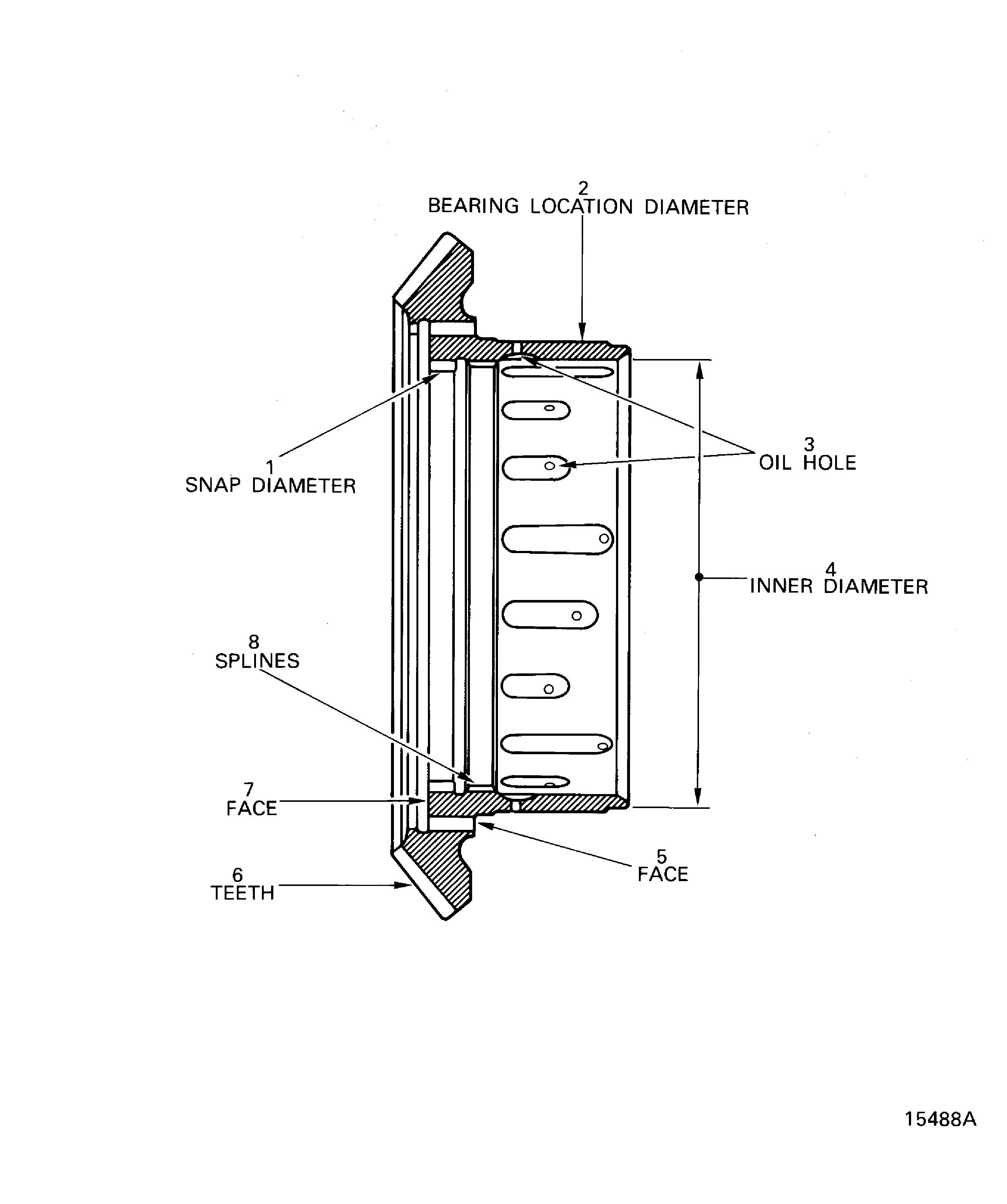

    10. Figure: Locations on the 83T wheel bevel gear shaft

    Locations on the 83T wheel bevel gear shaft

Requirements After Job Completion

Follow-On Conditions

NONE
