TASK 72-32-36-200-405-A00 No. 2 and 3 Bearing Oil Distributor And Tubes - Related Parts - Examine The Main Oil Distributor Assembly, Inspection-005

DMC:V2500-A0-72-32-3600-04A-300A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-36-200-405-A00 No. 2 and 3 Bearing Oil Distributor And Tubes - Related Parts - Examine The Main Oil Distributor Assembly, Inspection-005

Effectivity

FIG./ITEM

PART NO.

01-550

5A1254

General

This TASK gives the procedure for the inspection of the oil restrictor. For the other No.2 and 3 bearing oil distributor and tube parts, refer to Inspection-000 TASK 72-32-36-200-400.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to Cleaning-000 TASK 72-32-36-100-400.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-36-230-061 Examine the Main Oil Distributor Assembly (01-550) for Cracks

    1. Clean the parts. Refer to Cleaning-000 TASK 72-32-36-100-400.

      2. Do the test for cracks on the parts that are given below.

        1. Main oil distributor assembly. Refer to SPM TASK 70-23-02-230-501.

          1. Cracked

          1. Reject

    2. SUBTASK 72-32-36-220-088 Examine the Main Oil Distributor Assembly (01-550)

    1. Refer to Figure.

      2. Examine all the surface.

        1. Cracked

        1. Reject

    3. SUBTASK 72-32-36-220-089 Examine the Main Oil Distributor Assembly (01-550) Pin Hole

    1. Refer to Figure.

    2. Examine the pin hole at location 1.

      3. Burrs

      1. Repair, VRS1931 (Repair-008) TASK 72-32-36-300-008.

    4. SUBTASK 72-32-36-220-090 Examine the Main Oil Distributor Assembly (01-550) Sealing Surface

    1. Refer to Figure.

      2. Examine the sealing surface at location 2.

        1. Nicked

          1. Up to 0.004 in. (0.10 mm) in depth.

          1. Accept

          2. More than in Step.

          1. Repair, VRS1931 (Repair-008) TASK 72-32-36-300-008.

        2. Any scratches

        1. Repair, VRS1931 (Repair-008) TASK 72-32-36-300-008.

        3. Any burrs

        1. Repair, VRS1931 (Repair-008) TASK 72-32-36-300-008.

    5. SUBTASK 72-32-36-220-091 Examine the Main Oil Distributor Assembly (01-550) Oil Passageways

    1. Refer to Figure.

      2. Examine the oil passageways at location 3.

        1. Burrs

        1. Repair, VRS1931 (Repair-008) TASK 72-32-36-300-008.

      3. Examine the sealing groove surface at location 4.

        1. Nicked and scratched.

          1. Any nicks or scratches.

          1. Repair, VRS1931 (Repair-008) TASK 72-32-36-300-008.

    6. SUBTASK 72-32-36-220-092 Examine the Main Oil Distributor Assembly (01-550) Bolt Hole

    1. Refer to Figure.

      2. Examine the bolt holes at location 5.

        1. Cracked

        1. Reject

    7. SUBTASK 72-32-36-220-093 Examine the Main Oil Distributor Assembly (01-550) Insert and Lock Ring

    1. Refer to Figure.

      2. Examine the inserts and lock rings at location 6.

        1. Loose or any missing.

        1. Repair, VRS1932 (Repair-009) TASK 72-32-36-300-009.

    8. SUBTASK 72-32-36-220-094 Examine the Main Oil Distributor Assembly (01-550) Pin

    1. Refer to Figure.

      2. Examine the pins at location 7.

        1. Loose or any missing.

        1. Repair, VRS1933 (Repair-010) TASK 72-32-36-300-010.

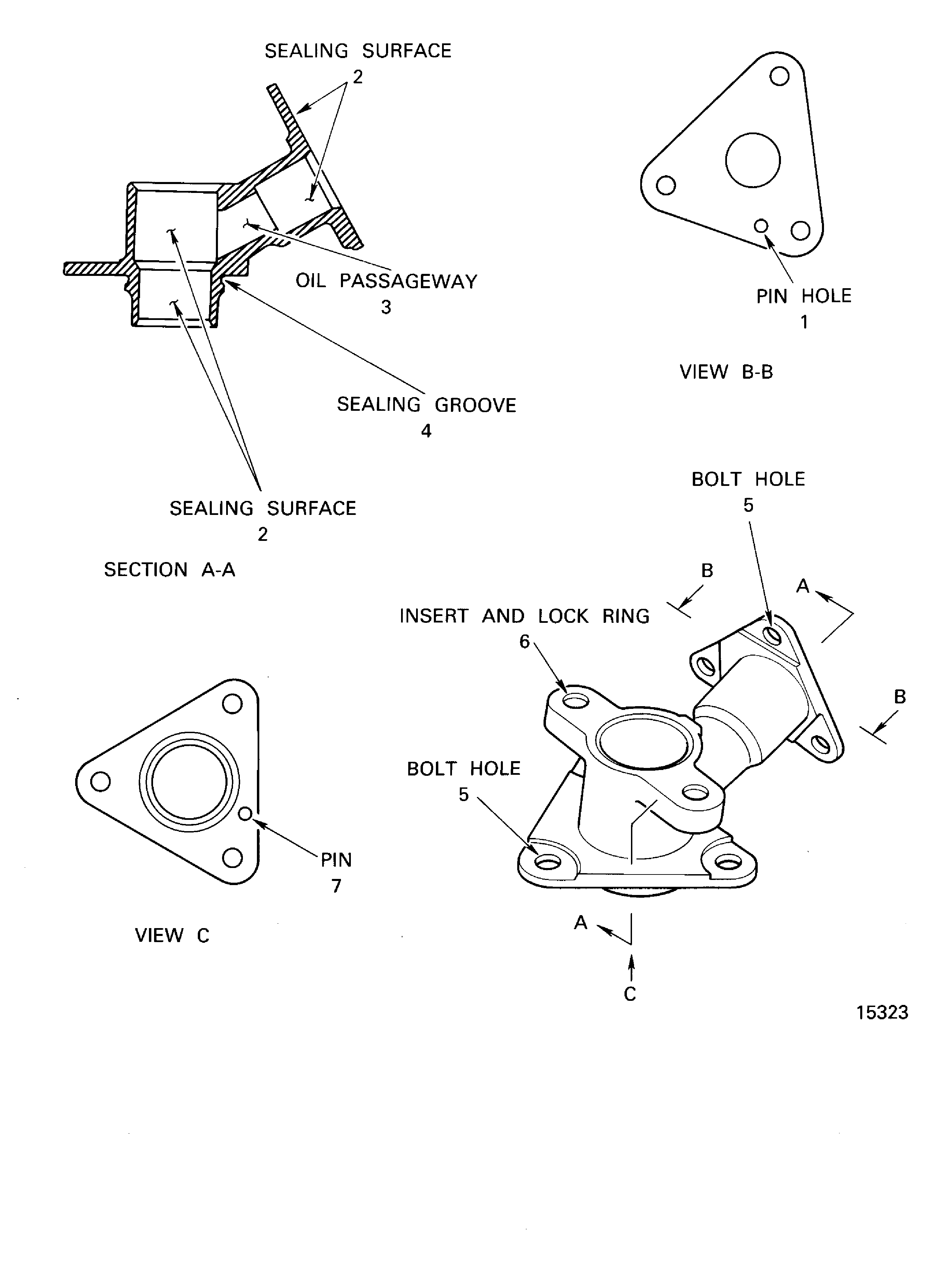

    9. Figure: Locations on the Main Oil Distributor Assembly

    Locations on the Main Oil Distributor Assembly

Requirements After Job Completion

Follow-On Conditions

NONE
