TASK 72-32-71-200-004-B00 LPC Bleed Valve Upper Power Arm - Examine, Inspection-004

DMC:V2500-A0-72-32-7142-00B-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-71-200-004-B00 LPC Bleed Valve Upper Power Arm - Examine, Inspection-004

Effectivity

FIG/ITEM

PART NO.

02-300

5A0474

General

This TASK gives the procedure for the inspection of the upper power arm. For other bleed valve and support arms parts, refer to TASK 72-32-71-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All parts must be cleaned before any part is examined. Refer to TASK 72-32-71-100-000.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Method of Testing Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-71-230-068 Examine the upper Power Arm (02-300) for Cracks

    1. Clean the parts. Refer to TASK 72-32-71-100-000.

      2. Do the test for cracks on the parts that are given below. Use the applicable fluorescent penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        Upper Power Arm

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-71-220-101 Examine the Upper Power Arm (02-300) Pin Hole

    1. Refer to Figure.

      2. Examine the pin hole at location 1.

        1. Worn.

          1. If the hole diameter is between 0.2500 and 0.2505 in (6.350 and 6.365 mm)

          1. Accept

          2. More than 0.2505 in. (6.365 mm)

          1. Repair, VRS1719 TASK 72-32-71-300-025 (REPAIR-025)

    3. SUBTASK 72-32-71-220-102 Examine the Upper Power Arm (02-300) Spline

    1. Refer to Figure.

      2. Examine the spline at location 2.

        1. Galled

        1. Repair, VRS1743 TASK 72-32-71-300-014

        2. Scored

        1. Repair, VRS1743 TASK 72-32-71-300-014

    4. SUBTASK 72-32-71-220-103 Examine the Upper Power Arm (02-300) Surface

    1. Refer to Figure.

      2. Examine the surface at location 3.

        1. Galled

        1. Repair, VRS1743 TASK 72-32-71-300-014

    5. SUBTASK 72-32-71-220-104 Examine the Upper Power Arm (02-300) all the Surface

    1. Refer to Figure.

      2. Examine all the surface which do not include the identified locations.

        1. Nicked

        1. Repair, VRS1743 TASK 72-32-71-300-014

        2. Scratched

        1. Repair, VRS1743 TASK 72-32-71-300-014

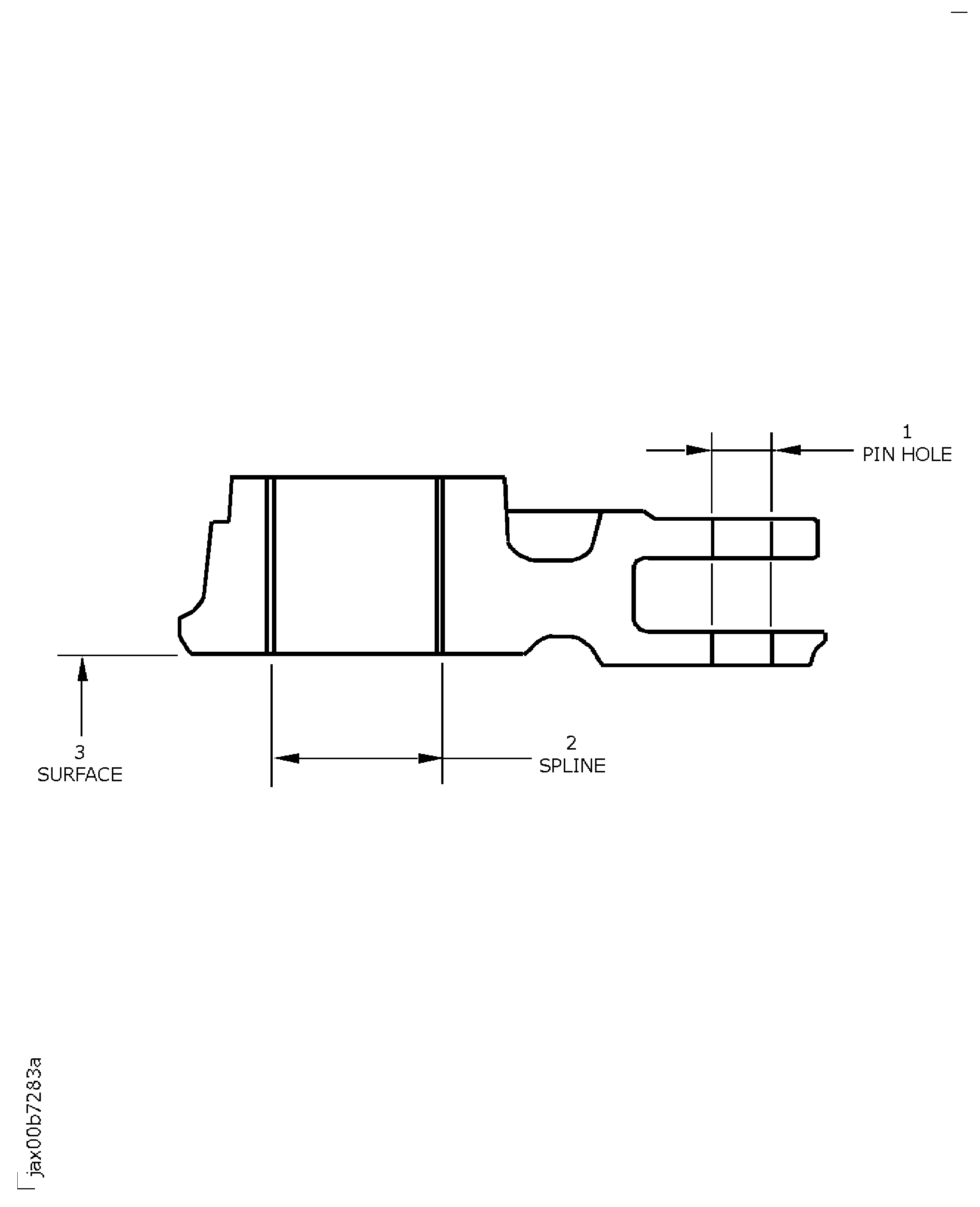

    6. Figure: Locations on the Upper Power Arm

    Locations on the Upper Power Arm

Requirements After Job Completion

Follow-On Conditions

NONE
