TASK 72-32-83-200-002-A00 LPC Stage 1.5 Stator - Examine, Inspection-002

DMC:V2500-A0-72-32-8315-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-83-200-002-A00 LPC Stage 1.5 Stator - Examine, Inspection-002

Effectivity

FIG/ITEM

PART NO.

01-500

5A0069

01-500

5A7376

01-500

5A1417

General

This TASK gives the procedure for the inspection of the LP compressor stage 1.5 vane assembly. For the other LP compressor booster stage vanes parts, refer to TASK 72-32-83-200-000 (INSPECTION-000).

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-83-100-000 (CLEANING-000).

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definition of Damages, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-83-230-057 Examine the LP Compressor Stage 1.5 Stator Assembly (01-500) for Cracks

    1. Clean the parts. Refer to TASK 72-32-83-100-000 (CLEANING-000).

      2. Do crack test on the parts that are given below.

        PART IDENT

        TASK/SUBTASK

        LP compressor stage 1.5 stator assembly

        1. Inner shroud ring.

          1. Cracked

          1. Reject

        2. Vanes.

          1. Cracked

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

    2. SUBTASK 72-32-83-220-064 Examine the LP Compressor Stage 1.5 Stator Assembly (01-500) Leading Edge

    1. Refer to Figure.

      2. Examine the leading edge at location 1.

        1. Dented.

          1. In zone A

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

          2. In area other than Step

          1. Up to 0.040 in. (1.01 mm) in depth

          2. Repair, VRS1393 TASK 72-32-83-300-001 (REPAIR-001)

          3. More than in 0.040 in. (1.01 mm) in depth

          4. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

        2. Nicked.

          1. In zone A

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

          2. In area other than Step

          1. Up to 0.040 in. (1.01 mm) in depth

          2. Repair, VRS1393 TASK 72-32-83-300-001 (REPAIR-001)

          3. More than in 0.040 in. (1.01 mm) in depth

          4. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

        3. Cracked

        1. Refer to Step

    3. SUBTASK 72-32-83-220-065 Examine the LP Compressor Stage 1.5 Stator Assembly (01-500) Trailing Edge

    1. Refer to Figure.

      2. Examine the trailing edge at location 2.

        1. Dented.

          1. In zone A

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

          2. In area other than Step

          1. Up to 0.040 in. (1.01 mm) in depth

          2. Repair, VRS1393 TASK 72-32-83-300-001 (REPAIR-001)

          3. More than in 0.040 in. (1.01 mm) in depth

          4. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

        2. Nicked.

          1. In zone A

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

          2. In area other than Step

          1. Up to 0.040 in. (1.01 mm) in depth

          2. Repair, VRS1393 TASK 72-32-83-300-001 (REPAIR-001)

          3. More than in 0.040 in. (1.01 mm) in depth

          4. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

        3. Cracked

        1. Refer to Step

    4. SUBTASK 72-32-83-220-066 Examine the LP Compressor Stage 1.5 Stator Assembly (01-500) Convex and Concave Airfoil Surface

    1. Refer to Figure.

      2. Examine the convex and concave airfoil surface at location 3.

        1. Dented.

          1. In zone A

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

          2. In area other than Step

          1. Up to 0.010 in. (0.25 mm) in depth

          2. Repair, VRS1393 TASK 72-32-83-300-001 (REPAIR-001)

          3. More than in 0.010 in. (0.25 mm) in depth

          4. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

          5. To cause a distortion on opposite surface

          6. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

        2. Nicked.

          1. In zone A

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

          2. In area other than Step

          1. Up to 0.010 in. (0.25 mm) in depth

          2. Repair, VRS1393 TASK 72-32-83-300-001 (REPAIR-001)

          3. More than in 0.010 in. (0.25 mm) in depth

          4. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

          5. To cause a distortion on opposite surface

          6. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

    5. SUBTASK 72-32-83-220-067 Examine the LP Compressor Stage 1.5 Stator Assembly (01-500) Outer Platform

    1. Refer to Figure.

      2. Examine the outer platform at location 4.

        1. Galled.

          1. Up to 0.005 in. (0.12 mm) in depth

          1. Repair, VRS1394 TASK 72-32-83-300-005 (REPAIR-005)

          2. More than in 0.005 in. (0.12 mm) in depth

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

        2. Worn in the bolt holes.

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1394 TASK 72-32-83-300-005 (REPAIR-005)

          2. More than in 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

        3. Cracked

        1. Refer to Step

    6. SUBTASK 72-32-83-220-068 Examine the LP Compressor Stage 1.5 Stator Assembly (01-500) Inner Shroud Ring

    1. Refer to Figure.

      2. Examine the inner shroud ring at location 5.

        1. Corroded

        1. Repair, VRS1950 TASK 72-32-83-300-049 (REPAIR-049)

        2. Nicked

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than in 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1950 TASK 72-32-83-300-049 (REPAIR-049)

        3. Dented.

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than in 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1950 TASK 72-32-83-300-049 (REPAIR-049)

    7. SUBTASK 72-32-83-220-069 Examine the LP Compressor Stage 1.5 Stator Assembly (01-500) Molding Rubber

    1. Refer to Figure.

      2. Examine the molding rubber at location 6.

        1. Eroded

        1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

        2. Peeled

          1. Up to 30 percent of each section length at location 6

          1. Accept

          2. More than in Step

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

    8. SUBTASK 72-32-83-220-070 Examine the LP Compressor Stage 1.5 Stator Assembly (01-500) Abradable Seal

    1. Refer to Figure.

      2. Examine the abradable seal at location 7.

        1. Rubbed by the seal fins.

          1. Up to 0.040 in. (1.01 mm) in depth

          1. Accept

          2. More than in 0.040 in. (1.01 mm) in depth

          1. Repair, VRS1395 TASK 72-32-83-300-012 (REPAIR-012)

        2. Worn.

          1. If the inner diameter is between 26.997 and 27.003 in. (685.70 and 685.90 mm)

          1. Accept

          2. More than 27.003 in. (685.90 mm)

          1. Repair, VRS1395 TASK 72-32-83-300-012 (REPAIR-012)

    9. SUBTASK 72-32-83-220-071 Examine the LP Compressor Stage 1.5 Stator Assembly (01-500) Platform Flowpath Surface

    1. Refer to Figure.

      2. Examine the flowpath surface at location 8.

        1. Scratched.

          1. Up to 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1394 TASK 72-32-83-300-005 (REPAIR-005)

          2. More than 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

        2. Nicked.

          1. Up to 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1394 TASK 72-32-83-300-005 (REPAIR-005)

          2. More than 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

        3. Dented.

          1. Up to 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1394 TASK 72-32-83-300-005 (REPAIR-005)

          2. More than 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1392 TASK 72-32-83-300-011 (REPAIR-011)

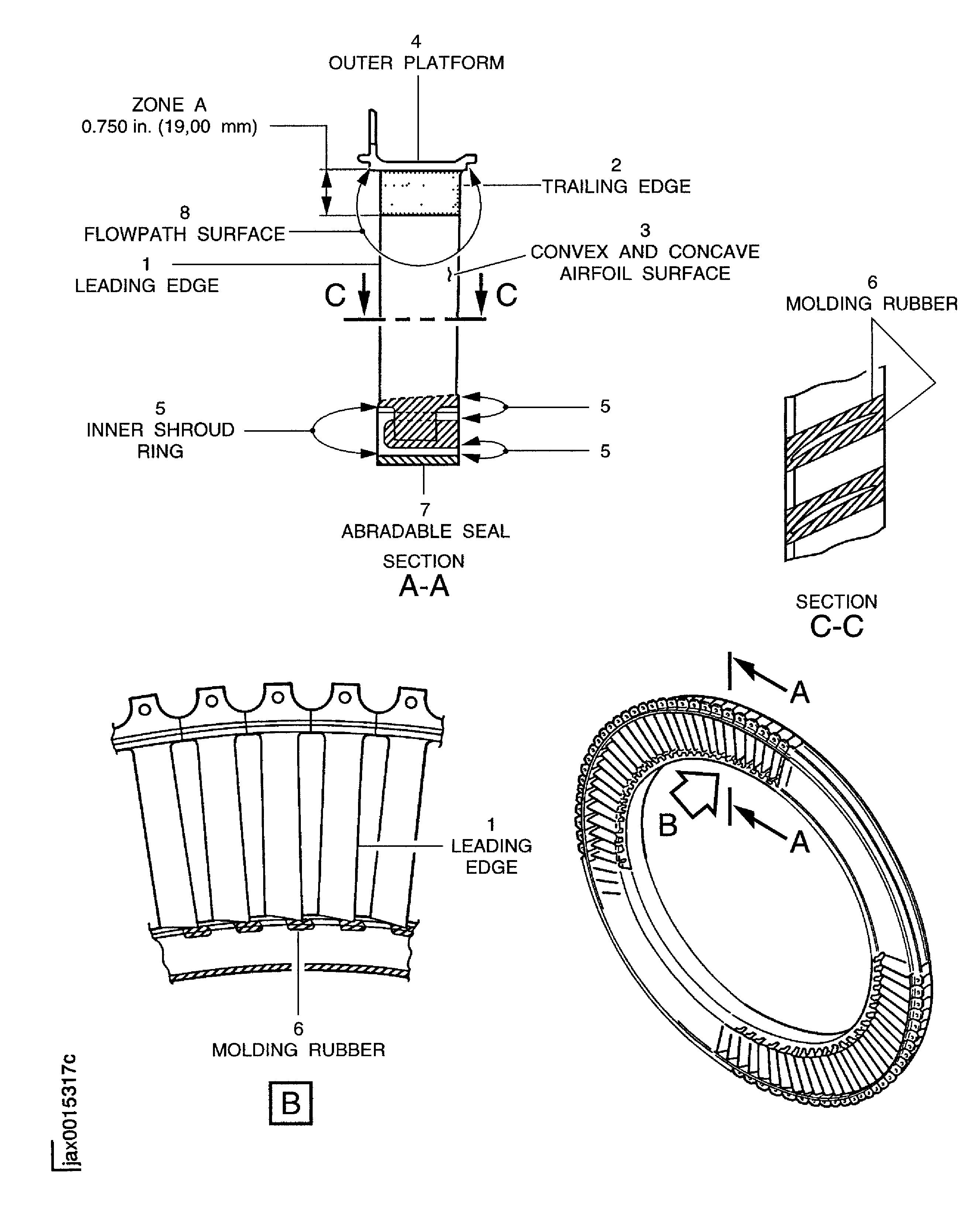

    10. Figure: Locations on the LP compressor stage 1.5 stator assembly

    Locations on the LP compressor stage 1.5 stator assembly
