TASK 72-40-00-430-003 HP System Module - Install The No. 4 Bearing And Rear Compartment Parts, Assembly-003

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures refer to SPM TASK 70-41-00-400-501 and SPM TASK 70-41-02-400-501.

Special torque data and assembly tolerances are included in this procedure.

Special torque data is identified with the symbol * after the torque value.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

To identify, lubricate and install seal rings refer to SPM TASK 70-64-02-640-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

Transportation covers/blanks must be removed immediately before the installation of the components.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification	Quantity
IAE 1F10018 Hydraulic hand pump	0AM53	IAE 1F10018	1
IAE 1F10026 Hydraulic hand pump	0AM53	IAE 1F10026	1
IAE 1P16035 Hand wrench	0AM53	IAE 1P16035	1
IAE 1P16036 Pusher/puller	0AM53	IAE 1P16036	1
IAE 1P16041 Heater	0AM53	IAE 1P16041	1
IAE 1P16073 Jaw set	0AM53	IAE 1P16073	1
IAE 1P16088 Leak check adapter	0AM53	IAE 1P16088	1
IAE 1P16089 Leak check cap	0AM53	IAE 1P16089	1
IAE 1P16104 Cover	0AM53	IAE 1P16104	1
IAE 1P16123 Drift	0AM53	IAE 1P16123	1
IAE 1P16124 Fixture	0AM53	IAE 1P16124	1
IAE 1P16145 Crimp fixture	0AM53	IAE 1P16145	1
IAE 1P16469 Heater	0AM53	IAE 1P16469	1
IAE 1P16470 Drift	0AM53	IAE 1P16470	1
IAE 1P17511 cover	0AM53	IAE 1P17511	1
IAE 6F10027 Heater control unit	0AM53	IAE 6F10027	1
IAE 6F10030 Vacuum test cart	0AM53	IAE 6F10030	1

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
DELETED	LOCAL	DELETED
CoMat 01-573 WAX BLEND, PARAFFIN	24269	CoMat 01-573
CoMat 10-077 APPROVED ENGINE OILS	X333X	CoMat 10-077
CoMat 10-129 ANTI-SEIZE PASTE	34568	CoMat 10-129

Spares

Name	Manufacturer	Part Number / Identification	Quantity	Remark
Keywasher			1
Gasket			1
Keywasher			7
Keywasher			8

Safety Requirements

NONE

Procedure

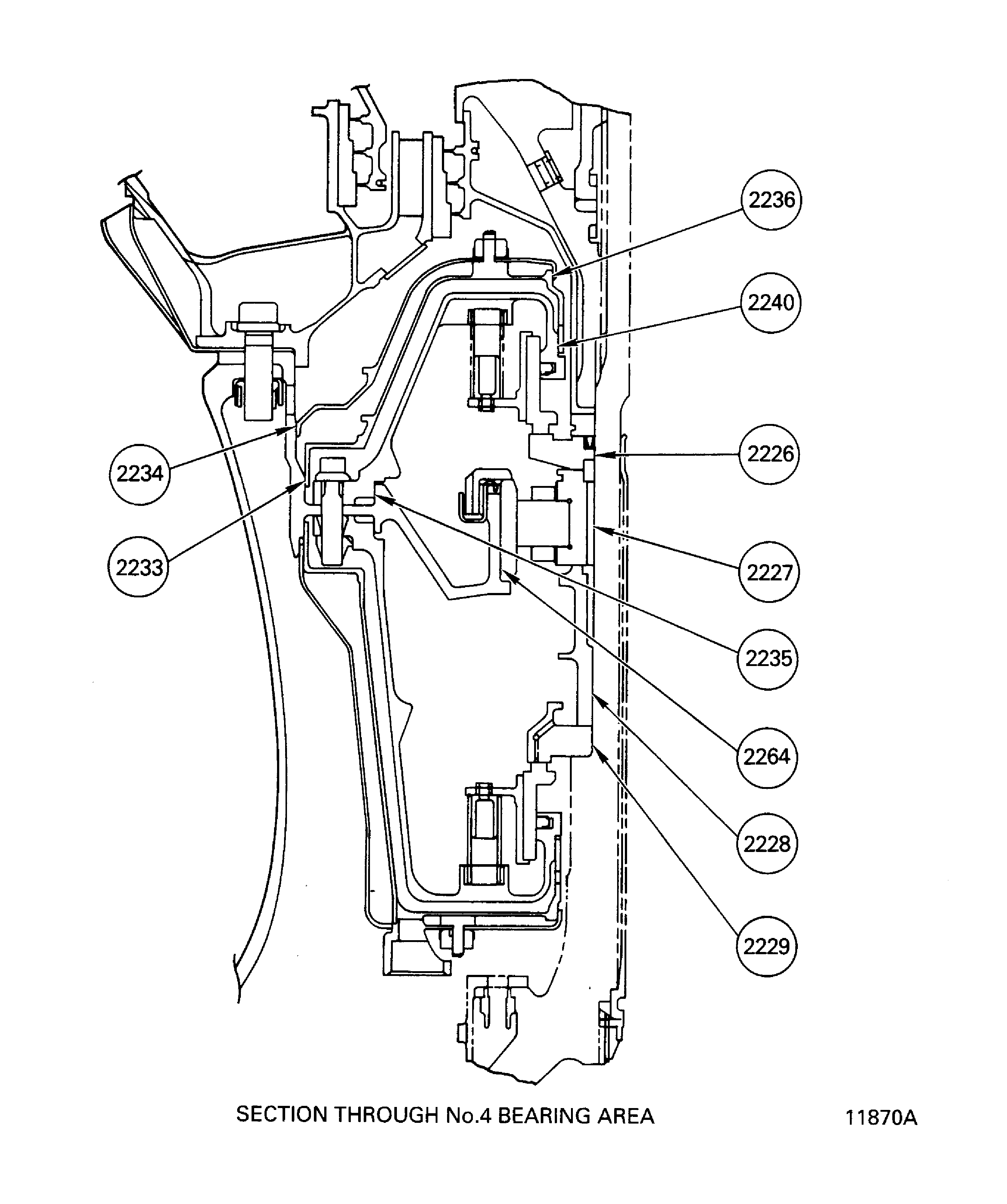

1. Refer to Figure.
2. Remove the cover from the rear flange of the diffuser case.
3. Remove the cover from the No. 4 bearing support ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010).
  NOTE
  The No. 4 bearing inner and outer ring and rollers are a serialized set that must be kept together as a set in each engine build.
4. Install the IAE 1P16469 Heater 1 off to the No. 4 bearing support. Attach the heater to the IAE 6F10027 Heater control unit 1 off and heat the support to 345 deg F to 355 deg F (174 deg C to 179 deg C).
  NOTE
  Make sure the "X" mark on the No. 4 bearing outer race is at the 12 o'clock position of the No. 4 bearing suppport. The dowel pin on the support is at the six o'clock position.
5. Remove the heater and install by hand using protective gloves the outer race into the No. 4 bearing housing. Make sure the outer race is fully seated against the No. 4 bearing support shoulder, no gap is permissible.
6. When the temperature of the parts has cooled sufficiently, install the IAE 1P16104 Cover 1 off to the No. 4 bearing support.

SUBTASK 72-40-00-220-051-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts given at Location 2226 (Pre SBE 72-0111)

Refer to Figure.

Reference the clearance at location 2226. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-14-200-000 (INSPECTION-000).

Table 1. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2226
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Rear Seal Seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), Bore
HPC Drive Turbine Shaft Journal	5.107	Clear
	5.108	0.003
No. 4 Bearing Rear Seal Seat Bore	5.111	0.006
	5.113	Clear

Table 2. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2226
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Rear Seal Seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), Bore
HPC Drive Turbine Shaft Journal	129.718	Clear
	129.743	0.077
No. 4 Bearing Rear Seal Seat Bore	129.820	0.152
	129.870	Clear

SUBTASK 72-40-00-220-051-B00 V2500-A1 Reference the Fits and Clearence of the No. 4 Bearing and Rear Compartment Parts at Location 2226 (SBE 72-0111)

Refer to Figure.
SBE 72-0111: New Stage 1 HPT Air Seal

Reference the clearence at location 2226. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-14-200-000 (INSPECTION-000).

Table 3. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2226
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Rear Seal Seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), Bore
HPC Drive Turbine Shaft Journal	5.107	Clear
	5.108	0.003
No. 4 Bearing Rear Seal Seat Bore	5.111	0.006
	5.113	Clear

Table 4. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2226
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Rear Seal Seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), Bore
HPC Drive Turbine Shaft Journal	129.718	Clear
	129.743	0.077
No. 4 Bearing Rear Seal Seat Bore	129.820	0.152
	129.870	Clear

SUBTASK 72-40-00-220-051-C00 V2500-A5 Reference the Fits and Clearence of the No. 4 Bearing and Rear Compartment Parts at Location 2226

Refer to Figure.

Reference the interference at location 2226. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-14-200-000 (INSPECTION-000).

Table 5. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2226
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Rear Seal Seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), Bore
HPC Drive Turbine Shaft Journal	5.107	Clear
	5.108	0.003
No. 4 Bearing Rear Seal Seat Bore	5.111	0.006
	5.113	Clear

Table 6. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2226
HPC Drive Turbine Shaft ENGINE-NO.4 BEARING (72-43-13, 01-850), Journal
No. 4 Bearing Rear Seal Seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), Bore
HPC Drive Turbine Shaft Journal	129.718	Clear
	129.743	0.076
No. 4 Bearing Rear Seal Seat Bore	129.819	0.152
129.870	Clear

SUBTASK 72-40-00-220-052-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2227 (Pre SBE 72-0111)

Refer to Figure.

Reference the interference at location 2227. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-13-200-000 (INSPECTION-000).

Table 7. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2227
No. 4 Bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), Bore
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Bore	5.1181	Intf	5.1188	Intf
	5.1175	0.0003	5.1175	0.0003
HPC Drive Turbine Shaft Journal	5.1191	0.0016	5.1191	0.0016
	5.1184	Intf	5.1184	Intf

Table 8. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2227
No. 4 Bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), Bore
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Bore	129.9997	Intf	130.0175	Intf
	129.9845	0.008	129.9845	0.008
HPC Drive Turbine Shaft Journal	130.025	0.040	130.0251	0.040
	130.0074	Intf	130.0074	Intf

SUBTASK 72-40-00-220-052-B00 V2500-A1 Reference the Fits and Clearence of the No. 4 Bearing and Rear Compartment Parts at Location 2227 (SBE 72-0111)

Refer to Figure.
SBE 72-0111: New Stage 1 HPT Air Seal

Reference the interference at location 2227. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-13-200-000 (INSPECTION-000).

Table 9. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2227
No. 4 Bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), Bore
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Bore	5.1181	Intf	5.1188	Intf
	5.1175	0.0003	5.1175	0.0003
HPC Drive Turbine Shaft Journal	5.1191	0.0016	5.1191	0.0016
	5.1184	Intf	5.1184	Intf

Table 10. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2227
No. 4 Bearing ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-010), Bore
HPC Drive Turbine Shaft ENGINE-NO.4 BEARING (72-43-13, 01-850), Journal
No. 4 Bearing Bore	129.9997	Intf	130.0175	Intf
	129.9845	0.008	129.9845	0.008
HPC Drive Turbine Shaft Journal	130.0251	0.040	130.0251	0.040
	130.0074	Intf	130.0074	Intf

SUBTASK 72-40-00-220-052-C00 V2500-A5 Reference the Fits and Clearence of the No. 4 Bearing and Rear Compartment Parts at Location 2227

Refer to Figure.

Reference the interference at location 2227. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-13-200-000 (INSPECTION-000).

Table 11. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2227
No. 4 Bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), Bore
HPC Drive Turbine Shaft ENGINE-NO.4 BEARING (72-43-13, 01-850), Journal
No. 4 Bearing Bore	5.1181	Intf	5.1188	Intf
	5.1175	0.0003	5.1175	0.0003
HPC Drive Turbine Shaft Journal	5.1191	0.0016	5.1191	0.0016
	5.1184	Intf	5.1184	Intf

Table 12. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2227
No. 4 Bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), Bore
HPC Turbine Drive Shaft ENGINE-NO.4 BEARING (72-43-13, 01-850), Journal
No. 4 Bearing Bore	129.9997	Intf	130.0175	Intf
	129.9845	0.008	129.9845	0.008
HPC Drive Turbine Shaft Journal	130.0251	0.040	130.0251	0.040
	130.0074	Intf	130.0074	Intf

SUBTASK 72-40-00-220-053-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2228 (Pre SBE 72-0111)

Refer to Figure.

Reference the clearance at location 2228. If required use the data made as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-12-200-000 (INSPECTION-000).

Table 13. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2228
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Seal Spacer ENGINE-NO.4 BEARING SEAL SPACER (72-43-12, 01-010)
HPC Drive Turbine Shaft Journal	5.127	Clear
	5.129	0.002
No. 4 Bearing Seal Spacer	5.131	0.006
	5.133	Clear

Table 14. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2228
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Seal Spacer ENGINE-NO.4 BEARING SEAL SPACER (72-43-12, 01-010)
HPC Drive Turbine Shaft Journal	130.226	Clear
	130.276	0.051
No. 4 Bearing Seal Spacer	130.328	0.152
	130.378	Clear

SUBTASK 72-40-00-220-053-B00 V2500-A1 Reference the Fits and Clearance of the No. 4 Bearing and Rear Compartment Parts at Location 2228 (SBE 72-0111)

Refer to Figure.
SBE 72-0111: New Stage 1 HPT Air Seal

Reference the clearance at location 2228. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-12-200-000 (INSPECTION-000).

Table 15. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2228
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Seal Spacer ENGINE-NO.4 BEARING SEAL SPACER (72-43-12, 01-010)
HPC Drive Turbine Shaft Journal	5.127	Clear
	5.129	0.002
No. 4 Bearing Seal Spacer	5.131	0.006
	3.133	Clear

Table 16. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2228
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Seal Spacer ENGINE-NO.4 BEARING SEAL SPACER (72-43-12, 01-010)
HPC Drive Turbine Shaft Journal	130.226	Clear
	130.276	0.051
No. 4 Bearing Seal Spacer	130.328	0.152
	130.378	Clear

SUBTASK 72-40-00-220-053-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2228

Refer to Figure.

Reference the clearance at location 2228. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-12-200-000 (INSPECTION-000).

Table 17. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2228
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Seal Spacer ENGINE-NO.4 BEARING SEAL SPACER (72-43-12, 01-010)
HPC Drive Turbine Shaft Journal	5.127	Clear
	5.129	0.002
No. 4 Bearing Seal Spacer	5.131	0.006
	5.133	Clear

Table 18. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2228
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Seal Spacer ENGINE-NO.4 BEARING SEAL SPACER (72-43-12, 01-010)
HPC Drive Turbine Shaft Journal	130.226	Clear
	130.276	0.051
No. 4 Bearing Seal Spacer	130.328	0.152
	130.378	Clear

SUBTASK 72-40-00-220-054-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2229 (Pre SBE 72-0111)

Refer to Figure.

Reference the clearance at location 2229. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-11-200-000 (INSPECTION-000).

Table 19. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2229
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Front Seal Seat ENGINE-NO.4 BEARING FRONT SEAT SEAL (72-43-11, 01-010) Bore
HPC Drive Turbine Shaft Journal	5.127	Clear
	5.129	0.002
No. 4 Bearing Front Seal Seat Bore	5.131	0.006
	5.133	Clear

Table 20. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2229
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Front Seal Seat ENGINE-NO.4 BEARING FRONT SEAT SEAL (72-43-11, 01-010), Bore
HPC Drive Turbine Shaft Journal	130.226	Clear
	130.276	0.051
No. 4 Bearing Front Seal Seat Bore	130.328	0.152
	130.378	Clear

SUBTASK 72-40-00-220-054-B00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2229 (SBE 72-0111)

Refer to Figure.
SBE 72-0111: New Stage 1 HPT Air Seal

Reference the clearance at location 2229. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-11-200-000 (INSPECTION-000).

Table 21. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2229
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Front Seal Seat ENGINE-NO.4 BEARING FRONT SEAT SEAL (72-43-11, 01-010), Bore
HPC Drive Turbine Shaft Journal	5.127	Clear
	5.129	0.002
No. 4 Bearing Front Seal Seat Bore	3.131	0.006
	5.133	Clear

Table 22. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2229
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Front Seal Seat ENGINE-NO.4 BEARING FRONT SEAT SEAL (72-43-11, 01-010), Bore
HPC Drive Turbine Shaft Journal	130.226	Clear
	130.276	0.051
No. 4 Bearing Front Seal Seat Bore	130.328	0.152
	130.378	Clear

SUBTASK 72-40-00-220-054-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2229

Refer to Figure.

References the clearance at location 2229. If required, use the data written as a note in TASK 72-41-12-200-000 (INSPECTION-000) and TASK 72-43-11-200-000 (INSPECTION-000).

Table 23. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2229
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Front Seal Seat ENGINE-NO.4 BEARING FRONT SEAT SEAL (72-43-11, 01-010), Bore
HPC Drive Turbine Shaft Journal	5.127	Clear
	5.129	0.002
No. 4 Bearing Front Seal Seat Bore	5.131	0.006
	5.133	Clear

Table 24. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2229
HPC Drive Turbine Shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), Journal
No. 4 Bearing Front Seal Seat ENGINE-NO.4 BEARING FRONT SEAT SEAL (72-43-11, 01-010), Bore
HPC Drive Turbine Shaft Journal	130.226	Clear
	130.276	0.051
No. 4 Bearing Front Seal Seat Bore	130.328	0.152
	130.378	Clear

SUBTASK 72-40-00-220-055-A00 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2233 (Pre SBE 72-0111)

Refer to Figure.

Reference the interference at location 2233. If required, use the data written as a note in TASK 72-42-31-200-000 (INSPECTION-000) and TASK 72-43-30-200-000 (INSPECTION-000).

Table 25. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2233
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Rear Cooling Duct Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	12.752	Intf	12.754	Intf
	12.748	0.002	12.748	0.000
No. 4 Bearing Rear Cooling Duct Location Diameter	12.758	0.010	12.758	0.010
	12.754	Intf	12.754	Intf

Table 26. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2233
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Rear Cooling Duct Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	323.900	Intf	323.952	Intf
	323.800	0.051	323.800	0.000
No. 4 Bearing Rear Cooling Duct Location Diameter	324.053	0.254	324.053	0.254
	323.952	Intf	323.952	Intf

SUBTASK 72-40-00-220-055-B00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2233 (SBE 72-0111)

Refer to Figure.
SBE 72-0111: New Stage 1 HPT Air Seal

Reference the interference at location 2233. If required, use the data written as a note in TASK 72-42-31-200-000 (INSPECTION-000) and TASK 72-43-30-200-000 (INSPECTION-000).

Table 27. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2233
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Rear Cooling Duct Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	12.752	Intf	12.754	Intf
	12.748	0.002	12.748	0.000
No. 4 Bearing Rear Cooling Duct Location Diameter	12.758	0.010	12.758	0.010
	12.754	Intf	12.754	Intf

Table 28. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2233
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Rear Cooling Duct Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	323.900	Intf	323.952	Intf
	323.800	0.051	323.800	0.000
No. 4 Bearing Rear Cooling Duct Location Diameter	324.053	0.254	324.053	0.254
	323.952	Intf	323.952	Intf

SUBTASK 72-40-00-220-055-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2233

Refer to Fig. 72-40-00-900-139.

Reference the interference at location 2233. If required, use the data written as a note in TASK 72-42-31-200-000 (INSPECTION-000) and TASK 72-43-30-200-000 (INSPECTION-000).

Table 29. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2233
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Rear Cooling Duct Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	12.752	Intf	12.754	Intf
	12.748	0.002	12.748	0.000
No. 4 Bearing Rear Cooling Duct Location Diameter	12.758	0.010	12.758	0.010
	12.754	Intf	12.754	Intf

Table 30. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2233
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Rear Cooling Duct Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	323.900	Intf	323.952	Intf
	323.800	0.051	323.800	0.000
No. 4 Bearing Rear Cooling Duct Location Diameter	324.053	0.254	324.053	0.254
	323.952	Intf	323.952	Intf

SUBTASK 72-40-00-220-056-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2234 (Pre SBE 72-0111)

Refer to Fig. 72-40-30-990-040.

Reference the interference at location 2234. If required, use the data written as a note in TASK 72-42-31-200-000 (INSPECTION-000) and TASK 72-43-30-200-000 (INSPECTION-000).

Table 31. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2234
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Heatshield Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-080), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	13.002	Intf	13.003	Intf
	12.998	0.002	12.997	0.002
No. 4 Bearing Heatshield Location Diameter	13.008	0.010	13.008	0.010
	13.004	Intf	13.004	Intf

Table 32. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2234
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Heatshield Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-080), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	330.250	Intf	330.276	Intf
	330.150	0.051	330.124	0.051
No. 4 Bearing Heatshield Location Diameter	330.403	0.254	330.403	0.254
	330.302	Intf	330.302	Intf

SUBTASK 72-40-00-220-056-B00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2234 (SBE 72-0111)

Refer to Figure.
SBE 72-0111: New Stage 1 HPT Air Seal

Reference the interference at location 2234. If required, use the data written as a note in TASK 72-42-31-200-000 (INSPECTION-000) and TASK 72-43-30-200-000 (INSPECTION-000).

Table 33. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2234
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Heatshield Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-080), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	13.002	Intf	13.003	Intf
	12.998	0.002	12.997	0.002
No. 4 Bearing Heatshield Location Diameter	13.008	0.010	13.008	0.010
	13.004	Intf	13.004	Intf

Table 34. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2234
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Heatshield Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-080), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	330.250	Intf	330.276	Intf
	330.150	0.051	330.124	0.051
No. 4 Bearing Heatsheild Location Diameter	330.403	0.254	330.403	0.254
	330.302	Intf	330.302	Intf

SUBTASK 72-40-00-220-056-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2234

Refer to Figure.

Reference the interference at location 2234. If required, use the data written as a note in TASK 72-42-31-200-000 (INSPECTION-000) and TASK 72-43-30-200-000 (INSPECTION-000).

Table 35. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2234
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Heatshield Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-080), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	13.002	Intf	13.003	Intf
	12.998	0.002	12.997	0.002
No. 4 Bearing Heatshield Location Diameter	13.008	0.010	13.008	0.010
	13.004	Intf	13.004	Intf

Table 36. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2234
No. 4 Bearing Support Assembly HP COMPRESSOR SPLIT CASE (72-41-31, 01-010), Location Diameter
No. 4 Bearing Heatshield Assembly No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-080), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	330.250	Intf	330.276	Intf
	330.150	0.051	330.124	0.051
No. 4 Bearing Heatshield Location Diameter	330.403	0.254	330.403	0.254
	330.302	Intf	330.303	Intf

SUBTASK 72-40-00-220-057-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2235 (Pre SBE 72-0111)

Refer to Figure.

Reference the interference at location 2235. If required, use the data written as a note in TASK 72-43-20-200-000 (INSPECTION-000) and TASK 72-42-31-200-000 (INSPECTION-000).

Table 37. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2235
No. 4 Bearing Seal Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-060), Location Diameter
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	10.892	Intf	10,892	Intf
	10.888	0.000	10.888	0.000
No. 4 Bearing Support Assembly Location Diameter	10.896	0.008	10.897	0.009
	10.892	Intf	10.892	Intf

Table 38. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2235
No. 4 Bearing Seal Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-060), Location Diameter
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	276.657	Intf	276.657	Intf
	276.556	0.000	276.556	0.000
No. 4 Bearing Support Assembly Location Diameter	276.758	0.203	276.784	0.228
	276.657	Intf	276.657	Intf

SUBTASK 72-40-00-220-057-B00 V2500-A1 Reference Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2235 (SBE 72-0111)

Refer to Figure.
SBE 72-0111: New Stage 1 HPT Air Seal

Reference the interference at location 2235. If required, use the data written as a note in TASK 72-43-20-200-000 (INSPECTION-000) and TASK 72-42-31-200-000 (INSPECTION-000).

Table 39. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2235
No. 4 Bearing Seal Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-060), Location Diameter
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	10.892	Intf	10.892	Intf
	10.888	0.000	10.888	0.000
No. 4 Bearing Support Assembly Location Diameter	10.896	0.008	10.897	0.009
	10.892	Intf	10.892	Intf

Table 40. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2235
No. 4 Bearing Seal Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-060), Location Diameter
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	276.657	Intf	276.657	Intf
	276.556	0.000	276.556	0.000
No. 4 Bearing Support Assembly Location Diameter	276.758	0.203	276.784	0.228
	276.657	Intf	276.657	Intf

SUBTASK 72-40-00-220-057-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Parts at Location 2235

Refer to Figure.

Reference the interference at location 2235. If required, use the data written as a note in TASK 72-43-20-200-000 (INSPECTION-000) and TASK 72-42-31-200-000 (INSPECTION-000).

Table 41. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2235
No. 4 Bearing Seal Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-060), Location Diameter
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	10.892	Intf	10.892	Intf
	10.888	0.000	10.888	0.000
No. 4 Bearing Support Assembly Location Diameter	10.896	0.008	10.897	0.009
	10.892	Intf	10.892	Intf

Table 42. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2235
No. 4 Bearing Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-060), Location Diameter
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	276.657	Intf	276.657	Intf
	276.556	0.000	276.556	0.000
No. 4 Bearing Support Assembly Location Diameter	276.758	0.203	276.784	0.228
	276.657	Intf	276.657	Intf

SUBTASK 72-40-00-220-063 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2236 (Pre SBE 72-0111)

Refer to Figure.

Reference the clearance at location 2236. If required, use the data written as a note in TASK 72-43-30-200-000 (INSPECTION-000).

Table 43. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2236
No. 4 Bearing Heatshield No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-080), Location Diameter
No. 4 Bearing Rear Cooling Duct No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Heatshield Location Diameter	6.185	Clear
	6.195	0.010
No. 4 Bearing Cooling Duct Location Diameter	6.205	0.030
	6.215	Clear

Table 44. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2236
No. 4 Bearing Heatshield No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-080), Location Diameter
No. 4 Bearing Rear Cooling Duct No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Heatshield Location Diameter	157.10	Clear
	157.35	0.25
No. 4 Bearing Cooling Duct Location Diameter	157.61	0.76
	157.86	Clear

SUBTASK 72-40-00-220-064-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2240 (Pre SBE 72-0111)

Refer to Figure.

Reference the clearance/interference at location 2240. If required, use the data written as a note in TASK 72-43-30-200-000 (INSPECTION-000) and TASK 72-43-20-200-000 (INSPECTION-000).

Table 45. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2240
No. 4 Bearing Seal Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-020), Location Diameter
No. 4 Bearing Rear Cooling Duct No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	6.055	Clear
	6.051	0.002
No. 4 Bearing Cooling Duct Location Diameter	6.057	0.006
	6.053	Intf

Table 46. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2240
No. 4 Bearing Seal Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-020), Location Diameter
No. 4 Bearing Rear Cooling DuctNo. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	153.797	Clear
	153.696	0.051
No. 4 Bearing Cooling Duct Location Diameter	153.847	0.152
	153.747	Intf

SUBTASK 72-40-00-220-064-B00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing Compartment Parts at location 2240 (SBE 72-0111)

Refer to Figure.
SBE 72-0111: New Stage 1 HPT Air Seal

Reference the clearance/interference at location 2240. If required, use the data written as a note in TASK 72-43-30-200-000 (INSPECTION-000) and TASK 72-43-20-200-000 (INSPECTION-000).

Table 47. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2240
No. 4 Bearing Seal Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-020), Location Diameter
No. 4 Bearing Rear Cooling Duct No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	6.055	Clear
	6.051	0.002
No. 4 Bearing Cooling Duct Location Diameter	6.057	0.006
	6.053	Intf.

Table 48. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2240
No. 4 Bearing Seal Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-020), Location Diameter
No. 4 Bearing Rear Cooling Duct No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	153.797	Clear
	153.696	0.051
No. 4 Bearing Cooling Duct Location Diameter	153.847	0.152
	153.747	Intf

SUBTASK 72-40-00-220-064-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2240

Refer to Figure.

Reference the clearance/interference at location 2240. If required, use the data written as a note in TASK 72-43-30-200-000 (INSPECTION-000) and TASK 72-43-20-200-000 (INSPECTION-000).

Table 49. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2240
No. 4 Bearing Seal Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-020), Location Diameter
No. 4 Bearing Rear Cooling Duct No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	6.055	Clear
	6.051	0.002
No. 4 Bearing Cooling Duct Location Diameter	6.057	0.006
	6.053	Intf

Table 50. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2240
No. 4 Bearing Seal Ring Holder No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-020), Location Diameter
No. 4 Bearing Rear Cooling Duct No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010), Location Diameter
No. 4 Bearing Seal Ring Holder Location Diameter	153.797	Clear
	153.696	0.051
No. 4 Bearing Cooling Duct Location Diameter	153.847	0.152
	153.747	Intf

SUBTASK 72-40-00-220-065-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2264 (Pre SBE 72-0111)

Refer to Figure.

Reference the interference at location 2264. If required, use the data written as a note in TASK 72-42-31-200-000 (INSPECTION-000) and TASK 72-43-13-200-000 (INSPECTION-000).

Table 51. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2264
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	7.5532	Intf	7.5532	Intf
	7.5522	0.0018	7.5522	0.0018
No. 4 Bearing Location Diameter	7.556	0.0038	7.557	0.0038
	7.555	Intf	7.555	Intf

Table 52. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2264
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	191.851	Intf	191.851	Intf
	191.826	0.046	191.826	0.046
No. 4 Bearing Location Diameter	191.922	0.096	191.947	0.096
	191.897	Intf	191.897	Intf

SUBTASK 72-40-00-220-065-B00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2264 (SBE 72-0111)

Refer to Figure.
SBE 72-0111: New Stage 1 HPT Air Seal

Reference the interference at location 2264. If required, use the data written as a note in TASK 72-42-31-200-000 (INSPECTION-000) and TASK 72-43-13-200-000 (INSPECTION-000).

Table 53. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2264
No. 4 Bearing Seal Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	7.5532	Intf	7.5532	Intf
	7.5522	0.0018	7.5522	0.0018
No. 4 Bearing Location Diameter	7.556	0.0038	7.557	0.0038
	7.555	Intf	7.555	Intf

Table 54. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2264
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	191.851	Intf	191.851	Intf
	191.826	0.046	191.826	0.046
No. 4 Bearing Location Diameter	191.922	0.096	191.947	0.096
	191.897	Intf	191.897	Intf

SUBTASK 72-40-00-220-065-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartments Parts at Location 2264

Refer to Figure.

Reference the interference at location 2264. If required, use the data written as a note in TASK 72-42-31-200-000 (INSPECTION-000) and TASK 72-43-13-200-000 (INSPECTION-000).

Table 55. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2264
No. 4 Bearing Seal Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	7.5532	Intf	7.5532	Intf
	7.5522	0.0018	7.5522	0.0018
No. 4 Bearing Location Diameter	7.556	0.0038	7.557	0.0038
	7.555	Intf	7.555	Intf

Table 56. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 2264
No. 4 Bearing Support Assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010), Location Diameter
No. 4 Bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), Location Diameter
No. 4 Bearing Support Assembly Location Diameter	191.851	Intf	191.851	Intf
	191.826	0.046	191.826	0.046
No. 4 Bearing Location Diameter	191.922	0.096	191.947	0.096
	191.897	Intf	191.897	Intf

1. Refer to Figure and Figure.
2. Install the No. 4 bearing keywasher ENGINE-NO.4 BEARING LOCK AND NUT (72-42-32, 01-010) to the support with the tabs on the keywasher in the slots on the support.
3. Install the No. 4 bearing outer race retaining nut ENGINE-NO.4 BEARING LOCK AND NUT (72-42-32, 01-020) to the No. 4 bearing support.
4. CAUTION
  WHEN USING THE IAE 1P16035 Hand wrench THE ACTUAL TORQUE WRENCH READING WILL BE LESS THAN THAT GIVEN BELOW. SEE THE STANDARD PRACTICES MANUAL.
  Put the IAE 1P16035 Hand wrench 1 off in place on the nut and, with a standard torque wrench, torque the nut to 1900 lbfin to 2100 lbfin (214.671 Nm to 237.268 Nm). Loosen the nut to 0 lbfin (0 Nm) and then torque to 1900 lbfin to 2100 lbfin (214.671 Nm to 237.268 Nm) again. Remove the wrench from the nut.
  NOTE
  A gap is permitted between the fixture ring and the support outer flange.
5. Lift the IAE 1P16145 Crimp fixture 1 off with a hoist and position over the assembly. Look to see if the jaws are rotated away from the base stop. Look to see if the locator has been retracted. Lower the fixture to the No. 4 bearing support. Hold fixture to the support with the three cap screws and washers. Tighten by hand only.
  NOTE
  Fixture may be turned to obtain a positive location in nut slot. The base of the fixture is slotted for visual verification of the locator in the nut slot.
6. Install the locator in to a slot in the No. 4 bearing outer race retaining nut.
7. Attach the IAE 1F10026 Hydraulic hand pump 1 off to the fixture and actuate to crimp the keywasher. Hydraulic pressure setting should be 3000 psi (20684.3 kPa) to crimp the keywasher in eight places.
1. Refer to Figure.
2. Install the No. 4 bearing front seal seat ENGINE-NO.4 BEARING FRONT SEAT SEAL (72-43-11, 01-010) on to the HP compressor rear hub with the ID puller groove up. Seal seat must touch the shoulder on the HP compressor hub.
3. Install the No. 4 bearing seal spacer ENGINE-NO.4 BEARING SEAL SPACER (72-43-12, 01-010) (with the smooth OD down) on to the HP compressor rear hub. Spacer must touch the front seal seat.
1. Refer to Figure.
  NOTE
  Do not remove the heater unit until temperature of the bearing outer race is stabilized at 345 deg F to 355 deg F (173 deg C to 179 deg C).
  Use the latest revision of the IAE 1P16469 Heater. The latest version of the heater is equipped with heat shield which minimizes the heat transfer to the HP compressor rear hub.
  The heating process of the outer race will take about 30 minutes.
2. Install the IAE 1P16469 Heater 1 off to the No. 4 bearing support and No. 4 bearing outer race. Attach the heater to the IAE 6F10027 Heater control unit 1 off and set the controller to 350 deg F (176 deg C). Heat the bearing support and outer race. The temperature at the outer surface of bearing support adjacent to the bearing retaining nut must not exceed 400 deg F (204 deg C).
3. CAUTION
  IF A HOT OIL TANK WAS USED TO HEAT THE BEARINGS, DO NOT LET THE BEARINGS TOUCH THE BOTTOM OF THE HOT OIL TANK. A HEAVY SCREEN OR SOME RODS ATTACHED 3 IN. (76 MM) ABOVE THE BOTTOM OF THE TANK WILL KEEP HOT OIL ON ALL SIDES OF THE BEARING.
  CAUTION
  IF YOU USE AN INDUCTION HEATER FOLLOW THE MANUFACTURERS INSTRUCTIONS. DO NOT LET THE BEARING TEMPERATURE GET MORE THAN 250 DEG F (121 DEG C).
  After the bearing outer race stabilizes at 350 deg F (176 deg C), heat the No. 4 bearing inner race and rollers to 240 deg F to 250 deg F (116 deg C to 121 deg C). Use a hot oil tank for 20 minutes or an induction heater for heating the inner race and rollers.
  NOTE
  The No. 4 bearing inner and outer race and rollers are a serialized set that must be kept together as a set in each engine build.
  The inner race and rollers must be installed within 30 seconds after removing heater from No. 4 bearing support.
4. Remove the heater from the No. 4 bearing support and outer race. Remove the inner race and rollers from the induction heater or from the oil tank.
5. CAUTION
  THE No. 4 BEARING INNER RACE AND ROLLERS ARE HOT.
  CAUTION
  CLEAN THE SURFACE OF THE DRIFT THAT CONTACTS WITH THE BEARING. DO NOT USE A MALLET TO SEAT THE BEARING IF IT DID NOT SEAT ALL THE WAY DOWN WHEN INSTALLED.
  Install the No. 4 bearing inner race and rollers with the puller groove up over the HP compressor rear hub to seat on the last installed No. 4 bearing spacer. Use the IAE 1P16470 Drift 1 off to install the inner race against the spacer.
6. Lightly tap the drift to verify that the bearing is seated.
7. Leave the drift in place until the bearing returns to the room temperature to allow the bearing to seat on the HP compressor rear hub. Once the bearing has cooled down to room temperature, remove the drift.
1. Refer to Figure and Figure.
2. Put the No. 4 bearing rear seal seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020) on the work bench with the tapered side down.
3. Install the seal ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-010) to the ID groove on the rear seal seat.
4. Install the ring portion of the IAE 1P16124 Fixture 1 off to the rear seal seat. Secure in place with the three clamps and bolts. Tighten by hand.
5. Install the rear seal seat (with fixture attached) on to the HP compressor hub. Install the IAE 1P16470 Drift 1 off on to the rear HP compressor hub to contact the fixture and tap with a mallet until the rear seal seat contacts the bearing inner race. Remove the drift. Release the three clamps and remove the fixture from the rear seal seat.
1. Refer to Figure and Figure.
2. Remove the cover from the No. 4 bearing support.
3. Put the rear seal assembly on the work bench with the large flange up.
4. As an option, you can heat the No. 4 bearing rear seal assembly to 225 deg F to 250 deg F (107 deg C to 121 deg C) to make installation easier.
5. Install the No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-010) gasket 1 off to the groove on the rear seal assembly. Hold the gasket in the groove with CoMat 01-573 WAX BLEND, PARAFFIN.
6. Install the No. 4 bearing rear seal assembly to the No. 4 bearing support with the offset hole aligned with the dowel pin. Lubricate the threads of the bolts with CoMat 10-129 ANTI-SEIZE PASTE. Install the bolts No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-040) to the flange of the support.
7. Torque the bolts in the sequence shown in Figure to 62 lbfin to 72 lbfin (7.005 Nm to 8.135 Nm). Do not loosen the bolts. Do the complete torque procedure two more times. Wipe off excess paste.
8. Install the spacer assemblies No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-260) to the threaded holes in the seal assembly flange. TORQUE the spacer assemblies to 55*lbfin to 60*lbfin (6.214 Nm to 6.779 Nm).
1. Refer to Figure.
  NOTE
  The 2A0891-01 and 2A1205-01 No. 4 rear bearing cooling duct can be used with the new 2A1203 Stage 1 HPT Air Seal. The new 2A1203 air seal must be used with the new 2A1204-01 No. 4 bearing heatshield assembly. The old 2A0890-01 heatshield must not be used with the new air seal.
2. Install the No. 4 bearing rear cooling duct No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-010) over the No. 4 bearing rear seal assembly. Align the holes in the duct flange with the spacer assemblies installed on the seal flange. Install the No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-020) keywashers 7 off (bent tabs up) and the nuts No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-040) over the spacer assemblies. Torque the nuts to 23 lbfin to 26 lbfin (2.592 Nm to 2.938 Nm). Bend the washer tabs up against the flats of the nuts.
3. CAUTION
  MAKE SURE YOU INSTALL THE NUTS WITH THE SHOULDERS AGAINST THE HEATSHIELD.
  Install the No. 4 bearing heatshield No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-080) over the No. 4 bearing rear cooling duct. Align the offset hole with the offset stud on the cooling duct. Install the No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-100) keywashers 8 off (bent tabs up) and the nuts No. 4 Bearing Rear Cooling Duct And Heatshield (72-43-30, 01-120) to the studs. Torque the nuts to 23 lbfin to 26 lbfin (2.592 Nm to 2.938 Nm). Bend the washer tabs up against the flats of the nuts.
4. Install the IAE 1P17511 cover 1 off over the rear of the engine and secure with hand pressure at the outer edge.
1. Refer to Figure.
2. Install the IAE 1P16089 Leak check cap 1 off in the coupling nut of the pressure tube.
3. Install the IAE 1P16088 Leak check adapter 1 off in the scavenge tube.
4. Connect the IAE 6F10030 Vacuum test cart 1 off to the adapter.
5. Adjust the vacuum on the cart to 20 in.Hg (508 mm Hg) and evacuate the bearing compartment. Based on the ambient pressure, refer to the table below for the vacuum pressure in psia.
  Ambient Pressure of the Day (psia)
  Vacuum Pressure (psia)
  14.7
  4.9
  14.5
  4.7
  14.3
  4.5
  14.1
  4.3
  13.9
  4.1
  13.7
  3.9
  13.5
  3.7
  13.3
  3.5
  13.1
  3.3
  Vacuum pressure (psia) = Ambient pressure of the day (psia) - 9.8 psia
6. 1. Air flow.
    Not more than 17 pph (7.71 kgph)
    Accept
    More than 17 pph (7.71 kgph) but not more than 21 pph (9.53 kgph)
    Accept, if the engine has no leaks out of the No. 4 oil weep tube during pass-off testing, the engine has no abnormal oil system indications (MOP, oil consumption, external oil leaks) since the last shop visit, and P4SCAV is in limits during pass-off testing. Otherwise, reject
    More than 21 pph (9.53 kgph)
    Reject
7. Decrease the vacuum to 0 in.Hg (0 mmHg) and disconnect the cart from the fixture.
8. Remove the leak check cap from the pressure tube.
9. Remove the leak check adapter from the scavenge tube.

V2500-A1 Pre SBE 72-0111: No. 4 Bearing and Rear Compartment Parts - Fits and Clearances

V2500-A1 SBE 72-0111 and V2500-A5: No. 4 Bearing and Rear Compartment Parts - Fit and Clearences

No. 4 Bearing Outer Race Retaining Nut and Lock

Install the No. 4 Bearing Outer Race

Install the No. 4 Bearing Outer Race Retaining Nut

Install the No. 4 Bearing Outer Race Keywasher

No. 4 Bearing Inner Race, Spacer and Front Seal Seat

Install the No. 4 Bearing Inner Race

No. 4 Bearing Seal and Rear Seal Seat

Install the No. 4 Bearing Rear Seal Seat

Install the No. 4 Bearing Rear Seal Assembly

Torque the No. 4 Bearing Rear Seal Bolts

Install the No. 4 Bearing Rear Cooling Duct and Heatshield

Check the No. 4 Front and Rear Bearing Compartment for Leaks

Requirements After Job Completion

Follow-On Conditions

NONE

Ambient Pressure of the Day (psia)	Vacuum Pressure (psia)
14.7	4.9
14.5	4.7
14.3	4.5
14.1	4.3
13.9	4.1
13.7	3.9
13.5	3.7
13.3	3.5
13.1	3.3
Vacuum pressure (psia) = Ambient pressure of the day (psia) - 9.8 psia

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	0AM53
Tool Number:	IAE 1F10018
Tool Name:	IAE 1F10018 Hydraulic hand pump

TASK 72-40-00-430-003 HP System Module - Install The No. 4 Bearing And Rear Compartment Parts, Assembly-003

Export Control

Copyright

Applicability

Common Information

TASK 72-40-00-430-003 HP System Module - Install The No. 4 Bearing And Rear Compartment Parts, Assembly-003

General

NOTE

NOTE

Preliminary Requirements

Pre-Conditions

Support Equipment

Consumables, Materials and Expendables

Spares

Safety Requirements

Procedure

SUBTASK 72-40-00-430-074 Install the No. 4 Bearing Outer Race

NOTE

NOTE

SUBTASK 72-40-00-220-051-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts given at Location 2226 (Pre SBE 72-0111)

SUBTASK 72-40-00-220-051-B00 V2500-A1 Reference the Fits and Clearence of the No. 4 Bearing and Rear Compartment Parts at Location 2226 (SBE 72-0111)

SUBTASK 72-40-00-220-051-C00 V2500-A5 Reference the Fits and Clearence of the No. 4 Bearing and Rear Compartment Parts at Location 2226

SUBTASK 72-40-00-220-052-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2227 (Pre SBE 72-0111)

SUBTASK 72-40-00-220-052-B00 V2500-A1 Reference the Fits and Clearence of the No. 4 Bearing and Rear Compartment Parts at Location 2227 (SBE 72-0111)

SUBTASK 72-40-00-220-052-C00 V2500-A5 Reference the Fits and Clearence of the No. 4 Bearing and Rear Compartment Parts at Location 2227

SUBTASK 72-40-00-220-053-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2228 (Pre SBE 72-0111)

SUBTASK 72-40-00-220-053-B00 V2500-A1 Reference the Fits and Clearance of the No. 4 Bearing and Rear Compartment Parts at Location 2228 (SBE 72-0111)

SUBTASK 72-40-00-220-053-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2228

SUBTASK 72-40-00-220-054-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2229 (Pre SBE 72-0111)

SUBTASK 72-40-00-220-054-B00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2229 (SBE 72-0111)

SUBTASK 72-40-00-220-054-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2229

SUBTASK 72-40-00-220-055-A00 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2233 (Pre SBE 72-0111)

SUBTASK 72-40-00-220-055-B00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2233 (SBE 72-0111)

SUBTASK 72-40-00-220-055-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2233

SUBTASK 72-40-00-220-056-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2234 (Pre SBE 72-0111)

SUBTASK 72-40-00-220-056-B00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2234 (SBE 72-0111)

SUBTASK 72-40-00-220-056-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2234

SUBTASK 72-40-00-220-057-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2235 (Pre SBE 72-0111)

SUBTASK 72-40-00-220-057-B00 V2500-A1 Reference Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2235 (SBE 72-0111)

SUBTASK 72-40-00-220-057-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Parts at Location 2235

SUBTASK 72-40-00-220-063 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2236 (Pre SBE 72-0111)

SUBTASK 72-40-00-220-064-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2240 (Pre SBE 72-0111)

SUBTASK 72-40-00-220-064-B00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing Compartment Parts at location 2240 (SBE 72-0111)

SUBTASK 72-40-00-220-064-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2240

SUBTASK 72-40-00-220-065-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2264 (Pre SBE 72-0111)

SUBTASK 72-40-00-220-065-B00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2264 (SBE 72-0111)

SUBTASK 72-40-00-220-065-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartments Parts at Location 2264

SUBTASK 72-40-00-430-075 Install the No. 4 Bearing Outer Race Retaining Nut

CAUTION

NOTE

NOTE

SUBTASK 72-40-00-430-076 Install the No. 4 Bearing Front Seal Seat and the No. 4 Bearing Seal Spacer

SUBTASK 72-40-00-430-077 Install the No. 4 Bearing Inner Race and Rollers

NOTE

CAUTION

CAUTION

NOTE

CAUTION

CAUTION

SUBTASK 72-40-00-430-078 Install the No. 4 Bearing Rear Seal Seat and the Seal

SUBTASK 72-40-00-430-079 Install the No. 4 Bearing Rear Seal Assembly

SUBTASK 72-40-00-430-080 Install the No. 4 Bearing Rear Cooling Duct and the No. 4 Bearing Heatshield

CAUTION

NOTE

CAUTION

SUBTASK 72-40-00-720-052 Do a Check of the No. 4 Front and Rear Bearing Compartment for Leaks

Figure: V2500-A1 Pre SBE 72-0111: No. 4 Bearing and Rear Compartment Parts - Fits and Clearances

V2500-A1 Pre SBE 72-0111: No. 4 Bearing and Rear Compartment Parts - Fits and Clearances

Figure: V2500-A1 SBE 72-0111 and V2500-A5: No. 4 Bearing and Rear Compartment Parts - Fit and Clearences

V2500-A1 SBE 72-0111 and V2500-A5: No. 4 Bearing and Rear Compartment Parts - Fit and Clearences

Figure: No. 4 Bearing Outer Race Retaining Nut and Lock

No. 4 Bearing Outer Race Retaining Nut and Lock

Figure: Install the No. 4 Bearing Outer Race

Install the No. 4 Bearing Outer Race

Figure: Install the No. 4 Bearing Outer Race Retaining Nut

Install the No. 4 Bearing Outer Race Retaining Nut

Figure: Install the No. 4 Bearing Outer Race Keywasher

Install the No. 4 Bearing Outer Race Keywasher

Figure: No. 4 Bearing Inner Race, Spacer and Front Seal Seat

No. 4 Bearing Inner Race, Spacer and Front Seal Seat
