TASK 72-41-21-300-059 HPC Stage 8 Rotor Path Ring - Replace The Surface Protection, Repair-059 (VRS6146)
Effectivity
FIG/ITEM | PART NO. |
|---|---|
03-600 | 6A3652 |
03-600 | 6A4102 |
03-600 | 6A4162 |
03-600 | 6A5993 |
03-600 | 6A5996 |
03-600 | 6A7625 |
03-600 | 6A7627 |
Material of component
PART NAME | SYMBOL | MATERIAL |
|---|---|---|
HPC Stage 8 Rotor Path Ring | EAK or EBL or EAE | Corrosion Resistant Steel |
General
This Repair must only be done when the instruction to do so is given in 72-41-21 Inspection/Check.
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Price and availability.
Refer to International Aero Engines.
Related repairs.
None.
NOTE
NOTE
Preliminary Requirements
Pre-Conditions
| Action/Condition | Data Module/Technical Publication |
|---|---|
| Make sure that all the cleaning and inspection procedures, including any required FPI, are done before this repair. |
Support Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 06-073 INK, METAL MARKING | LOCAL | CoMat 06-073 | ||
| CoMat 07-024 AEROLAC METAL PROTECTIVE VARNISH, CLEAR | LOCAL | CoMat 07-024 | ||
| CoMat 07-035 CORROSION RESISTANT COATING | LOCAL | CoMat 07-035 | ||
| CoMat 07-104 ALUMINIUM HIGH HEAT RESISTANT PAINT | LOCAL | CoMat 07-104 | ||
| CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER | 53012 | CoMat 07-175 | ||
| DELETED | LOCAL | DELETED |
Spares
NONESafety Requirements
NONEProcedure
Use vibration peen before application of the coat by SPM TASK 70-09-00-400-501. See Figure, index [4] and Figure, index [4].
Mark the part with VRS6146 adjacent to the assembly part number.
SUBTASK 72-41-21-350-270 Identify Repair
Apply CoMat 07-035 CORROSION RESISTANT COATING (Type A Coating) by SPM TASK 70-38-21-380-501.
Apply CoMat 07-104 ALUMINIUM HIGH HEAT RESISTANT PAINT (Type A Coating) by SPM TASK 70-38-21-380-501.
Prepare and apply the surface protection coating on the part by one of the following procedures. Refer to Figure thru Figure. Unless otherwise stated in Figure thru Figure, apply the surface protection coating all over the part.
SUBTASK 72-41-21-380-140 Apply Surface Protection
Use temporary marking by SPM TASK 70-09-01-400-501. See Figure, index [4] and Figure, index [4].
Mark the part with the part number and VRS6146 adjacent to the assembly part number.
SUBTASK 72-41-21-350-271 Identify Repair
Figure: Repair Details and Dimensions

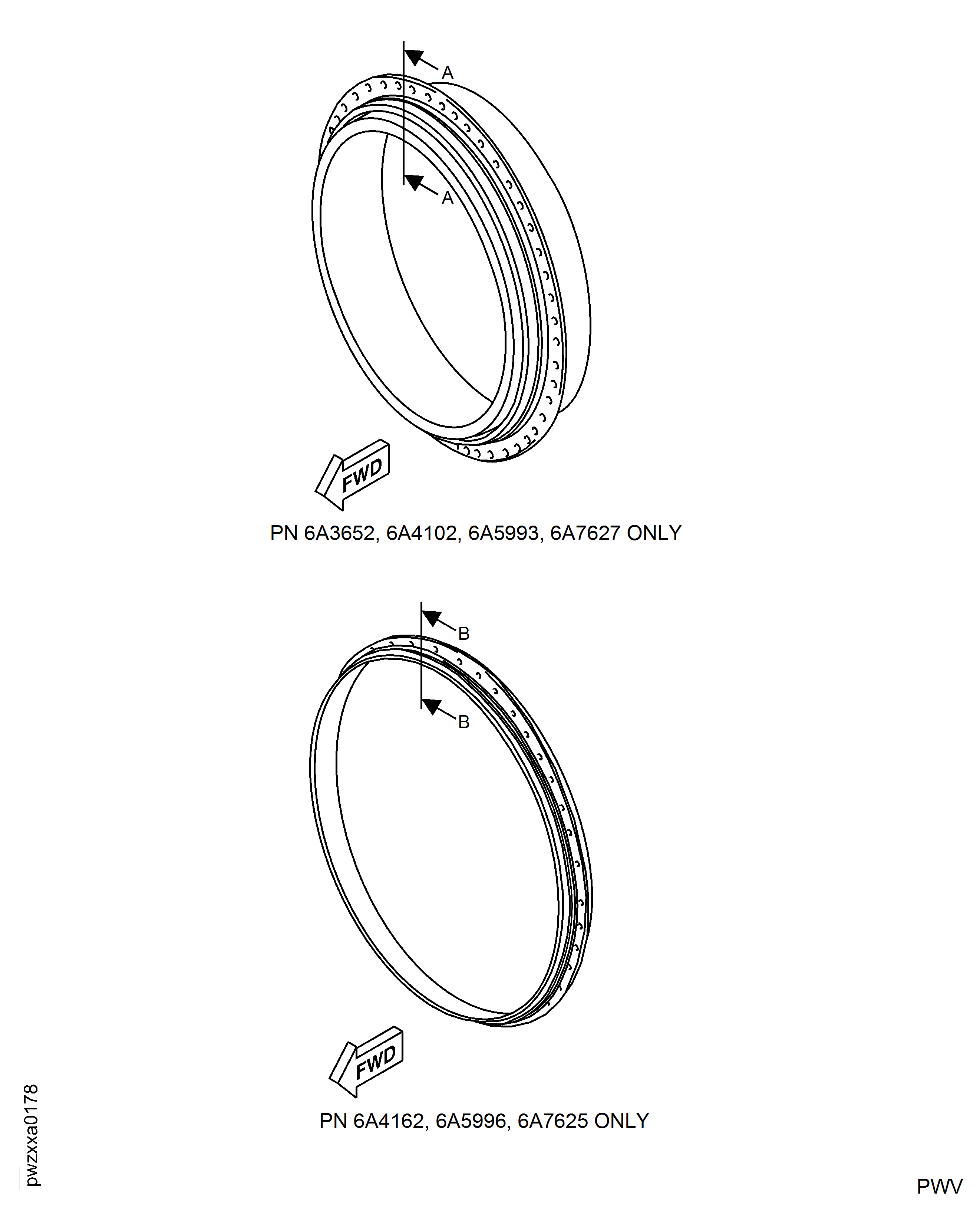

Repair Details and Dimensions
Figure: Repair Details and Dimensions

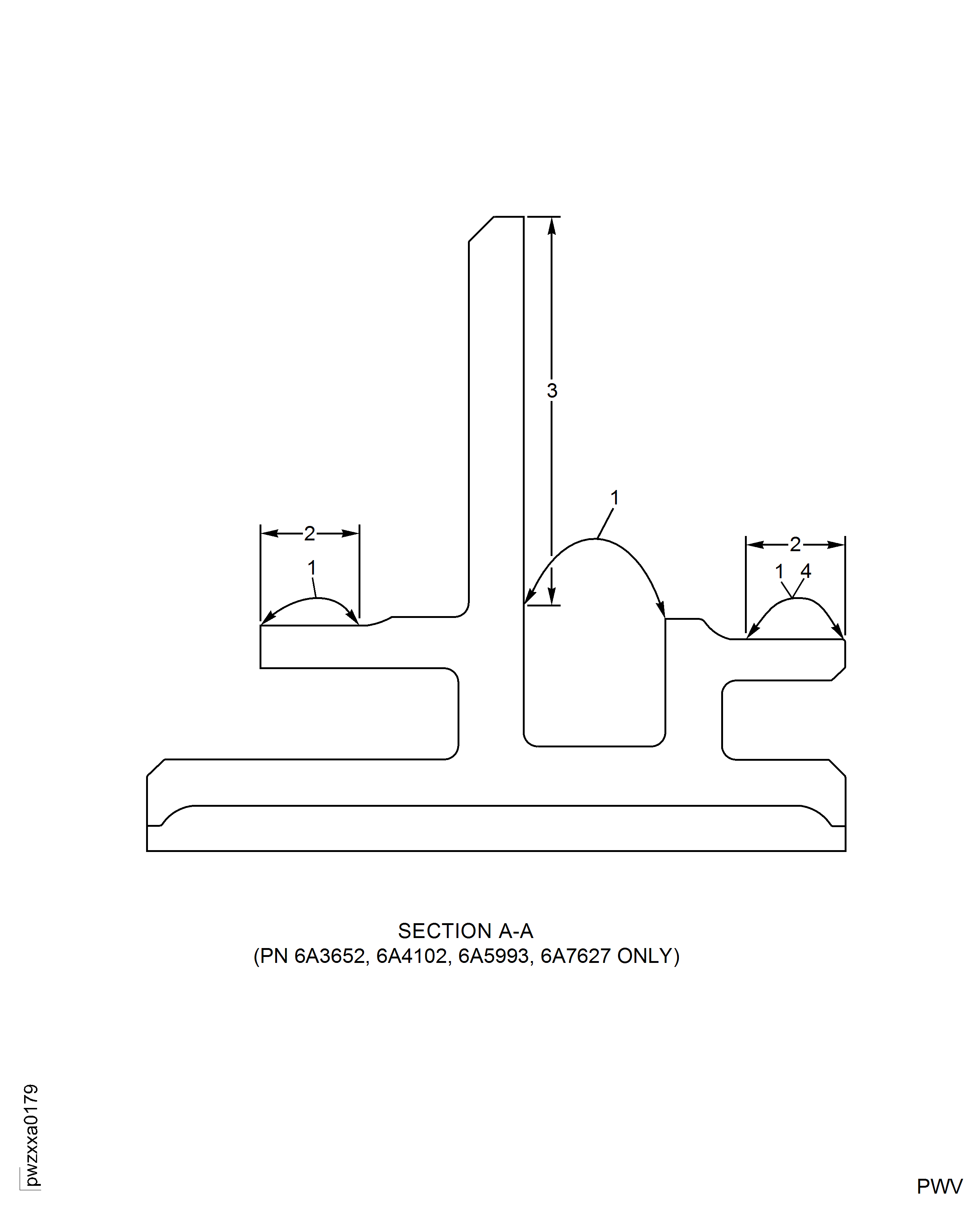

[1] Repair Area. Dry Abrasive Blast And Surface Protection Coating Required In The Repair Area. Dry Abrasive Blast And Surface Protection Coating Not Permitted Outside The Repair Area, And Not Permitted Within Holes.
Figure: Repair Details and Dimensions

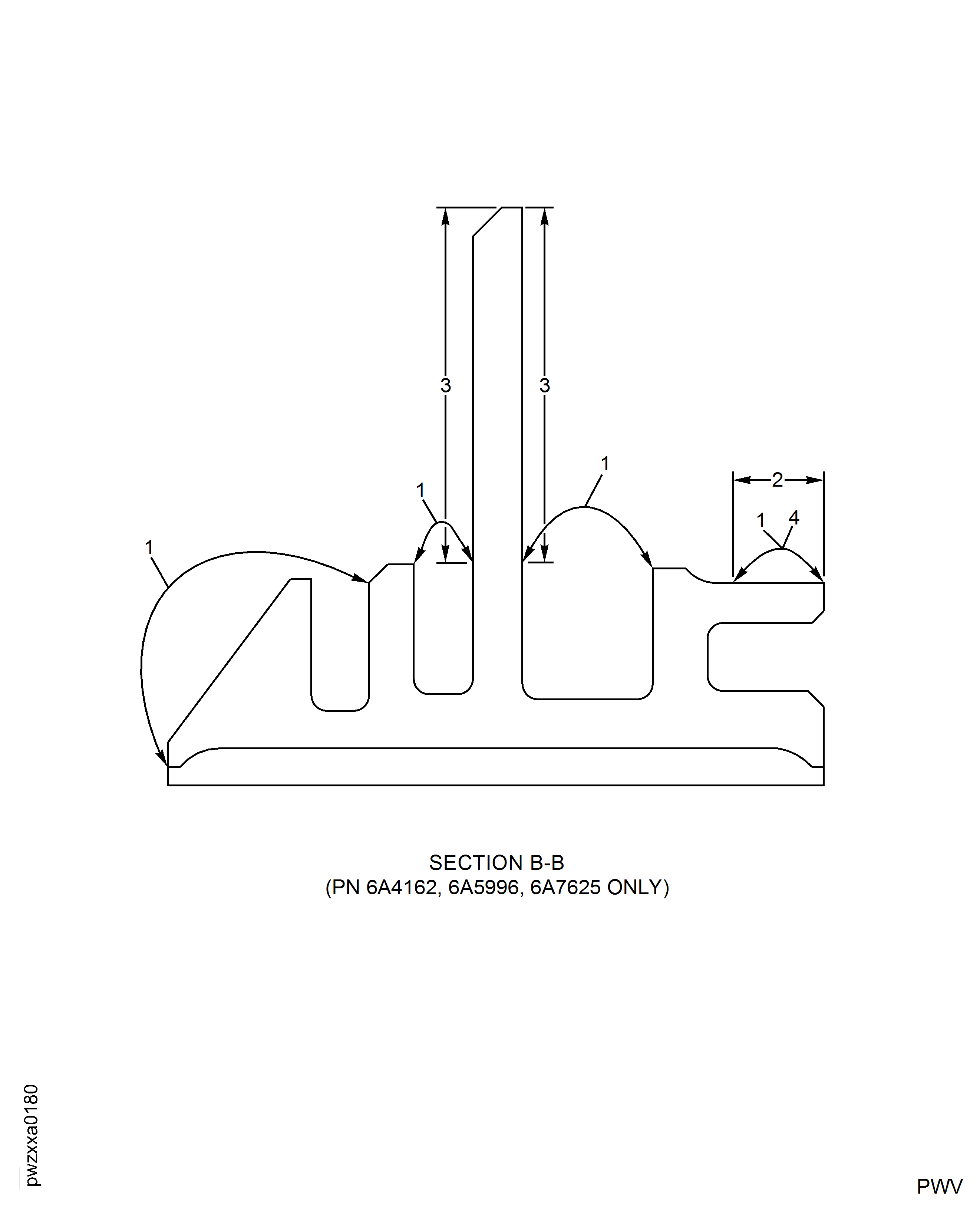

[1] Repair Area. Dry Abrasive Blast And Surface Protection Coating Required In The Repair Area. Dry Abrasive Blast And Surface Protection Coating Not Permitted Outside The Repair Area, And Not Permitted Within Holes.
