TASK 72-41-34-200-011-B00 HPC Stage 3 Unison Ring Connector Bridges - Examine, Inspection-011

DMC:V2500-A0-72-41-3433-00B-300A-C|Issue No:002.00|Issue Date:2021-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-34-200-011-B00 HPC Stage 3 Unison Ring Connector Bridges - Examine, Inspection-011

Effectivity

FIG/ITEM PART NO.

03-200

6A7594

03-200

6A7855

03-200

6B1070

03-201

6B1071

03-280

6A7593

03-280

6A7853

General

This TASK gives the procedure for the inspection of the stage 3 L/H and R/H bridge piece assemblies and/or bridging pieces.

Fig/item numbers in parentheses in the procedure agree with those used in the EIPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a subsequent date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Definition of Damages, SPM TASK 70-02-02-350-501,

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501,

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these item refer to the SPM:

Methods of Testing for Crack Indications,

Chemical Processes,

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-230-357 Examine the Stage 3 L/H and R/H Bridge Piece Assemblies and/or Bridging Pieces for Cracks

    1. Clean the parts. Refer to TASK 72-41-34-100-000.

      2. Do the test for cracks on the part that is given below.

        PART IDENT

        TASK/OP

        Stage 3 L/H and R/H bridge piece assemblies and/or bridging pieces

        1. Cracked

        1. Reject

    2. SUBTASK 72-41-34-220-358 Examine the Stage 3 L/H and R/H Bridge Piece Assemblies and/or Bridging Pieces at Location 1

    1. Refer to Figure, Figure, Figure and Figure.

      2. Nicked.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step B.(1)

        1. Repair, VRS6191 TASK 72-41-34-300-024 (REPAIR-024) or Repair, VRS6687 TASK 72-41-34-300-057 (REPAIR-057).

      3. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step C.(1)

        1. Repair, VRS6191 TASK 72-41-34-300-024 (REPAIR-024) or Repair, VRS6687 TASK 72-41-34-300-057 (REPAIR-057).

      4. Scratched.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in D.(1)

        1. Repair, VRS6191 TASK 72-41-34-300-024 (REPAIR-024) or Repair, VRS6687 TASK 72-41-34-300-057 (REPAIR-057).

    3. SUBTASK 72-41-34-220-359 Examine the Stage 3 L/H and R/H Bridge Piece Assemblies Surfaces at Locations 2 and/or 3

    1. Refer to Figure and Figure.

      2. Galled.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step B.(1)

        1. Repair, VRS6191 TASK 72-41-34-300-024 (REPAIR-024) or Repair, VRS6687 TASK 72-41-34-300-057 (REPAIR-057).

      3. Scratched.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step C.(1)

        1. Repair, VRS6191 TASK 72-41-34-300-024 (REPAIR-024) or Repair, VRS6687 TASK 72-41-34-300-057 (REPAIR-057).

    4. SUBTASK 72-41-34-220-360 Examine the Stage 3 L/H and R/H Bridge Piece Assembly Bushes at Location 4 (Pre SBE 72-0564)

    1. Refer to Figure and Figure.

      2. Wear on the bore.

        1. If the diameter is less than 0.2370 in. (6.023 mm) in diameter

        1. Accept

        2. More than in step B.(1)

        1. Repair VRS6263, TASK 72-41-34-300-025 (REPAIR-025)

      3. Scored on the bore.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step C.(1)

        1. Repair VRS6263, TASK 72-41-34-300-025 (REPAIR-025)

      4. If the bushes are missing

      1. Repair VRS6263, TASK 72-41-34-300-025 (REPAIR-025)

      5. Loose

      1. Repair VRS6263, TASK 72-41-34-300-025 (REPAIR-025)

    5. SUBTASK 72-41-34-220-361 Examine the Stage 3 L/H Bridge Piece Assembly Bush at Location 5 (Pre SBE 72-0564)

    1. Refer to Figure.

      2. Wear on the bore.

        1. If the diameter is less than 0.314 in. (7.98 mm)

        1. Accept

        2. More than in step B.(1)

        1. Repair VRS6263, TASK 72-41-34-300-025 (REPAIR-025)

      3. Scored on the bore.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step C.(1)

        1. Repair VRS6263, TASK 72-41-34-300-025 (REPAIR-025)

      4. If the bushes are missing

      1. Repair VRS6263, TASK 72-41-34-300-025 (REPAIR-025)

      5. Loose

      1. Repair VRS6263, TASK 72-41-34-300-025 (REPAIR-025)

    6. SUBTASK 72-41-34-220-362 Examine the Stage 3 L/H and R/H Bridge Piece Assemblies and/or Bridging Pieces Bolt Holes at Locations 6

    1. Refer to Figure, Figure, Figure and Figure.

      2. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step B.(1)

        1. Reject

      3. Burred

      1. Reject

      4. Elongated

      1. Reject

    7. SUBTASK 72-41-34-220-363 Examine the Stage 3 L/H and R/H Bridge Piece Assembly Bores at Location 7

    1. Refer to Figure and Figure.

      2. Scored

      1. Reject

      3. Burred

      1. Reject

      4. Worn diameter.

        1. Less than 0.4390 in. (11.143 mm) in diameter

        1. Accept

        2. More than in step D.(1)

        1. Reject

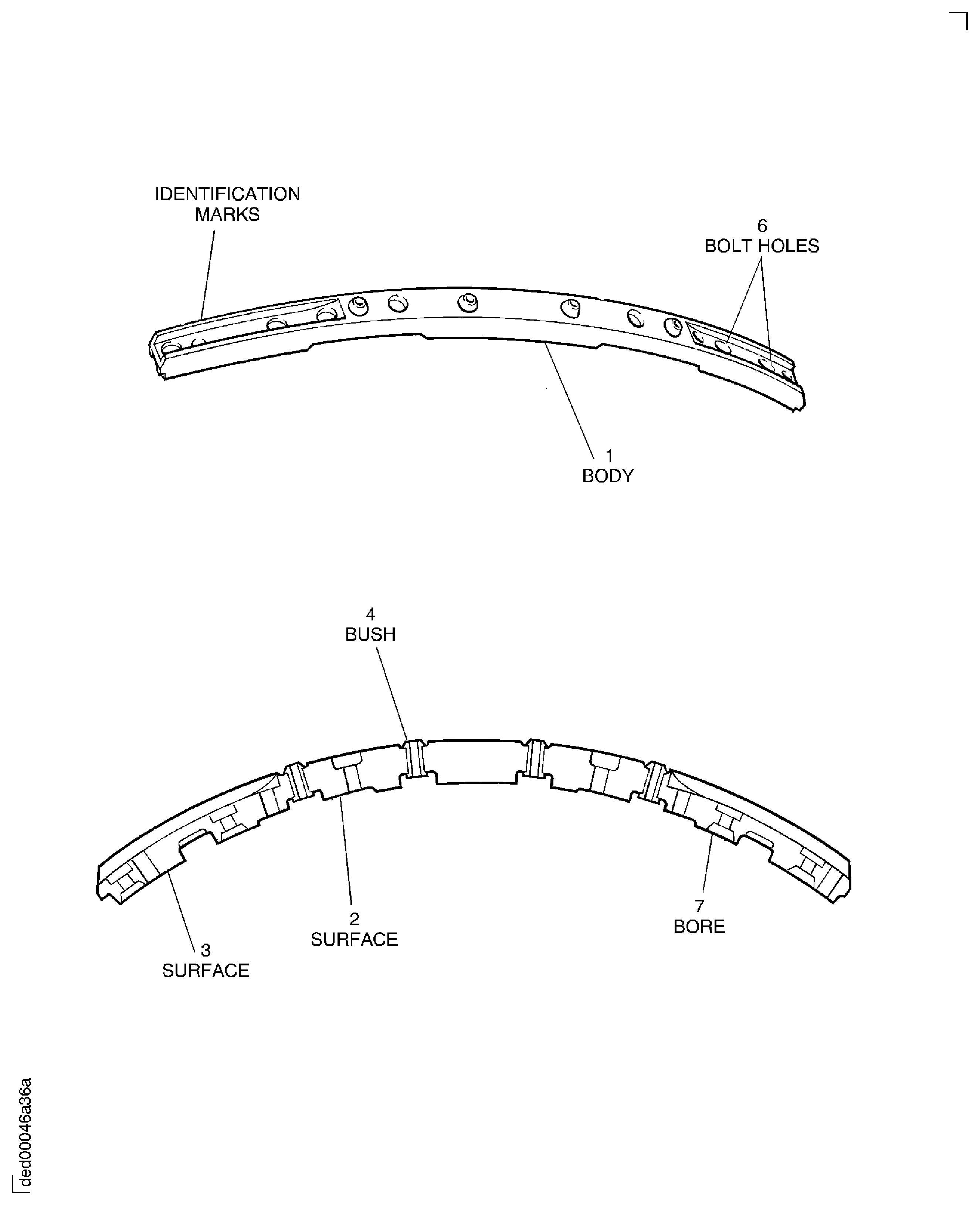

    8. Figure: Stage 3 L/H Bridge Piece Assembly - Inspection Locations

    Sheet 1

    Legend
    Stage 3 L/H Bridge Piece Assembly - Inspection Locations

    Sheet 1

    Close

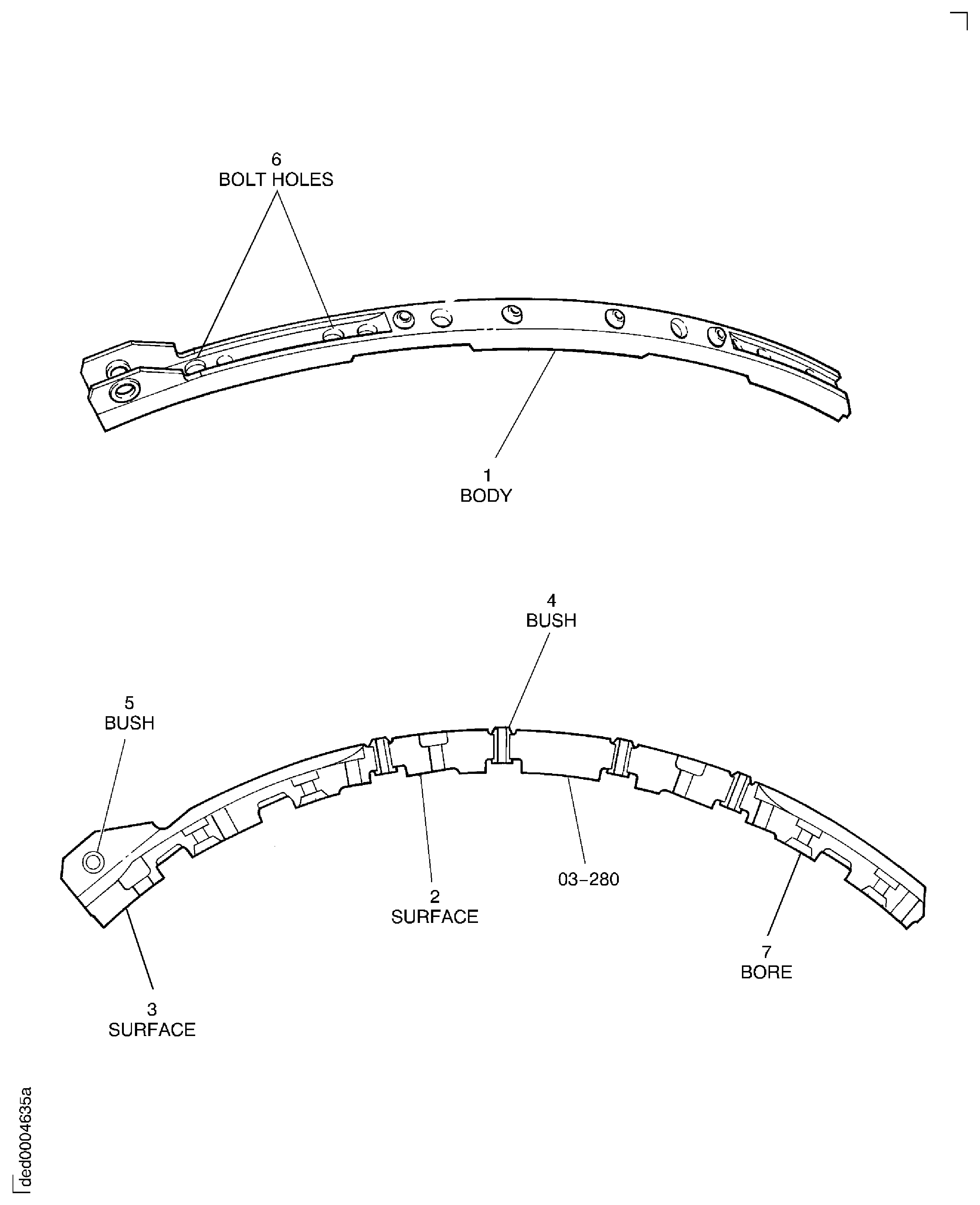

    Figure: Stage 3 R/H Bridge Piece Assembly - Inspection Locations

    Sheet 2

    Legend
    Stage 3 R/H Bridge Piece Assembly - Inspection Locations

    Sheet 2

    Close

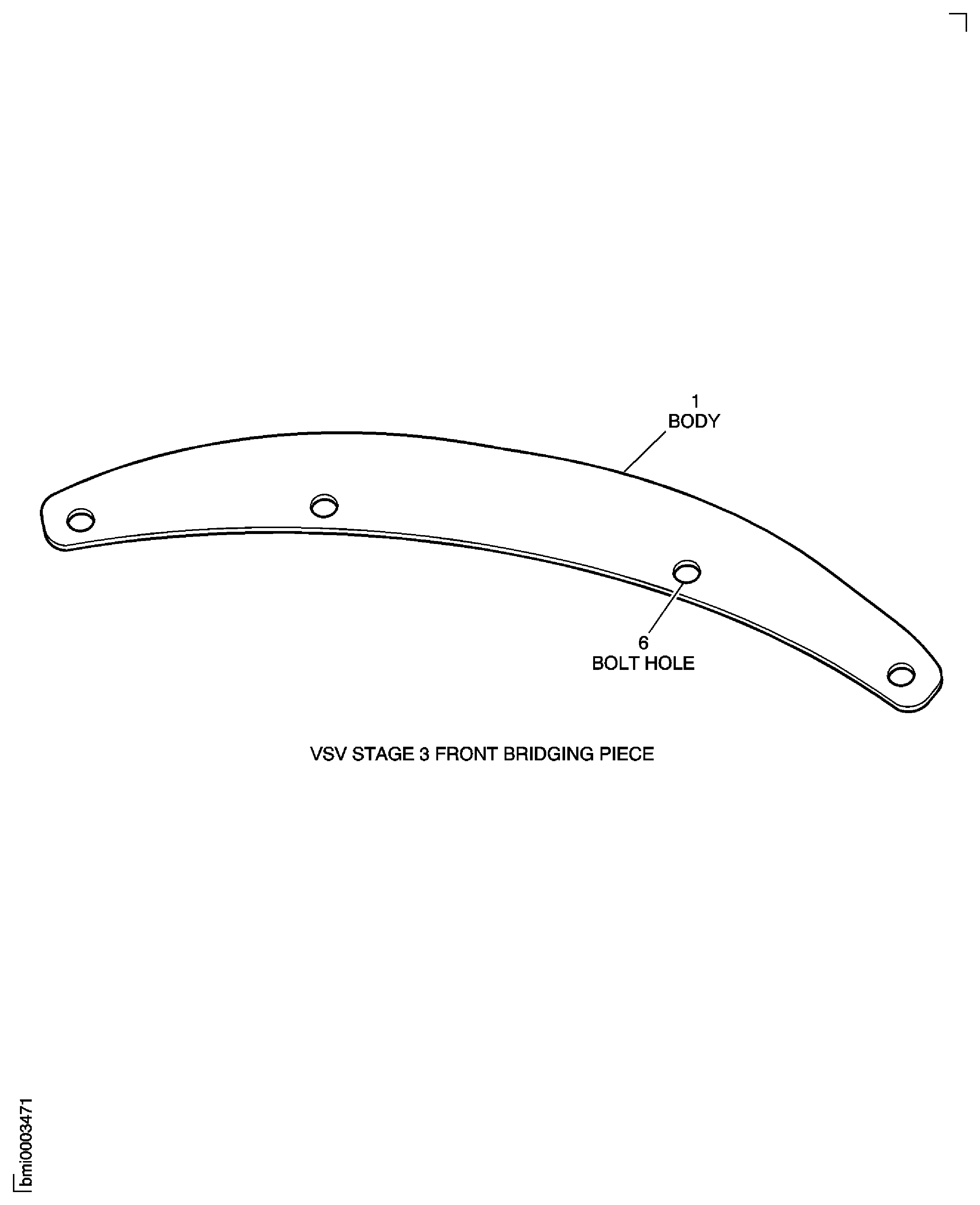

    Figure: Stage 3 Front Bridging Piece Assembly - Inspection Locations

    Sheet 3

    Legend
    Stage 3 Front Bridging Piece Assembly - Inspection Locations

    Sheet 3

    Close

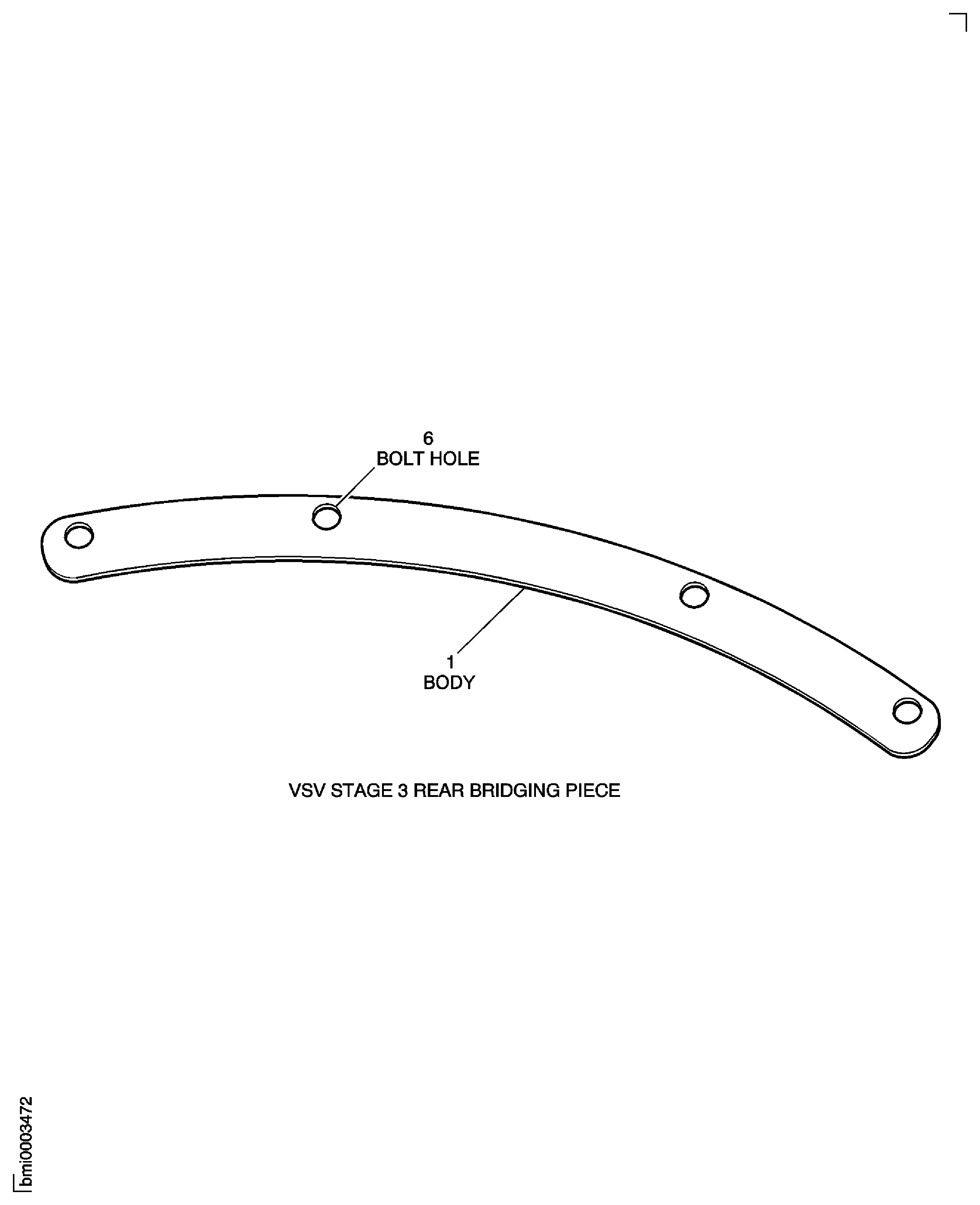

    Figure: Stage 3 Rear Bridging Piece Assembly - Inspection Locations
