TASK 72-41-34-200-014 HPC Stage 5 Unison Ring Connector Bridges - Examine, Inspection-014

DMC:V2500-A0-72-41-3435-01A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-34-200-014 HPC Stage 5 Unison Ring Connector Bridges - Examine, Inspection-014

Effectivity

FIG/ITEM PART NO.

06-200

6A2703

General

This TASK gives the procedure for the inspection of the stage 6 actuating ring connector.

Fig/item numbers in parentheses in the procedure agree with those used in the EIPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additioanl information concerning FAA approved repair date.

The procedure for the parts which must have a crack test is given in Step. Do the crack test before a part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a subsequent date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

References

Refer to the SPM for data on these items.

Definition of Damage, SPM TASK 70-02-02-350-501

Record and Control of the Lives of Parts, TASK 70-05-00-220-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-230-063 Examine the Stage 6 Actuating Ring Connector (06-200) for Cracks

    1. Clean the parts. Refer to TASK 72-41-34-100-000.

      2. Do the test for cracks on the part that is given below.

        PART IDENT

        TASK/OP

        Stage 6 actuating ring connector

        1. Cracked

        1. Reject

    2. SUBTASK 72-41-34-220-118 Examine the Stage 6 Actuating Ring Connector (06-200) Bodies at Location 1

    1. Refer to: Figure

      2. Nicked.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step A.(1)

        1. Repair, VRS6197, TASK 72-41-34-300-010

      3. Scored.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step B.(1)

        1. Repair, VRS6197, TASK 72-41-34-300-010

      4. Scratched.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step C.(1)

        1. Repair, VRS6197, TASK 72-41-34-300-010

    3. SUBTASK 72-41-34-220-119 Examine the Stage 6 Actuating Ring Connector (06-200) Surfaces at Locations 2 and 3

    1. Refer to: Figure

      2. Galled.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step A.(1)

        1. Repair, VRS6197, TASK 72-41-34-300-010

      3. Scratched.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step B.(1)

        1. Repair, VRS6197, TASK 72-41-34-300-010

    4. SUBTASK 72-41-34-220-120 Examine the Stage 6 Actuating Ring Connector (06-200) Bushes at Location 4

    1. Refer to: Figure

      2. Wear on the bore.

        1. If the diameter is between 0.196 to 0.198 in. (4.978 to 5.029 mm)

        1. Accept

        2. More than in step A.(1)

        1. Repair, VRS6207, TASK 72-41-34-300-028

      3. Scored.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step B.(1)

        1. Repair, VRS6207, TASK 72-41-34-300-028

      4. Bushes that are not there

      1. Repair, VRS6207, TASK 72-41-34-300-028

    5. SUBTASK 72-41-34-220-121 Examine the Stage 6 Actuating Ring Connector (06-200) Bolt Holes at Location 5 and 6

    1. Refer to: Figure

      2. Scored.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step A. (1)

        1. Reject

      3. Burred

      1. Reject

      4. Elongated

      1. Reject

    6. SUBTASK 72-41-34-220-555 Examine the Stage 6 Actuating Ring Connector (06-200) Surface Finish

      1. Damaged

      1. Repair, VRS6329, TASK 72-41-34-300-029

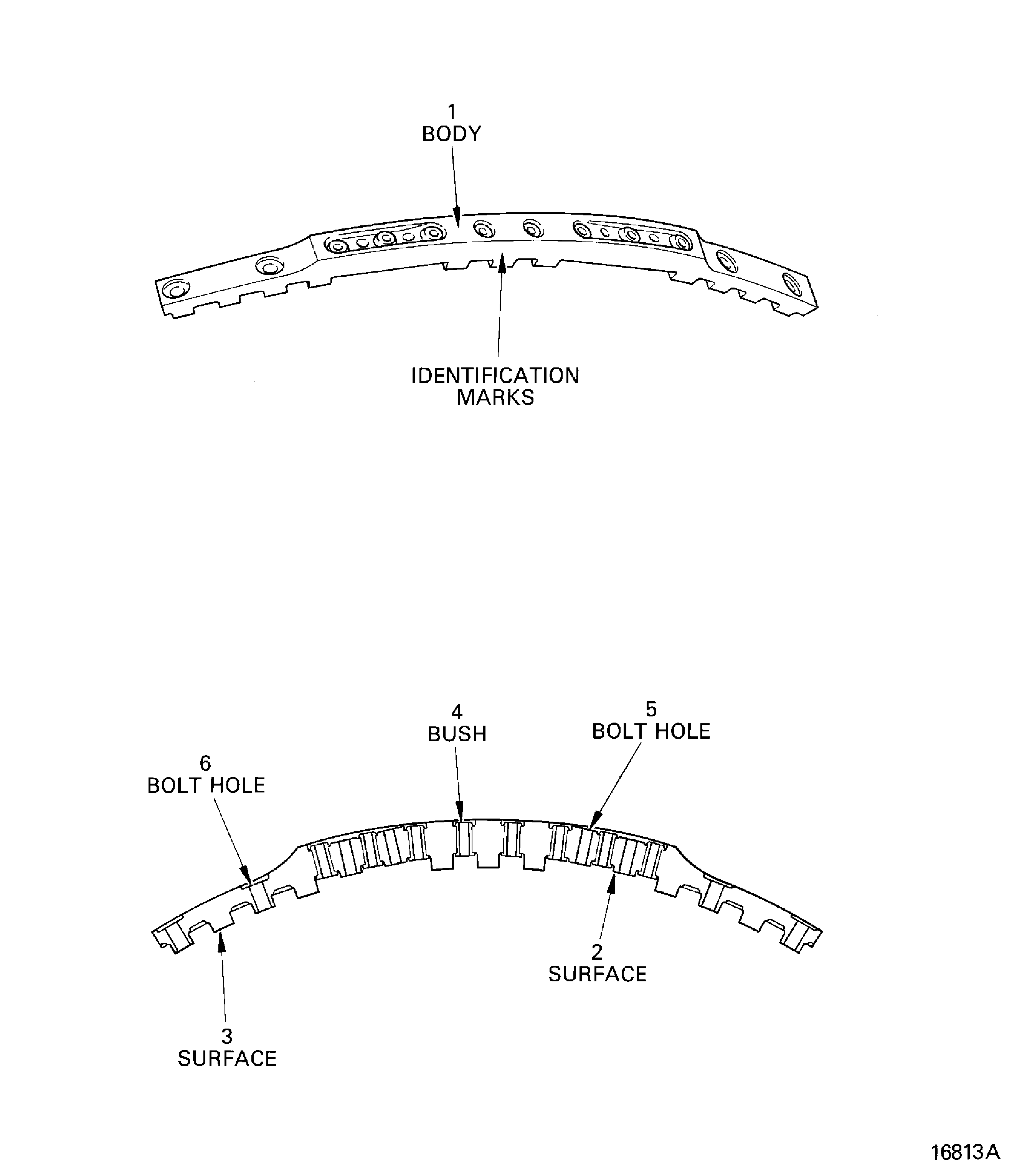

    7. Figure: Stage 6 Actuating Ring Connector - Inspection Locations

    Stage 6 Actuating Ring Connector - Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
