TASK 72-42-31-300-004 No. 4 Bearing Support - Nickel Plate Or Plasma Coat The Bearing Bore Diameter And The Bearing Race Stop, Repair-004 (VRS3075)
General
Price and availability - Refer to IAE
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Workshop inspection equipment | LOCAL | Workshop inspection equipment | ||
| Grinding machine | LOCAL | Grinding machine | ||
| Magnifying glass, 4x | LOCAL | Magnifying glass, 4x | or greater |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-067 STRIPPABLE COATING | 71410 | CoMat 02-067 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Hold to the minimum value.
The part must be in a held condition.
All dimensions apply when Surface N is flat by 0.001 in. (0.025 mm) and Diameter M maintains a clearance envelope of 13.350 in. (339.09 mm) in a free or held condition.
Hold the support only on Surfaces N, L and S and Diameter M.
If the diameter and/or the race stop was plated before, you can strip the diameter and/or the race stop.
Refer to the SPM TASK 70-33-06-300-503.
Machine the diameter and/or the race stop of the support.
If the diameter and/or the race stop was plated before, you can strip the diameter and/or the race stop.
Refer to the SPM TASK 70-33-06-300-503.
Strip the nickel plate on the diameter and/or the race stop of the support.
SUBTASK 72-42-31-320-057 Nickel Plate (Option 1) - Machine the Bearing Bore Diameter and/or the Bearing Race Stop of the No. 4 Bearing Support before Nickel Plate
Refer to the SPM TASK 70-11-03-300-503.
If necessary, clean the part.
SUBTASK 72-42-31-230-055 Examine the No. 4 Bearing Support
Refer to the SPM TASK 70-38-24-300-503.
Mask the areas of the support that are not to be plated.
Refer to Figure and the SPM TASK 70-33-06-300-503.
Apply nickel plate to a sufficient thickness to permit finish machining.
Plating outside the repair area is permitted but must be removed.
Nickel plate the diameter and/or the race stop of the support.
SUBTASK 72-42-31-330-054 Nickel Plate the Bearing Bore Diameter and/or the Bearing Race Stop of the No. 4 Bearing Support
Refer to Figure.
The minimum plating thickness is 0.002in. (0.051 mm) after machining.
The part must be in a held condition.
All dimensions apply when Surface N is flat by 0.001in. (0.025 mm) and Diameter M maintains a clearance envelope of 13.350in. (339.09 mm) in a free or held condition.
Hold the support only on Surfaces N, L and S and Diameter M.
Machine the diameter and/or the race stop of the support after nickel plate.
SUBTASK 72-42-31-320-058 Machine the Bearing Bore Diameter and/or the Bearing Race Stop of the No. 4 Bearing Support after Nickel Plate
Refer to Figure.
Hold to the minimum value.
The part must be in a held condition.
All dimensions apply when Surface N is flat by 0.001 in. (0.025 mm) and Diameter M maintains a clearance envelope of 13.350 in. (339.09 mm) in a free or held condition.
Hold the support only on Surfaces N, L and S and Diameter M.
Machine the diameter and/or the race stop of the support.
If the diameter and/or the race stop was plasma coated before, you can strip the diameter and/or the race stop.
Refer to the SPM TASK 70-33-79-300-503 or SPM TASK 70-33-90-300-503.
Alternatively, strip the plasma coat on the diameter and/or the race stop of the support.
SUBTASK 72-42-31-320-075 Plasma Coat (Option 2) - Machine the Bearing Bore Diameter and/or the Bearing Race Stop of the No. 4 Bearing Support before Plasma Coat
Refer to the SPM TASK 70-11-03-300-503.
If necessary, clean the part.
SUBTASK 72-42-31-220-075 Examine the No. 4 Bearing Support
Refer to the SPM TASK 70-34-03-340-501.
Prepare the part for plasma coat. Mask all areas not to be coated.
Refer to Figure and the SPM TASK 70-34-03-340-501.
Apply plasma coat to a sufficient thickness to permit finish machining.
Refer to the SPM TASK 70-34-03-340-501, SUBTASK 70-34-03-340-001 for applicable plasma spray powder.
Plasma outside the repair area is permitted but must be removed.
Plasma spray the diameter and/or the race stop of the support.
SUBTASK 72-42-31-330-063 Plasma Coat the Bearing Bore Diameter and/or the Bearing Race Stop of the No. 4 Bearing Support
Refer to Figure.
The minimum plasma thickness is 0.003 in. (0.076 mm) after machining.
The part must be in a held condition.
All dimensions apply when Surface N is flat by 0.001 in. (0.025 mm) and Diameter M maintains a clearance envelope of 13.350 in (339.09 mm) in a free or held condition.
Hold the support only on Surfaces N, L and S and Diameter M.
Machine the diameter and/or the race stop of the support after plasma spray.
SUBTASK 72-42-31-320-076 Machine the Bearing Bore Diameter and/or the Bearing Race Stop of the No. 4 Bearing Support after Plasma Spray
Refer to the SPM TASK 70-11-03-300-503.
If necessary, clean the part.
Refer to Figure and TASK 72-42-31-200-000 (72-42-31), INSPECTION-000).
Use a Magnifying glass, 4x to do a visual inspection of the plated area to examine for cracks and adhesion.
Examine the support after nickel plate or plasma coat and finish machining.
SUBTASK 72-42-31-220-066 Examine the Repaired Nickel Plate and/or Plasma Coat
Make a permanent mark by the procedure given in the SPM TASK 70-09-00-400-501.
Use the vibration peen method.
Remove high metal caused by marking the number.
Mark VRS3075 on the repaired No. 4 bearing support adjacent to the part number.
SUBTASK 72-42-31-350-061 Identify the Repaired Nickel Plate and/or Plasma Coat

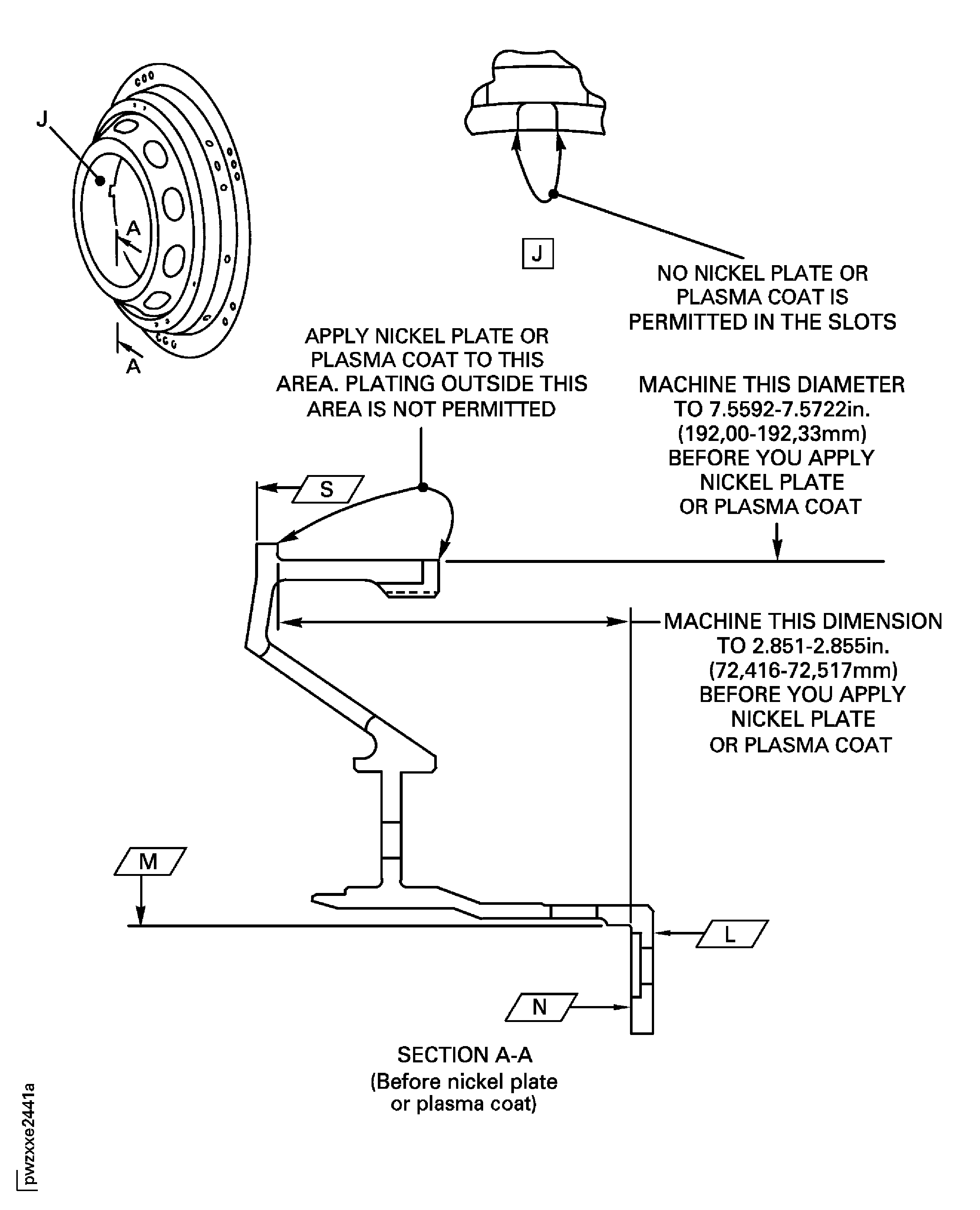

Figure: Nickel plate or plasma coat the bearing bore diameter and/or the bearing race stop of the No. 4 bearing support
Sheet 1

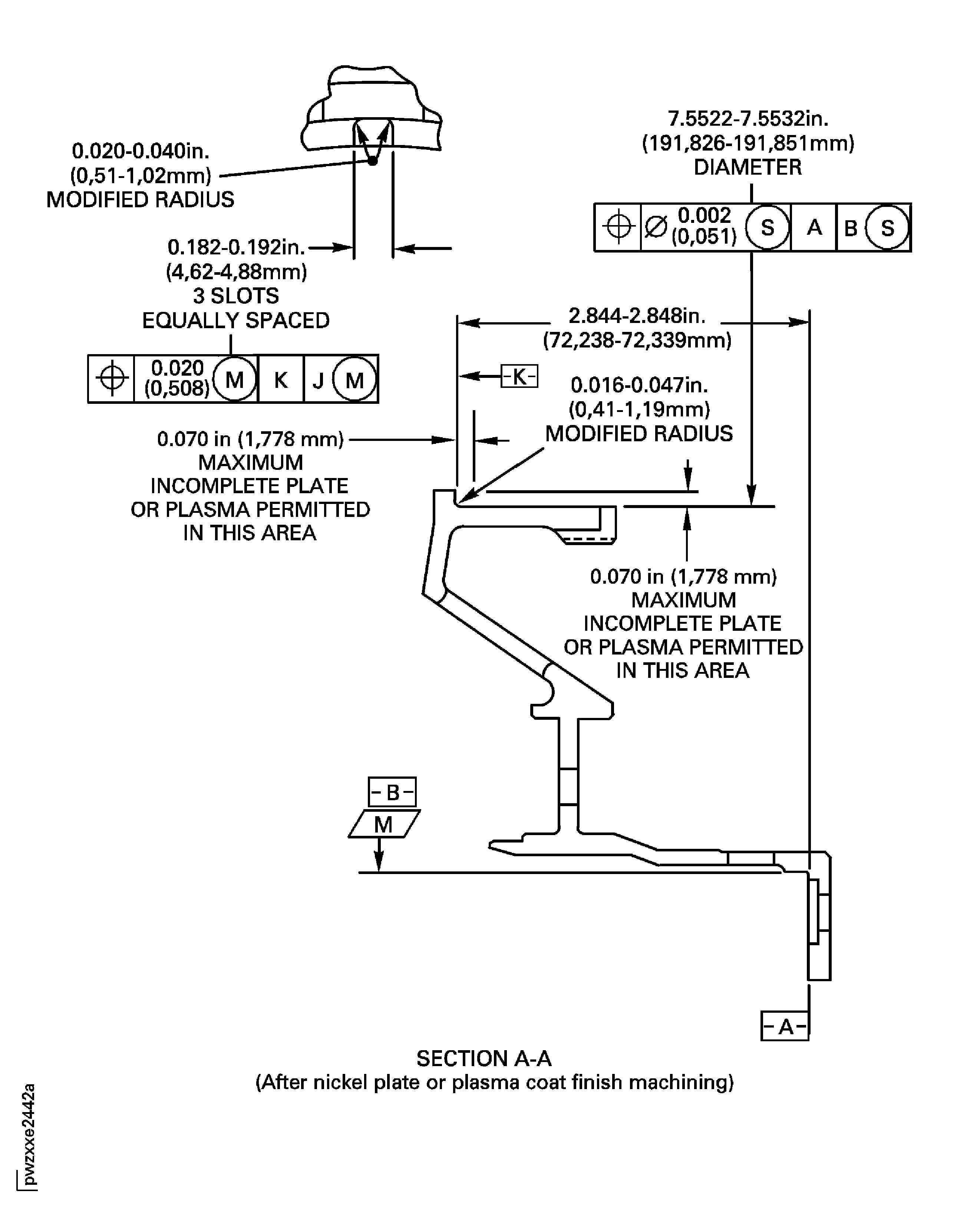

Figure: Nickel plate or plasma coat the bearing bore diameter and/or the bearing race stop of the No. 4 bearing support
Sheet 2
