TASK 72-45-26-200-001 HPT Stage 2 Duct Support - Examine, Inspection-001

DMC:V2500-A0-72-45-2601-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-26-200-001 HPT Stage 2 Duct Support - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-020

2A0189

01-020

2A1653

01-020

2A2270

01-020

2A3407

01-020

2A3408

General

This TASK gives the procedure for the inspection of the Stage 2 HPT duct support assembly.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK 72-45-26-230-052. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-26-230-052-001 Examine the Stage 2 HPT Duct Support Assembly (01-020) Detail Assemblies for Cracks

    1. Refer to: Figure

    2. Clean the part. Refer to TASK 72-45-26-100-000 (CLEANING-000).

      3. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure. Look carefully at the inner diameter edge at location 7.

        PART IDENT

        TASK/SUBTASK

        Stage 2 HPT duct support assembly

        (Dip, Spray or Electrostatic Spray)

        1. Cracked

        1. Reject

    2. SUBTASK 72-45-26-230-052-002 Examine the Stage 2 HPT Duct Support Assembly (01-020) Detail Assemblies for Cracks

    1. Refer to: Figure

    2. Clean the part. Refer to TASK 72-45-26-100-000 (CLEANING-000).

      3. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure. Look carefully at the inner diameter edge at location 7.

        PART IDENT

        TASK/SUBTASK

        Stage 2 HPT duct support assembly

        (Dip, Spray or Eletrostatic Spray)

        1. Cracked

        1. Reject

    3. SUBTASK 72-45-26-220-052 Examine the Stage 2 HPT Duct Support Assembly (01-020) Detail Assemblies for Wear on the Hooks, Grooves, Slots and Contact Surfaces

    1. Refer to: Figure

      2. Examine the duct support detail assemblies for wear on the hooks, grooves, slots and contact surfaces at locations 2, 3, 4, 5, 6, 8, 9, 11, 12, 13 and 14.

        1. Wear.

          1. Up to and between 0.002 and 0.003 in. (0.051 and 0.076 mm) in depth when you cannot feel any high metal

          1. Accept

          2. Other than (a)

          1. Reject

    4. SUBTASK 72-45-26-220-053 Examine the Stage 2 HPT Duct Support Assembly (01-020) Detail Assemblies Hook Contact Surface for Wear on the Coating

    1. Refer to: Figure

      2. Examine the duct support detail assemblies hook contact surface for wear on the coating at location 1 (two hooks).

        1. Wear.

          1. Any amount when the base metal is not shown

          1. Accept

          2. Other than (a)

          1. Repair, VRS3247 TASK 72-45-26-300-001 (REPAIR-001)

    5. SUBTASK 72-45-26-220-054 Examine the Stage 2 HPT Duct Support Assembly (01-020) Detail Assemblies Pin for Wear, Bend and Looseness

    1. Refer to: Figure

      2. Examine the duct support detail assemblies pin for wear at location 10.

        1. Wear.

          1. Up to 10 percent wear on the first 25 percent length of the pin

          1. Accept

          2. Other than (a)

          1. Repair, VRS3252 TASK 72-45-26-300-002 (REPAIR-002)

      3. Examine the duct support detail assemblies pin for loose or bent pin at location 10.

        1. Loose or bent

        1. Repair, VRS3252 TASK 72-45-26-300-002 (REPAIR-002)

    6. SUBTASK 72-45-26-220-059 Examine the Stage 2 HPT Duct Support Assembly (01-020) Detail Assemblies for Surface Damage

    1. Refer to: Figure

      2. Examine the duct support detail assemblies for surface wear at location 15.

        1. Surface damage up to 0.010 in. (0.254 mm) in depth.

        1. Accept

        2. Surface damage greater than 0.010 in. (0.254 mm) in depth.

        1. Reject

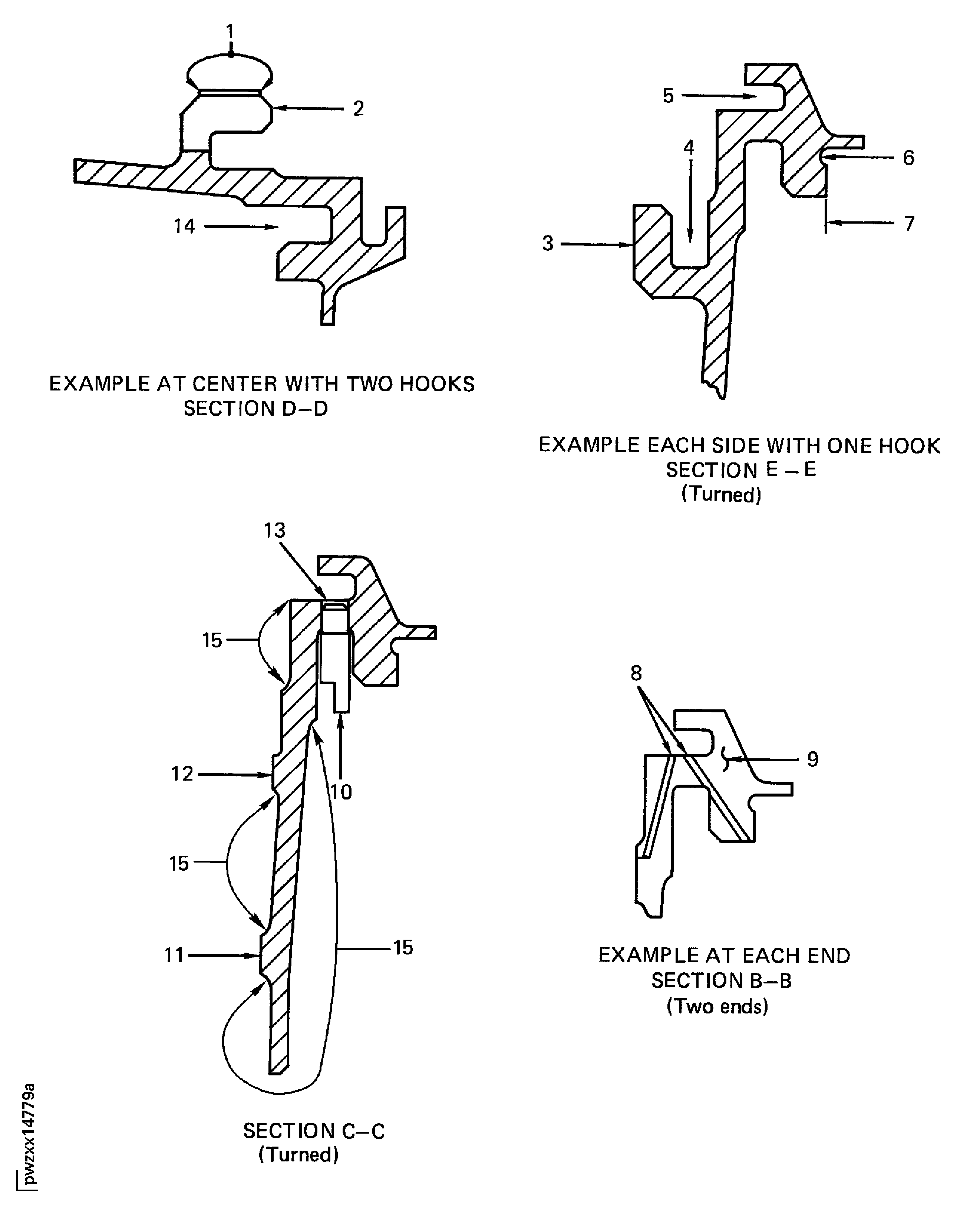

    7. Figure: Stage 2 HPT duct support assembly (PN 2A0189, PN 2A1653 and PN 2A2270) (detail assembly) inspection locations

    Sheet 1

    Legend
    Stage 2 HPT duct support assembly (PN 2A0189, PN 2A1653 and PN 2A2270) (detail assembly) inspection locations

    Sheet 1

    Close

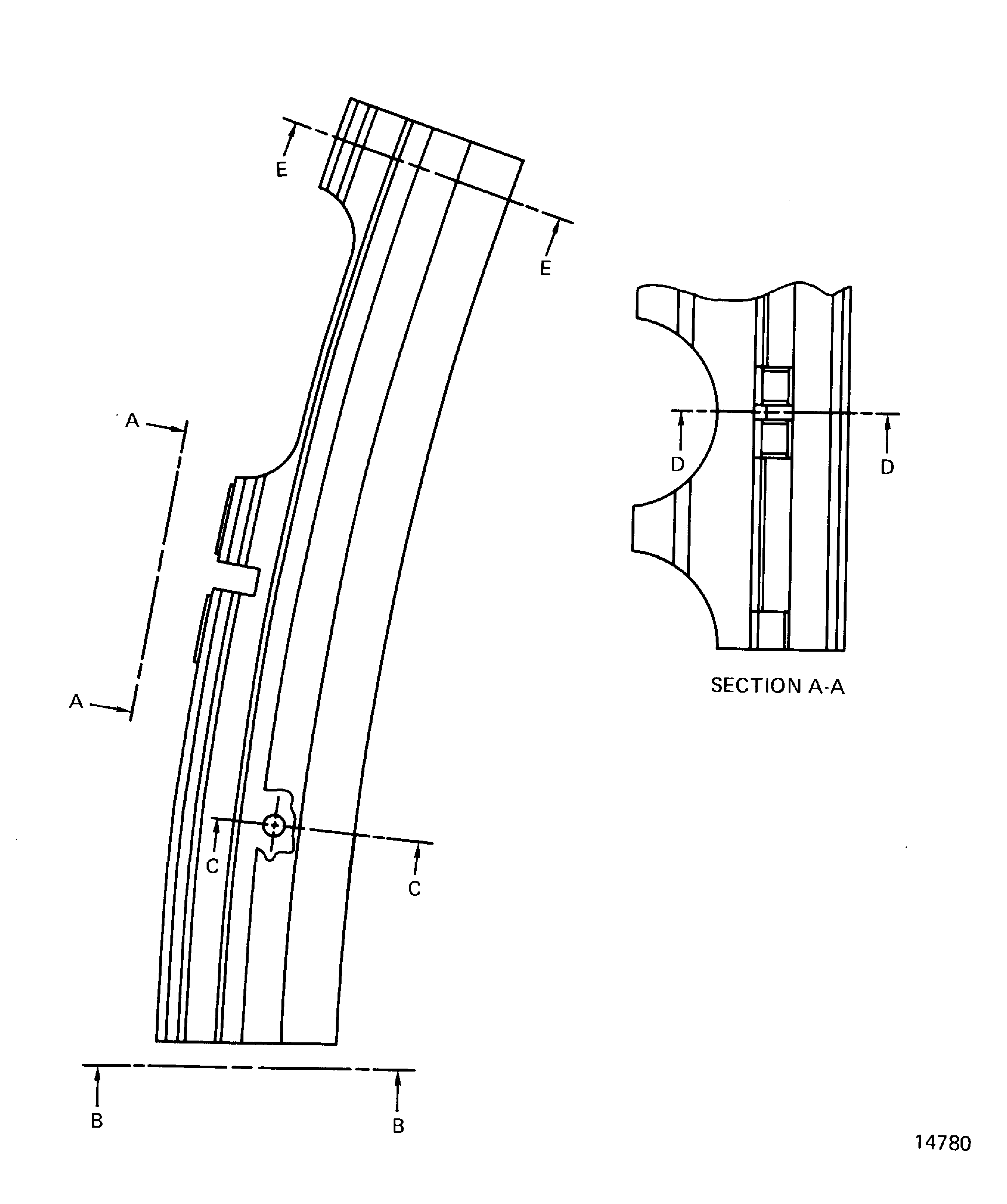

    Figure: Stage 2 HPT duct support assembly (PN 2A0189, PN 2A1653 and PN 2A2270) (detail assembly) inspection locations

    Sheet 2

    Legend
    Stage 2 HPT duct support assembly (PN 2A0189, PN 2A1653 and PN 2A2270) (detail assembly) inspection locations

    Sheet 2

    Close

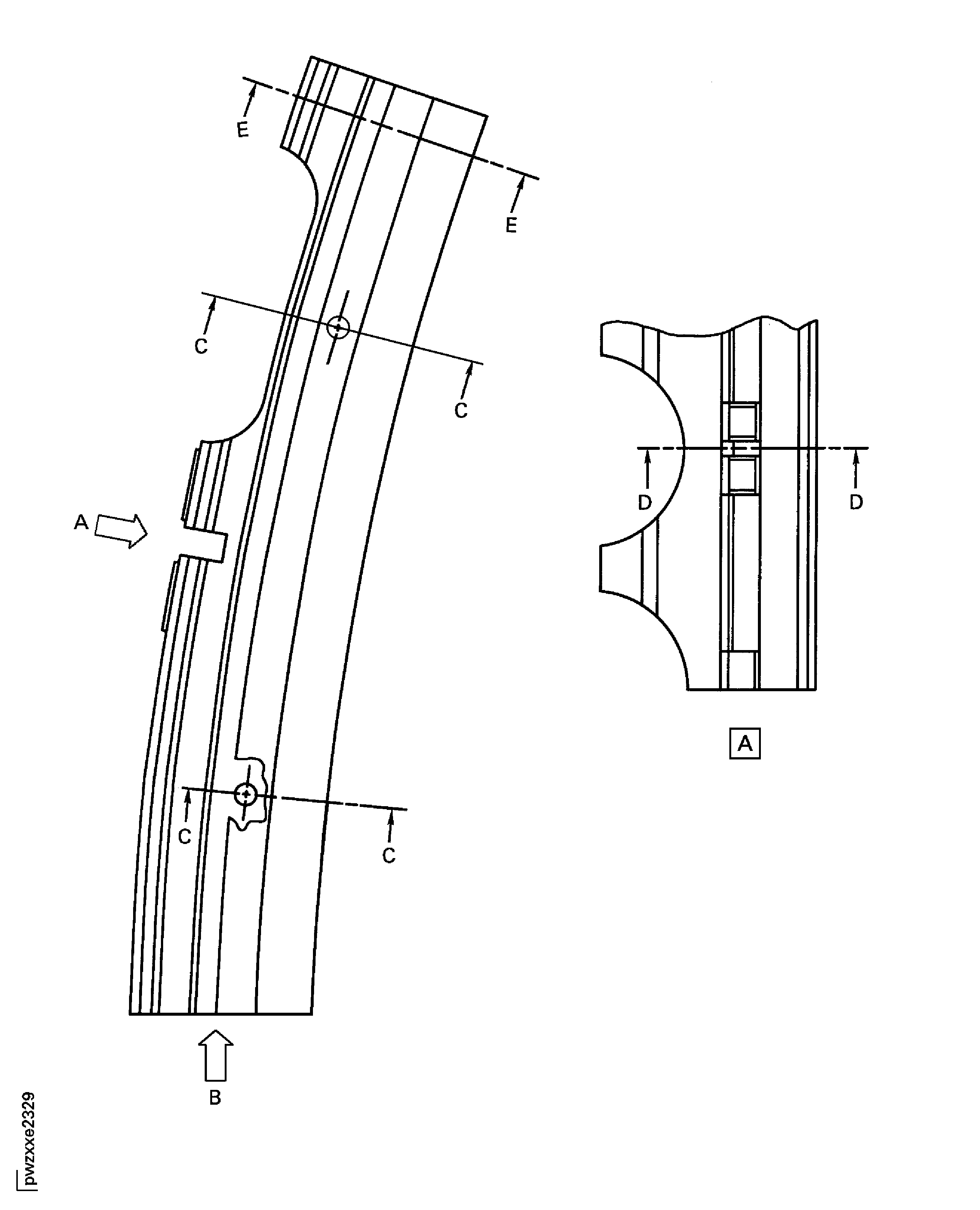

    Figure: Stage 2 HPT duct support assembly (detail assembly)

    Sheet 3

    Legend
    Stage 2 HPT duct support assembly (detail assembly)

    Sheet 3

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
