TASK 72-50-41-300-003 LPT Shaft - Blend Repair, Repair-003 (VRS1491)

DMC:V2500-A0-72-50-4101-02A-649A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-41-300-003 LPT Shaft - Blend Repair, Repair-003 (VRS1491)

Effectivity

FIG/ITEM

PART NO.

01-200

5A0864

01-200

5A0149

01-200

5A6147

01-200

5A0892

01-200

5A1732

01-200

5A1762

Material of component

PART IDENT

IAE

SYMBOL

MATERIAL

LP turbine shaft

3Cr-1Mo-0.2V steel

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Magnetic particle inspection equipmentLOCALMagnetic particle inspection equipment
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Vibro-engraving equipmentLOCALVibro-engraving equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)LOCALCoMat 06-022

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-41-350-054 Remove the Damage from the LP Turbine Shaft

      1. Make smooth and/or hand polish to remove burrs, nicks and/or scratches.

      1. Use abrasive stones or papers and/or fine file.

        The surface finish of the repair must be same as the adjacent area.

        Refer to Figure, Figure, Figure, Figure and Figure.

        Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-50-41-220-070 Examine the LP Turbine Shaft

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for nicks, scratches and/or burrs using 10X magnifying glass.

        Refer to TASK 72-50-41-200-000 (INSPECTION/CHECK-000).

    3. SUBTASK 72-50-41-240-054 Examine the LP Turbine Shaft for Cracks

      NOTE

      This is an alternative to Step.

      1. Magnetic particle examine the repaired area.

      1. Refer to the SPM TASK 70-24-01-240-501.

        Make sure there are no cracks in the repaired area.

    4. SUBTASK 72-50-41-230-059 Examine the Turbine Shaft for Cracks

      NOTE

      This is an alternative to Step.

      1. Fluorescent penetrant examine the repaired area.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Make sure there are no cracks in repaired area.

    5. SUBTASK 72-50-41-350-055 Make Marks on the LP Turbine Shaft

    1. Write VRS1491 adjacent to the part number using the vibro-engraver.

    6. SUBTASK 72-50-41-380-051 Apply the Corrosion Resistance Coating to the LP Turbine Shaft

    1. Refer to Figure.

      NOTE

      Refer to TASK 72-50-41-200-003-A00 and TASK 72-50-41-200-003-B00 for selection of the applicable repair TASK.

      2. Apply the corrosion resistance coating to the damaged area in location 6 only.

      1. Refer to Repair VRS1494 TASK 72-50-41-300-012 (REPAIR-012) or Repair VRS1495 TASK 72-50-41-300-011 (REPAIR-011).

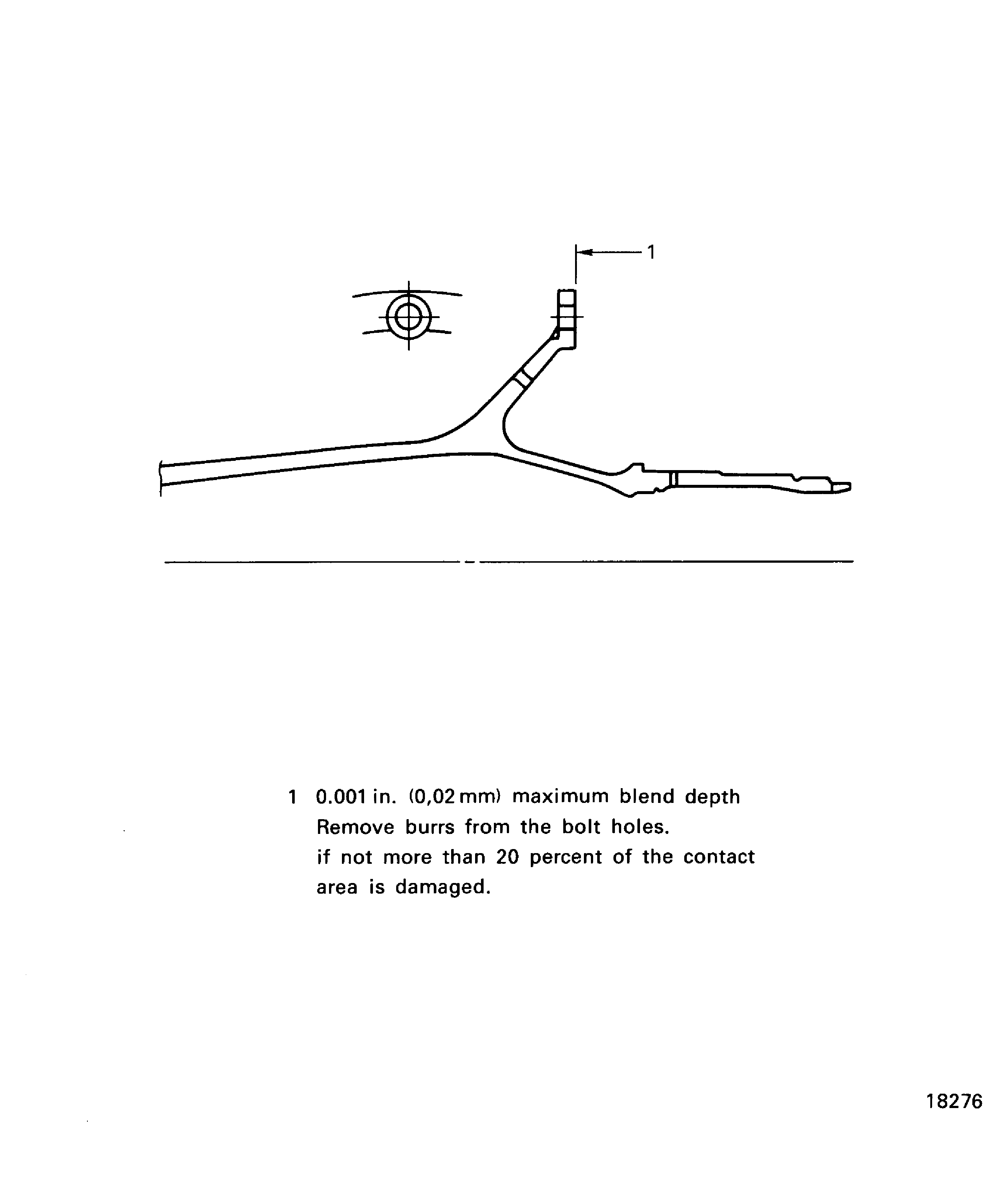

    7. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

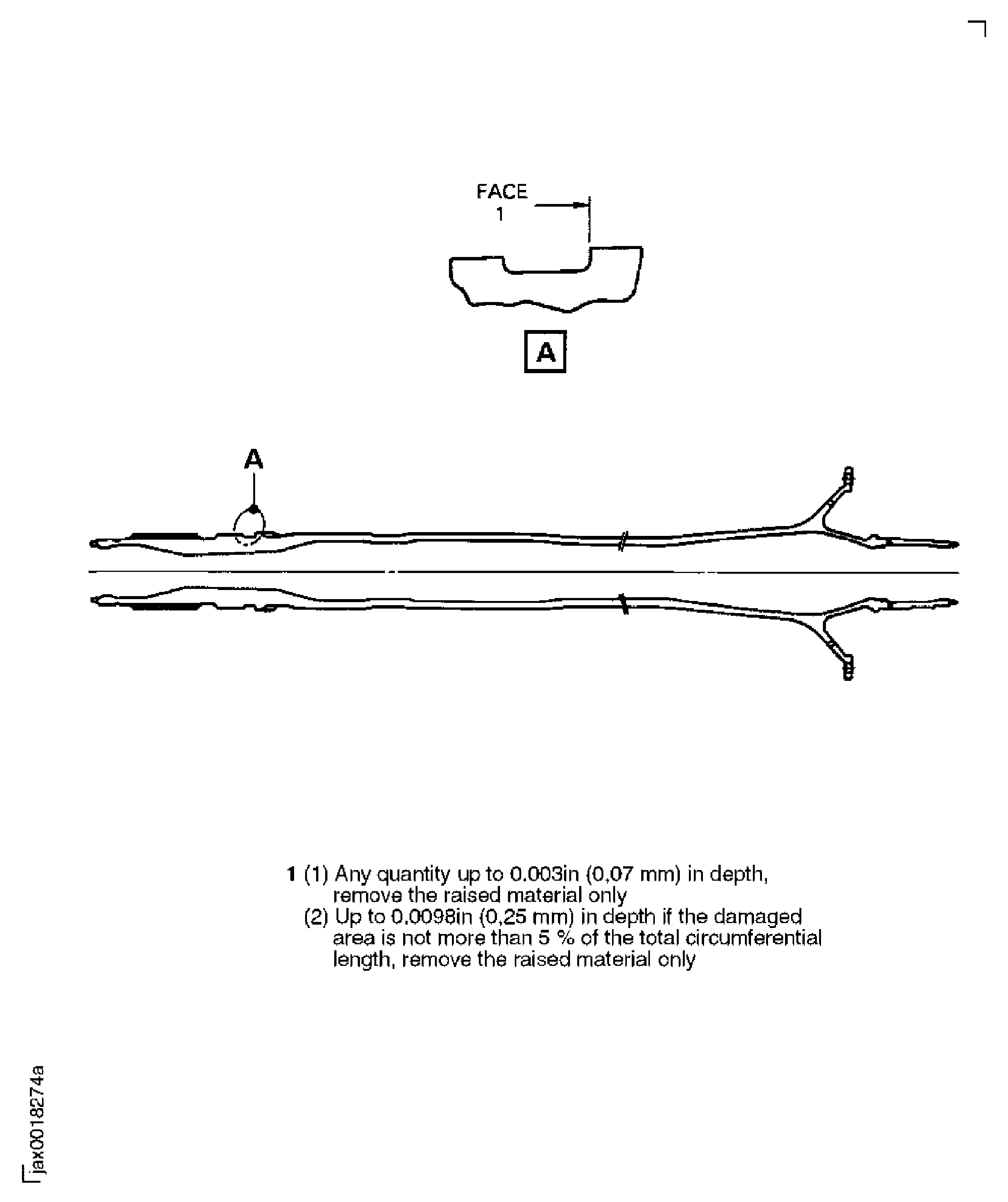

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

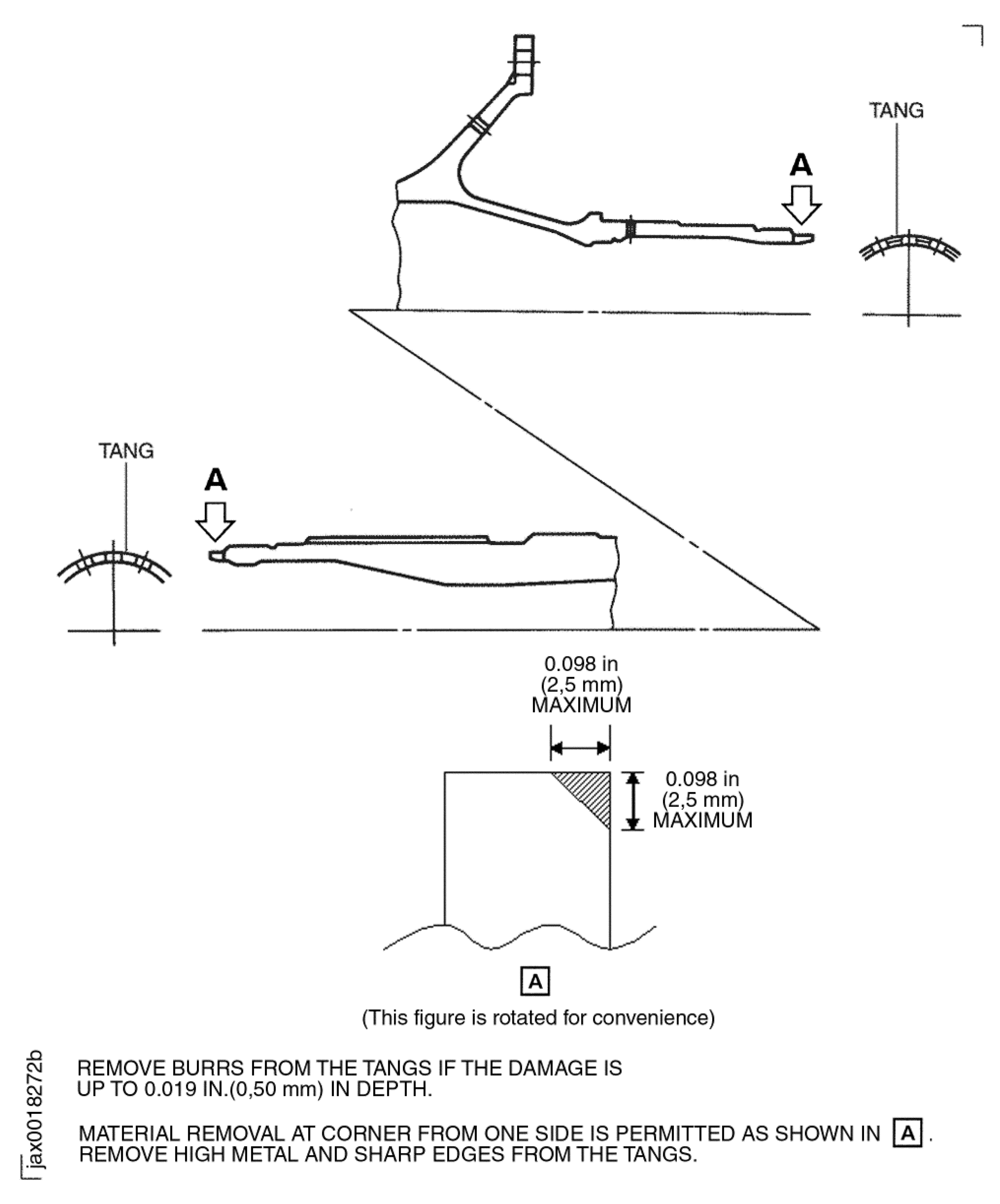

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

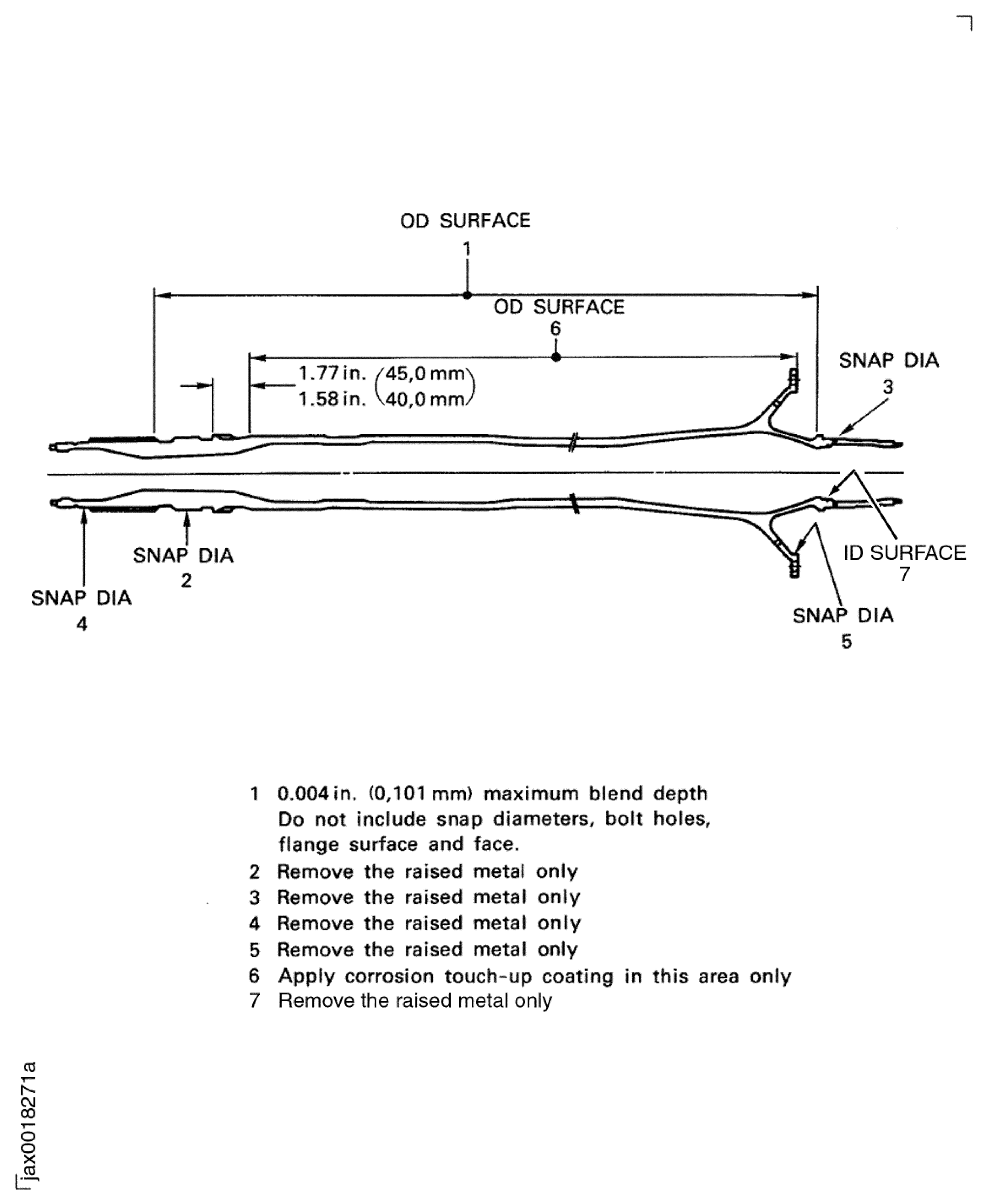

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

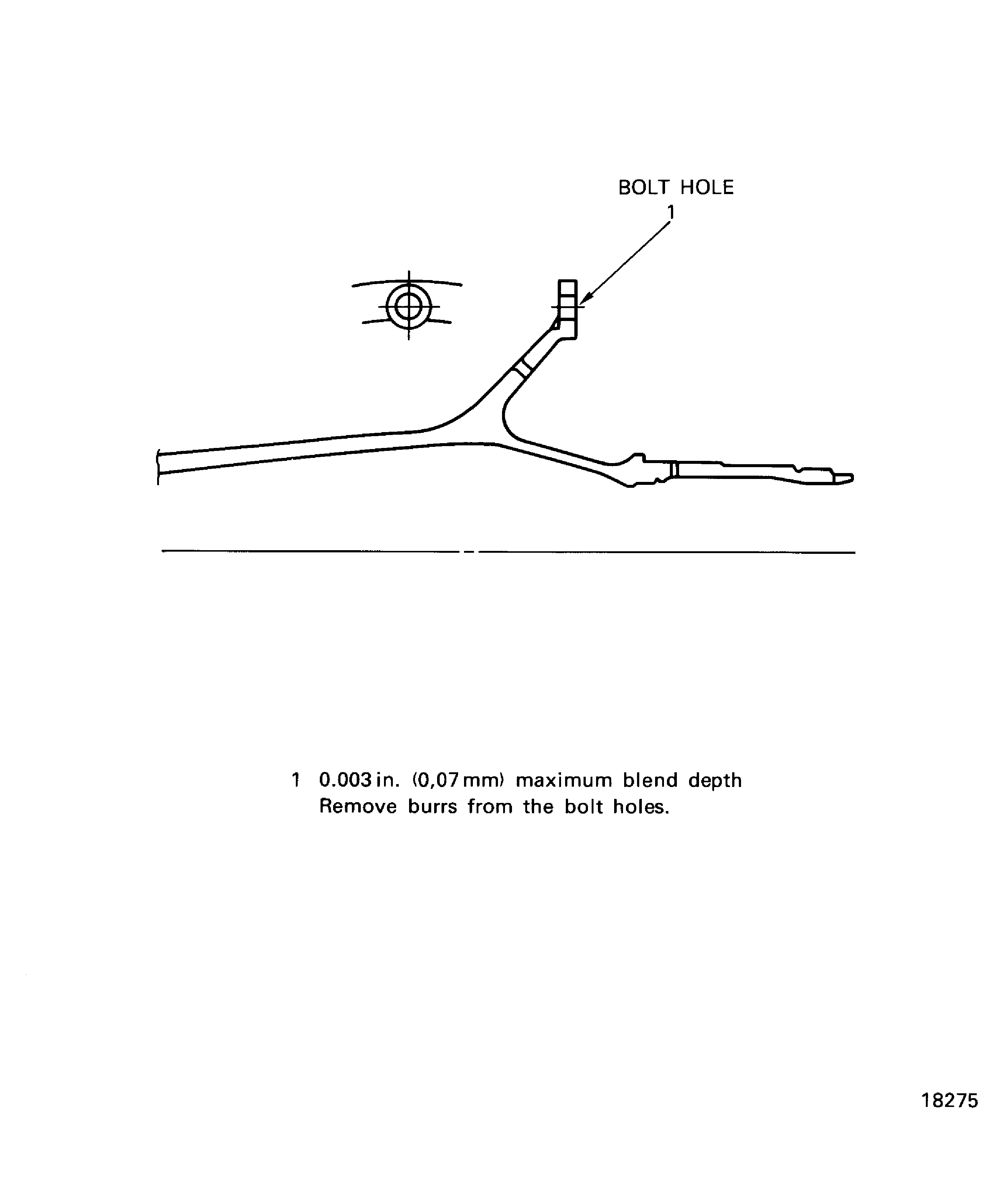

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
