TASK 72-50-53-200-002 No. 5 Bearing Carbon Seal Housing - Examine, Inspection-002

DMC:V2500-A0-72-50-5302-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-53-200-002 No. 5 Bearing Carbon Seal Housing - Examine, Inspection-002

Effectivity

FIG/ITEM PART NO.

02-180

4P8036

General

This TASK gives the procedure for the inspection of the carbon seal housing. For the other parts of the turbine exhaust case assembly refer to TASK 72-50-53-200-000 (INSPECTION/CHECK-000).

Fig/Item numbers in parenthesis in the procedure agree agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-50-53-100-000 (CLEANING-000 Page-601).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK 72-50-53-230-051. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in the repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501

Inspection of Parts, SPM TASK 70-20-00-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Do a Crack Test on the Carbon Seal Housing (02-180) (Fluorescent Penetrant)

Clean the parts. Refer to TASK 72-50-53-100-000 (CLEANING-000)

Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

PART IDENT TASK/SUBTASK

Carbon seal housing

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 06-017 DELETED0AM53CoMat 06-017
CoMat 06-051 DELETED0AM53CoMat 06-051
CoMat 06-061 DELETED0AM53CoMat 06-061
CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)LOCALCoMat 06-063

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-220-053 Examine the Carbon Seal Housing (02-180) Outer Diameter at Location 1

    1. Refer to: Figure

      2. Worn.

        1. Between 5.7907 and 5.7900in. (147.083 and 147.065 mm) in diameter

        1. Accept

        2. Less than 5.7900in. (147.065 mm)

        1. Repair, VRS5329 TASK 72-50-53-300-002 (REPAIR-002)

      3. Perpendicularity.

        1. In 0.0010in. (0.025 mm) FIR in relation to surface B

        1. Accept

        2. More than (1)

        1. Repair, VRS5329 TASK 72-50-53-300-002 (REPAIR-002)

    2. SUBTASK 72-50-53-220-054 Examine the Carbon Seal Housing (02-180) Oil Seal Housing at Location 2

    1. Refer to: Figure

      2. Worn.

        1. Between 5.1969 and 5.1984in. (132.000 and 132.040 mm) in diameter

        1. Accept

        2. More than 5.1984in. (132.040 mm)

        1. Repair, VRS5330 TASK 72-50-53-300-003 (REPAIR-003)

      3. Concentricity.

        1. In 0.0020in. (0.050 mm) FIR in relation to surfaces A and B

        1. Accept

        2. More than (1)

        1. Repair, VRS5330 TASK 72-50-53-300-003 (REPAIR-003)

      4. Nicked, scratched or dented at area C.

        1. Up to 0.005in. (0.127 mm) in depth

        1. Accept

        2. More than (1)

        1. Reject

    3. SUBTASK 72-50-53-220-055 Examine the Carbon Seal Housing (02-180) Air Seal Housing at Location 3

    1. Refer to: Figure

      2. Worn at location 3.

        1. Between 5.5512 and 5.5551in. (141.000 and 141.100 mm) in diameter

        1. Accept

        2. More than 5.5551in. (141.100 mm)

        1. Repair, VRS5331 TASK 72-50-53-300-004 (REPAIR-004)

      3. Concentricity.

        1. In 0.002in. (0.051 mm) FIR in relation to surfaces A and B

        1. Accept

        2. More than (1)

        1. Repair, VRS5331 TASK 72-50-53-300-004 (REPAIR-004)

      4. Grooved circumferentially at area A.

        1. Up to 0.003in. (0.076 mm) in depth

        1. Accept

        2. More than (1)

        1. Repair, VRS5331 TASK 72-50-53-300-004 (REPAIR-004)

      5. Raised material at area A

      1. Repair, VRS5331 TASK 72-50-53-300-004 (REPAIR-004)

      6. Nicked, scratched or dented at area B.

        1. Up to 0.005in. (0.127 mm) in depth

        1. Accept

        2. More than (1)

        1. Reject

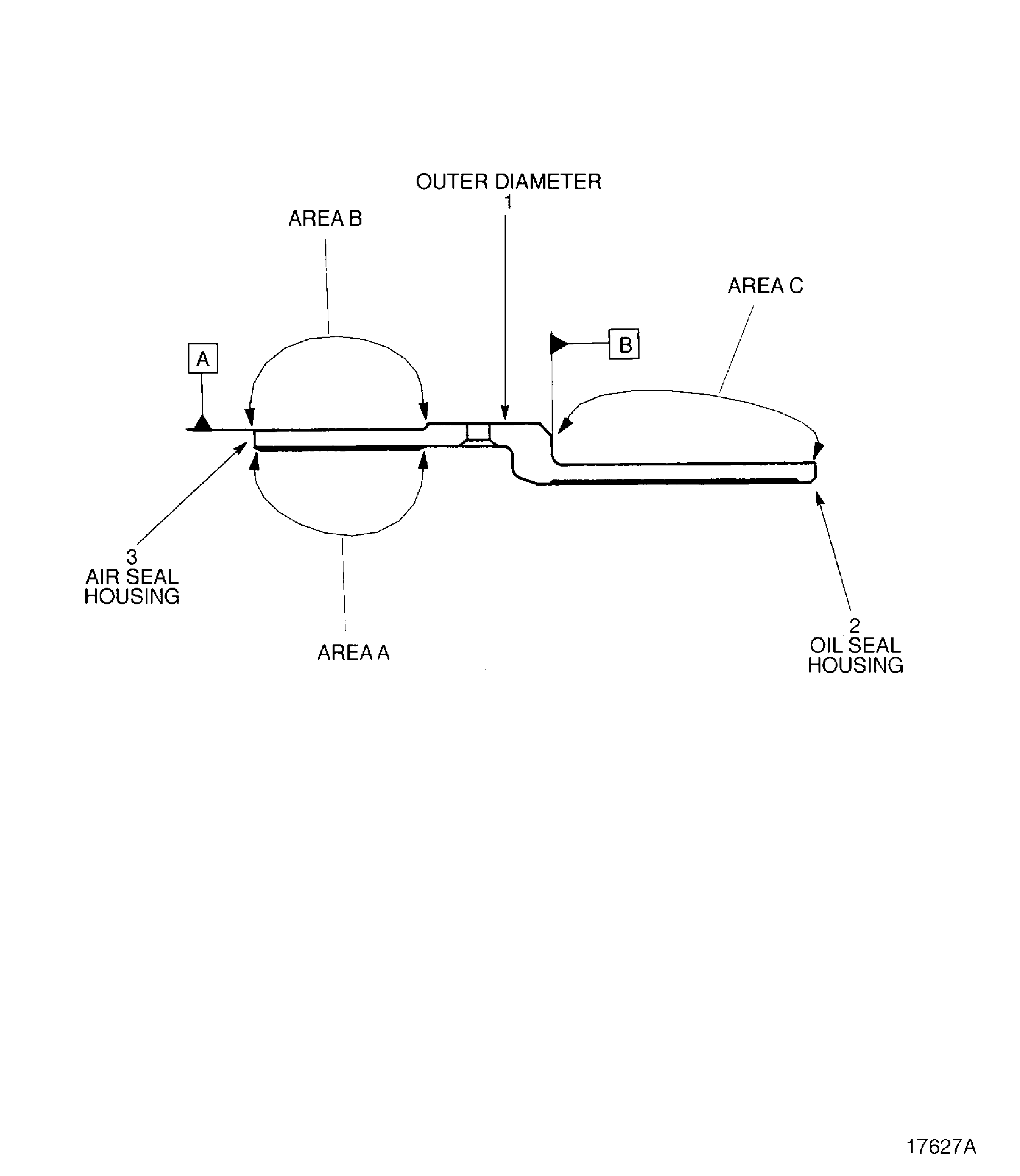

    4. Figure: Locations - carbon seal housing

    Locations - carbon seal housing
