TASK 72-50-53-200-105 No. 5 Bearing Pressure Oil Tube - Examine, Inspection-005

DMC:V2500-A0-72-50-5332-01A-310A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-53-200-105 No. 5 Bearing Pressure Oil Tube - Examine, Inspection-005

Effectivity

FIG/ITEM

PART NO.

20-010

2A2231-01

General

This TASK gives the procedure for the inspection of the No. 5 bearing pressure tube. For other parts of the exhaust case and fittings, refer to Inspection -000 TASK 72-50-53-200-100.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to SPM TASK 70-10-00-100-501.

The procedure for those parts which must have a crack test is given in SPM TASK 70-23-00-230-501. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications.

Chemical Processes.

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Flexible video borescopeLOCALFlexible video borescope

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-230-067-001 Examine the No. 5 Bearing Pressure Tube (20-010) for Cracks

    1. Clean the part. Refer to Cleaning - 000 TASK 72-50-53-100-100.

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant inspection procedure.

        1. No. 5 bearing pressure tube, Refer to SPM TASK 70-23-01-230-501.

          1. Cracked

          1. Reject

    2. SUBTASK 72-50-53-230-067-002 Examine the No. 5 Bearing Pressure Tube (20-010) for Cracks

    1. Clean the part. Refer to Cleaning - 000 TASK 72-50-53-100-100.

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant inspection procedure.

        1. No. 5 bearing pressure tube, Refer to SPM TASK 70-23-02-230-501.

          1. Cracked

          1. Reject

    3. SUBTASK 72-50-53-220-124 Examine the No.5 Bearing Pressure Tube (20-010) for Damage

    1. Refer to Figure.

      2. Examine the tube for dents, nicks and scratches.

        1. Dents

          1. Smooth dents up to 0.025 in. (0.635 mm) in depth on the tube segment only.

          1. Accept

          2. Other than Step.

          1. Repair, VRS3263 (Repair - 044) TASK 72-50-53-300-044.

        2. Nicks and scratches.

          1. Up to 0.005 in. (0.127 mm) in depth.

          1. Accept

          2. Other than Step.

          1. Repair, VRS3263 (Repair - 044) TASK 72-50-53-300-044.

    4. SUBTASK 72-50-53-220-125 Examine the No.5 Bearing Pressure Tube (20-010) for Damage to the Conical Seat

    1. Refer to Figure.

      2. Examine the tube at location 1 for damage to the conical seat.

        1. If there is no high metal on the sealing area.

        1. Accept

        2. Other than Step.

        1. Repair, VRS3263 (Repair - 044) TASK 72-50-53-300-044.

    5. SUBTASK 72-50-53-220-126 Examine the No. 5 Bearing Pressure Tube (20-010) for Damage to the Threads

    1. Refer to Figure.

      2. Examine the tube at location 2 for damage to the threads.

        1. If there is no high metal and the tube thread turns into the mating part freely.

        1. Accept

        2. Other than Step.

        1. Repair, VRS3263 (Repair - 044) TASK 72-50-53-300-044.

    6. SUBTASK 72-50-53-220-127 Examine the No.5 Bearing Pressure Tube (20-010) for Damage to the Packing Mounting Area

    1. Refer to Figure.

      2. Examine the tube at location 3 for damage to the packing mounting area.

        1. If there is no high metal or sharp edges

        1. Accept

        2. Other than Step.

        1. Repair, VRS3263 (Repair - 044) TASK 72-50-53-300-044.

    7. SUBTASK 72-50-53-220-128 Examine the No.5 Bearing Pressure Tube (20-010) for Leaks

      1. Examine the tube for leaks by a pressure test with oil.

        1. Leaks at 400 to 465 psig (2757.9 to 3206.1 kPa).

        1. Reject

    8. SUBTASK 72-50-53-220-233 Examine the Internal Surfaces of Tube Elbow for Coke or Blockage

    1. Refer to Figure.

      2. Examine the internal surfaces of the tube elbow (use flexible borescope) for coke or blockage at location 4.

        1. No coke or blockage.

        1. Accept

        2. Coke or blockage.

        1. Refer to Cleaning - 005 TASK 72-50-53-100-105.

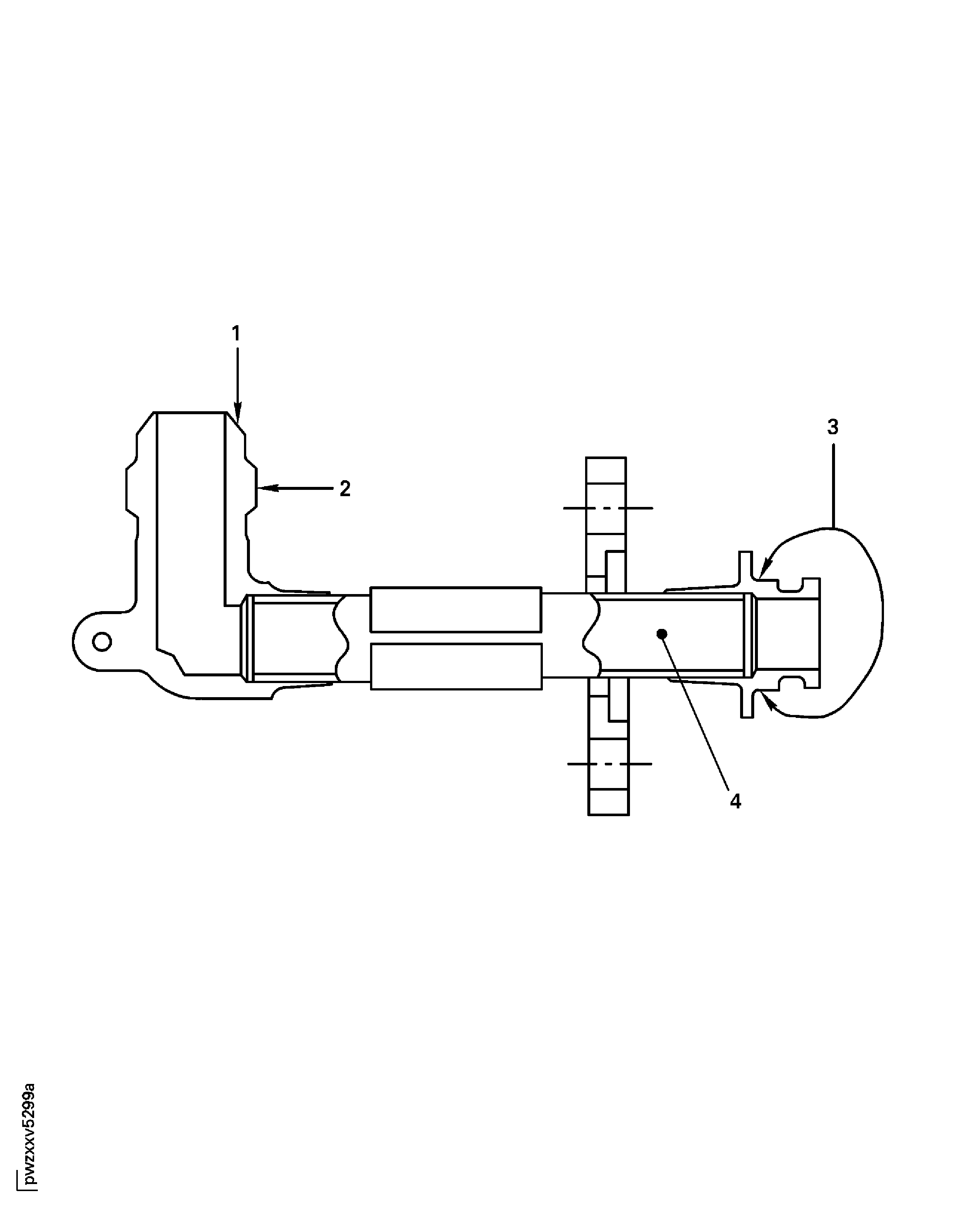

    9. Figure: No.5 Bearing Pressure Tube Inspection Locations

    No.5 Bearing Pressure Tube Inspection Locations
