TASK 72-60-22-200-004 Starter Drive Carbon Seal Housing - Examine, Inspection-004

DMC:V2500-A0-72-60-2205-00A-300A-C|Issue No:003.00|Issue Date:2017-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-22-200-004 Starter Drive Carbon Seal Housing - Examine, Inspection-004

Effectivity

FIG/ITEM

PART NO.

01-080

4P0015

01-155

4P0015

General

This TASK gives the procedure for the inspection of the seal housing. For the other parts of the starter drive gear assembly refer to TASK 72-60-22-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to SPM TASK 70-11-03-300-503.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in the SPM TASK 70-23-00-230-501. Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501

Inspection of Parts, SPM TASK 70-20-00-200-501

Some data on these items is contained in this TASK. For more data on these items refer to SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-22-230-052 Do a Crack Test on the Seal Housing (01-080) (Fluorescent Penetrant)

    1. Clean the parts. Refer to TASK 72-60-22-100-000.

      2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

        PART IDENT

        TASK/OP

        Seal housing

        1. Cracks

        1. Reject

        2. Through porosity

        1. Reject

    2. SUBTASK 72-60-22-220-068 Examine the Seal Housing (01-090) All Areas

      1. Evident cracks

      1. Reject

    3. SUBTASK 72-60-22-220-069 Examine the Seal Housing (01-080) Machined Seal Surfaces, Location 1

    1. Refer to Figure.

      2. Nicks, scores, dents or scratches.

        1. All quantity, all length, not more than 0.0039 in. (0.10 mm) in depth not extended across the seal surface

        1. Accept

        2. More than Step

        1. Repair, VRS5203 TASK 72-60-22-300-021 (REPAIR-021).

    4. SUBTASK 72-60-22-220-070 Examine the Seal Housing (01-080) Machined Not Seal Surfaces, Location 3

    1. Refer to Figure.

      2. Nicks, scores, dents or scratches.

        1. All quantity, all length, not more than 0.008 in. (0.20 mm) in depth

        1. Accept

        2. More than Step

        1. Repair, VRS5203 TASK 72-60-22-300-021 (REPAIR-021).

    5. SUBTASK 72-60-22-220-071 Examine the Seal Housing (01-080) Inner Diameter, Location 4021

    1. Refer to Figure.

      2. Diameter.

        1. Between 2.3088 and 2.3104 in. (58.643 and 58.683 mm)

        1. Accept

        2. More than 2.3104 in. (58.683 mm)

        1. Repair, VRS5204 TASK 72-60-22-300-022 (REPAIR-022).

      3. Perpendicularity.

        1. In 0.002 in. (0.050 mm) in relation to surface A

        1. Accept

        2. More than Step

        1. Repair, VRS5204 TASK 72-60-22-300-022 (REPAIR-022).

    6. SUBTASK 72-60-22-220-072 Examine the Seal Housing (01-080) Outer Diameter, Location 2

    1. Refer to Figure.

      2. Diameter.

        1. Between 2.6772 in. and 2.6732 in. (68.000 mm and 67.900 mm)

        1. Accept

        2. Less than 2.6732 in. (67.900 mm)

        1. Repair, VRS5205 TASK 72-60-22-300-023 (REPAIR-023).

      3. Perpendicularity.

        1. In 0.002 in. (0.050 mm) in relation to surface A

        1. Accept

        2. More than Step

        1. Repair, VRS5205 TASK 72-60-22-300-023 (REPAIR-023).

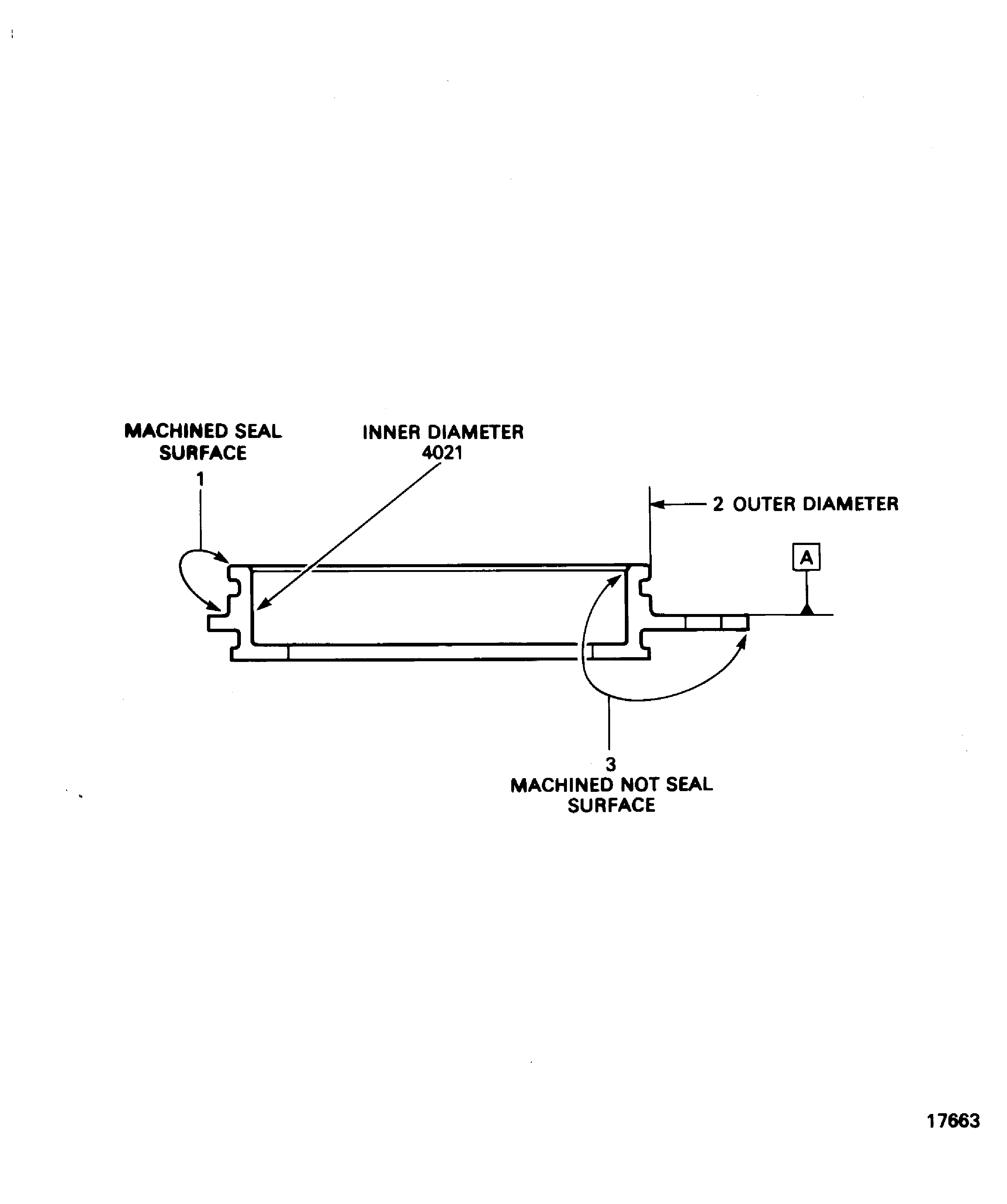

    7. Figure: Locations - seal housing

    Locations - seal housing

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the effectivity table to add applicable fig/item number for PN 4P0015. (17VC194)
