TASK 72-60-23-200-007 Hydraulic Pump Drive Gear Bearings - Examine, Inspection-007

DMC:V2500-A0-72-60-2302-01A-300A-C|Issue No:003.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-23-200-007 Hydraulic Pump Drive Gear Bearings - Examine, Inspection-007

Effectivity

FIG/ITEM

PART NO.

01-640

4T0071

01-640

4T0073

01-640

4T0074

01-640

4T0075

01-640

4T0076

General

This TASK gives the procedure for the inspection of the roller bearing.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instruction in the repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a subsequent date.

All the parts must be examined to make sure that all the repairs have been completed satisfactory.

The practices and processes referred to in the procedure by the TASK numbers are in SPM.

Reference

Refer to SPM for data on these items:

Definition of Damage, SPM TASK 70-02-02-350-501.

Record and Control of the Lives of the Parts, SPM TASK 70-05-00-220-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to SPM.

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Bearing radial clearance gageLOCALBearing radial clearance gage
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-23-220-169 Examine the Roller Bearing (72-60-23,01-640)

      1. Examine the roller bearing for general damages.

      1. Refer to SPM TASK 70-29-01-290-501.

    2. SUBTASK 72-60-23-220-165 Examine the Roller Bearing (72-60-23,01-640) Outer Diameter at Location 1

    1. Refer to Figure.

      2. Diameter.

        1. Between 2.7559 in. and 2.7555 in. (70.000 mm and 69.991 mm).

        1. Accept.

        2. Less than 2.7555 in. (69.991 mm).

        1. Reject.

    3. SUBTASK 72-60-23-220-166 Examine the Roller Bearing (72-60-23,01-640) Inner Diameter at Location 2

    1. Refer to Figure.

      2. Diameter.

        1. Between 1.7713 in. and 1.7717 in. (44.992 mm and 45.000 mm).

        1. Accept.

        2. More than 1.7717 in. (45.000 mm).

        1. Reject.

    4. SUBTASK 72-60-23-220-167 Examine the Roller Bearing (72-60-23,01-640) Inner Radial Clearance

    1. Refer to Figure.

      2. Measure the inner radial clearance, apply a load of 11 lb (5 kg).

        1. Between 0.0024 in. and 0.0030 in. (0.060 mm and 0.075 mm).

        1. Accept.

        2. More than 0.0030 in. (0.075 mm).

        1. Reject.

    5. SUBTASK 72-60-23-620-056 Preserve the Roller Bearing (72-60-23,01-640)

      1. Preserve the bearing.

      1. Refer to SPM TASK 70-53-01-620-501.

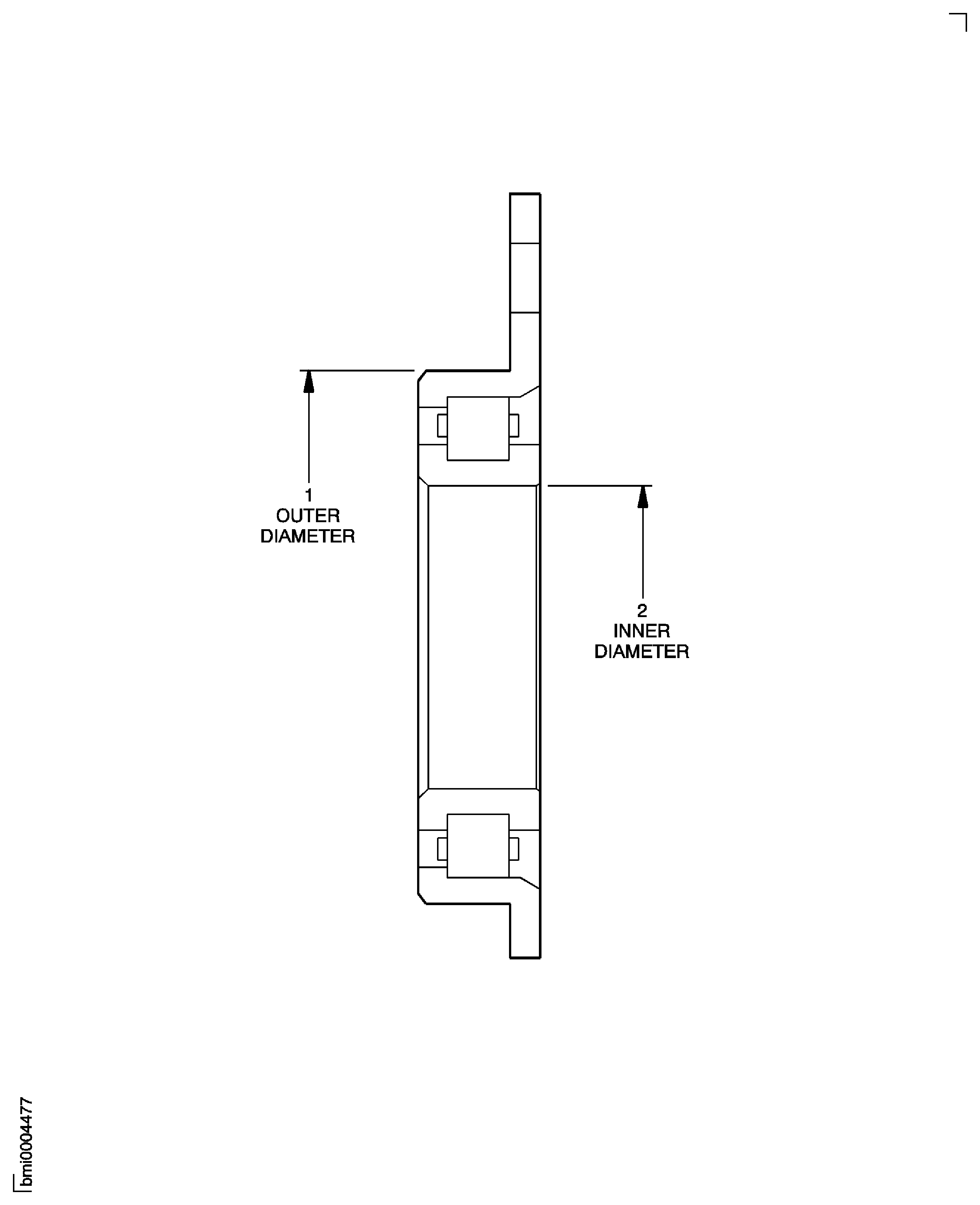

    6. Figure: Roller Bearing - Inspection Locations

    Roller Bearing - Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the effectivity table. (18VC304)
