TASK 72-60-26-200-001 Oil Scavenge Pump Drive Gear - Examine, Inspection-001

DMC:V2500-A0-72-60-2601-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-26-200-001 Oil Scavenge Pump Drive Gear - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-140

4P0010

General

This TASK gives the procedure for the inspection of the oil scavenge pump drive gear. For the other parts of the oil scavenge pump drive gear assembly, refer to TASK 72-60-26-200-000 (INSPECTION/CHECK-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-11-03-300-503.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in the SPM TASK 70-23-00-230-501 . Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Definitions of Damage, SPM TASK 70-02-02-350-501, Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501, Inspection of Parts, SSP TASK 70-20-00-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM:

Method of Testing for Crack Indications, Chemical Processes, Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Magnetizing unitLOCALMagnetizing unit
Demagnetizing unitLOCALDemagnetizing unit
Hardness testerLOCALHardness tester

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-26-240-051 Do a Crack Test on the Oil Scavenge Drive Gear (01-140) (Magnetic)

    1. Clean the parts. Refer to the TASK 72-60-26-100-000 (CLEANING-000).

      2. Do the test for cracks on the parts that are given below.

        PART IDENT

        PROCEDURE

        CURRENT/INSPECT

        TASK/SUBTASK

        Oil scavenge

        TB

        900 amp

        pump drive gear

        SUBTASK 70-24-01-240-011

        TB

        2200 amp

        SUBTASK 70-24-01-240-011

        Coil

        7000 A/T

        SUBTASK 70-24-01-240-014

        1. Cracked

        1. Reject

    2. SUBTASK 72-60-26-220-051 Examine the Oil Scavenge Drive Gear (01-140) Gear Teeth, Location 1

    1. Refer to Figure.

      2. Nicks on the tip of tooth.

        1. Three for each tooth 0.032 in. (0.80 mm) long 0.008 in. (0.20 mm) in depth, extended less than 0.016 in. (0.40 mm) onto face of tooth. The distance between nicks must be equal to, or larger than the length of the longest nick

        1. Accept

        2. More than Step

        1. Repair VRS5151, TASK 72-60-26-300-001 (REPAIR-001)

      3. Damage on the contact surface.

        1. Superficial damages

        1. Repair VRS5151, TASK 72-60-26-300-001 (REPAIR-001)

      4. Chips, flakes or fretting

      1. Reject

      5. Wear of teeth

        1. Measure the dimension of the 16 teeth spur gear over the diametrically opposite 0.1181 in. (3.000 mm) diameter pins

          1. Between 1.2573 and 1.2529 in. (31.936 and 31.824 mm)

          1. Accept

          2. Less than 1.2509 in. (31.774 mm)

          1. Reject

        2. Measure the dimension of the 27 teeth spur gear over the diametrically opposite 0.1969 in. (5.000 mm) diameter pins

          1. Between 3.0069 and 3.0002 in. (76.376 and 76.204 mm)

          1. Accept

          2. Less than 2.9982 in. (76.154 mm)

          1. Reject

        3. Measure the dimension of the 61 teeth spur gear over the diametrically opposite 0.1969 in. (5.000 mm) diameter pins

          1. Between 6.4015 and 6.3939 in. (162.597 and 162.406 mm)

          1. Accept

          2. Less than 6.3920 in. (162.356 mm)

          1. Reject

      6. NOTE

        Do this check only if overheating or some other condition makes it necessary. A blue discoloration of the part is an indication of overheating.

        Hardness of teeth.

        1. Measure the hardness of teeth area at location 2

          1. Less than 56 HRC measured at different locations

          1. Reject

        2. Measure the hardness of gear area adjacent to teeth at location 3

          1. Less than 30 HRC measured at different locations

          1. Reject

    3. SUBTASK 72-60-26-220-052 Examine the Oil Scavenge Pump Drive Gear (01-140) Rear Bearing Shoulder, Location 4

    1. Refer to Figure.

      2. Runout.

        1. Not more than 0.001 in. (0.025 mm) in relation to surfaces A and B

        1. Accept

        2. More than Step

        1. Repair VRS5152, TASK 72-60-26-300-002 (REPAIR-002)

    4. SUBTASK 72-60-26-220-054 Examine the Oil Scavenge Pump Drive Gear (01-140) Rear and Front Bearing Journals, Location 4035 and 4037

    1. Refer to Figure.

      2. Damage on the surface.

        1. Scratches not more than 0.008 in. (0.20 mm) in depth

        1. Repair VRS5151, TASK 72-60-26-300-001 (REPAIR-001)

        2. Scratches more than 0.008 in. (0.20 mm) in depth

        1. Repair VRS5153, TASK 72-60-26-300-003 (REPAIR-003) Repair VRS5154, TASK 72-60-26-300-004 (REPAIR-004)

    5. SUBTASK 72-60-26-220-055 Examine the Oil Scavenge Pump Gear (01-140) Rear Bearing Journal, Location 4035

    1. Refer to Figure.

      2. Diameter.

        1. Between 1.7733 and 1.7727 in. (45.042 and 45.026 mm)

        1. Accept

        2. Less than 1.7727 in. (45.026 mm)

        1. Repair VRS5153, TASK 72-60-26-300-003 (REPAIR-003)

      3. Runout.

        1. Not more than 0.001 in. (0.025 mm) in relation to surfaces A and B

        1. Accept

        2. More than Step

        1. Repair VRS5153, TASK 72-60-26-300-003 (REPAIR-003)

    6. SUBTASK 72-60-26-220-056 Examine the Oil Scavenge Pump Drive Gear (01-140) Front Bearing Shoulder, Location 5

    1. Refer to Figure.

      2. Runout.

        1. Not more than 0.001 in. (0.025 mm) in relation to surfaces A and B

        1. Accept

        2. More than Step

        1. Repair VRS5155, TASK 72-60-26-300-005 (REPAIR-005)

    7. SUBTASK 72-60-26-220-057 Examine the Oil Scavenge Pump Drive Gear (01-140) Front Bearing Journal, Location 4037

    1. Refer to Figure.

      2. Diameter.

        1. Between 1.7733 and 1.7727 in. (45.042 and 45.026 mm)

        1. Accept

        2. Less than 1.7727 in. (45.026 mm)

        1. Repair VRS5154, TASK 72-60-26-300-004 (REPAIR-004)

      3. Runout.

        1. Not more than 0.001 in. (0.025 mm) in relation to surfaces A and B

        1. Accept

        2. More than Step

        1. Repair VRS5154, TASK 72-60-26-300-004 (REPAIR-004)

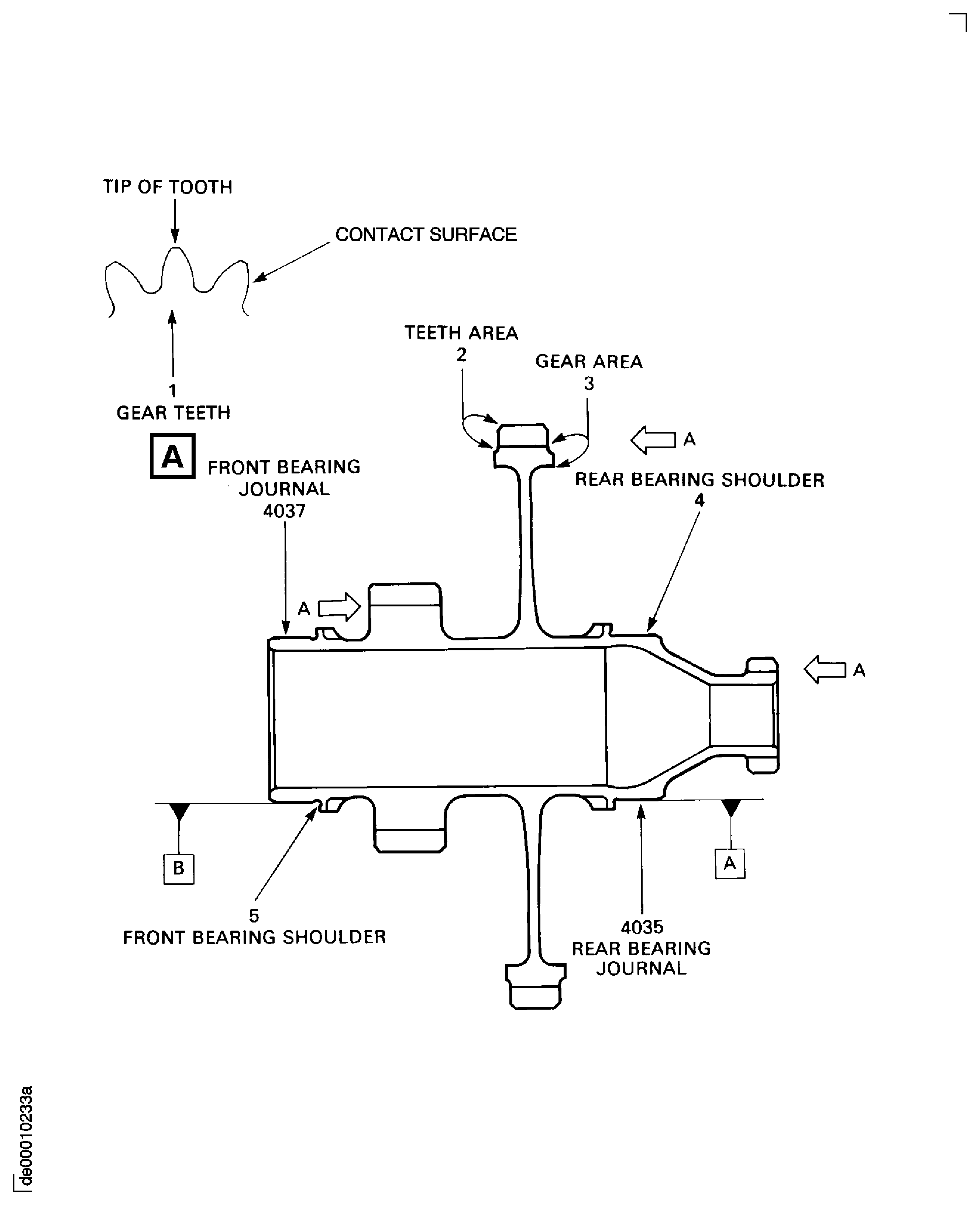

    8. Figure: Locations - Oil Scavenge Drive Gear

    Locations - Oil Scavenge Drive Gear

Requirements After Job Completion

Follow-On Conditions

NONE
