TASK 72-60-43-200-003 Angle Gearbox Driven Bevel Gearshaft Bearings - Examine, Inspection-003

DMC:V2500-A0-72-60-4302-00A-300A-C|Issue No:003.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-43-200-003 Angle Gearbox Driven Bevel Gearshaft Bearings - Examine, Inspection-003

Effectivity

FIG/ITEM

PART NO.

01-240

4T0171

01-240

4T0173

01-240

4T0174

01-240

4T0175

01-240

4T0176

General

This TASK gives the procedure for the inspection of the roller bearing.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to SPM TASK 70-10-00-100-501.

All parts must be visually examined for damaged, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The practices and processes referred to in the procedure by the TASK numbers are in SPM.

References

Refer to the SPM for data on these items:

Definition of Damage, SPM TASK 70-02-02-350-501,

Record and Control of the Lives of the Parts, SPM TASK 70-05-00-220-501,

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to SPM:

Surface protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Bearing radial clearance gageLOCALBearing radial clearance gage

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-43-220-069 Examine the Roller Bearing (01-240)

      1. Examine the roller bearing for general damages.

      1. Refer to SPM TASK 70-29-01-290-501.

    2. SUBTASK 72-60-43-220-070 Examine the Roller Bearing (01-240) Outer Diameter at Location 1

    1. Refer to Figure.

      2. Diameter.

        1. Between 3.9370 in. and 3.9367 in. (100.000 mm and 99.992 mm).

        1. Accept.

        2. Less than 3.9367 in. (99.992 mm).

        1. Reject.

    3. SUBTASK 72-60-43-220-071 Examine the Roller Bearing (01-240 and 01-430) Inner Diameter at Location 2

    1. Refer to Figure.

      2. Diameter.

        1. Between 2.4013 in. and 2.4016 in. (60.993 mm and 61.000 mm).

        1. Accept.

        2. More than 2.4016 in. (61.000 mm).

        1. Reject.

    4. SUBTASK 72-60-43-220-072 Examine the Roller Bearing (01-240) Inner Radial Clearance

    1. Refer to Figure.

      2. Measure the inner radial clearance; apply a load of 11 lb (5 kg).

        1. Between 0.0035 in. and 0.0041 in. (0.090 mm and 0.105 mm).

        1. Accept.

        2. More than 0.0041 in. (0.105 mm).

        1. Reject.

    5. SUBTASK 72-60-43-620-052 Preserve the Roller Bearing (01-240)

      1. Preserve the bearing.

      1. Refer to SPM TASK 70-53-01-620-501.

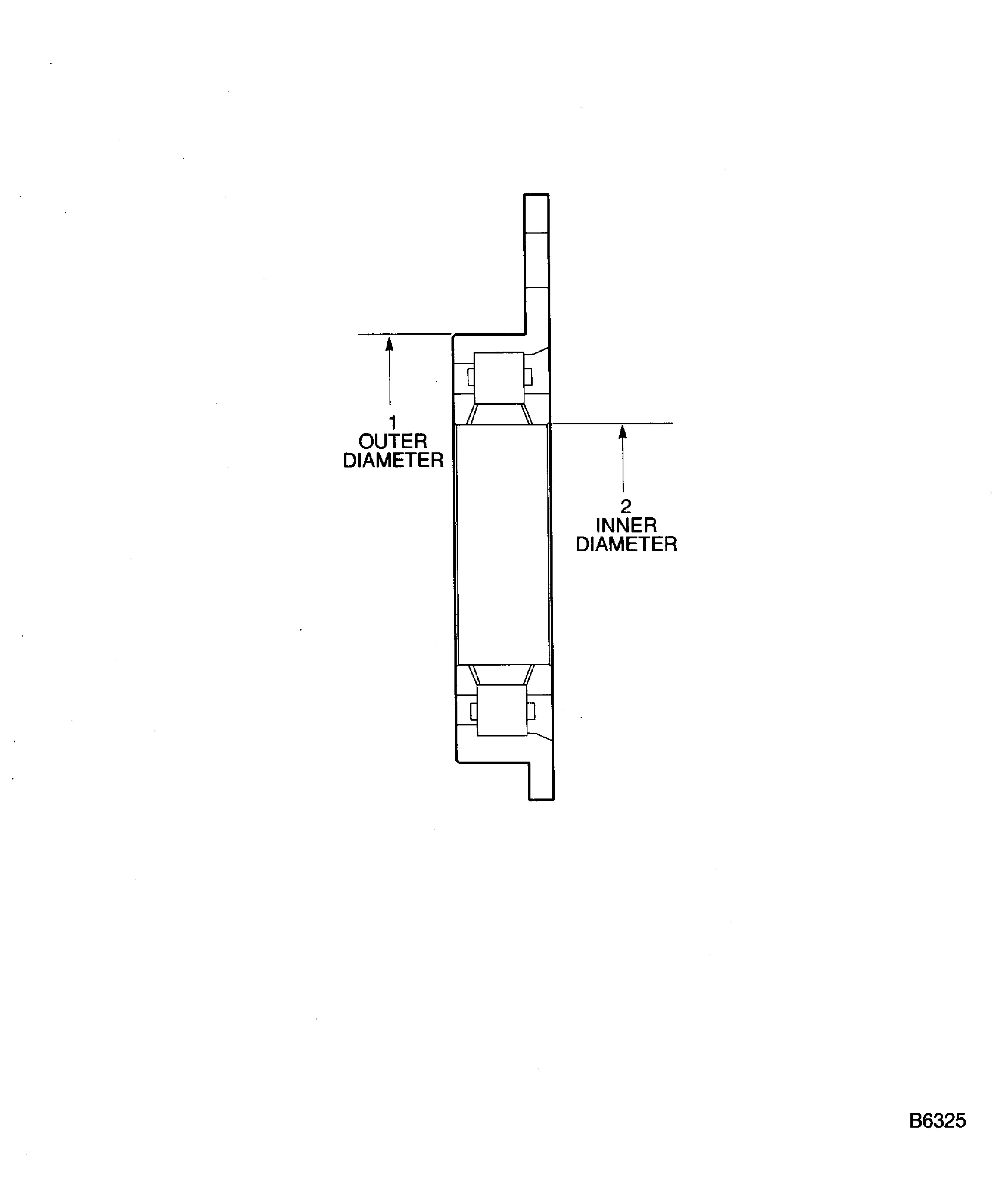

    6. Figure: Locations - Roller bearing

    Locations - Roller bearing
