TASK 75-24-48-300-003 HPT ACC Air Manifold - Blend Repair Surface Damage, Repair-003 (VRS1553)
Material of component
DESCRIPTION | RR SYMBOL | MATERIAL |
Turbine cooling manifold assembly | Fe-18Cr-10Ni | |
Turbine cooling manifold assembly (part) | 47.5Ni-22Cr-1.5Co-9.0 Mo-0.6W-18.5Fe |
General
Price and availability - none.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
For the method to clean the parts, refer to Cleaning-000 TASK 75-24-48-100-100.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Grinder, Hand held pneumatic | LOCAL | Grinder, Hand held pneumatic | ||
| Magnifying glass | LOCAL | Magnifying glass | 8x |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
If the blended area exceeds the blend limit given in Figure, repair the turbine cooling manifold assembly.
Refer to Inspection-000 TASK 75-24-48-200-100, VRS1529 (Repair 010) TASK 75-24-48-300-001, VRS1530 (Repair-008) TASK 75-24-48-300-008, VRS1532 (Repair-001) TASK 75-24-48-300-001, VRS1535 (Repair-005) TASK 75-24-48-300-005 and/or VRS1536 (Repair-006) TASK 75-24-48-300-006.
Examine the repaired area of the turbine cooling manifold assembly.
Refer to Inspection-000 TASK 75-24-48-200-100.
Use 8x Magnifying glass.
Visually examine the turbine cooling manifold assembly.
SUBTASK 75-24-48-220-066 Examine the Turbine Cooling Manifold Assembly (02-500)

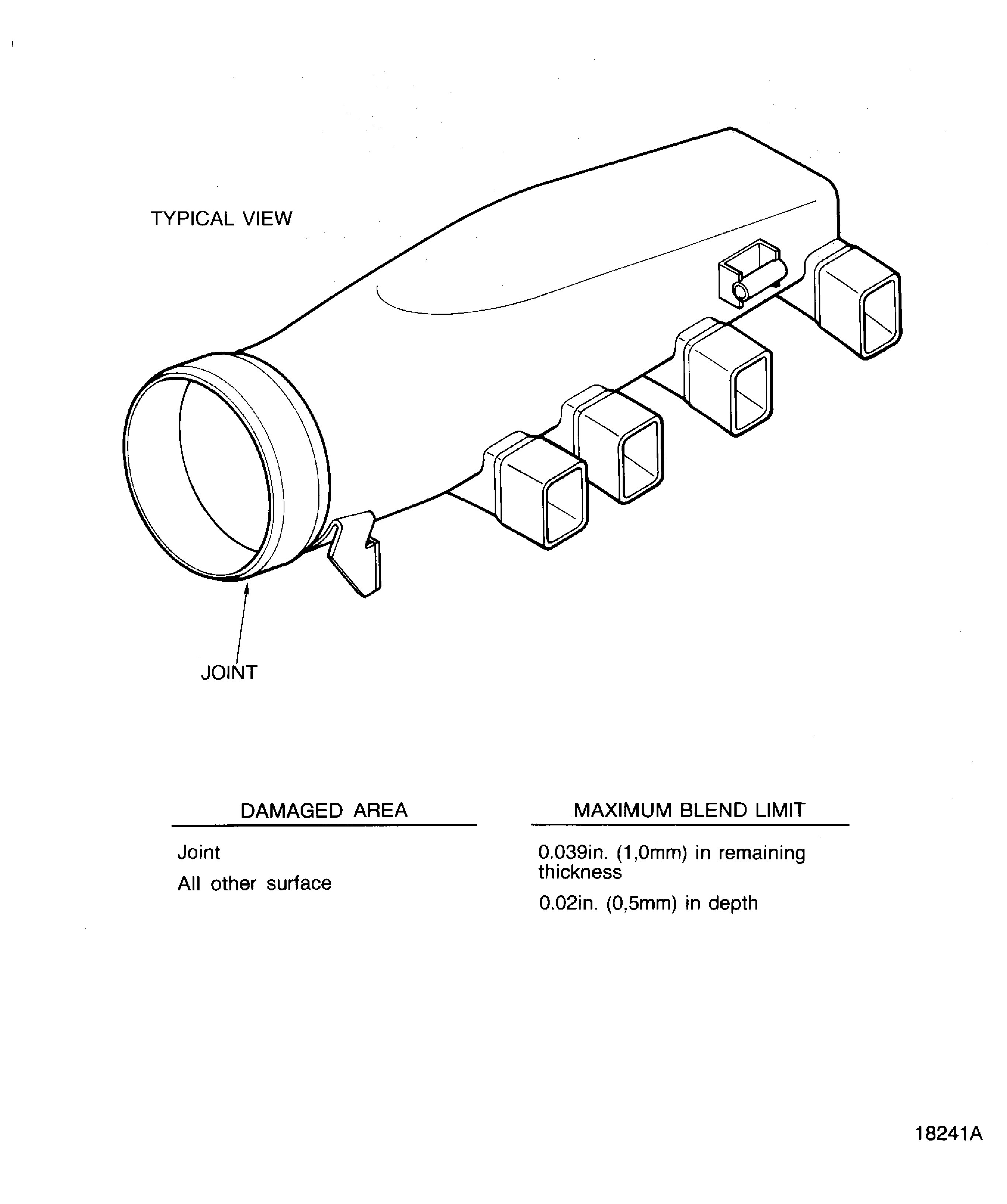

Figure: Inspection of the Turbine Cooling Manifold Assembly
Inspection of the Turbine Cooling Manifold Assembly
