TASK 75-24-49-200-104 LPT ACC Air Manifold And Ducts Remaining Parts - Examine The Half Loop Clamp, Inspection-004

Effectivity

FIG/ITEM

PART NO.

02-770

3A0948

02-590

3A0948

03-770

3A0948

03-590

3A0948

General

This TASK gives the procedure for the inspection of the half loop clamp. For the other LP turbine ACC parts, refer to TASK 75-24-49-200-100.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-11-03-300-503.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, Refer to SPM TASK 70-02-02-350-501.

Record and Control of the Lives of Parts, Refer to SPM TASK 70-05-00-220-501.

Inspection of Parts, Refer to SPM TASK 70-20-00-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications.

Chemical Processes.

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-24-49-220-058 Examine the Half Loop Clamp (02-770, 02-590, 03-770 and 03-590) for Damage

      1. Cracked

        1. Cracked half loop clamps.

        1. Repair, VRS4029 (Repair-001) TASK 75-24-49-300-001.

      2. Nicked or Dented.

        1. Up to maximum 0.003 in. (0.076 mm) in depth without raised material.

        1. Accept

        2. More than in Step.

        1. Repair, VRS4030 (Repair-002) TASK 75-24-49-300-002.

    2. SUBTASK 75-24-49-220-059 Examine the Half Loop Clamp (02-770, 02-590, 03-770 and 03-590) for Damage

    1. Refer to Figure.

      2. Examine the half loop clamp at location 1.

        1. Smooth wear pattern, thickness minimum 0.016 in. (0.4 mm).

        1. Accept

        2. More than in Step.

        1. Reject

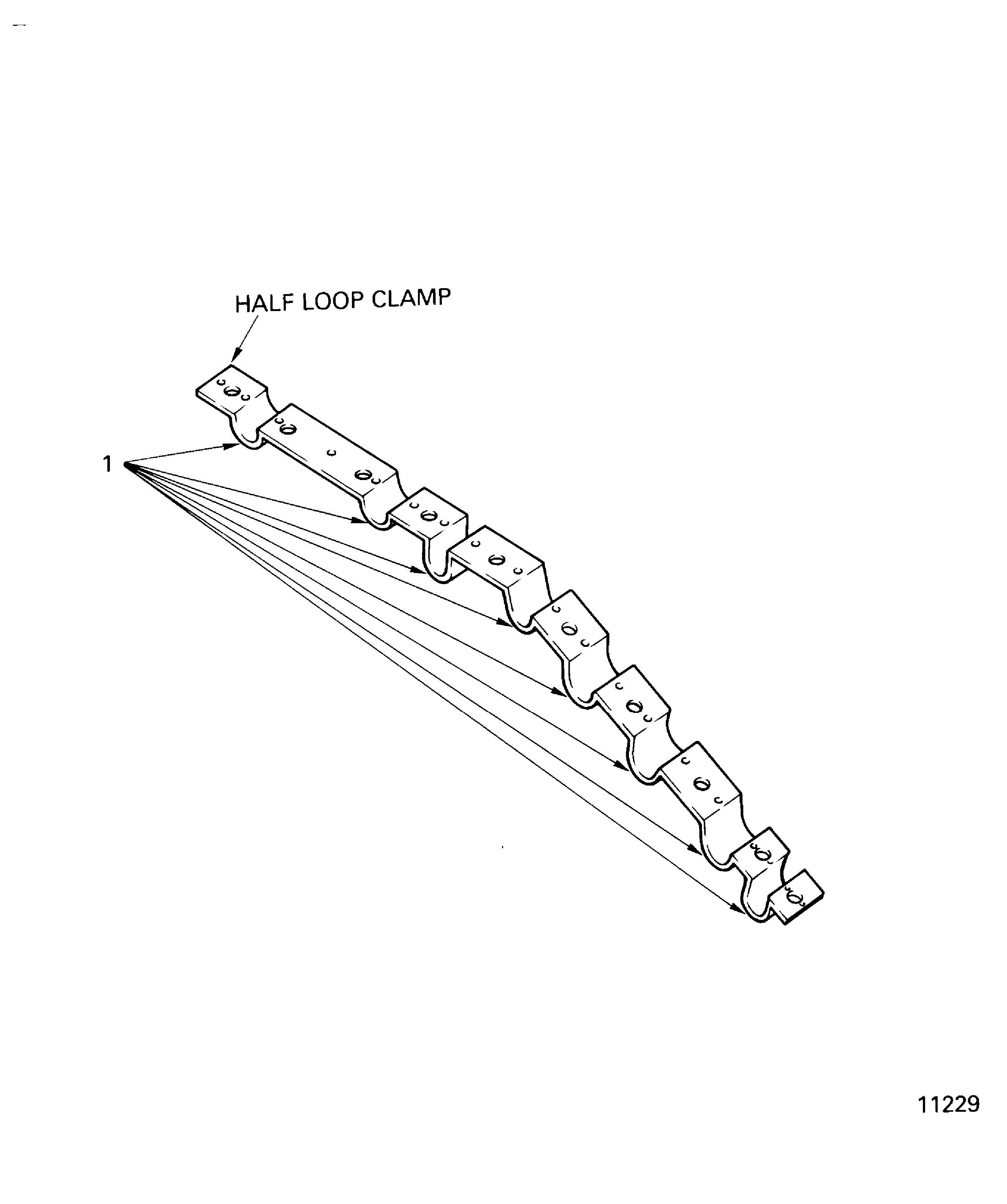

    3. Figure: Inspection of the Half Loop Clamp

    Inspection of the Half Loop Clamp
