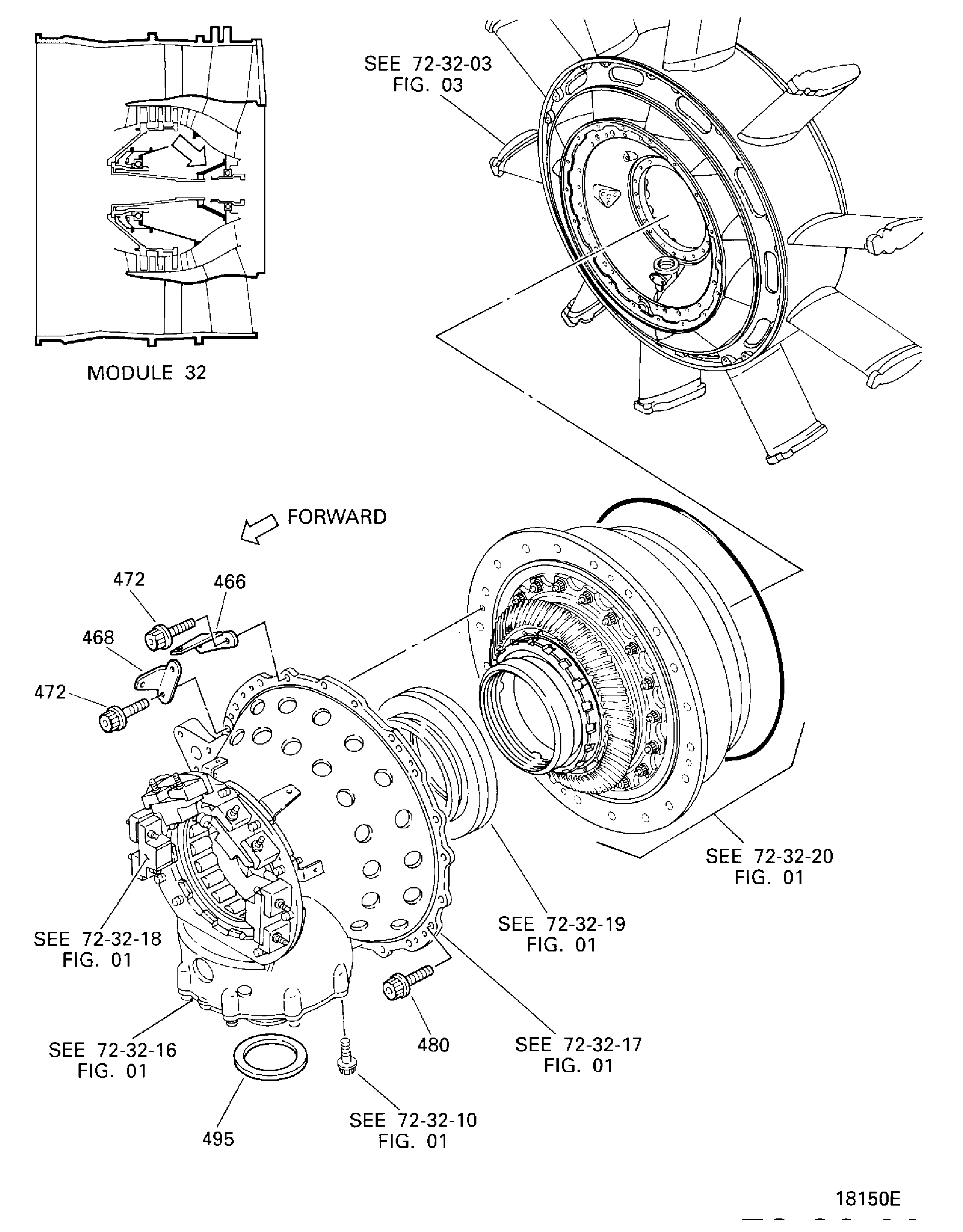

ENGINE-LP COMP/INTERMEDIATE CASE MODULE

DMC:V2500-A1-72-32-00-02A-941A-D|Issue No:004.00|Issue Date:2021-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
02
000B72320002ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE70-0017aa
000SBE0017-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE70-0065ab
000SBE0065-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0081ac
000SBE0081-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0103ad
000SBE0103-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0105ae
000SBE0105-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0132af
000SBE0132-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0150ag
000SBE0150-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0219ah
000SBE0219-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0350ai
000SBE0350-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0391aj
000SBE0391-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0429ak
000SBE0429-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE71-0303al
000SBE0303-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE70-0939am
000SBE0939-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0553an
000SBE0553-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE70-0981ao
000SBE0981-01ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0701ap
000SBE0701-01ENGINE - LP COMP/INTERMEDIATE CASE MODULEaq

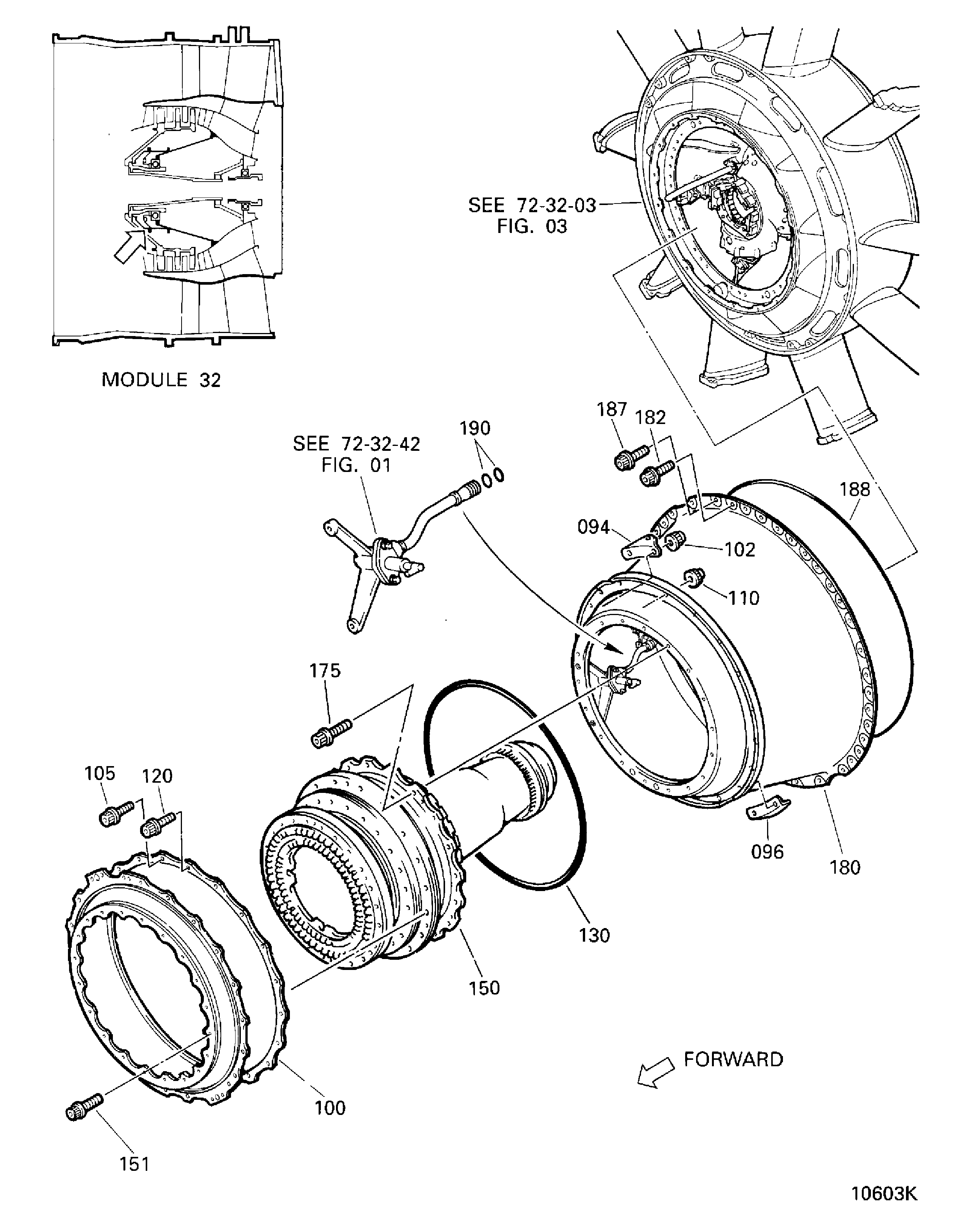

0940945R0245• BRACKET - AIR FEED
PRE SBE72-0132		aa-af1
0960965R0245• BRACKET - AIR FEED
PRE SBE72-0132		aa-af1
-10010072-32-55• SEAL - FRONT NO.1 BEARING
0JAEC		aa-apREF
1021024W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
PRE SBE72-0132		aa-af4
1051054W0166• BOLT - MACHINE, DOUBLE HEXAGON, .250 DIA X .750
PRE SBE72-0132		aa-af4
1101104W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
PRE SBE72-0132		aa-af17

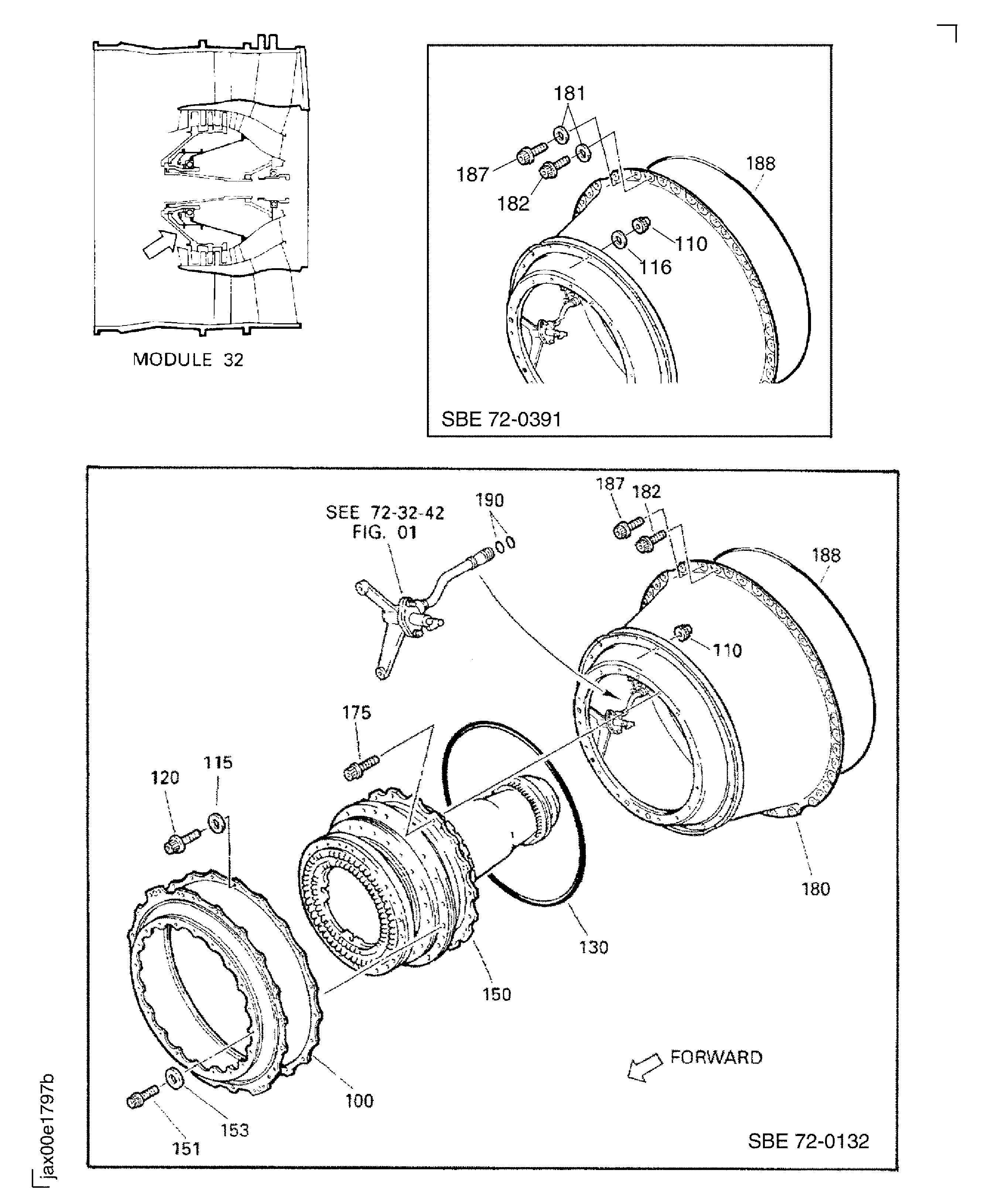

110110A4W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
POST SBE72-0132		ag-ap21
115115MS9321-10• WASHER - FLAT, 0.500 X 0.276 X 0.062
96906
POST SBE72-0132		ag-ap21
116116MS9321-10• WASHER - FLAT, 0.500 X 0.276 X 0.062
96906
POST SBE72-0391		ak-ap21
1201204W0166• BOLT - MACHINE, DOUBLE HEXAGON, .250 DIA X .750
PRE SBE72-0132		aa-af17
120120A4W0168• BOLT, MACHINE DOUBLE HEX - .250 DIA X .875
POST SBE72-0132
PRE SBE72-0391		ag-aj21
120120B4W0411• BOLT - 0.250 DIA X 1.062
POST SBE72-0391		ak-ap21
1301305A5396• RING
PRE SBE72-0701		aa-ap1
130130A5A2223• O-RING
POST SBE72-0701		aq1
-15015072-32-50• SHAFT- ASSY LP NO.1 & 2 BRG
0JAEC		aa-apREF
151151AS21010• BOLT - .250 DIA X .625
U1653
PRE SBE72-0132		aa-af18
151151AAS21013• BOLT - 0.25 DIA X 0.812
U1653
POST SBE72-0132		ag-ap18
153153MS9321-10• WASHER - FLAT, 0.500 X 0.276 X 0.062
96906
POST SBE72-0132		ag-ap18
1751754W0234• BOLT - 0.3125 DIA X 10.312aa-ap18
-180180SUPP0RT• SUPPORTaa-apREF
181181MS9321-11• WASHER
96906
POST SBE72-0391
PRE SBE72-0429		ak42
181181AMS9549-11• WASHER - FLAT
96906
POST SBE72-0429		ak-ap42
18218270315-5-4• BOLT
56878		aa-ap24
18718770315-5-8• BOLT
56878		aa-ap18
1881885A5397• RING
PRE SBE72-0701		aa-ap1
188188A5A2224• O-RING
POST SBE72-0701		aq1
190190AS43013-110• RING - SEAL, 9.19 MM ID X 2.62 MM
U1653		aa-ap2
-20020072-32-38TUBES - OIL DRAIN
0JAEC		aa-apREF
2102104W0163• BOLT, MACHINE DOUBLE HEX - .250 DIA X .562
PRE SBE72-0150		aa-ag2
2152154W0110• BOLT, MACHINE DOUBLE HEX - .190 DIA X .938
POST SBE72-0150
PRE SBE72-0211		*****1
220220AS43013-108• RING - SEALING, TOROIDAL
U1653
PRE SBE72-0211		*****1

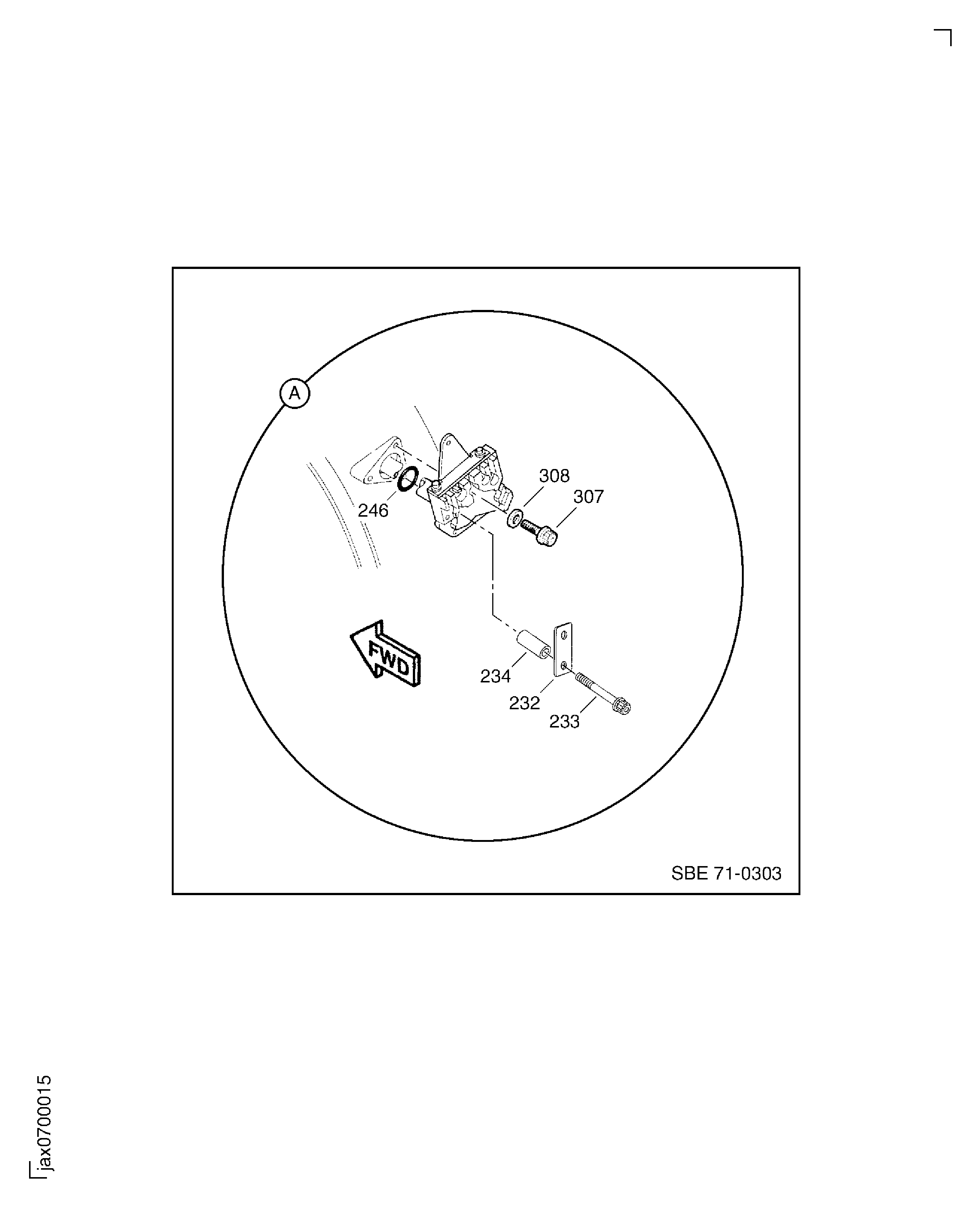

2322326A8958• BRACKET - CLIP EXTENSION
POST SBE71-0303
PRE SBE72-0553		am-an1
233233AS21030• BOLT - MACHINE, DOUBLE HEXAGON - 0.250 DIA X 1.875
U1653
POST SBE71-0303
PRE SBE72-0553		am-an1
234234LJ32698• SPACER
POST SBE71-0303
PRE SBE70-0939		am-an1
234234A5A1909• SPACER
POST SBE70-0939
PRE SBE72-0553		am-an1

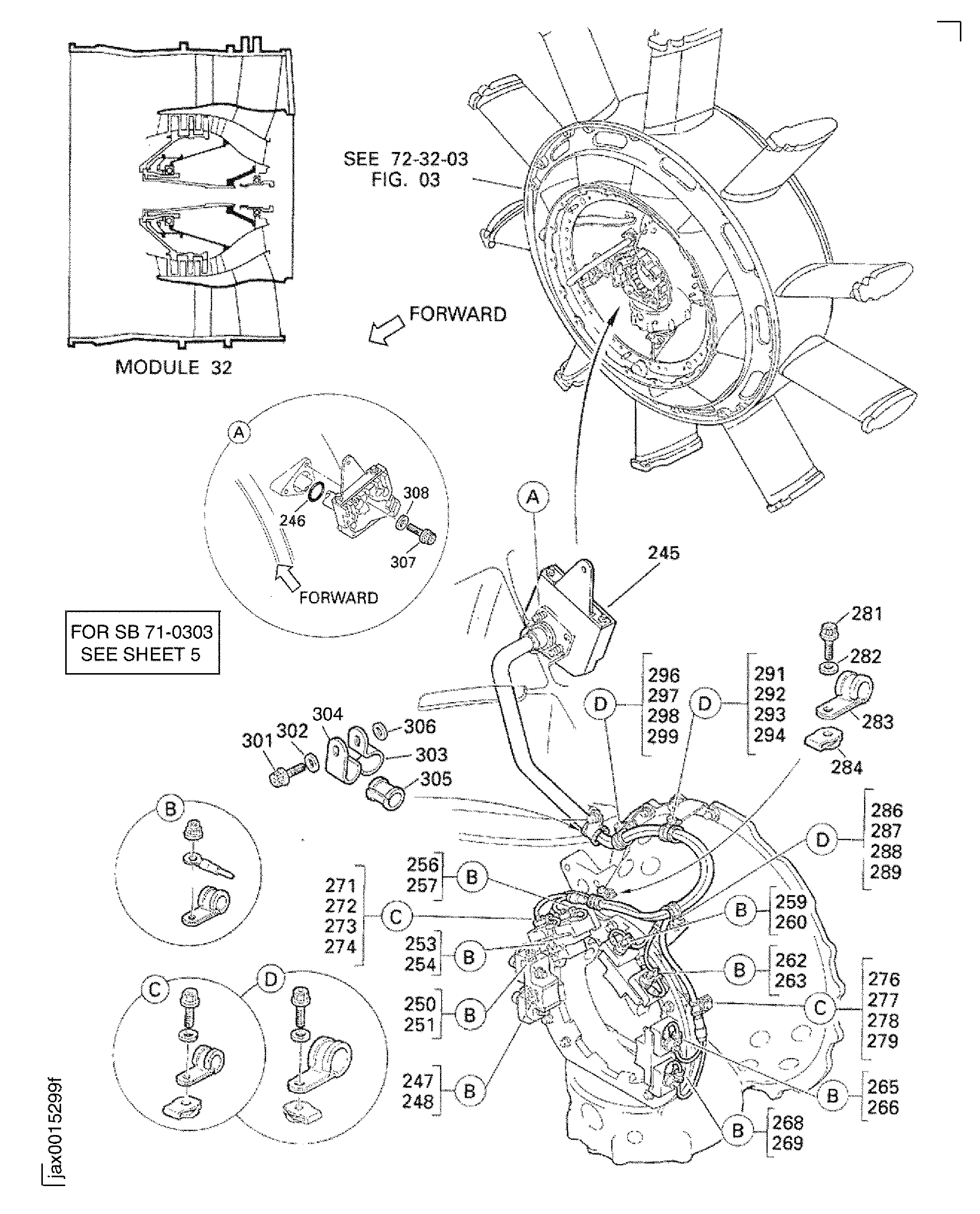

-24524572-32-37• HARNESS- PROBES
0JAEC		aa-apREF
246246AS43013-120• RING - SEALING, TOROIDAL
U1653		aa-ap1
2472474W0001• NUT, OPTION - .190 DIAaa-ap1
248248417-2• CLIP
83930
PRE SBE70-0065		aa-ap1
248248A417D2T• CLIP
83930
POST SBE70-0065		aa-ap1
2502504W0001• NUT, OPTION - .190 DIAaa-ap1
251251417-2• CLIP
83930
PRE SBE70-0065		aa-ap1
251251A417D2T• CLIP
83930
POST SBE70-0065		aa-ap1
2532534W0001• NUT, OPTION - .190 DIAaa-ap1
254254417-2• CLIP
83930
PRE SBE70-0065		aa-ap1
254254A417D2T• CLIP
83930
POST SBE70-0065		aa-ap1
2562564W0001• NUT, OPTION - .190 DIAaa-ap1
257257417-2• CLIP
83930
PRE SBE70-0065		aa-ap1
257257A417D2T• CLIP
83930
POST SBE70-0065		aa-ap1
2592594W0001• NUT, OPTION - .190 DIAaa-ap1
260260417-2• CLIP
83930
PRE SBE70-0065		aa-ap1
260260A417D2T• CLIP
83930
POST SBE70-0065		aa-ap1
2622624W0001• NUT, OPTION - .190 DIAaa-ap1
263263417-2• CLIP
83930
PRE SBE70-0065		aa-ap1
263263A417D2T• CLIP
83930
POST SBE70-0065		aa-ap1
2652654W0001• NUT, OPTION - .190 DIAaa-ap1
266266417-2• CLIP
83930
PRE SBE70-0065		aa-ap1
266266A417D2T• CLIP
83930
POST SBE70-0065		aa-ap1
2682684W0001• NUT, OPTION - .190 DIAaa-ap1
269269417-2• CLIP
83930
PRE SBE70-0065		aa-ap1
269269A417D2T• CLIP
83930
POST SBE70-0065		aa-ap1
271271AS21909• BOLT - 0.19 DIA X 0.562
U1653		aa-ap1
2722724W2621• WASHERaa-ap1
273273417-3• CLIP
83930
PRE SBE70-0065		aa-ap1
273273A417D3T• CLIP
83930
POST SBE70-0065		aa-ap1
274274AS41104• NUT - 0.19 DIA
U1653		aa-ap1
276276AS21909• BOLT - 0.19 DIA X 0.562
U1653		aa-ap1
2772774W2621• WASHERaa-ap1
278278417-3• CLIP
83930
PRE SBE70-0065		aa-ap1
278278A417D3T• CLIP
83930
POST SBE70-0065		aa-ap1
279279AS41104• NUT - 0.19 DIA
U1653		aa-ap1
281281AS21909• BOLT - 0.19 DIA X 0.562
U1653		aa-ap1
2822824W2621• WASHERaa-ap1
283283417-6• CLIP
83930
PRE SBE70-0065		aa-ap1
283283A417D6T• CLIP
83930
POST SBE70-0065		aa-ap1
284284AS41104• NUT - 0.19 DIA
U1653		aa-ap1
286286AS21909• BOLT - 0.19 DIA X 0.562
U1653		aa-ap1
2872874W2621• WASHERaa-ap1
288288417-7• CLIP
83930
PRE SBE70-0065		aa-ap1
288288A417D7T• CLIP
83930
POST SBE70-0065		aa-ap1
289289AS41104• NUT - 0.19 DIA
U1653		aa-ap1
291291AS21909• BOLT - 0.19 DIA X 0.562
U1653		aa-ap1
2922924W2621• WASHERaa-ap1
293293417-7• CLIP
83930
PRE SBE70-0065		aa-ap1
293293A417D7T• CLIP
83930
POST SBE70-0065		aa-ap1
294294AS41104• NUT - 0.19 DIA
U1653		aa-ap1
296296AS21909• BOLT - 0.19 DIA X 0.562
U1653		aa-ap1
2972974W2621• WASHERaa-ap1
298298417-7• CLIP
83930
PRE SBE70-0065		aa-ap1
298298A417D7T• CLIP
83930
POST SBE70-0065		aa-ap1
299299AS41104• NUT - 0.19 DIA
U1653		aa-ap1
301301AS21010• BOLT - .250 DIA X .625
U1653		aa-ap1
3023024W2622• WASHER OPTIONaa-ap1
303303AS12850• CLIP
U1653		aa-ap1
304304AS12820• CLIP
U1653		aa-ap1
305305AS12899• BUSHING - 0.625 DIA
U1653		aa-ap1
3063064W2622• WASHER OPTIONaa-ap1
307307AS21014• CLAMP - LOOP, DOUBLE HEX, .250 DIA X .875
U1653
PRE SBE71-0303		aa-al3
307307AAS21014• CLAMP - LOOP, DOUBLE HEX, .250 DIA X .875
U1653
POST SBE71-0303
PRE SBE72-0553		am-an2
307307BAS21014• CLAMP - LOOP, DOUBLE HEX, .250 DIA X .875
U1653
POST SBE72-0553		ao-ap3
308308AN960C416L• WASHER
88044
PRE SBE72-0081		aa-al3
308308AMS9321-10• WASHER - FLAT, 0.500 X 0.276 X 0.062
96906
POST SBE72-0081
PRE SBE71-0303		aa-al3
308308BMS9321-10• WASHER - FLAT, 0.500 X 0.276 X 0.062
96906
POST SBE71-0303
PRE SBE72-0553		am-an2
308308CMS9321-10• WASHER - FLAT, 0.500 X 0.276 X 0.062
96906
POST SBE72-0553		ao-ap3

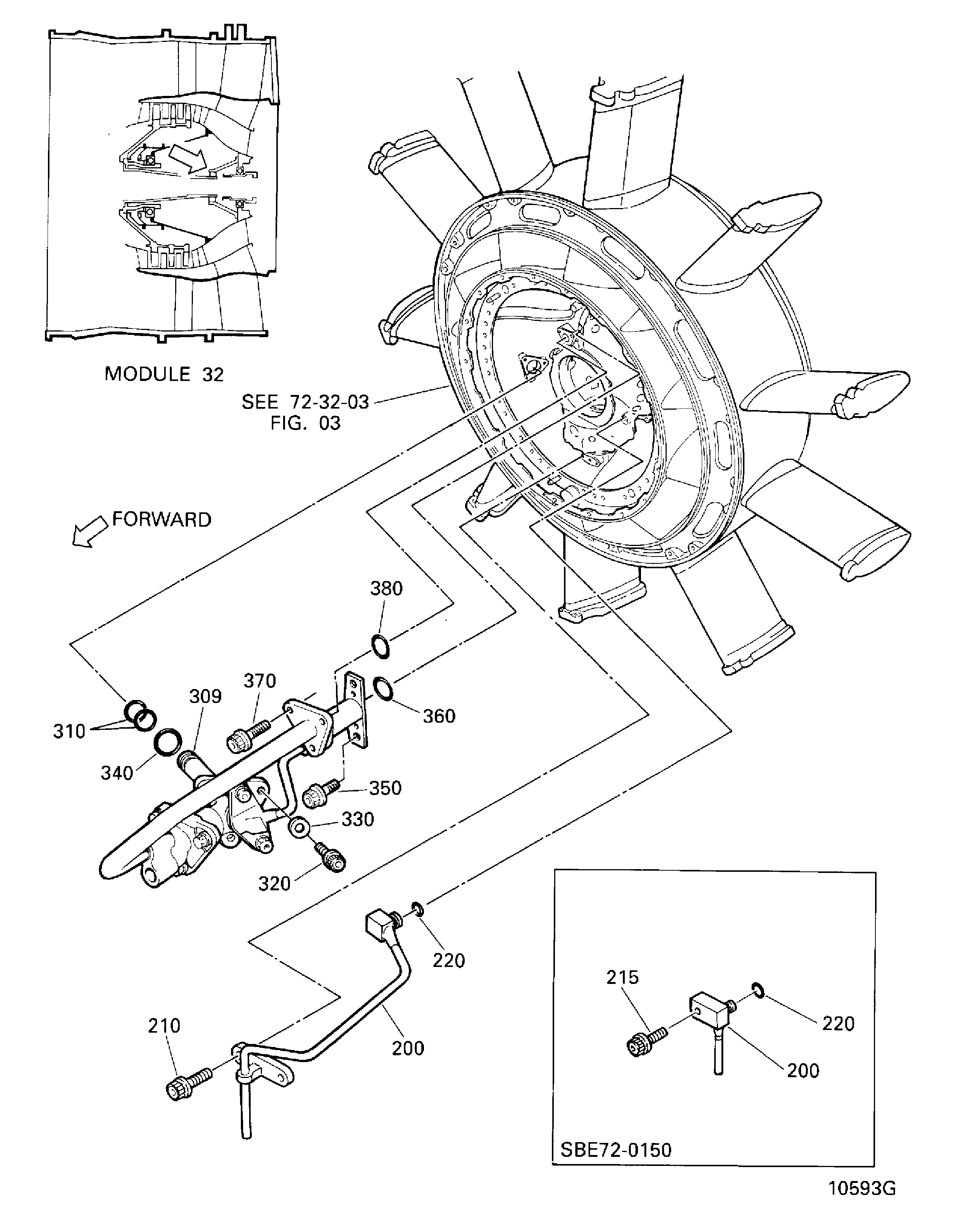

-30930972-32-36DISTRIBUTR,OIL NO.2 & 3 BRG
0JAEC		aa-apREF
310310AS43013-116• RING - SEALING, TOROIDAL
U1653		aa-ap2
3203204W0165• BOLT, MACHINE DOUBLE HEX - .250 DIA X .688aa-ap3
3303304W2622• WASHER OPTIONaa-ap3
340340AS43013-123• RING
U1653		aa-ap1
3503504W0232• BOLT - 0.3125 DIA X 1.188
PRE SBE72-0350		aa-ap2
350350A5A1836• BOLT
POST SBE72-0350		aa-ap2
360360AS43013-012• RING
U1653		aa-ap1
3703704W0165• BOLT, MACHINE DOUBLE HEX - .250 DIA X .688aa-ap3
380380AS43013-120• RING - SEALING, TOROIDAL
U1653		aa-ap1

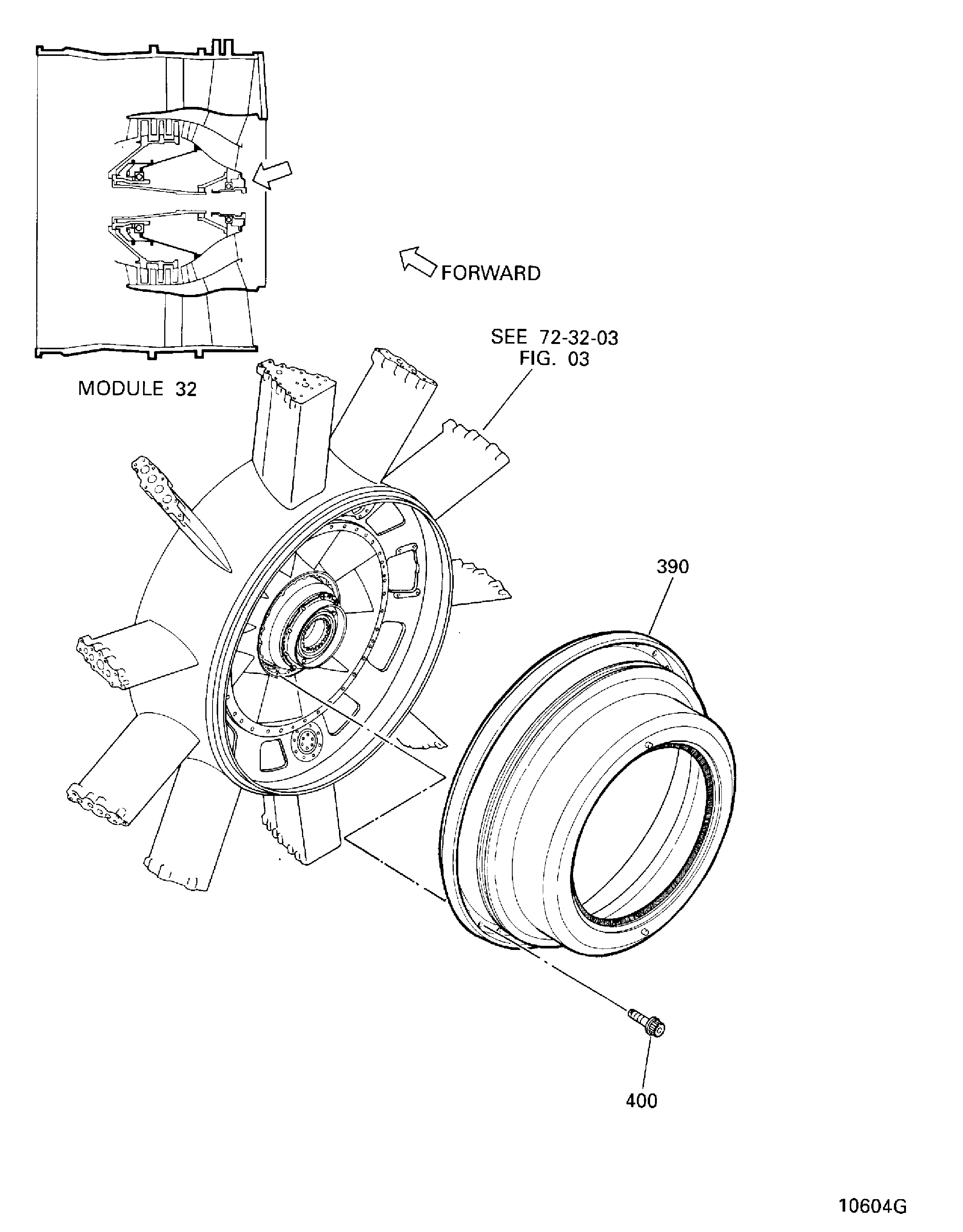

-39039072-32-35SEAL - REAR AIR BRG COMPRTMNT
0JAEC		aa-apREF
400400AS21010• BOLT - .250 DIA X .625
U1653		aa-ap18
-43043072-32-34• SEAL - NO.3 BEARING REAR
0JAEC		aa-apREF
4664665A9545• BRACKET - NF Daa-ap1
4684685A9544• BRACKET - NF Caa-ap1
-470470SUPP0RT• SUPPORTaa-apREF
472472AS21119• BOLT - MACHINE, DOUBLE HEXAGON - 0.3125 DIA X 1.188
U1653
PRE SBE72-0350		aa-ap4
472472A5A1836• BOLT
POST SBE72-0350		aa-ap4
480480AS21117• BOLT - 0.3125 DIA X 1.062
U1653
PRE SBE72-0350		aa-ap14
480480A5A1841• BOLT
POST SBE72-0350		aa-ap14
490490AS43013-016• RING - SEALING, TOROIDAL
U1653
PRE SBE70-0202		*****1
4954955A0777• RINGaa-ap1

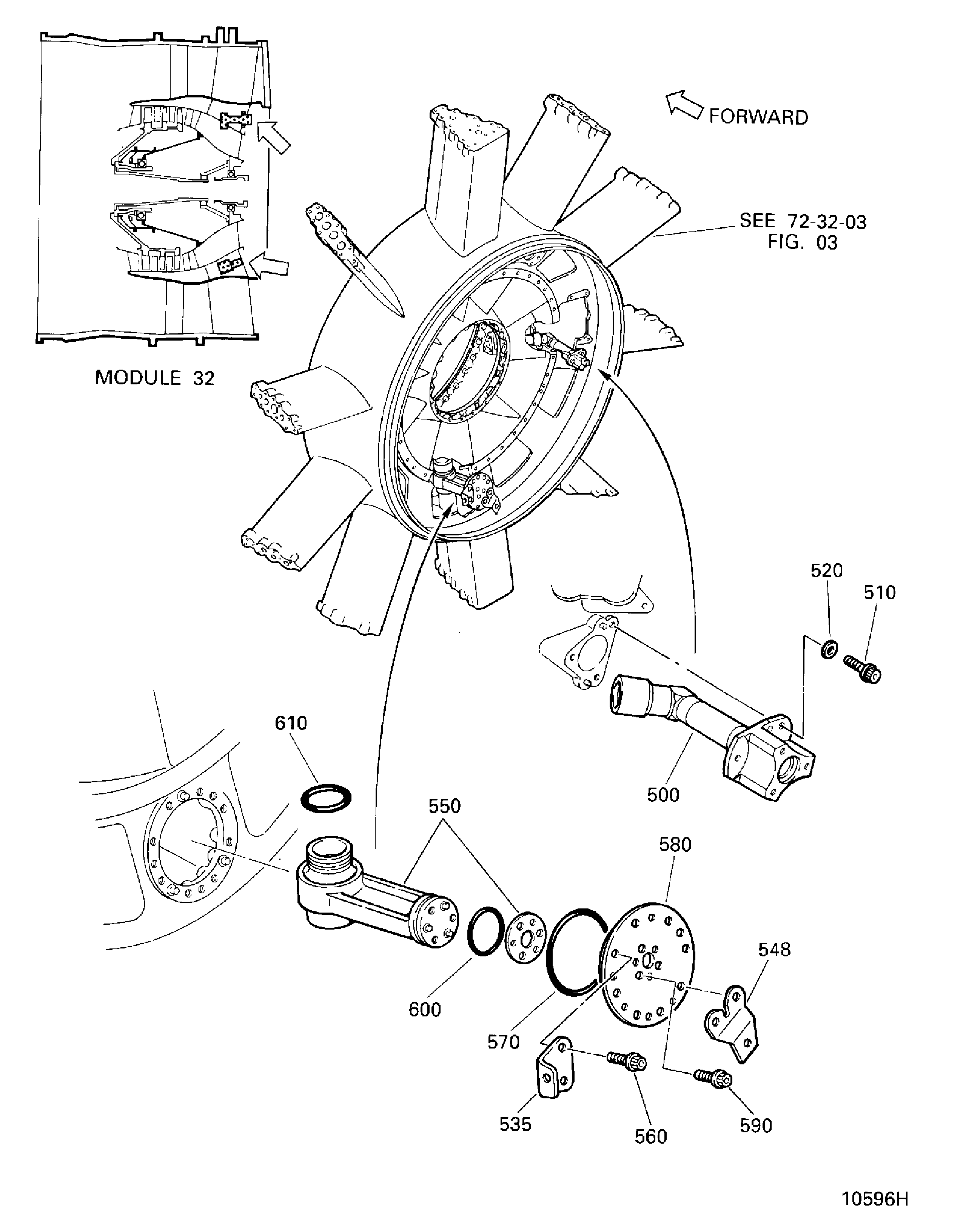

-50050072-32-07LINE- OIL FEED DISTRIBUTOR
0JAEC		aa-apREF
5105104W0165• BOLT, MACHINE DOUBLE HEX - .250 DIA X .688aa-ap3
5205204W2622• WASHER OPTIONaa-ap3
5355356A2803• BRACKETaa-ap1
5485485W8301• BRACKETaa-ap1
-550550SUPP0RTSUPPORTaa-apREF
560560AS21010• BOLT - .250 DIA X .625
U1653		aa-ap8
570570AS43013-148• RING
U1653		aa-ap1
5805805A1296• PLATEaa-ap1
590590AS21011• BOLT,MACHINE DOUBLE HEX
U1653		aa-ap3
600600AS43013-132• RING - SEAL, 1.737 ID X 0.103
U1653		aa-ap1
610610AS43013-126• RING
U1653		aa-ap1
7007005A3466• BRACKET - A, ASSEMBLY OF
PRE SBE70-0202		*****2
701701AS16446• • RIVET, SOLID CSK HEAD, 2.4MM (.094) DIA
U1653
PRE SBE70-0202		*****1
702702MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****1
703703AS44800• • PIN - SHOULDER, HEADLESS
U1653
PRE SBE70-0202		*****1
7107105A3467• BRACKET - B, ASSEMBLY OF
PRE SBE70-0202		*****2
711711AS16446• • RIVET, SOLID CSK HEAD, 2.4MM (.094) DIA
U1653
PRE SBE70-0202		*****1
712712MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****1
713713AS44800• • PIN - SHOULDER, HEADLESS
U1653
PRE SBE70-0202		*****1
7207205A3468• BRACKET - D, ASSEMBLY OF
PRE SBE70-0202		*****2
721721AS16446• • RIVET, SOLID CSK HEAD, 2.4MM (.094) DIA
U1653
PRE SBE70-0202		*****4
722722MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****2
723723AS44800• • PIN - SHOULDER, HEADLESS
U1653
PRE SBE70-0202		*****1
7307305A3469• BRACKET - D, ASSEMBLY OF
PRE SBE70-0202		*****2
731731AS16446• • RIVET, SOLID CSK HEAD, 2.4MM (.094) DIA
U1653
PRE SBE70-0202		*****4
732732MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****2
733733AS44800• • PIN - SHOULDER, HEADLESS
U1653
PRE SBE70-0202		*****1
7457454W0108• BOLT, MACHINE DOUBLE HEX - .190 DIA X .812
PRE SBE70-0202		*****46
7477474W2621• WASHER
PRE SBE70-0202		*****12

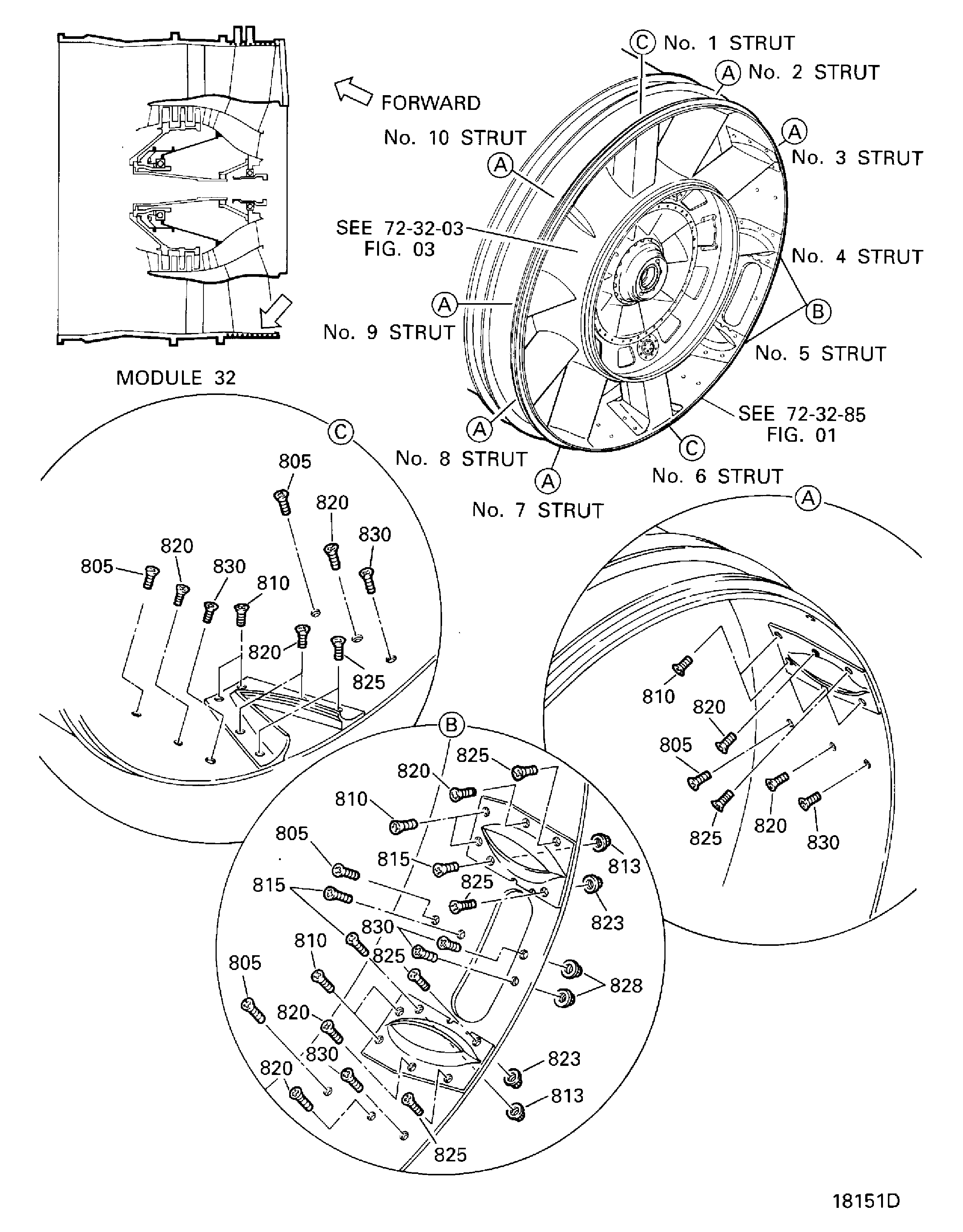

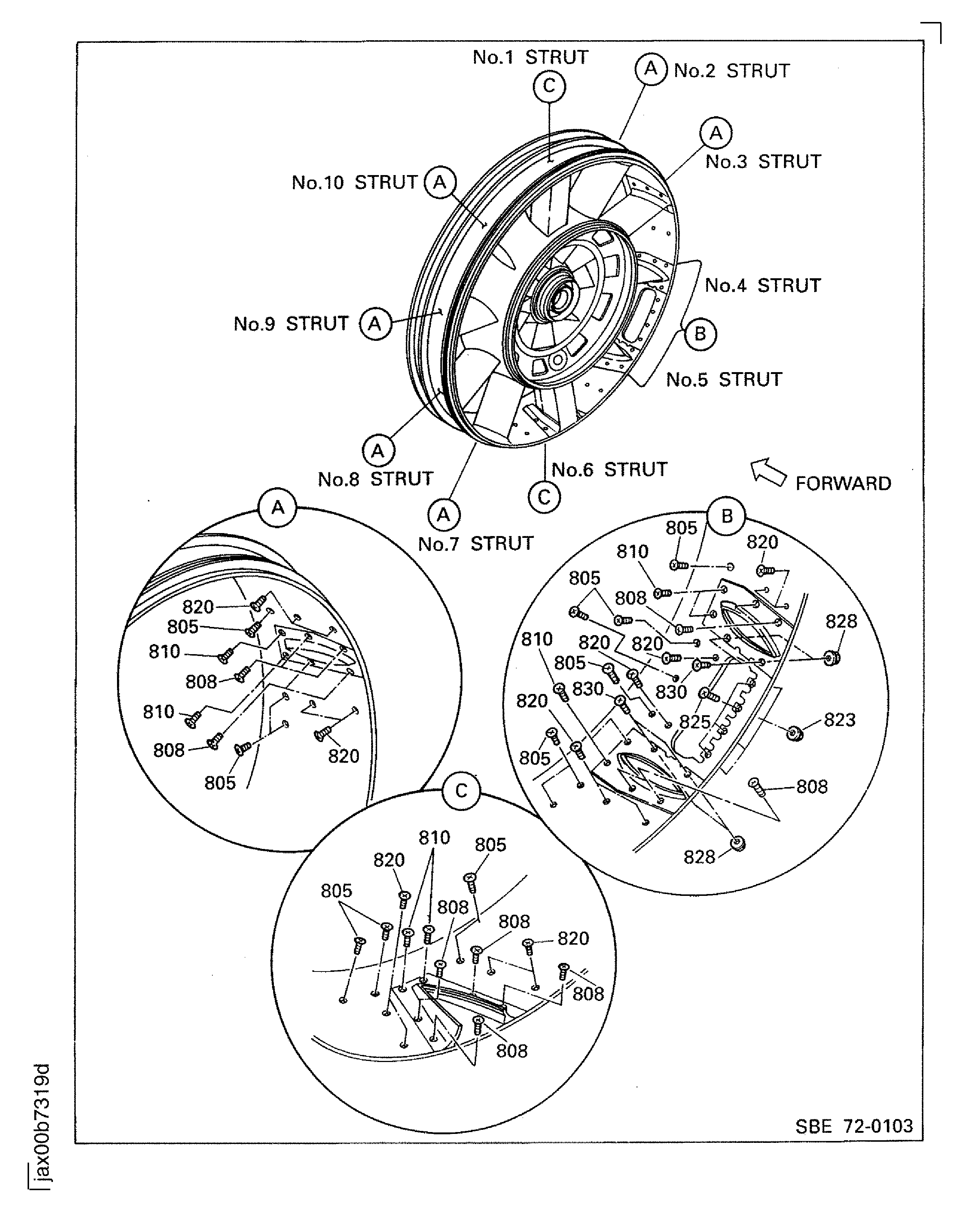

805805NAS1102E4-21• SCREW
80205
PRE SBE72-0103		aa-ad10
805805A4W2392• SCREW - 0.250 DIA X 10.000
POST SBE72-0103		ae-ap30
8088084W2390• SCREW - 0.250 DIA X 0.875
Optional Part
4W2390
POST SBE72-0103		ae-ap36
810810NAS1102E4-21• SCREW
80205
PRE SBE72-0103		aa-ad20
810810A4W2392• SCREW - 0.250 DIA X 10.000
POST SBE72-0103		ae-ap20
8138134W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-ap2
815815NAS1102E4-21• SCREW
80205		aa-ap3
820820NAS1102E4R15• SCREW
80205
PRE SBE70-0017		aa27
820820ANAS1102E4R15• SCREW
80205
ALT AS51015
POST SBE70-0017
PRE SBE72-0103		ab-ad27
820820BAS51015• SCREW - COUNTERSUNK, HEAD
U1653
ALT NAS1102E4R15
POST SBE70-0017
PRE SBE72-0103		ab-ad27
820820C4W2390• SCREW - 0.250 DIA X 0.875
POST SBE72-0103		ae-ap38
8238234W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
PRE SBE72-0103		aa-ad2
823823A4W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
POST SBE72-0103		ae-ap4
825825NAS1102E4R15• SCREW
80205
PRE SBE70-0017		aa20
825825ANAS1102E4R15• SCREW
80205
ALT AS51015
POST SBE70-0017
PRE SBE72-0103		ab-ad20
825825BAS51015• SCREW - COUNTERSUNK, HEAD
U1653
ALT NAS1102E4R15
POST SBE70-0017
PRE SBE72-0103		ab-ad20
825825C4W2390• SCREW - 0.250 DIA X 0.875
POST SBE72-0103		ae-ap4
8288284W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
PRE SBE72-0103		aa-ad2
828828A4W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
POST SBE72-0103		ae-ap4
830830NAS1102E4R15• SCREW
80205
PRE SBE70-0017		aa-ad11
830830ANAS1102E4R15• SCREW
80205
ALT AS51015
POST SBE70-0017
PRE SBE72-0103		aa-ad11
830830BAS51015• SCREW - COUNTERSUNK, HEAD
U1653
ALT NAS1102E4R15
POST SBE70-0017
PRE SBE72-0103		aa-ad11
830830C4W2390• SCREW - 0.250 DIA X 0.875
POST SBE72-0103		ae-ap4
8528524W1247• BOLT - 0.250 DIA X 0.812
PRE SBE72-0105		aa-ae10
852852AMS21295-44• BOLT
96906
POST SBE72-0105
PRE SBE72-0219		af-ah10
852852B5A1502• BOLT
POST SBE72-0219		ai-ap10
8558554W2622• WASHER OPTION
PRE SBE72-0105		aa-ae10
855855AMS51496C75• WASHER
96906
POST SBE72-0105
PRE SBE70-0981		af-ap10
855855BMS51496P75• WASHER
96906
POST SBE70-0981		af-ap10
8578574W2326• SCREW - 0.190 DIA X 0.625
Optional Part
4W2326
POST SBE72-0105		af-ap10
8608605A0949• SLEEVE
POST SBE72-0105		af-ap10
8808805A0025• BRACKET - A, ASSEMBLY OF
PRE SBE70-0202		*****1
8818815A5437• • PIN
PRE SBE70-0202		*****2
882882AN124971• • RIVET - 100 DEGREE, COUNTERSUNK
88044
PRE SBE70-0202		*****8
883883MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****4
8908905A0030• BRACKET - F, ASSEMBLY OF
PRE SBE70-0202		*****1
8918915A5437• • PIN
PRE SBE70-0202		*****2
892892AN124971• • RIVET - 100 DEGREE, COUNTERSUNK
88044
PRE SBE70-0202		*****2
893893MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****1
9009005A0028• BRACKET - D, ASSEMBLY OF
PRE SBE70-0202		*****1
9019015A5437• • PIN
PRE SBE70-0202		*****2
902902AN124971• • RIVET - 100 DEGREE, COUNTERSUNK
88044
PRE SBE70-0202		*****8
903903MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****4
9109105A0027• BRACKET - C, ASSEMBLY OF
PRE SBE70-0202		*****1
9119115A5437• • PIN
PRE SBE70-0202		*****2
912912AN124971• • RIVET - 100 DEGREE, COUNTERSUNK
88044
PRE SBE70-0202		*****8
913913MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****4
9209205A0032• BRACKET - H, ASSEMBLY OF
PRE SBE70-0202		*****1
9219215A5437• • PIN
PRE SBE70-0202		*****2
922922AN124971• • RIVET - 100 DEGREE, COUNTERSUNK
88044
PRE SBE70-0202		*****2
923923MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****1
9309305A0026• BRACKET - B, ASSEMBLY OF
PRE SBE70-0202		*****1
9319315A5437• • PIN
PRE SBE70-0202		*****2
932932AN124971• • RIVET - 100 DEGREE, COUNTERSUNK
88044
PRE SBE70-0202		*****8
933933MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****4
9409405A0031• BRACKET - G, ASSEMBLY OF
PRE SBE70-0202		*****1
9419415A5437• • PIN
PRE SBE70-0202		*****2
942942AN124971• • RIVET - 100 DEGREE, COUNTERSUNK
88044
PRE SBE70-0202		*****2
943943MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****1
9509505A0029• BRACKET - E, ASSEMBLY OF
PRE SBE70-0202		*****1
9519515A5437• • PIN
PRE SBE70-0202		*****2
952952AN124971• • RIVET - 100 DEGREE, COUNTERSUNK
88044
PRE SBE70-0202		*****2
953953MS21060L4• • NUT - ANCHOR
96906
PRE SBE70-0202		*****1
975975AS21128• BOLT - MACHINE, DOUBLE HEXAGON
U1653
PRE SBE70-0202		*****24
9809804W0108• BOLT, MACHINE DOUBLE HEX - .190 DIA X .812
PRE SBE70-0202		*****23
9859854W0108• BOLT, MACHINE DOUBLE HEX - .190 DIA X .812
PRE SBE70-0202		*****26
9879874W2621• WASHER
PRE SBE70-0202		*****26
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

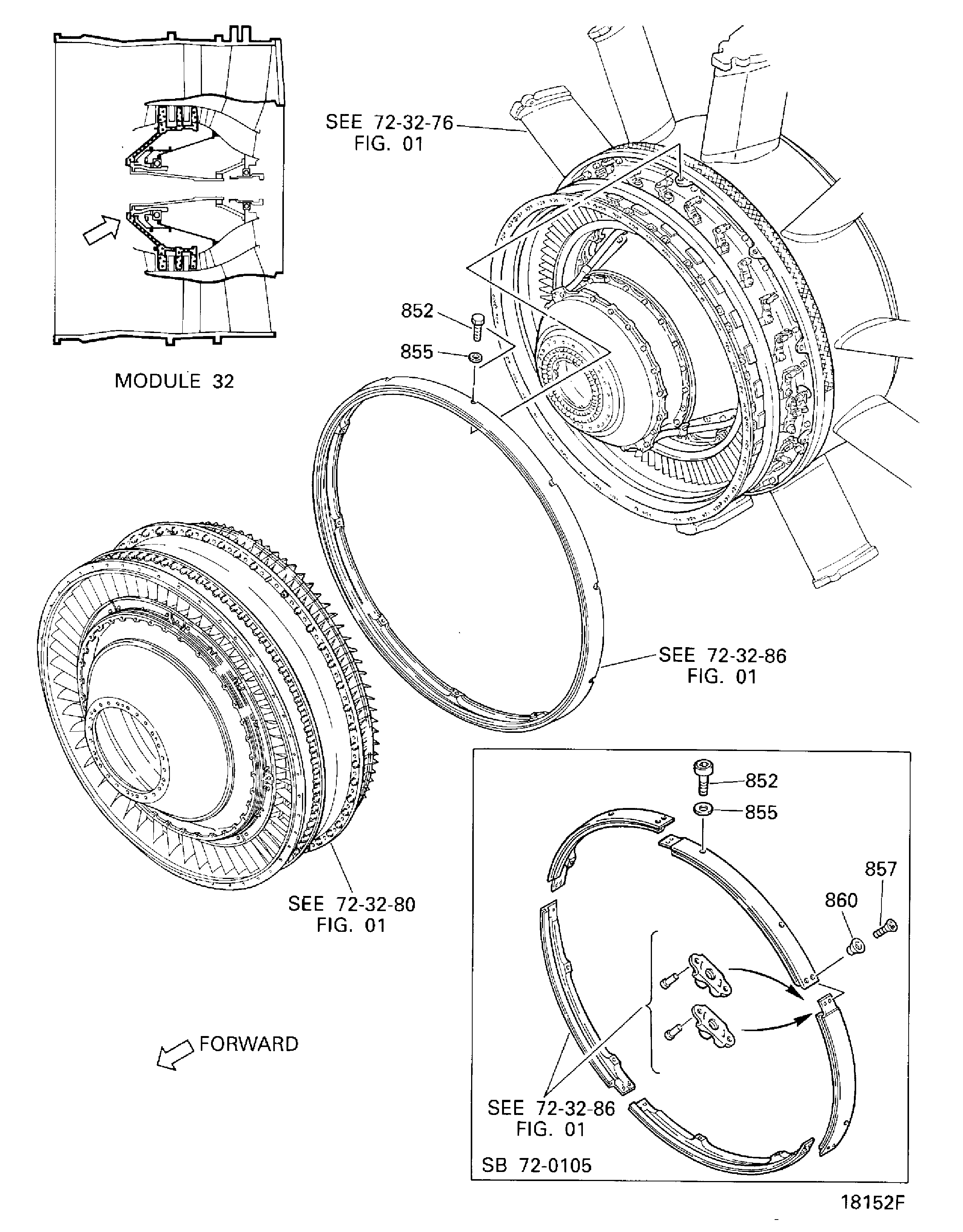

Figure: ENGINE-LP COMP/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

Change Type:

Corrected Graphic

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:0JAEC
Enterprise Name:Japanese Aero Engine Corporation
BU Name:Japanese Aero Engine Corporation
Building:No. 30 Mori Building
Street:2-2, 3-Chome
City:Toranomon
State:Minato-Ku
Zip Code:Tokyo 105
Country:Japan
Manufacturer Code:56878
Enterprise Name:SPS TECHNOLOGIES INC
BU Name:SPS TECHNOLOGIES INC
Department:AERO/INDS PRODUCTS DIV
Street:301 HIGHLAND AVENUE
City:JENKINTOWN
State:PA
Zip Code:19046
Country:USA
Manufacturer Code:80205
Enterprise Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:83930
Enterprise Name:TRANSDIGM INC
BU Name:TRANSDIGM INC
Department:ADEL FASTENERS
Building:SANDWELL INDUSTRIAL ESTATE
Street:5000 TRIGGS STREET
City:LOS ANGELES
State:WEST MIDLANDS
Zip Code:B66 1QJ
Country:USA
Manufacturer Code:88044
Enterprise Name:AERONAUTICAL STANDARD GROUP NAVY AND AIR FORCE
BU Name:AERONAUTICAL STANDARD GROUP NAVY AND AIR FORCE
Street:NA
City:NA
Country:USA
Phone Number:NA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:417-2
Part Name:CLIP
Manufacturer Code:83930
Part Number:417-3
Part Name:CLIP
Manufacturer Code:83930
Part Number:417-6
Part Name:CLIP
Manufacturer Code:83930
Part Number:417-7
Part Name:CLIP
Manufacturer Code:83930
Part Number:417D2T
Part Name:CLIP
Manufacturer Code:83930
Part Number:417D3T
Part Name:CLIP
Manufacturer Code:83930
Part Number:417D6T
Part Name:CLIP
Manufacturer Code:83930
Part Number:417D7T
Part Name:CLIP
Manufacturer Code:83930
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W0108
Part Name:BOLT - .190 DIA X .812
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21413BOLT - 0.190 DIA X 0.812U1653
Part Number:4W0110
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .938
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS48015BOLT - 0.190 DIA X 0.438U1653
Part Number:4W0163
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .562
Manufacturer Code:0AM53
Part Number:4W0165
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .688
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21511BOLT- MACHINE DOUBLE HEX, .250 DIA X .688U1653
Part Number:4W0166
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .750
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21512BOLT - 0.25 DIA X 0.750U1653
Part Number:4W0168
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .875
Manufacturer Code:0AM53
Part Number:4W0232
Part Name:BOLT - 0.3125 DIA X 1.188
Manufacturer Code:0AM53
Part Number:4W0234
Part Name:BOLT - 0.3125 DIA X 10.312
Manufacturer Code:0AM53
Part Number:4W0411
Part Name:BOLT - 0.250 DIA X 1.062
Manufacturer Code:0AM53
Part Number:4W1247
Part Name:BOLT - 0.250 DIA X 0.812
Manufacturer Code:0AM53
Part Number:4W2326
Part Name:SCREW - 0.190 DIA X 0.625
Manufacturer Code:0AM53
Part Number:4W2390
Part Name:SCREW - 0.250 DIA X 0.875
Manufacturer Code:0AM53
Part Number:4W2392
Part Name:SCREW - 0.250 DIA X 10.000
Manufacturer Code:0AM53
Part Number:4W2621
Part Name:WASHER
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS12943WASHER - FLAT U1653
Part Number:4W2622
Part Name:WASHER OPTION
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5T0012WASHER0AM53
Part Number:5A0025
Part Name:BRACKET - A, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0026
Part Name:BRACKET - B, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0027
Part Name:BRACKET - C, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0028
Part Name:BRACKET - D, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0029
Part Name:BRACKET - E, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0030
Part Name:BRACKET - F, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0031
Part Name:BRACKET - G, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0032
Part Name:BRACKET - H, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0777
Part Name:RING
Manufacturer Code:0AM53
Part Number:5A0949
Part Name:SLEEVE
Manufacturer Code:0AM53
Part Number:5A1296
Part Name:PLATE
Manufacturer Code:0AM53
Part Number:5A1502
Part Name:BOLT
Manufacturer Code:0AM53
Part Number:5A1836
Part Name:BOLT
Manufacturer Code:0AM53
Part Number:5A1841
Part Name:BOLT
Manufacturer Code:0AM53
Part Number:5A1909
Part Name:SPACER
Manufacturer Code:0AM53
Link not Found
Link not Found
Part Number:5A3466
Part Name:BRACKET - A, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A3467
Part Name:BRACKET - B, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A3468
Part Name:BRACKET - D, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A3469
Part Name:BRACKET - D, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A5396
Part Name:RING
Manufacturer Code:0AM53
Part Number:5A5397
Part Name:RING
Manufacturer Code:0AM53
Part Number:5A5437
Part Name:PIN
Manufacturer Code:0AM53
Part Number:5A9544
Part Name:BRACKET - NF C
Manufacturer Code:0AM53
Part Number:5A9545
Part Name:BRACKET - NF D
Manufacturer Code:0AM53
Part Number:5R0245
Part Name:BRACKET - AIR FEED
Manufacturer Code:0AM53
Part Number:5T0012
Part Name:WASHER
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W2622WASHER OPTION0AM53
Part Number:5W8301
Part Name:BRACKET
Manufacturer Code:0AM53
Part Number:6A2803
Part Name:BRACKET
Manufacturer Code:0AM53
Part Number:6A8958
Part Name:BRACKET - CLIP EXTENSION
Manufacturer Code:0AM53
Part Number:70315-5-4
Part Name:BOLT
Manufacturer Code:56878
Part Number:70315-5-8
Part Name:BOLT
Manufacturer Code:56878
Part Number:72-32-07
Part Name:LINE- OIL FEED DISTRIBUTOR
Manufacturer Code:0JAEC
Part Number:72-32-34
Part Name:SEAL - NO.3 BEARING REAR
Manufacturer Code:0JAEC
Part Number:72-32-35
Part Name:SEAL - REAR AIR BRG COMPRTMNT
Manufacturer Code:0JAEC
Part Number:72-32-36
Part Name:DISTRIBUTR,OIL NO.2 & 3 BRG
Manufacturer Code:0JAEC
Part Number:72-32-37
Part Name:HARNESS- PROBES
Manufacturer Code:0JAEC
Part Number:72-32-38
Part Name:TUBES - OIL DRAIN
Manufacturer Code:0JAEC
Part Number:72-32-50
Part Name:SHAFT- ASSY LP NO.1 & 2 BRG
Manufacturer Code:0JAEC
Part Number:72-32-55
Part Name:SEAL - FRONT NO.1 BEARING
Manufacturer Code:0JAEC
Part Number:AN124971
Part Name:RIVET - 100 DEGREE, COUNTERSUNK
Manufacturer Code:88044
Part Number:AN960C416L
Part Name:WASHER
Manufacturer Code:88044
Part Number:AS12820
Part Name:CLIP
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS12850
Part Name:CLIP
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS12899
Part Name:BUSHING - 0.625 DIA
Manufacturer Code:U1653
Part Number:AS12943
Part Name:WASHER - FLAT
Manufacturer Code:U1653
Part Number:AS16446
Part Name:RIVET, SOLID CSK HEAD, 2.4MM (.094) DIA
Manufacturer Code:U1653
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21010
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9557-08BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.62596906
Part Number:AS21011
Part Name:BOLT,MACHINE DOUBLE HEX
Manufacturer Code:U1653
Part Number:AS21013
Part Name:BOLT - 0.25 DIA X 0.812
Manufacturer Code:U1653
Part Number:AS21014
Part Name:CLAMP - LOOP, DOUBLE HEX, .250 DIA X .875
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21030
Part Name:BOLT - MACHINE, DOUBLE HEXAGON - 0.250 DIA X 1.875
Manufacturer Code:U1653
Part Number:AS21117
Part Name:BOLT,MACHINE DOUBLE HEX
Manufacturer Code:U1653
Part Number:AS21119
Part Name:BOLT - MACHINE, DOUBLE HEXAGON - 0.3125 DIA X 1.188
Manufacturer Code:U1653
Part Number:AS21128
Part Name:BOLT - MACHINE, DOUBLE HEXAGON
Manufacturer Code:U1653
Part Number:AS21413
Part Name:BOLT - 0.190 DIA X 0.812
Manufacturer Code:U1653
Part Number:AS21510
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-08BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.62596906
Part Number:AS21511
Part Name:BOLT- MACHINE DOUBLE HEX, .250 DIA X .688
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-09BOLT, MACHINE DOUBLE HEX96906
Part Number:AS21512
Part Name:BOLT - 0.25 DIA X 0.750
Manufacturer Code:U1653
Part Number:AS21909
Part Name:BOLT - 0.19 DIA X 0.562
Manufacturer Code:U1653
Part Number:AS41104
Part Name:NUT - 0.19 DIA
Manufacturer Code:U1653
Part Number:AS43013-012
Part Name:RING
Manufacturer Code:U1653
Part Number:AS43013-016
Part Name:RING - SEALING, TOROIDAL
Manufacturer Code:U1653
Part Number:AS43013-108
Part Name:RING - SEALING, TOROIDAL
Manufacturer Code:U1653
Part Number:AS43013-110
Part Name:RING - SEAL, 9.19 MM ID X 2.62 MM
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS43013-116
Part Name:PACKING - 18,72MM I/DIA X 2,62
Manufacturer Code:U1653
Part Number:AS43013-120
Part Name:RING - SEALING, TOROIDAL
Manufacturer Code:U1653
Part Number:AS43013-123
Part Name:RING
Manufacturer Code:U1653
Part Number:AS43013-126
Part Name:RING
Manufacturer Code:U1653
Part Number:AS43013-132
Part Name:RING - SEAL, 1.737 ID X 0.103
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS43013-148
Part Name:RING
Manufacturer Code:U1653
Part Number:AS44800
Part Name:PIN - SHOULDER, HEADLESS
Manufacturer Code:U1653
Part Number:AS48015
Part Name:BOLT - 0.190 DIA X 0.438
Manufacturer Code:U1653
Part Number:AS51015
Part Name:SCREW - COUNTERSUNK, HEAD
Manufacturer Code:U1653
Part Number:LJ32698
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:MS21060L4
Part Name:NUT - ANCHOR
Manufacturer Code:96906
Part Number:MS21295-44
Part Name:BOLT
Manufacturer Code:96906
Part Number:MS51496C75
Part Name:WASHER
Manufacturer Code:96906
Part Number:MS51496P75
Part Name:WASHER
Manufacturer Code:96906
Part Number:MS9321-10
Part Name:WASHER - FLAT, 0.500 X 0.276 X 0.062
Manufacturer Code:96906
Part Number:MS9321-11
Part Name:WASHER
Manufacturer Code:96906
Part Number:MS9549-11
Part Name:WASHER - FLAT
Manufacturer Code:96906
Part Number:MS9557-08
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21010BOLT - .250 DIA X .625U1653
AS21510BOLT - .250 DIA X .625U1653
Part Number:MS9557-09
Part Name:BOLT, MACHINE DOUBLE HEX
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21511BOLT- MACHINE DOUBLE HEX, .250 DIA X .688U1653
Part Number:NAS1102E4-21
Part Name:SCREW
Manufacturer Code:80205
Part Number:NAS1102E4R15
Part Name:SCREW
Manufacturer Code:80205
Part Number:SUPP0RT
Part Name:SUPPORT
Manufacturer Code:0AM53
