TASK 72-32-00-030-005-A00 LPC/Intermediate Case Module - Remove The Fan Case, Oil Seal Tube, No. 1, 2, 3 Bearing Scavenge Tube, Hot Vent Tube, Brush Seal, PTO Shaft, And Identification Plates, Disassembly-005

DMC:V2500-A1-72-32-0000-05A-530A-B|Issue No:002.00|Issue Date:2020-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-32-00-030-005-A00 LPC/Intermediate Case Module - Remove The Fan Case, Oil Seal Tube, No. 1, 2, 3 Bearing Scavenge Tube, Hot Vent Tube, Brush Seal, PTO Shaft, And Identification Plates, Disassembly-005

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved penetrating oil before the removal of threaded parts. Let the parts soak before removal. For the approved oils and procedures, refer to the SPM TASK 70-64-00-640-501.

Discard all rubber seal rings removed in this procedure.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

The No. 1 strut, which is the top position strut of the fan frame assembly, is identified by the five pressure tubes on the No. 1 strut leading edge.

This TASK gives the procedure to remove the fan case, the oil seal tube, the No. 1, 2, 3 bearing scavenge tube, the hot vent tube, the brush seal and the PTO shaft.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1J12010 Storage stand0AM53IAE 1J120101
IAE 1J12023 Hooking puller0AM53IAE 1J120231
IAE 1J12311 Turnover stand0AM53IAE 1J123111
IAE 1J12317 Turnover adapter0AM53IAE 1J123171
IAE 1J12487 Rear sling0AM53IAE 1J124871
IAE 1J12494 Puller bolt set0AM53IAE 1J124941

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-030-095 Remove the Front Bearing Compartment Rear Air Seal Assembly (Seal Assembly) from the Frame Assembly

    1. Refer to Figure.

    2. Make sure that the fan frame and fan case assembly is installed horizontally on the turnover stand. Refer to TASK 72-32-00-030-004-A00 or TASK 72-32-00-030-004-B00.

    3. Remove the 18 bolts which attach the rear brush seal holder of the seal assembly to the fan frame assembly. Remove the seal assembly and put it on a work bench with the front end up.

    2. SUBTASK 72-32-00-030-096 Remove the Retaining Ring from the Seal Assembly and Disassemble the Seal Assembly

    1. Refer to Figure.

    2. Remove the retaining ring from the groove in the rear brush seal holder of the seal assembly.

    3. Remove the brush seal of the seal assembly from the rear brush seal holder.

    3. SUBTASK 72-32-00-030-097 Turn the Fan Frame and Fan Case Assembly to the Rear End Up Position

    1. Refer to Figure.

      2. Release the fan case front flange from the stopper base and stopper assembly (part of the turnover stand).

      1. Loosen the two knobs (part of the turnover stand) to release the fan case front flange from the stopper.

      2. Loosen the set screw (part of the turnover stand) so that you can turn the adjuster (part of the turnover stand).

      3. Turn the adjuster counterclockwise to lower the stopper until it is clear of the fan case front flange.

      4. Remove the stopper base and stopper assembly from the turnover stand.

    3. Release the lock pin from the holes in the handle and the support C (part of the turnover stand).

    4. Turn the handle to set the fan frame and fan case assembly vertical with the rear end up.

    5. NOTE

      Make sure that the hole in the support C and one of the eight holes in the handle are aligned. If necessary, turn the handle to make the two holes aligned.

      Install the lock pin in to position to lock the handle.

    4. SUBTASK 72-32-00-030-098 Remove the Holding Cap from the Oil Seal Tube in the No. 6 Strut

      NOTE

      The holding cap is installed on to the oil seal tube in TASK 72-00-60-020-003-001 (REMOVAL-003), TASK 72-00-60-020-003-002 (REMOVAL-004) and TASK 72-32-00-430-011 (ASSEMBLY-011).

    1. Refer to Figure.

    2. Cut the lockwire which safeties the cap screws. Discard the lockwire.

    3. Remove the two bolts, spring washers and washers (part of the holding cap) which attach the holding cap to the oil seal tube. Remove the holding cap.

      4. Remove the two bolts (engine parts) from the holding cap.

      1. Loosen the two nuts (part of the holding cap) to release the bolts from the holding cap.

      2. Remove the bolts from the threaded holes in the holding cap.

      3. Remove the nuts from the bolts.

    5. SUBTASK 72-32-00-030-099 Remove the PTO Shaft from the Fan Frame Strut

    1. Refer to Figure.

    2. Remove the two remaining bolts which attach the oil seal tube to the fan case.

      3. Install IAE 1J12023 Hooking puller 1 off on to the PTO shaft and the oil seal tube.

      1. Attach the screw rod (part of the hooking puller) to the PTO shaft and safety with the two segments of jaw and the sleeve.

      2. Install the guide and adapter assembly (part of the hooking puller) on to the oil seal tube through the screw rod. Safety the guide with the four bolts (part of the hooking puller). Tighten the bolts.

      3. Lubricate the threads on the screw rod with CoMat 10-077 APPROVED ENGINE OILS.

      4. Install the nut (part of the hooking puller) on to the screw rod and turn the nut clockwise to move it adjacent to the adapter.

      5. Align the two lugs on the nut with the two slots in the adapter.

      6. Turn the screw rod counter-clockwise to move the nut until it touches the adapter.

      7. Turn the nut clockwise to engage the two lugs with the two slots.

    4. Turn the screw rod clockwise with a wrench to pull the PTO shaft until the movement of the PTO shaft becomes light.

      5. Remove the hooking puller from the PTO shaft and the oil seal tube.

      1. Turn the nut counter-clockwise to disengage the two lugs from the two slots.

      2. Turn the screw rod clockwise to move the nut until it is clear of the adapter.

      3. Turn the nut counter-clockwise to remove it from the screw rod.

      4. Remove the bolts which attach the guide to the oil seal tube. Remove the guide and the adapter assembly from the oil seal tube.

      5. Remove the sleeve, the segments of the jaw which attach the screw rod to the PTO shaft. Remove the screw rod.

    6. Remove the PTO shaft from the oil seal tube.

    6. SUBTASK 72-32-00-030-100 Remove the No. 1, 2, 3 Bearing Scavenge Tube and the Hot Vent Tube from the No. 6 and No. 3 Struts

    1. Refer to Figure and Figure.

    2. Remove the three bolts which attach the scavenge tube cover and the No. 1, 2, 3 bearing scavenge tube to the fan case, Figure remove the scavenge tube cover.

      3. Remove the scavenge tube from the No. 6 strut, Figure.

      1. Install the three puller bolts (part of IAE 1J12494 Puller bolt set 1 off) in to the three threaded holes in the scavenge tube flange.

      2. Tighten the three puller bolts equally until the scavenge tube is released from the No. 6 strut.

      3. Remove the puller bolts from the threaded holes in the scavenge tube flange.

      4. Remove the scavenge tube from the No. 6 strut.

      5. Remove the sealing ring from the scavenge tube and discard the sealing ring.

    4. Remove the three bolts which attach the hot vent tube cover and the hot vent tube to the fan case, Figure. Remove the hot vent tube cover.

      5. Remove the hot vent tube from the No. 3 strut, Figure.

      1. Install the three puller bolts (part of IAE 1J12494 Puller bolt set 1 off) in to the three threaded holes in the hot vent tube flange.

      2. Tighten the three puller bolts equally until the hot vent tube is released from the No. 3 strut.

      3. Remove the puller bolts from the threaded holes in the hot vent tube flange.

      4. Remove the hot vent tube from the No. 3 strut.

      5. Remove the sealing ring from the hot vent tube and discard the sealing ring.

    7. SUBTASK 72-32-00-030-101 Remove the Oil Seal Tube from the No. 6 Strut

    1. Refer to Figure.

      2. Remove the oil seal tube from the No. 6 strut.

      1. Install the three puller bolts (part of IAE 1J12494 Puller bolt set 1 off) in to the three threaded holes in the oil seal tube flange.

      2. Tighten the three puller bolts equally until the oil seal tube is released from the No. 6 strut.

      3. Remove the puller bolts from the threaded holes in the oil seal tube flange.

      4. Remove the oil seal tube from the No. 6 strut.

      5. Remove the three sealing rings from the oil seal tube. Discard the sealing rings.

    8. SUBTASK 72-32-00-030-102 Install the Rear Sling on to the Fan Frame Rear Flange of the Fan Frame and Fan Case Assembly

    1. Refer to Figure.

    2. Attach a hoist to IAE 1J12487 Rear sling 1 off.

    3. Move the rear sling adjacent to the fan frame rear flange.

    4. Align the 20 holes in the lift sling (part of the rear sling) with the 20 holes in the fan frame rear flange.

    5. Attach the lift sling to the fan frame rear flange and safety with the four ring stoppers and the 20 bolts (part of the rear sling). Tighten the bolts.

    9. SUBTASK 72-32-00-030-103 Move the Fan Frame and Fan Case Assembly from the Turnover Stand to the Storage Stand

    1. Refer to Figure and Figure.

    2. Adjust the hoist to make the hoist rope/chain tighter.

    3. Remove the four bolts and washers which attach each plate to the supports A and B of the turnover stand, Figure.

    4. Remove the two plates from the supports A and B.

    5. Slowly lift the fan frame and fan case assembly to disengage the brackets A and B from the supports A and B.

    6. Move the fan frame and fan case assembly on to IAE 1J12010 Storage stand 1 off, Figure.

    10. SUBTASK 72-32-00-030-104 Remove the Brackets A and B and Two Adapters from the Fan Case

    1. Refer to Figure.

    2. Remove the four bolts and washers which attach each of the brackets A and B to the adapter. Remove the brackets A and B.

    3. Remove the two bolts and nuts which attach each adapter to the fan case flanges FD and FE. Remove the adapters.

    11. SUBTASK 72-32-00-030-106 Install the Brackets A and B to the Turnover Stand

    1. Refer to Figure and Figure.

    2. Attach a second hoist to the shackle of the bracket A (part of IAE 1J12317 Turnover adapter 1 off).

    3. Lift the bracket A and engage the square rod end of the bracket with the slot in the support A (part of IAE 1J12311 Turnover stand 1 off).

    4. Install the plate (part of the turnover stand) on to the support A and safety with the four bolts and washers (part of the turnover stand). Tighten the bolts.

    5. Remove the hoist from the shackle of the bracket A.

      6. Install the bracket B in to the slot in the support B (part of the turnover stand).

      1. Do Step to Step with bracket B to install it in to the slot in the support B.

    12. SUBTASK 72-32-00-030-105-A00 Remove the Fan Frame Assembly from the Fan Case (Pre SBE 72-0435)

    1. Refer to Figure and Figure.

    2. Tighten the hoist rope/chain.

    3. Remove the 70 bolts and the 20 dee head bolts and nuts which attach the fan frame assembly to the fan case.

    4. Slowly lift the fan frame assembly until it is clear of the fan case.

    13. SUBTASK 72-32-00-030-105-B00 Remove the Fan Frame Assembly from the Fan Case (SBE 72-0435)

      SBE 72-0435: Introduction of fan case, panel and bracket scalloped for No. 4 scavenge tube reroute

    1. Refer to Figure and Figure.

    2. Tighten the hoist rope/chain.

    3. Remove the 68 bolts and the 20 dee head bolts and nuts which attach the fan frame assembly to the fan case.

    4. Remove the two bolts which attach the bracket and the fan frame assembly to the fan case at 6 o'clock positions.

    5. Remove the bracket.

    6. Slowly lift the fan frame assembly until it is clear of the fan case.

    14. SUBTASK 72-32-00-030-107 Install the Fan Frame Assembly to the Turnover Stand

    1. Refer to Figure and Figure.

    2. Move the fan frame assembly adjacent to the brackets A and B, Figure.

    3. NOTE

      Do not tighten the bolts at this step.

      Align the 10 bolt holes in the bracket A with the 10 threaded holes in the No. 3 and No. 4 struts. Safety with the 10 bolts and washers (part of IAE 1J12317 Turnover adapter 1 off).

    4. NOTE

      Do not tighten the nuts at this step.

      Align the four bolt holes in the bracket A with the four bolt holes in the flanges of the No. 3 and No. 4 struts. Safety with the four socket head cap screws, four nuts and the eight washers (part of the turnover adapter).

    5. Tighten equally the 10 bolts and the four nuts until the bracket A fully touches each end of the No. 3 and No. 4 struts.

      6. Attach the No. 8 and No. 9 struts of the fan frame assembly to the bracket B.

      1. Do steps Step to Step with No. 8 and No. 9 struts and bracket B to attach the struts to the bracket B.

    7. NOTE

      Make sure that the holes in the support C and one of the eight holes in the handle are aligned. If necessary, turn the handle to make the two holes aligned.

      Install the lock pin in to position to lock the handle of the turnover stand, Figure.

    15. SUBTASK 72-32-00-030-108 Remove the Rear Sling from the Fan Frame Rear Flange

    1. Refer to Figure.

    2. WARNING

      DO NOT REMOVE THE REAR SLING UNTIL AFTER THE INSTALLATION OF THE LOCK PIN INTO THE HANDLE OF THE TURNOVER STAND. THIS CAN PREVENT THE ROTATION OF THE FAN FRAME AND FAN CASE ASSEMBLY AND INJURY TO PERSONS.

      Remove the 20 bolts and the four ring stoppers which attach the rear sling to the rear flange of the fan frame assembly.

    3. Lift and move the rear sling from the rear flange to a work bench.

    4. Remove the hoist from the rear sling.

    16. SUBTASK 72-32-00-030-109 Turn the Fan Frame Assembly to the Front End Up Position

    1. Refer to Figure.

    2. Release the lock pin from the holes in the handle and the support C of the turnover stand.

    3. Turn the handle to set the fan frame assembly horizontal with the front end up.

    4. NOTE

      Make sure that the hole in the support C and one of the eight holes in the handle are aligned. If necessary, turn the handle to make the two holes aligned.

      Install the lock pin in to position to lock the handle of the turnover stand.

    17. SUBTASK 72-32-00-030-229 Remove the Name Plate Bracket, the Engine Identification Plate and the Module Identification Plate from the Fan Case

    1. Refer to Figure.

    2. Remove the two bolts and nuts that attach the name plate bracket to the flange FE of the fan case.

    3. Remove the four bolts that attach the engine identification plate to the name plate bracket.

    4. Remove the two bolts that attach the module identification plate to the name plate bracket.

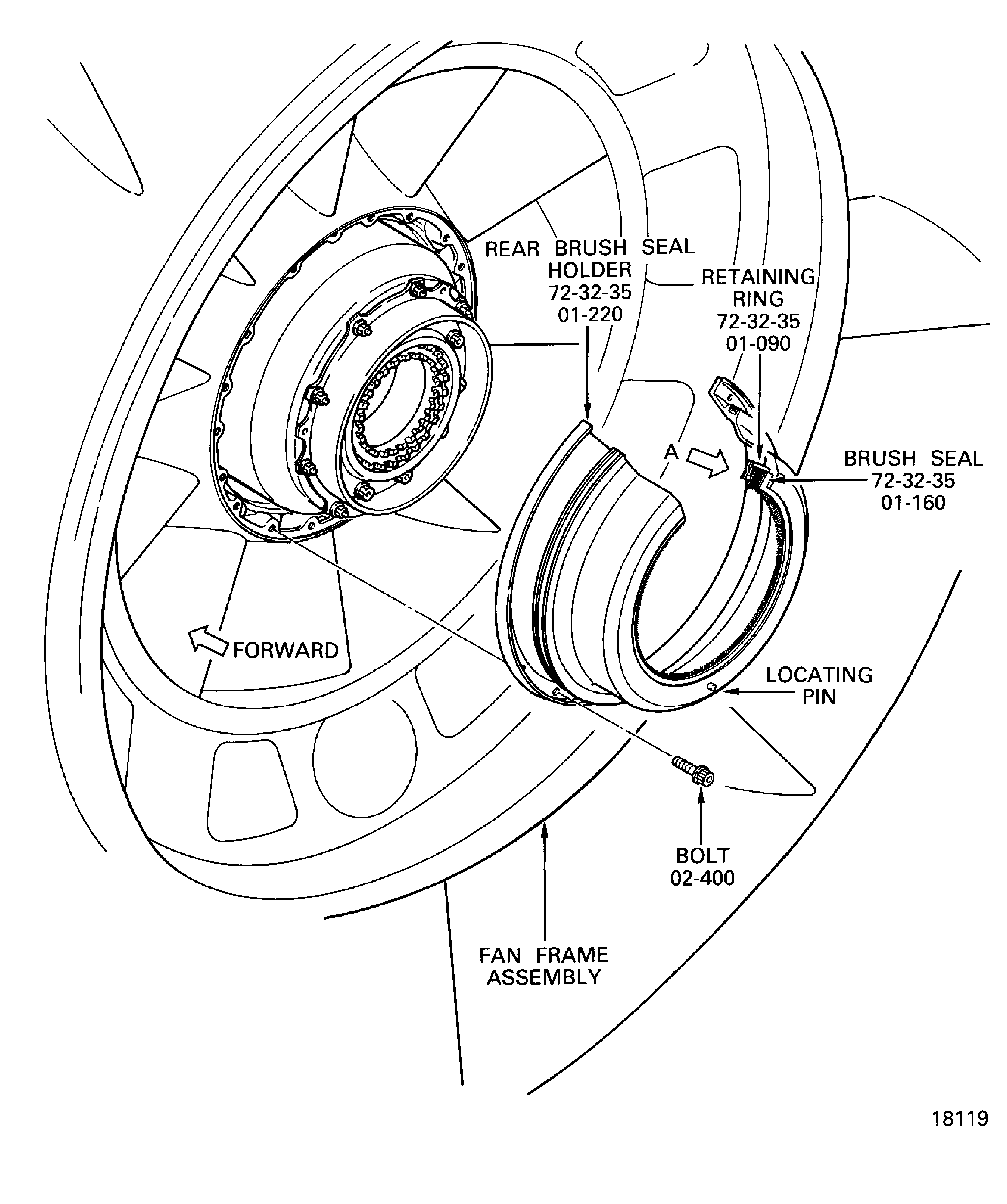

    18. Figure: Remove the front bearing compartment rear air seal assembly (the rear brush seal holder and the brush seal)

    Remove the front bearing compartment rear air seal assembly (the rear brush seal holder and the brush seal)

    Figure: Remove the stopper and release the lock pin to turn the fan frame and fan case assembly from horizontal to vertical

    Remove the stopper and release the lock pin to turn the fan frame and fan case assembly from horizontal to vertical

    Figure: Remove the holding cap from the oil seal tube

    Remove the holding cap from the oil seal tube

    Figure: Use the hooking puller to remove the PTO shaft

    Use the hooking puller to remove the PTO shaft

    Figure: Remove the covers from the scavenge tube and the hot vent tube

    Remove the covers from the scavenge tube and the hot vent tube

    Figure: Remove the scavenge tube and the hot vent tube from the No. 6 and No. 3 struts

    Remove the scavenge tube and the hot vent tube from the No. 6 and No. 3 struts

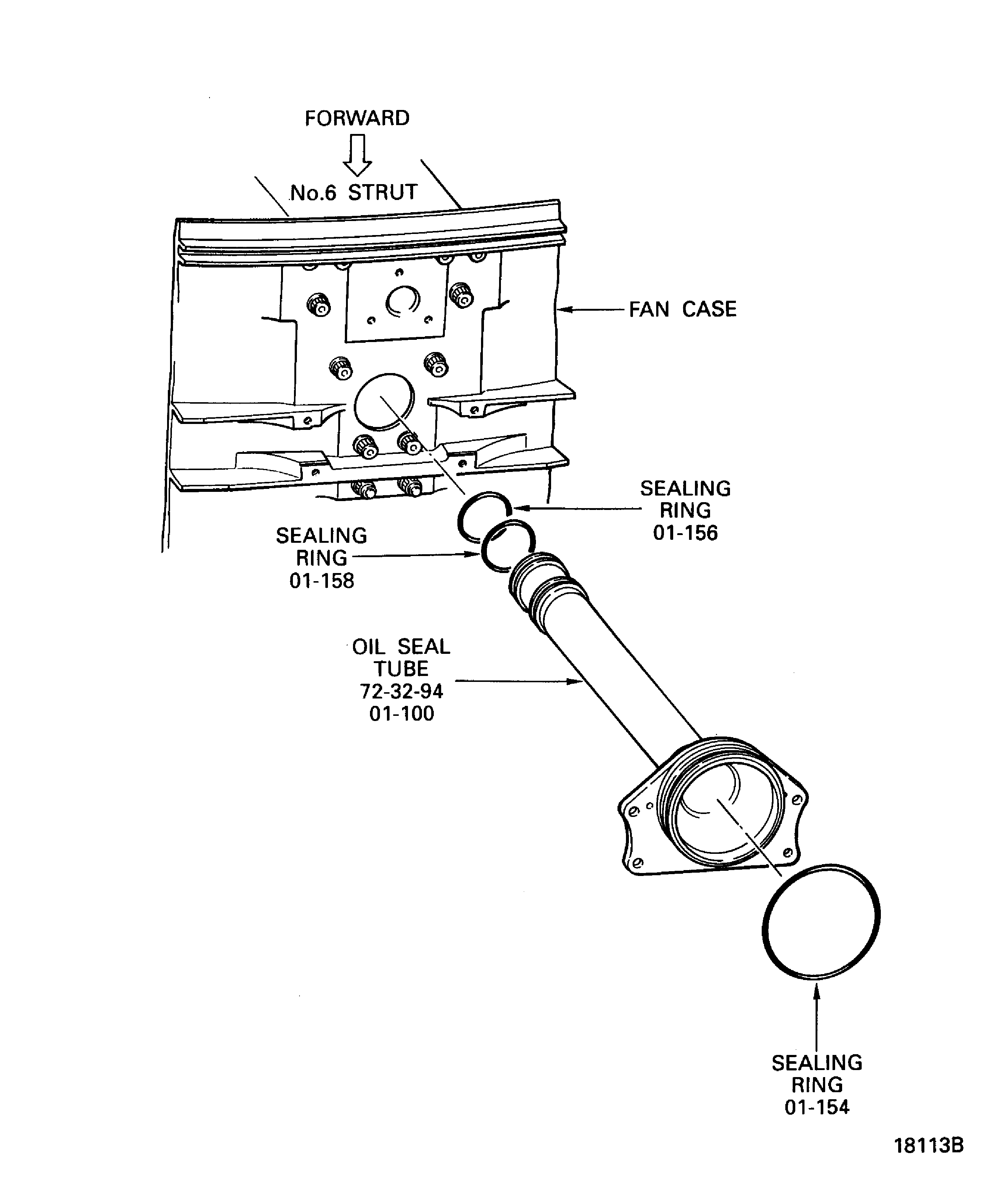

    Figure: Install the oil seal tube from the No. 6 strut

    Install the oil seal tube from the No. 6 strut

    Figure: Install the rear sling to the fan frame and fan case assembly

    Install the rear sling to the fan frame and fan case assembly

    Figure: Remove the fan frame and fan case assembly from the turnover stand

    Remove the fan frame and fan case assembly from the turnover stand

    Figure: Remove the fan frame assembly from the fan case

    Remove the fan frame assembly from the fan case

    Figure: Pre SBE 72-0435: Position of the bolts to attach the fan frame to the fan case

    Sheet 1

    Legend
    Pre SBE 72-0435: Position of the bolts to attach the fan frame to the fan case

    Sheet 1

    Close

    Figure: SBE 72-0435: Position of the bolts to attach the fan frame to the fan case

    Sheet 2

    Legend
    SBE 72-0435: Position of the bolts to attach the fan frame to the fan case

    Sheet 2

    Close

    Figure: Install the fan frame assembly to the turnover stand

    Install the fan frame assembly to the turnover stand

    Figure: Install the lock pin in to position to lock the handle of the turnover stand

    Install the lock pin in to position to lock the handle of the turnover stand

    Figure: Remove the rear sling from the fan frame assembly

    Remove the rear sling from the fan frame assembly

    Figure: Remove the name plate bracket, the engine identification plate and the module identification plate from the fan case

    Remove the name plate bracket, the engine identification plate and the module identification plate from the fan case

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised and deleted note. (19VC647)

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:X333X
Supply Number:CoMat 10-077
Type:sp01
Supply Short Name:CoMat 10-077 APPROVED ENGINE OILS
Supply Name:CoMat 10-077 APPROVED ENGINE OILS
Specification Groups:
Doc NumberType
For V2500-A1/A5/D5 models - Refer to V2500 Service Bulletin ENG-79-0108
For V2500-E5 model - Refer to Service Bulletin E5-79-0001
Suppliers:
ManufacturerRemarks
X333X
Manufacturer Code:0AM53
Tool Number:IAE 1J12010
Tool Name:IAE 1J12010 Storage stand
Manufacturer Code:0AM53
Tool Number:IAE 1J12023
Tool Name:IAE 1J12023 Hooking puller
Manufacturer Code:0AM53
Tool Number:IAE 1J12311
Tool Name:IAE 1J12311 Turnover stand
Manufacturer Code:0AM53
Tool Number:IAE 1J12317
Tool Name:IAE 1J12317 Turnover adapter
Manufacturer Code:0AM53
Tool Number:IAE 1J12487
Tool Name:IAE 1J12487 Rear sling
Manufacturer Code:0AM53
Tool Number:IAE 1J12494
Tool Name:IAE 1J12494 Puller bolt set
