TASK 72-32-00-430-012-A00 LPC/Intermediate Case Module - Install The Fan Case Liner Panels, Panel Rubber Seals, Fan Exit Guide Vanes, Acoustic Linings, And Rear Fairing, Assembly-012 - Pre SBE 72-0103, Pre SBE 72-0105

DMC:V2500-A1-72-32-0000-12A-710A-B|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1 AND Pre SBE 72-0103 AND Pre SBE 72-0105

Common Information

TASK 72-32-00-430-012-A00 LPC/Intermediate Case Module - Install The Fan Case Liner Panels, Panel Rubber Seals, Fan Exit Guide Vanes, Acoustic Linings, And Rear Fairing, Assembly-012 - Pre SBE 72-0103, Pre SBE 72-0105

General

This TASK gives the procedure to install the fan case liner panels, the panel rubber seals, the fan exit guide vanes, the acoustic linings and the rear fairing. For the other parts of the LP compressor/intermediate case module, refer to TASK 72-32-00-430-000 (ASSEMBLY-000)

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501 and SPM TASK 70-41-02-400-501.

Special torque data is identified with the symbol * after the value.

Lubricate all threads and abutment faces of nuts and bolts with approved engine oils, unless other lubricants are referred to in the procedure. For the approved engine oils and procedures, refer to the SPM TASK 70-64-00-640-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

The No.1 strut, which is the top position strut of the fan frame assembly, is identified by the five pressure tubes on the No.1 strut leading edge.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Sealant dispenserLOCALSealant dispenser

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-031 ACETONE (CH3)2COLOCALCoMat 01-031
CoMat 01-124 ISOPROPYL ALCOHOLLOCALCoMat 01-124
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014
CoMat 08-045 SILICONE RUBBER COMPOUNDLOCALCoMat 08-045

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-430-158 Install the Fan Case Liner Panels and the Panel Rubber Seals on to the Fan Case

    1. Refer to Figure, Figure, Figure and Figure.

    2. Turn the fan frame and fan case assembly to the horizontal position with the No.1 strut up. Refer to TASK 72-32-00-430-011-A00 (ASSEMBLY-011, CONFIG-001).

      1. Attach the fan case liner panels to the inner faces on the fan case with the 10 screws (02-805), screw (02-815), nine screws (02-820), 11 screws (02-830) and the two nuts (02-828).

      2. Tighten the screws lightly.

      1. Attach the panel rubber seals to the fan case liner panels with 20 screws (02-810), two screws (02-815), 18 screws (02-820), 20 screws (02-825), two nuts (02-813) and two nuts (02-823).

      2. Tighten the screws lightly.

    5. Torque the screws to 75 to 85* lbfin (8.48 and 9.61 Nm).

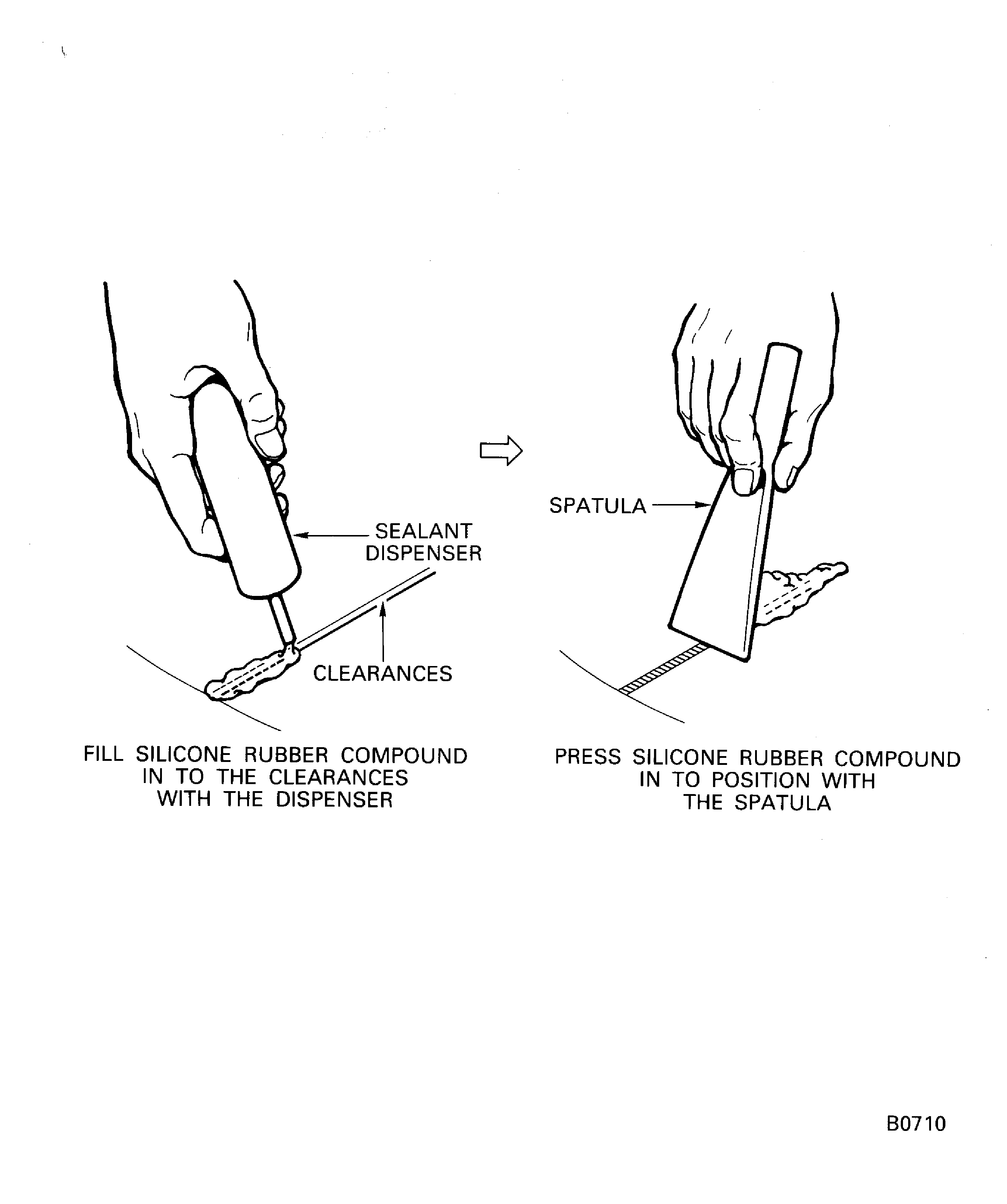

    2. SUBTASK 72-32-00-430-159 Fill the Clearances Between the Panels and the Seals and the Corners around the Struts with Silicone Compound

    1. Refer to Figure.

    2. Make a clean cloth or a soft brush moist with CoMat 01-031 ACETONE (CH3)2CO or CoMat 01-124 ISOPROPYL ALCOHOL.

      3. Clean the surfaces in these areas:

      1. The clearances PA between the fan case liner panels.

      2. The clearances PB between the panel rubber seals and the fan case liner panels.

      3. The corners PC around the struts.

      4. The clearances PD between the panel rubber seals and the struts.

      5. NOTE

        Application of silicone rubber compound to the corner PC is not necessary if the dimension F is between -0.039 and 0.039 in. (-1 and 1 mm).
        Application of silicone rubber compound to the clearance PD is not necessary if the clearance is not more than 0.059 in. (1.5 mm).
        Application of silicone rubber compound to the clearance PE is not necessary if the clearance is closed.

        The clearances PE between the cut faces of the panel rubber seals.

    4. NOTE

      Apply the primer in less than eight hours after the areas are cleaned.

      Apply a thin layer of CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT with a soft brush to the areas. Air dry for 30 minutes minimum.

    5. Fill CoMat 08-045 SILICONE RUBBER COMPOUND or CoMat 08-013 COLD CURING SILICONE COMPOUND into the clearances PA, PB, PD and PE and the corners PC with a sealant dispenser.

    6. NOTE

      Press the silicone compound into position immediately after it is applied to each clearance and corner.

      Press the silicone compound into position with a spatula.

      Let the silicone compound cure at room temperature for 48 hours. Do not apply load during this time.

    3. SUBTASK 72-32-00-430-284 Install the Rear Fairing on to LP Compressor Bleed Duct

    1. Refer to Figure.

    2. Move the rear fairing adjacent to the LP compressor bleed duct.

    3. Align the 10 bolt holes in the rear fairing with the 10 threaded holes in the LP compressor bleed duct.

    4. Attach the rear fairing to the LP compressor bleed duct with the 10 bolts (02-852) and washers (02-855). Torque the bolts to 36 to 45 lbfin (4.00 to 5.00 Nm).

    4. SUBTASK 72-32-00-430-285 Fill the 10 Recesses in the Rear Fairing with Silicone Compound

    1. Refer to Figure.

    2. Put applicable masking tape on the areas on the screens next to the recesses in the rear fairing.

    3. Use a clean cloth or a soft brush made moist with CoMat 01-031 ACETONE (CH3)2CO or CoMat 01-124 ISOPROPYL ALCOHOL to clean the surface of the 10 recesses A.

    4. NOTE

      Apply the primer in less than eight hours after the surfaces are cleaned.

      Apply a thin layer of CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT with a soft brush to the surface of the 10 recesses A. Air dry for 30 minutes minimum.

    5. Fill CoMat 08-013 COLD CURING SILICONE COMPOUND or CoMat 08-045 SILICONE RUBBER COMPOUND from the nozzle of the compound tube into the 10 recesses A.

    6. Press the silicone compound into position with a spatula.

    7. Remove the masking tape from the screens.

    8. Cure the silicone compound at room temperature for 48 hours. Do not apply load during this time.

    5. SUBTASK 72-32-00-430-160 Prepare the Fan Exit Guide Vanes (FEGV) for Installation

    1. Refer to Figure.

    2. Make a clean cloth moist with CoMat 01-031 ACETONE (CH3)2CO or CoMat 01-124 ISOPROPYL ALCOHOL. Clean the two end faces on each outer platform of 20 FEGV's (72-32-88, 06-100, 06-300, 06-500, 06-700, 07-100, 07-300, 07-500, 07-700, 08-100, 08-300, 08-500, 08-700, 09-100, 09-300, 09-500, 09-700, 10-100, 10-300, 10-500 and 10-700.

    3. NOTE

      Apply the primer in less than eight hours after the end faces are cleaned.

      Apply the thin layer of CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT with a soft brush to the end faces. Air dry for 30 minutes minimum.

    6. SUBTASK 72-32-00-430-161 Install the 20 FEGVs to the Fan Case

    1. Refer to Figure.

    2. NOTE

      Make sure that the workmat has sufficient dimensions to give full protection to the lower half of the fan case.

      Put a workmat in position in the fan case.

    3. Attach the 20 FEGV's to the inner faces of the fan case with the 40 washers (01-372) and bolts (01-370), Figure. Tighten the bolts lightly.

      4. Install the 40 bolts (01-377) into the bushes of the LP compressor stage 2.5 vanes through the plate nuts of the FEGV's.

      1. Adjust the positions of the plate nuts and the FEGV's to align the plate nuts with the bush holes.

      2. Put the 40 washers (01-375) and the bolts into positions and tighten the bolts lightly.

    7. SUBTASK 72-32-00-430-286 Install the Brackets to the LP Compressor Rear Case

    1. Refer to Figure.

      2. Install the eight brackets A V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-600), B V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-675), C V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-645), D V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-630), E V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-705), F V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-615), G V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-690) and H V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-660) to the LP compressor rear case, Figure.

      1. NOTE

        The brackets E, F, G and H are almost the same in their shapes. Use Fig/item numbers (part numbers) referred to and two locating pins on each bracket to be installed. The distance between the two locating pins on each bracket is slightly different to make sure of the correct installation of the brackets.

        Attach the brackets to the rear flange of the LP compressor rear case with the 23 bolts V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-720).

      2. Torque the bolts to 36 to 45 lbfin (4.00 to 5.00 Nm).

    8. SUBTASK 72-32-00-430-162 Install the Acoustic Linings to the FEGVs

    1. Refer to Figure and Figure.

      2. Attach the five acoustic linings ENGINE-FAN CASE FRONT PANEL FAIRINGS (72-32-89, 01-100) to the FEGV's, Figure.

      1. Put the acoustic linings on to the inner face of the fan case and the FEGV's.

      2. Install the 20 washers (01-337) and bolts (01-335) which attach the acoustic linings and the FEGV's to the fan case. Tighten the bolts lightly.

      3. Install the 10 screws (01-310) and dimpled washers (01-315) which attach the end of one lining to the end of other lining. Tighten the screws lightly.

      3. Adjust the positions of the acoustic linings.

      1. Adjust the axial clearance between each acoustic lining and the fan case acoustic honeycomb. The clearance must be 0.016 in. (0.4 mm) or more.

      2. Adjust the circumferential clearance at five positions between the acoustic linings so that they are as equal as possible.

    4. Torque the 40 bolts (01-370) to 85 to 105 lbfin (10.00 to 12.00 Nm).

    5. Torque the bolts (01-335) to 85 to 105 lbfin (10.00 to 12.00 Nm).

    6. Torque the screws (01-310) to 85 to 105 lbfin (10.00 to 12.00 Nm).

    7. Torque the 40 bolts (01-377) to 160 to 200* lbfin (17.50 to 22.50 Nm).

    9. SUBTASK 72-32-00-430-163 Fill the Recesses and the Clearances in the FEGVs and the Acoustic Linings with Silicone Compound TASK 72-32-00-990-137

    1. Refer to: Figure and Figure

    2. Make a clean cloth or a soft brush moist with CoMat 01-031 ACETONE (CH3)2CO or CoMat 01-124 ISOPROPYL ALCOHOL.

      3. Clean the surfaces in theses areas:

      1. The 40 recesses B in the FEGV outer platforms, Figure.

      2. The 20 recesses C in the acoustic linings, Figure.

      3. The 40 recesses D in the FEGV inner platforms, Figure.

    4. NOTE

      Apply the primer in less than eight hours after the surfaces are cleaned.

      Apply thin layer of CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT with a soft brush to the faces of the recesses B, C and D. Air dry for 30 minutes minimum.

      5. Fill CoMat 08-013 COLD CURING SILICONE COMPOUND or CoMat 08-045 SILICONE RUBBER COMPOUND into the recesses B, C and D and the clearances E between the FEGV outer platforms.

      1. Fill the recesses B, C and D with silicone compound from the nozzle of the compound tube.

      2. Fill the clearance E with silicone compound with a sealant dispenser.

    6. NOTE

      Press the cold curing silicone compound into position immediately after it is applied to each of the recesses and clearances.

      Press the silicone compound into position with a spatula, Figure.

    7. Cure the silicone compound at the room temperature for 48 hours. Do not apply load during this time.

    10. Figure: Install the fan case liner panels to the fan case

    Install the fan case liner panels to the fan case

    Figure: Position of the screws and the nuts to attach the fan case liner panels to the fan case

    Position of the screws and the nuts to attach the fan case liner panels to the fan case

    Figure: Position of the screws and the nuts to attach the fan case liner panels to the fan case

    Position of the screws and the nuts to attach the fan case liner panels to the fan case

    Figure: Install the panel rubber seals on to the fan case liner panels

    Install the panel rubber seals on to the fan case liner panels

    Figure: Position of the screws and the nuts to attach the panel rubber seals to the fan case liner panels

    Position of the screws and the nuts to attach the panel rubber seals to the fan case liner panels

    Figure: Position of the screws and the nuts to attach the panel rubber seals to the fan case liner panels

    Position of the screws and the nuts to attach the panel rubber seals to the fan case liner panels

    Figure: Adjust the positions of the panel and the seals

    Adjust the positions of the panel and the seals

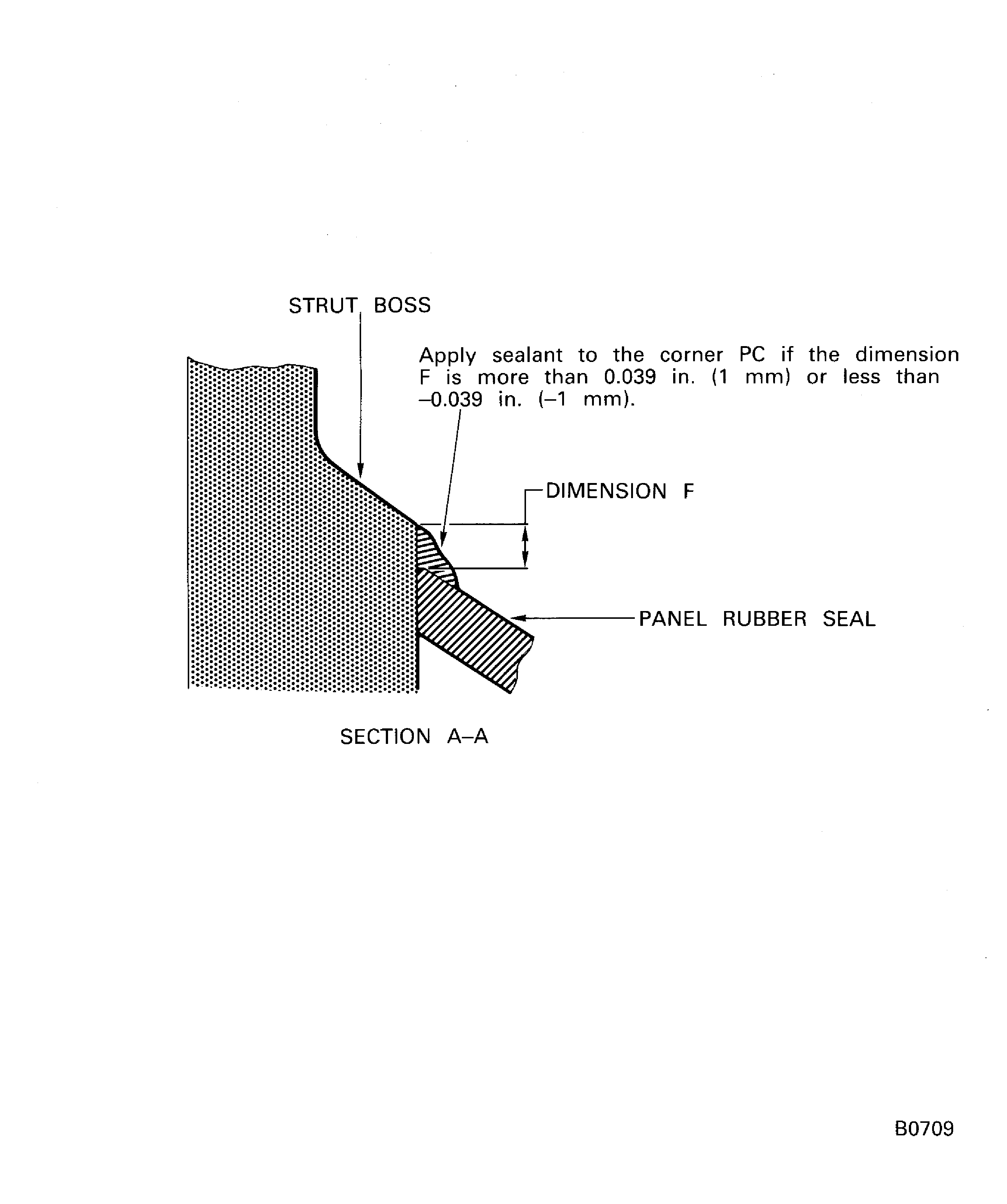

    Figure: Fill the clearances between the panels and the seals and the corners around the struts with sealant

    Fill the clearances between the panels and the seals and the corners around the struts with sealant

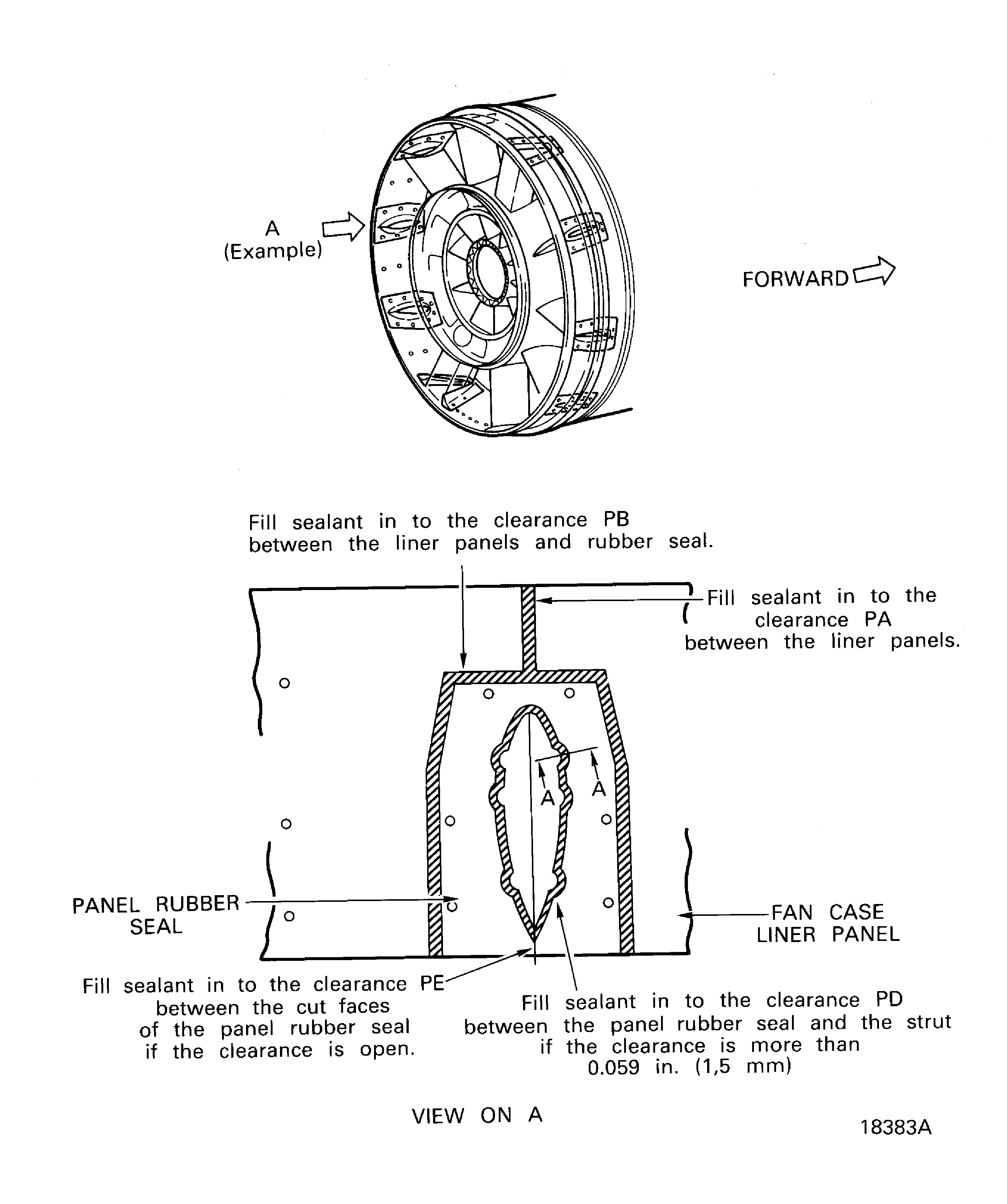

    Figure: Fill the clearances between the panels and the seals and the corners around the struts with sealant

    Fill the clearances between the panels and the seals and the corners around the struts with sealant

    Figure: Fill the clearances between the panels and the seals and the corners around the struts with sealant

    Fill the clearances between the panels and the seals and the corners around the struts with sealant

    Figure: Install the rear fairing on the LP compressor bleed duct

    Install the rear fairing on the LP compressor bleed duct

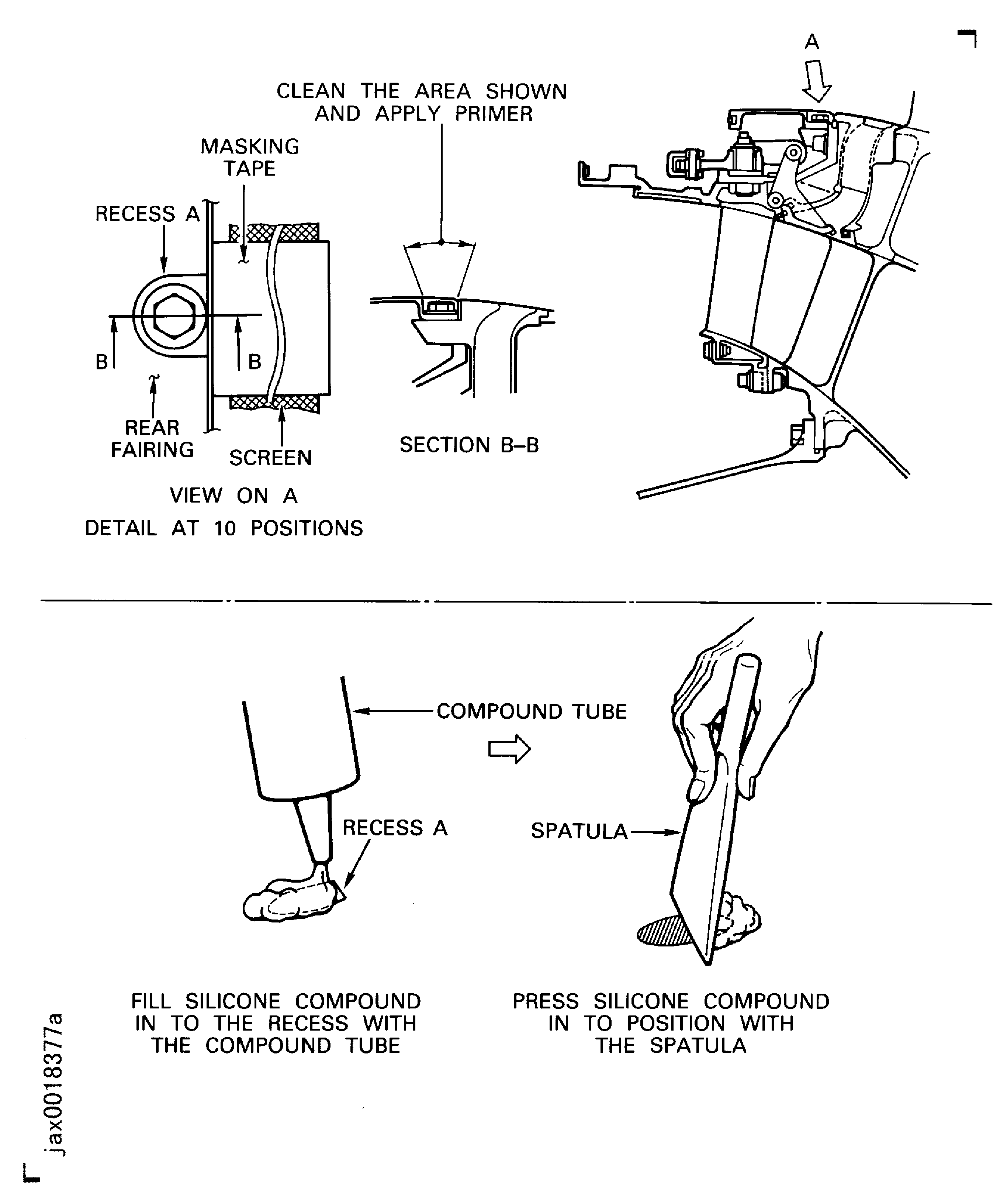

    Figure: Fill the recesses in the rear fairing with silicone compound

    Fill the recesses in the rear fairing with silicone compound

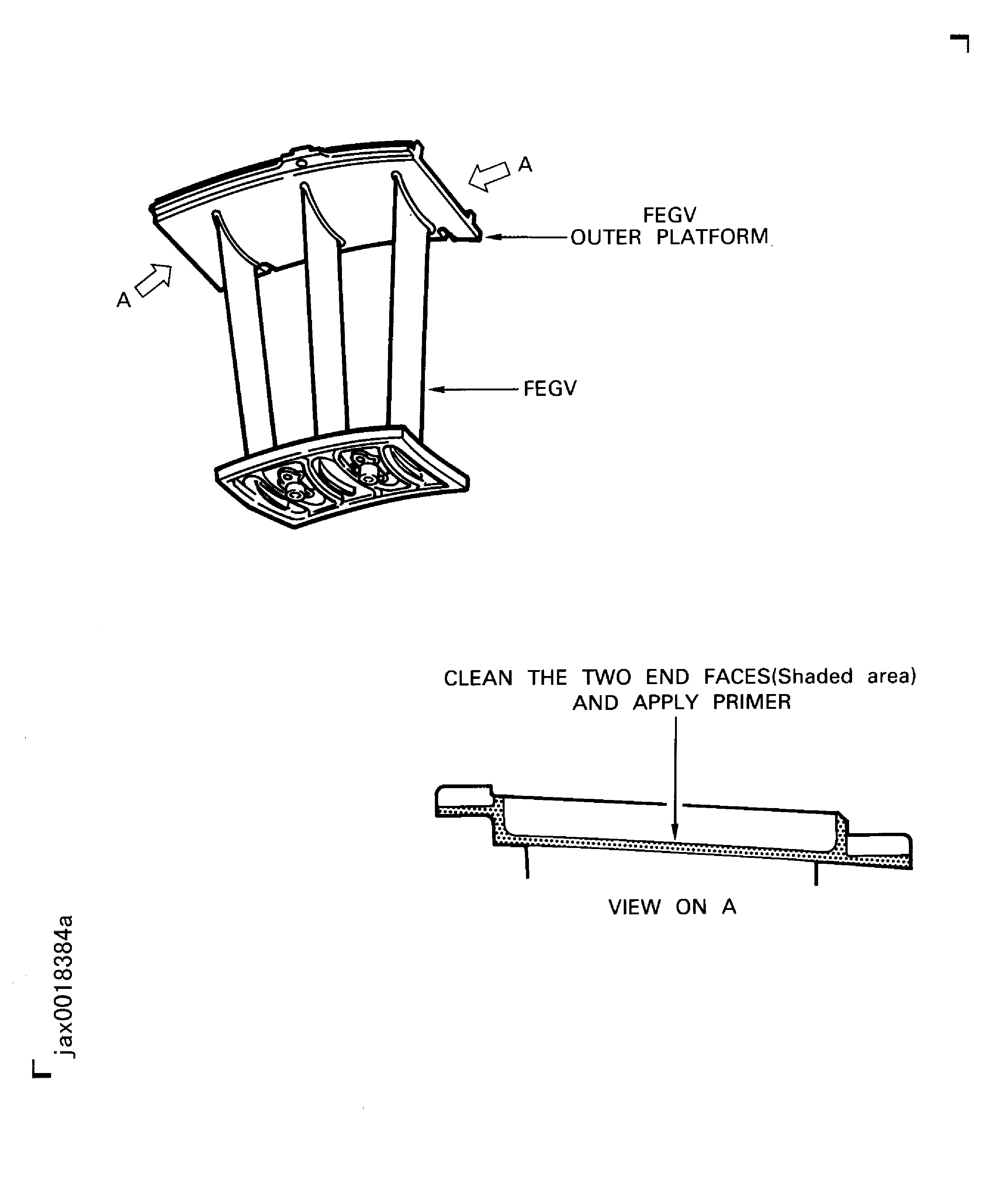

    Figure: Clean the end faces on the FEGV outer platforms and apply primer

    Clean the end faces on the FEGV outer platforms and apply primer

    Figure: Install the FEGVs to the fan case

    Install the FEGVs to the fan case

    Figure: Install the brackets on to the LP compressor rear case

    Install the brackets on to the LP compressor rear case

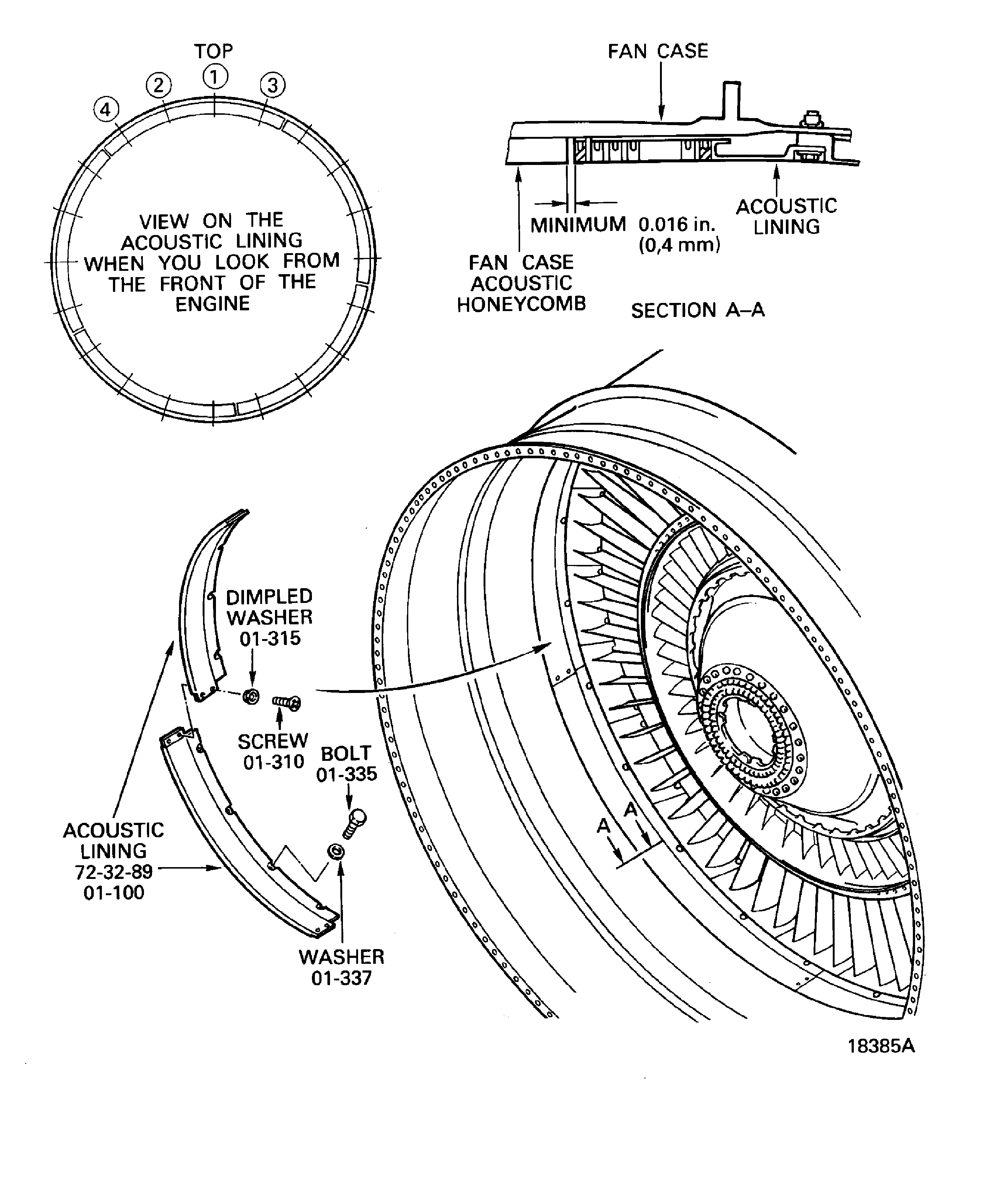

    Figure: Installation of the acoustic linings and torque sequence of the bolts (01-335)

    Installation of the acoustic linings and torque sequence of the bolts (01-335)

    Figure: Clean the surfaces of the recesses in the FEGV inner platforms and apply primer

    Clean the surfaces of the recesses in the FEGV inner platforms and apply primer

    Figure: Clean the surfaces of the recesses in the FEGV outer platforms and the acoustic linings and apply primer

    Clean the surfaces of the recesses in the FEGV outer platforms and the acoustic linings and apply primer

    Figure: Clean the surfaces of the recesses in the FEGV outer platforms and the acoustic linings and apply primer

    Clean the surfaces of the recesses in the FEGV outer platforms and the acoustic linings and apply primer

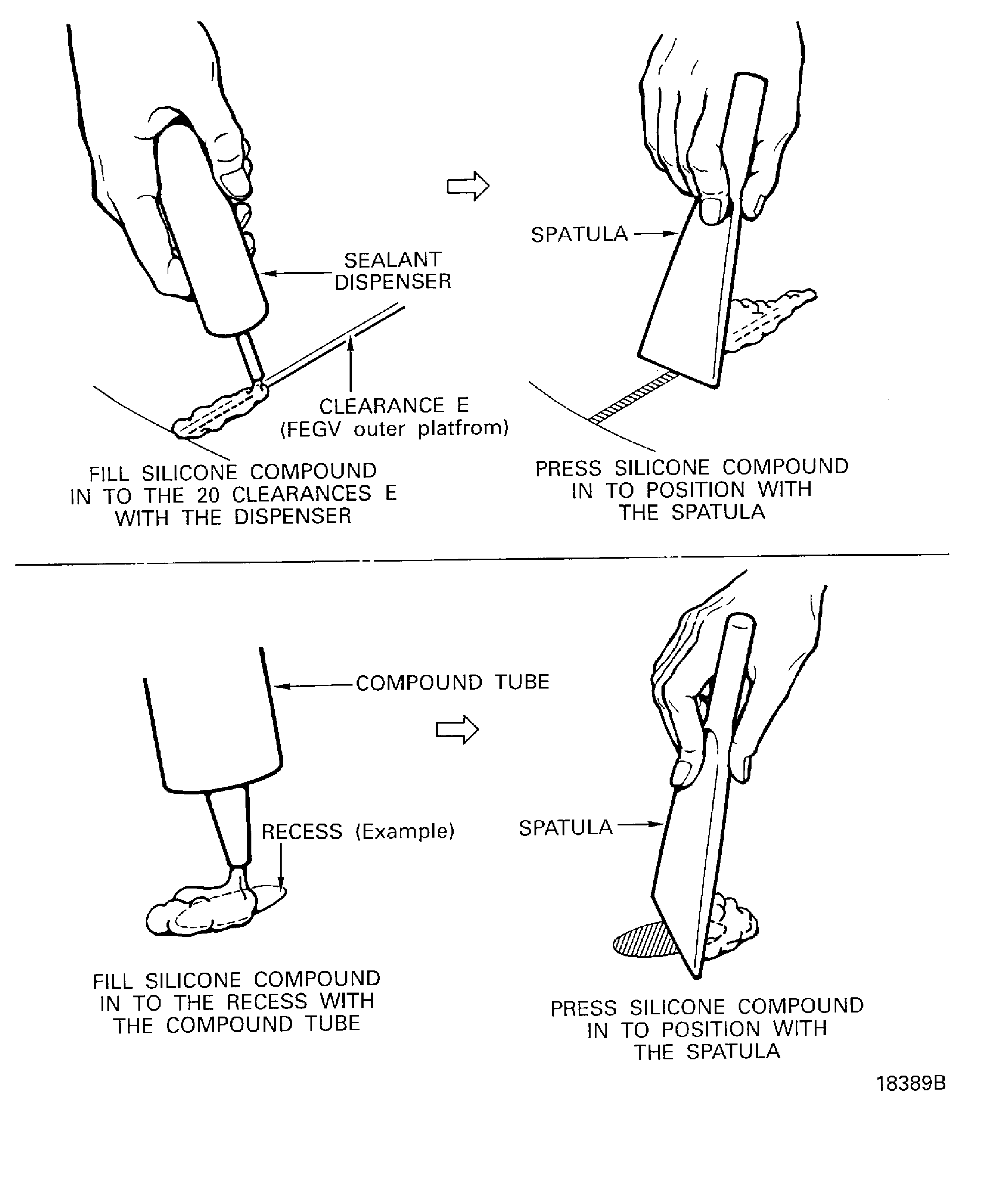

    Figure: Fill silicone compound in to the recesses and the clearances and press it in to position

    Fill silicone compound in to the recesses and the clearances and press it in to position
