DMC:V2500-A1-73-12-41-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73124101 | ENGINE FUEL AND CONTROL-LP & HP FUEL PUMPS, PRE SBE70-0011 | aa | ||
| SBE0011-01 | ENGINE FUEL AND CONTROL-LP & HP FUEL PUMPS, PRE SBE72-0081 | ab | ||
| SBE0081-01 | ENGINE FUEL AND CONTROL-LP & HP FUEL PUMPS, PRE SBE70-0099 | ac | ||
| SBE0099-01 | ENGINE FUEL AND CONTROL-LP & HP FUEL PUMPS, PRE SBE73-0067 | ad | ||
| SBE0067-01 | ENGINE FUEL AND CONTROL-LP & HP FUEL PUMPS, PRE SBE73-0068 | ae | ||
| SBE0068-01 | ENGINE FUEL AND CONTROL-LP & HP FUEL PUMPS, PRE SBE73-0143 | af | ||
| SBE0143-01 | ENGINE FUEL AND CONTROL-LP & HP FUEL PUMPS, PRE SBE70-0990 | ag | ||
| SBE0990-01 | ENGINE FUEL AND CONTROL-LP & HP FUEL PUMPS | ah | ||
| 080 | 740-5639-505 | • BRACKET 51563 Optional Part 740-5639-505 | aa-ah | 1 |
| 100 | S260200-5 | • PUMP - FUEL LP/HP 0AF71 REF No. 5L0067 | aa-ah | 1 |
| 100A | 5008735D | • PUMP - FUEL LP/HP 0AF71 REF No. 5L0067 PRE SBE73-0067 | aa-ad | 1 |
| 100B | 5008735E | • PUMP - LP/HP FUEL 0AF71 REF No. 5L0067 POST SBE73-0067 PRE SBE73-0068 | ae | 1 |
| 100C | 5008735F | • PUMP - LP/HP FUEL S4980 POST SBE73-0068 PRE SBE73-0143 | af-ah | 1 |
| 100D | 5008735G | • PUMP - FUEL LP/HP S4980 POST SBE73-0143 | af-ah | 1 |
| 120 | 4W0003 | • NUT - .3125 DIA Optional Part 4W0003 | aa-ah | 6 |
| 125 | AN960C516 | • WASHER 81352 PRE SBE72-0081 | aa-ah | 4 |
| 125A | MS9321-11 | • WASHER 96906 POST SBE72-0081 | aa-ah | 4 |
| 135 | AS43013-156 | • RING - SEALING TOROIDAL U1653 | aa-ah | 1 |
| 145 | M83248-1-216 | • SEAL - RING 81349 PRE SBE70-0990 | aa-ah | 1 |
| 145A | M83248-1-216 | • SEAL - RING 81349 ALT AS3209-216 POST SBE70-0990 | aa-ah | 1 |
| -145B | AS3209-216 | • PACKING - PREFORMED U1653 ALT M83248-1-216 POST SBE70-0990 | aa-ah | REF |
| 146 | 5009493 | • • TUBE - TEE-FITTING 0AF71 POST SBE70-0099 | ad-ah | 1 |
| 148 | 5009528 | • • NUT 0AF71 POST SBE70-0099 | ad-ah | 1 |
| 149 | MS9058-05 | • • RETAINER 96906 POST SBE70-0099 | ad-ah | 1 |
| 150 | M25988-1-905 | • • PACKING - PREFORMED 81349 POST SBE70-0099 | ad-ah | 1 |
| 160 | 5009090 | • HOUSING - ADAPTOR 0AF71 PRE SBE70-0011 | aa-ah | 1 |
| 160A | 5A0248 | • HOUSING - ADAPTOR POST SBE70-0011 | aa-ah | 1 |
| 165 | 5905488 | • CLAMP - ACCESSORY DRIVE 0AF71 PRE SBE70-0011 | aa-ah | 1 |
| 165A | 5A0249 | • CLAMP - ACCESSORY DRIVE POST SBE70-0011 | aa-ah | 1 |
| 170 | M25988-1-155 | • RING - SEALING TOROIDAL 81349 | aa-ah | 1 |
| -400 | AS43013-124 | • RING - SEALING TOROIDAL U1653 (SEE 73-11-49-02-108 ) | aa-ah | REF |
| -410 | AS43013-124 | • RING - SEALING TOROIDAL U1653 (SEE 73-11-49-05-116 ) | aa-ah | REF |
| -420 | AS43013-128 | • RING - SEALING TOROIDAL (73-22-52 01130) U1653 (SEE 73-11-47-01-104 ) | aa-ah | REF |
| -430 | AS43013-124 | • RING - SEALING TOROIDAL U1653 (SEE 73-11-47-01-104 ) | aa-ah | REF |
| -440 | AS43013-128 | • RING - SEALING TOROIDAL U1653 (SEE 73-11-49-05-108 ) | aa-ah | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

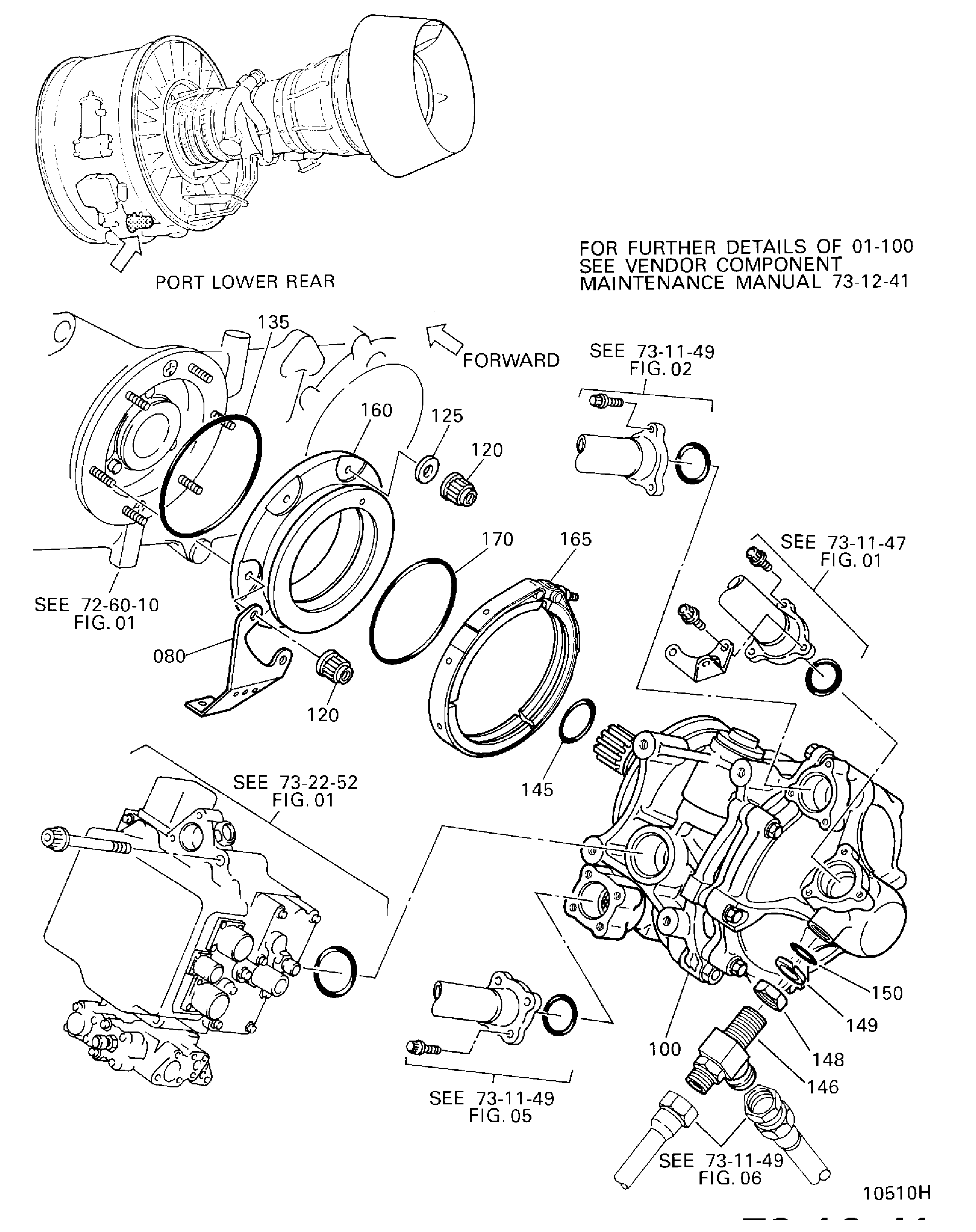

Figure: ENGINE FUEL AND CONTROL-LP & HP FUEL PUMPS
LP/HP FUEL PUMPS
