OIL-FUEL COOLED OIL COOLER

DMC:V2500-A1-79-21-43-01A-941A-D|Issue No:002|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B79214301	OIL - FUEL COOLED OIL COOLER, PRE SBE72-0081	aa
000	SBE0081-01	OIL - FUEL COOLED OIL COOLER, PRE SBE70-0099	ab
000	SBE0099-01	OIL - FUEL COOLED OIL COOLER, PRE SBE79-0021	ac
000	SBE0021-01	OIL - FUEL COOLED OIL COOLER, PRE SBE79-0020	ad
000	SBE0020-01	OIL - FUEL COOLED OIL COOLER, PRE SBE70-0193	ae
000	SBE0193-01	OIL - FUEL COOLED OIL COOLER, PRE SBE72-0223	af
000	SBE0223-01	OIL - FUEL COOLED OIL COOLER, PRE SBE79-0076	ag
000	SBE0076-01	OIL - FUEL COOLED OIL COOLER, PRE SBE79-0075	ah
000	SBE0075-01	OIL - FUEL COOLED OIL COOLER, PRE SBE79-0085	ai
000	SBE0085-01	OIL - FUEL COOLED OIL COOLER, PRE SBE70-0887	aj
000	SBE0887-01	OIL - FUEL COOLED OIL COOLER, PRE SBE79-0100	ak
000	SBE0100-01	OIL - FUEL COOLED OIL COOLER	al
090090	5T0029	• BRACKET	aa-al	1
100100	0F25-001	• COOLER - OIL, FUEL, COOLED SG215 VENDOR PN (OF25-001) PRE SBE70-0193	aa-ae	1
100100A	0F25-101	• COOLER - OIL, FUEL, COOLED SG215 VENDOR PN (OF25-101) REF No. 5U0039 POST SBE70-0193 PRE SBE79-0076	af-ag	1
100100B	55025001-1	• COOLER - OIL, FUEL, COOLED SG215 POST SBE79-0076 PRE SBE79-0085	ah-al	1
100100C	55030001-11	• COOLER - OIL, FUEL, COOLED SG215 POST SBE79-0085 PRE SBE79-0100	ah-al	1
100100D	0F25-301	• COOLER - OIL, FUEL, COOLED SG215 VENDOR PN (OF25-301) POST SBE79-0085 PRE SBE79-0100	aj-ak	1
100100E	0F25-201	• COOLER - OIL, FUEL, COOLED SG215 VENDOR PN (OF25-201) POST SBE79-0085 PRE SBE79-0100	aj-ak	1
100100F	55022001-11	• COOLER - OIL, FUEL, COOLED SG215 POST SBE79-0100	ah-al	1
100100G	55022001-11	• COOLER - OIL, FUEL, COOLED SG215 POST SBE79-0100	al	1
100100H	55022001-11	• COOLER - OIL, FUEL, COOLED SG215 POST SBE79-0100	al	1
100100J	55022001-11	• COOLER - OIL, FUEL, COOLED SG215 POST SBE79-0100	al	1
100100K	55022001-11	• COOLER - OIL, FUEL, COOLED SG215 POST SBE79-0100	al	1
100100L	55022001-11	• COOLER - OIL, FUEL, COOLED SG215 POST SBE79-0100	al	1
102102	AS54734	• BOLT - CLOSE TOLERANCE, BIHEXAGON, 0.3125 U1653 POST SBE79-0075	ai-al	1
104104	4W2623	• WASHER Optional Part 4W2623 POST SBE79-0075	ai-al	1
106106	4W0003	• NUT - 0.3125 DIA Optional Part 4W0003 POST SBE79-0075	ai-al	1

110110	4W0105	• BOLT - MACHINE DOUBLE HEX, .190 DIA X .625 PRE SBE79-0075	aa-ah	1
115115	5T8266	• PIN ALT 5T8267	aa-al	1
115115A	5T8267	• PIN ALT 5T8266 PRE SBE79-0021	aa-al	1
115115B	5T0064	• PIN POST SBE79-0021 PRE SBE79-0075	ad-ah	1
125125	4W0170	• BOLT - 0.250 DIA X 1.000	aa-al	2
135135	4W0168	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .875	aa-al	2

145145	MS21209F5-25	• • INSERT - SCREW THREAD 96906 POST SBE70-0099	ac-al	5
147147	0F25-009	• • PLUG - FUEL, DRAIN SG215 VENDOR PN (OF25-009)	aa-al	1
149149	0F25-021	• • RING - SEALING SG215 VENDOR PN (OF25-021)	aa-al	1
151151	0F25-008	• • PLUG - FUEL SG215 VENDOR PN (OF25-008) POST SBE70-0099	ac-al	1
153153	0F25-020	• • PACKING - PREFORMED SG215 VENDOR PN (OF25-020) POST SBE70-0099	ac-al	1
157157	MS9954-06	• • PLUG - OIL, DRAIN 96906	aa-al	1
159159	0F25-021	• • RING - SEALING SG215 VENDOR PN (OF25-021)	aa-al	1
-165165	0F25-005	• • CAP - ASSEMBLY OF SG215 VENDOR PN (OF25-005) PRE SBE79-0085	aa-ai	REF
-165165A	55030005-11	• • CAP - ASSEMBLY OF SG215 POST SBE79-0085	aj-al	REF
-166166	55030006-3	• • ADAPTER SG215 POST SBE79-0085	aj-al	REF
167167	4W0236	• • BOLT - 0.312 DIA X 1.438 ALT 4W0236 ALT MS21281-19 PRE SBE79-0085	aa-ai	5
-167167A	MS21281-19	• • BOLT - 12 POINT 96906 ALT 4W0236 PRE SBE79-0085	aa-ai	REF
167167B	AS32223	• • BOLT - CLOSE TOL DEE HEAD U1653 POST SBE79-0085	aj-al	10
168168	55030012-3	• • SCREW SG215 POST SBE79-0085	aj-al	5
169169	AN960C516	• • WASHER 88044 PRE SBE72-0081	aa-ai	5
169169A	MS9321-11	• • WASHER 96906 POST SBE72-0081 PRE SBE79-0085	aa-ai	5
169169B	MS9321-10	• • WASHER - FLAT, 0.500 X 0.276 X 0.062 96906 POST SBE79-0085	aj-al	10
171171	0F25-014	• • RING - SEALING SG215 VENDOR PN (OF25-014) PRE SBE79-0085	aa-ai	1
171171A	0F25-014	• • RING - SEALING SG215 VENDOR PN (OF25-014) POST SBE79-0085	aj-al	2
172172	NAS1805-4P	• • NUT - SILVER COATED 80205 POST SBE79-0085	aj-al	10
250250	FEB5021	• JUMPER ASSY,BONDING PRE SBE79-0020	aa-ad	1
250250A	FEB5024	• STRAP-BONDING, 98 MM LONG POST SBE79-0020 PRE SBE79-0075	ae-ah	1
250250B	AS46771D100E	• LEAD - ELECTRICAL U1653 POST SBE79-0075	ai-al	1

251251	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA PRE SBE79-0075	aa-ah	1

253253	4W2622	• WASHER OPTION Optional Part 4W2622 PRE SBE79-0075	aa-ah	1
253253A	4W2621	• WASHER Optional Part 4W2621 POST SBE79-0075	ai-al	1

254254	4W0165	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .688 PRE SBE79-0075	aa-ah	1
254254A	4W0105	• BOLT - MACHINE DOUBLE HEX, .190 DIA X .625 POST SBE79-0075	ai-al	1

300300	5T8249	• BRACKET - A1, ASSEMBLY OF ALT 5T8248 PRE SBE79-0075	aa-ah	1
300300A	5T8248	• BRACKET - A1, F.C.O.C., ASSEMBLY OF ALT 5T8249 PRE SBE79-0075	aa-ah	1
300300B	6A7017	• BRACKET - ASSEMBLY OF POST SBE79-0075	ai-al	1

310310	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-al	2
315315	AS22511	• BOLT - 0.250 DIA X 0.688 U1653 PRE SBE79-0020	aa-ad	1
315315A	AS22511	• BOLT - 0.250 DIA X 0.688 U1653 POST SBE79-0020 PRE SBE79-0075	ae-ah	2
315315B	4W0167	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .812 POST SBE79-0075	ai-al	1
319319	4W2622	• WASHER OPTION PRE SBE79-0020	aa-ad	1
319319A	4W2622	• WASHER OPTION POST SBE79-0075	ai-al	1
320320	AS22514	• BOLT - 0.250 DIA X .875 U1653 PRE SBE79-0020	aa-ad	1
320320A	4W0169	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .938 POST SBE79-0075	ai-al	1

350350	FEB5021	• JUMPER ASSY,BONDING	aa-al	1
351351	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA Optional Part 4W0002	aa-al	1
355355	4W0165	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .688 Optional Part 4W0165	aa-al	1
380380	5T8080	• BRACKET - A4	aa-al	1

385385	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-al	1
390390	4W0164	• BOLT OPTION - .250 DIA X .625 PRE SBE72-0223	aa-af	1
390390A	4W0166	• BOLT - MACHINE, DOUBLE HEXAGON, .250 DIA X .750 POST SBE72-0223	ag-al	1
391391	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-al	1
392392	4W2622	• WASHER OPTION	aa-al	2
395395	4W0168	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .875	aa-al	1

420420	5T8222	• BRACKET - A5 PRE SBE79-0021	aa-al	1
420420A	5T0065	• BRACKET - ASSEMBLY F.C.O.C. POST SBE79-0021	aa-al	1

430430	4W0003	• NUT - 0.3125 DIA	aa-al	1
435435	AS22622	• BOLT U1653	aa-al	1
440440	5T8020	• BUSHING PRE SBE79-0021	aa-al	1
440440A	5T0066	• BUSHING POST SBE79-0021	aa-al	1

490490	5T8028	• SHIM - T0.3 PRE SBE70-0887	aa-al	1
490490A	5T8028	• SHIM - T0.3 POST SBE70-0887	aa-al	1
491491	5T8029	• SHIM - T0.41 PRE SBE70-0887	aa-al	1
491491A	5T8029	• SHIM - T0.41 POST SBE70-0887	aa-al	1
492492	5T8030	• SHIM - T0.64 PRE SBE70-0887	aa-al	1
492492A	5T8030	• SHIM - T0.64 POST SBE70-0887	aa-al	1
493493	5T8032	• SHIM - T1.02 PRE SBE70-0887	aa-aj	1
493493A	5T8031	• SHIM POST SBE70-0887	ak-al	1
494494	5T8033	• SHIM - T1.2 PRE SBE70-0887	aa-aj	1
494494A	5T8032	• SHIM - T1.02 POST SBE70-0887	ak-al	1
495495	5T8035	• SHIM - T1.6 PRE SBE70-0887	aa-aj	1
495495A	5T8033	• SHIM - T1.2 POST SBE70-0887	ak-al	1
496496	5T8031	• SHIM PRE SBE70-0887	aa-aj	1
496496A	5T8034	• SHIM POST SBE70-0887	ak-al	1
497497	5T8034	• SHIM PRE SBE70-0887	aa-aj	1
497497A	5T8035	• SHIM - T1.6 POST SBE70-0887	ak-al	1
505505	5T8075	• BRACKET - A2	aa-al	1

515515	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-al	1
520520	4W0165	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .688	aa-al	1
530530	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-al	1
535535	4W0204	• BOLT - 0.250 DIA X 40.250	aa-al	1
540540	5T8024	• WASHER - T2.6	aa-al	1
541541	5T8025	• WASHER - T2.8	aa-al	1
542542	5T8026	• WASHER - T3.0	aa-al	1
543543	5T8027	• WASHER - T3.2	aa-al	1

544544	5T0025	• WASHER	aa-al	1
545545	5T0026	• WASHER	aa-al	1
546546	5T0027	• WASHER	aa-al	1
547547	5T0028	• WASHER	aa-al	1

550550	5T0024	• BAR - TORSION	aa-al	1

580580	5T8077	• LINK - ASSEMBLY OF ALT 5T8076	aa-al	1
580580A	5T8076	• LINK - ASSEMBLY OF ALT 5T8077	aa-al	1

590590	4W0003	• NUT - 0.3125 DIA	aa-al	1
595595	AS22618	• BOLT -0 .3125 DIA X 1.125 U1653	aa-al	1

640640	5T0015	• BRACKET - A3 FCOC	aa-al	1

650650	4W0003	• NUT - 0.3125 DIA	aa-al	1
656656	AS22618	• BOLT -0 .3125 DIA X 1.125 U1653	aa-al	1

-960960	5W2057	• RESTRICTOR Optional Part 5W2057 PRE SBE73-0058 (SEE 73-11-49-02-088)	*****	REF
-962962	AS43013-124	• RING - SEALING, TOROIDAL U1653 (SEE 73-11-49-02-088)	aa-al	REF
-964964	AS43013-124	• RING - SEALING, TOROIDAL U1653 (SEE 73-11-49-02-108)	aa-al	REF
-966966	AS43013-118	• RING - SEALING, TOROIDAL U1653 (SEE 79-21-49-03-496)	aa-al	REF
-968968	AS43013-118	• RING - SEALING, TOROIDAL U1653 (SEE 79-21-49-03-098)	aa-al	REF
-970970	AS43013-107	• RING U1653 (SEE 73-34-15-01-030)	aa-al	REF
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	80205
Enterprise Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	88044
Enterprise Name:	AERONAUTICAL STANDARD GROUP NAVY AND AIR FORCE
BU Name:	AERONAUTICAL STANDARD GROUP NAVY AND AIR FORCE
Street:	NA
City:	NA
Country:	USA
Phone Number:	NA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	SG215
Enterprise Name:	SUMITOMO PRECISION PRODUCTS CO LTD
BU Name:	SUMITOMO PRECISION PRODUCTS CO LTD
Street:	1-10 FUSO-CHO
P.O. Box:	660
City:	AMAGASAKI HYOGO
Zip Code:	0891
Country:	JAPAN

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	0F25-001
Part Name:	COOLER - OIL, FUEL, COOLED
Manufacturer Code:	SG215

Part Number:	AS12943
Part Name:	WASHER - FLAT
Manufacturer Code:	U1653

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS20626
Part Name:	NUT - SELF LOCKING, BIHEXAGON, 0.3125
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS21512
Part Name:	BOLT - 0.25 DIA X 0.750
Manufacturer Code:	U1653

Part Number:	AS48116
Part Name:	BOLT - 0.250 DIA X 1.000
Manufacturer Code:	U1653

OIL-FUEL COOLED OIL COOLER

Export Control

Copyright

Applicability

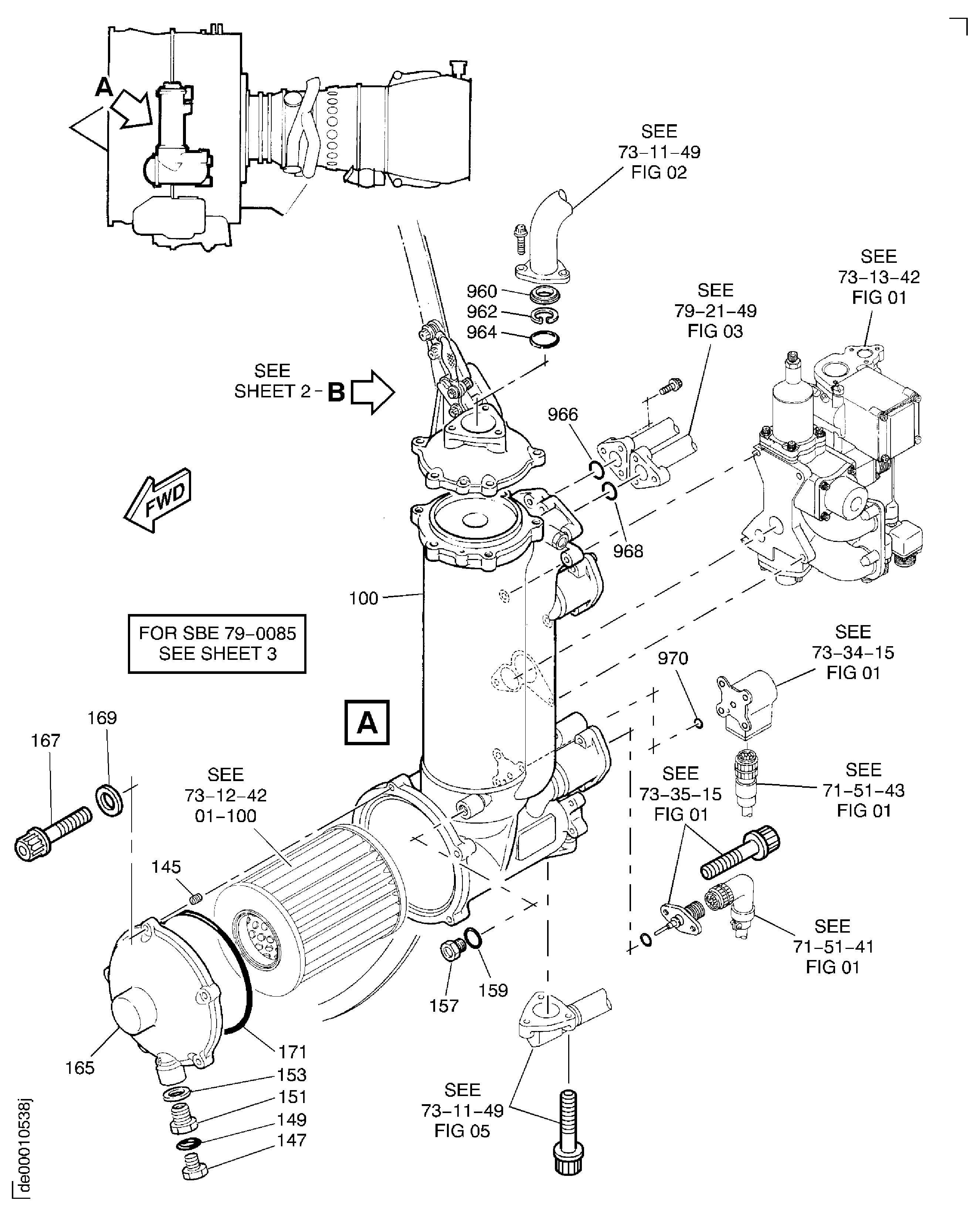

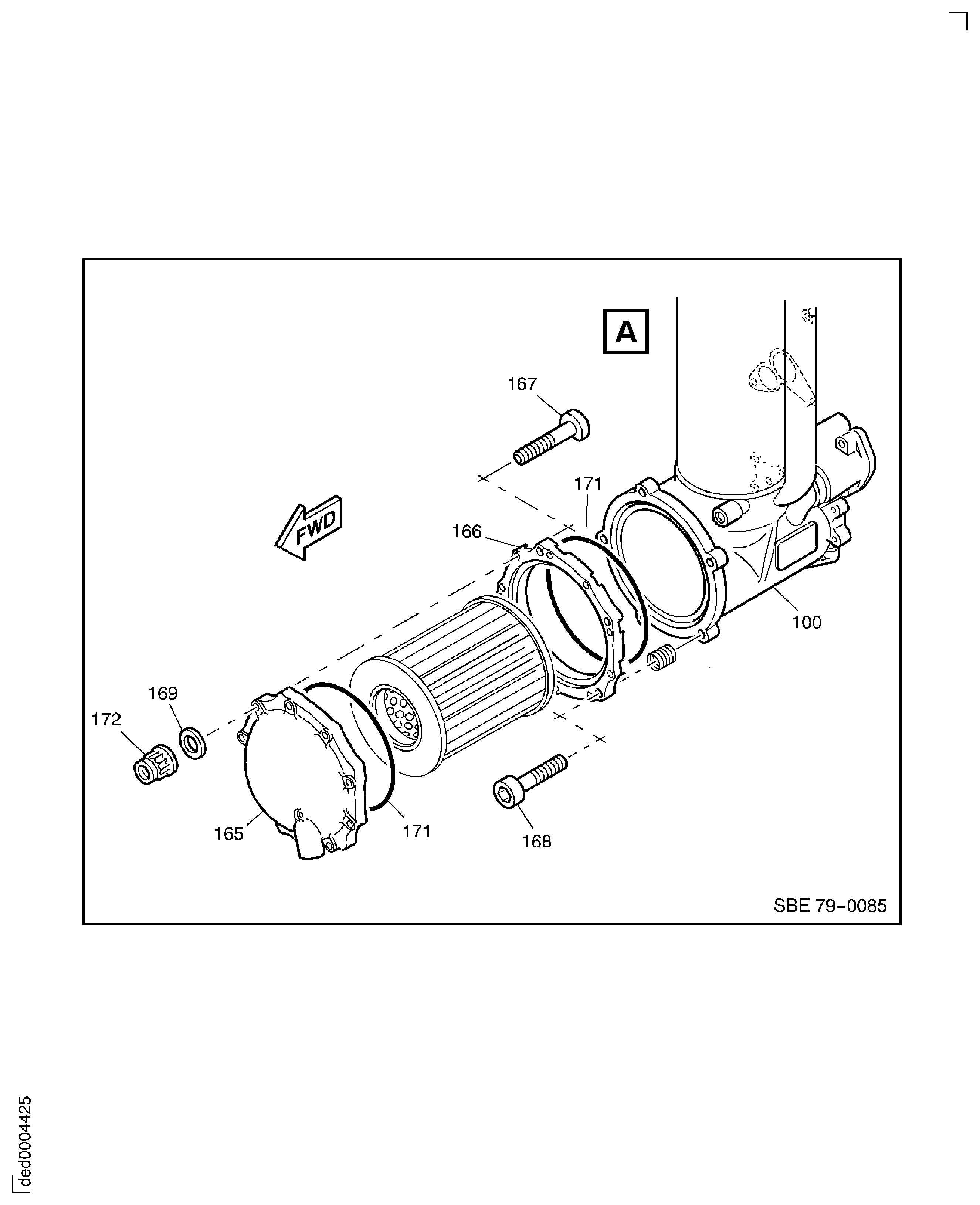

Figure: OIL-FUEL COOLED OIL COOLER
