TASK 72-41-32-200-004-B00 HPC Stage 5 Variable Stator Vane - Examine, Inspection-004

DMC:V2500-A5-72-41-3205-00B-300A-C|Issue No:006.00|Issue Date:2020-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-41-32-200-004-B00 HPC Stage 5 Variable Stator Vane - Examine, Inspection-004

Effectivity

FIG/ITEM

PART NO.

04-500

6A8725

04-500

6B1277

04-600

6A8728

04-600

6B1276

General

This TASK gives the procedure for the inspection of the stage 5 variable stator vanes.

Nicks and dents 0.005 in. (0.13 mm) or less are acceptable without limit to the airfoil and gas washed surfaces of the platforms.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a subsequent date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in SPM.

References

Refer to SPM for data on these items:

Definition of Damage, SPM TASK 70-02-02-350-501,

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501,

Inspection of parts, SPM TASK 70-20-01-200-501.

Some data on these items are contained in this TASK. For more data on these items refer to SPM:

Methods of Testing for Crack Indications,

Chemical Processes,

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-32-230-094 Examine the Stage 5 Variable Stator Vanes for Cracks

    1. Clean the parts. Refer to TASK 72-41-32-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below.

        PART IDENT

        TASK/SUBTASK

        Stage 5 Variable Stator Vane

        1. Cracked.

        1. Reject.

    2. SUBTASK 72-41-32-220-226 Examine the Stage 5 Variable Stator Vanes Airfoil at Location 1

    1. Refer to Figure.

      2. Nicked.

        1. Not more than 0.005 in. (0.13 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Reject.

      3. Dented.

        1. Not more than 0.005 in. (0.13 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Reject.

      4. Scratched.

        1. Not more than 0.005 in. (0.13 mm) in depth.

        1. Repair, VRS6036 TASK 72-41-32-300-007 (REPAIR-007).

      5. Pitted.

        1. Isolated pitting not more than 0.005 in. (0.13 mm) in depth.

        1. Accept.

        2. Heavy pitting not more than 0.005 in. (0.13 mm) in depth.

        1. Repair, VRS6036 TASK 72-41-32-300-007 (REPAIR-007).

    3. SUBTASK 72-41-32-220-217 Examine the Stage 5 Variable Stator Vanes Surfaces at Locations 3 and 4

    1. Refer to Figure.

      2. Scored/Scratched.

        1. Not more than 0.005 in. (0.13 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Reject.

      3. Wear.

      1. Reject.

    4. SUBTASK 72-41-32-220-218 Examine the Stage 5 Variable Stator Vanes Leading and Trailing Edges at Locations 5 and 6

    1. Refer to Figure.

      2. Nicked.

        1. Not more than 0.005 in. (0.13 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Reject.

      3. Dented.

        1. Not more than 0.005 in. (0.13 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Reject.

      4. Scored/Scratched.

        1. Not more than 0.005 in. (0.13 mm) in depth.

        1. Repair, VRS6036 TASK 72-41-32-300-007 (REPAIR-007).

    5. SUBTASK 72-41-32-220-219 Examine the Stage 5 Variable Stator Vanes Airfoil Surface Finish at Location 1

    1. Refer to Figure.

      2. Measure the surface finish of the vanes. Use 10 percent of the vanes that have been removed.

        1. Roughness of 10 micro-inches (0.25 micrometers) or less.

        1. Accept.

        2. Roughness more than in Step.

        1. Repair, VRS6078 TASK 72-41-32-300-008 (REPAIR-008).

    6. SUBTASK 72-41-32-220-220 Examine the Stage 5 Variable Stator Vanes Spindles at Location 7 and 8

    1. Refer to Figure.

      2. Scored/scratched.

        1. Not more than 0.005 in. (0.13 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Repair, VRS6184 TASK 72-41-32-300-015 (REPAIR-015), or VRS9131 TASK 72-41-32-300-023 (REPAIR-023).

      3. Wear.

        1. If the diameter of the spindle is equal to or greater than 0.4686 in. (11.90 mm) for part numbers 6A8725 and 6A8728.

        1. Accept.

        2. If the diameter of the spindle is equal to or greater than 0.4682 in. (11.89 mm) for part numbers 6B1276 and 6B1277.

        1. Accept.

        3. If the diameter of the spindle is equal to or greater than 0.4585 in. (11.646 mm) and less than 0.4686 in. (11.90 mm) for part numbers 6A8725 and 6A8728.

        1. Repair, VRS6184 TASK 72-41-32-300-015 (REPAIR-015).

        4. If the diameter of the spindle is equal to or greater than 0.4585 in. (11.646 mm) and less than 0.4682 in. (11.89 mm) for part numbers 6B1276 and 6B1277.

        1. Repair, VRS6184 TASK 72-41-32-300-015 (REPAIR-015).

        5. If the diameter of the spindle is less than 0.4585 in. (11.646 mm) and greater than or equal to 0.4500 in. (11.430 mm).

        1. Repair, VRS9131 TASK 72-41-32-300-023 (REPAIR-023).

      4. Spindle flat.

        1. Wear.

        1. Reject.

        2. Scored/Scratched.

        1. Reject.

    7. SUBTASK 72-41-32-220-221 Examine the Stage 5 Variable Stator Vanes Stud at Location 9

    1. Refer to Figure.

      2. Thread.

        1. Crossed.

        1. Reject.

        2. Stripped.

        1. Reject.

        3. Pick-up.

        1. Reject.

    8. SUBTASK 72-41-32-220-222 Examine the Stage 5 Variable Stator Vanes Inner Pivot Spindle at Location 1241

    1. Refer to Figure.

      2. Scored/scratched.

        1. Not more than 0.005 in. (0.13 mm) maximum in depth.

        1. Accept.

        2. More than in Step.

        1. Repair, VRS6184 TASK 72-41-32-300-015 (REPAIR-015), or VRS9131 TASK 72-41-32-300-023 (REPAIR-023).

      3. Wear.

        1. If the diameter is equal to or greater than 0.2701 in. (6.86 mm).

        1. Accept.

        2. If the diameter of the spindle is equal to or greater than 0.2609 in. (6.627 mm) and less than 0.2701 in. (6.86 mm).

        1. Repair, VRS6184 TASK 72-41-32-300-015 (REPAIR-015).

        3. If the diameter of the spindle is less than 0.2609 in. (6.627 mm) and greater than or equal to 0.2530 in. (6.426 mm).

        1. Repair, VRS9131 TASK 72-41-32-300-023 (REPAIR-023).

    9. SUBTASK 72-41-32-220-223 Examine the Stage 5 Variable Stator Vanes Seal Ring Groove at Location 10

    1. Refer to Figure.

      2. Wear.

      1. Reject.

      3. Damaged.

      1. Reject.

    10. SUBTASK 72-41-32-220-224 Examine the Stage 5 Variable Stator Vanes Annulus Surfaces at Locations 11 and 12

    1. Refer to Figure.

      2. Nicked.

        1. Up to 0.005 in. (0.13 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Reject.

      3. Dented.

        1. Up to 0.005 in. (0.13 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Reject.

      4. Surface finish.

        1. Roughness not more than 16 micro-inches (0.40 micrometers).

        1. Accept.

        2. More than in Step.

        1. Reject.

    11. SUBTASK 72-41-32-220-225 Examine the Stage 5 Variable Stator Vanes Wire Thread Insert at Location 13

    1. Refer to Figure.

      2. Damaged threads.

      1. Reject.

    12. SUBTASK 72-41-32-220-233 Examine the Stage 5 Variable Stator Vanes at Location 14 (04-500 and Pre SBE 72-0571 only)

    1. Refer to Figure.

      2. Examine the engraved identity markings.

        1. Identity markings not encroaching into the fillet radius.

        1. Accept.

        2. Other than Step.

        1. Reject.

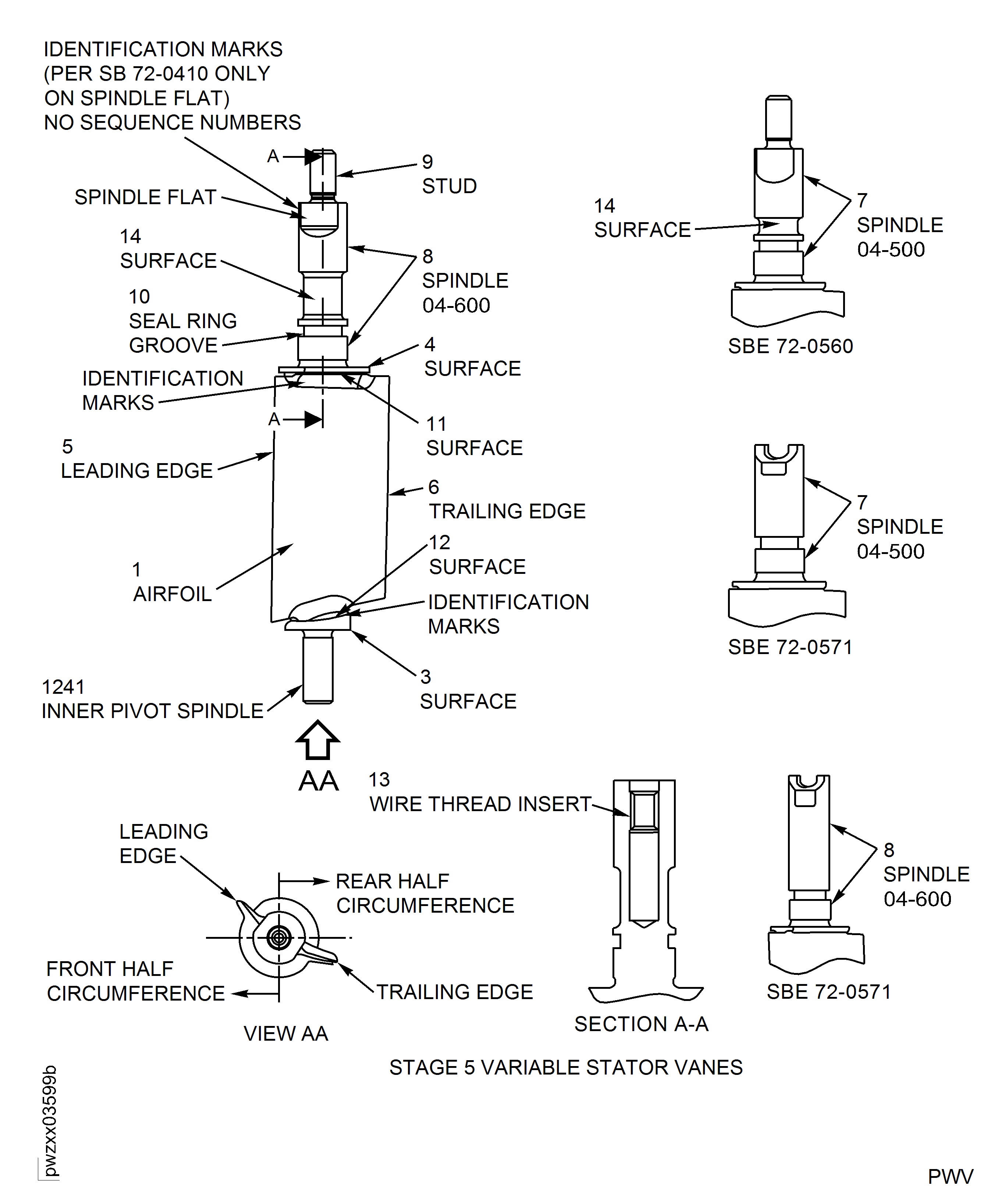

    13. Figure: Stage 5 Variable Stator Vanes - Inspection Locations

    Stage 5 Variable Stator Vanes - Inspection Locations
