TASK 71-21-11-200-001 Front Mount Tube Outer Race - Examine, Inspection-001

DMC:V2500-A0-71-21-1101-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-21-11-200-001 Front Mount Tube Outer Race - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-100

5A6024

General

This TASK gives the procedure for the inspection of the mount tube outer race assembly. For the other parts of the forward mount support, refer to TASK 71-21-11-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 71-21-11-100-000.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-011 MAGNETIC PARTICLES, FLUORESCENT, DRY POWDERLOCALCoMat 06-011

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-21-11-240-051 Examine the Mount Tube Outer Race Assembly (01-100) for Cracks

    1. Clean the part. Refer to TASK 71-21-11-100-000.

      2. Do the crack test on the part that is given below. Use the applicable magnetic inspection procedure.

        PART IDENT

        TASK/OP

        Mount tube outer race assembly

        SPM TASK

        1. Cracked

        1. Reject

          PART IDENT

          PROCEDURE

          CURRENT/INSPECT

          TASK/OP

          Mount tube outer race assembly

          TB using continuous wet or simultaneous inking with the CoMat 06-011 MAGNETIC PARTICLES, FLUORESCENT, DRY POWDER

          500 amp

          Visually examine for longitudinal and radial defects. Do a check for doubtful indications using low power magnification.

          If necessary, examine under white light at 15X binocular.

          500 amp

          Flange area

          Examine as for shaft outside diameter

          1-turn solenoid continuous wet or simultaneous inking

          6000 A/T

          Do again the magnetization and inspection along shaft length. Visually examine for circumferential defects. Do a check for doubtful indications using low power magnification. If necessary, examine under white light at 15X binocular.

    2. SUBTASK 71-21-11-220-053 Examine the Mount Tube Outer Race Assembly (01-100) Spherical Surface

    1. Refer to Figure.

      2. Examine the sperical surface at location 1.

        1. Galled

        1. Repair, VRS1095 TASK 71-21-11-300-002

        2. Scored

        1. Repair, VRS1095 TASK 71-21-11-300-002

    3. SUBTASK 71-21-11-220-054 Examine the Mount Tube Outer Race Assembly (01-100) Outside Diameter

    1. Refer to Figure.

      2. Examine the outside diameter at location 2.

        1. Worn.

          1. If the outside diameter is between 3.9380 and 3.9385 in. (100.023 and 100.038 mm).

          1. Accept

          2. Less than 3.9380in. (100.023 mm).

          1. Reject

    4. SUBTASK 71-21-11-220-055 Examine the Mount Tube Outer Race Assembly (01-100) Coating Area

    1. Refer to Figure.

      2. Examine the coating area at location 3.

        1. Missing dry film lubricant.

        1. Repair, VRS1100 TASK 71-21-11-300-009

    5. SUBTASK 71-21-11-220-056 Examine the Mount Tube Outer Race Assembly (01-100) Seating Surface

    1. Refer to Figure.

      2. Examine the seating surface at location 4.

        1. Scored

        1. Repair, VRS1095 TASK 71-21-11-300-002

    6. SUBTASK 71-21-11-220-057 Examine the Mount Tube Outer Race Assembly (01-100) Bolt Holes

    1. Refer to Figure.

      2. Examine the bolt holes at location 5.

        1. Scored or burred

        1. Repair, VRS1095 TASK 71-21-11-300-002.

    7. SUBTASK 71-21-11-220-058 Examine the Mount Tube Outer Race Assembly (01-100) Pins

    1. Refer to Figure.

      2. Examine the pins at location 6.

        1. Loose or missing

        1. Repair, VRS1096 TASK 71-21-11-300-003

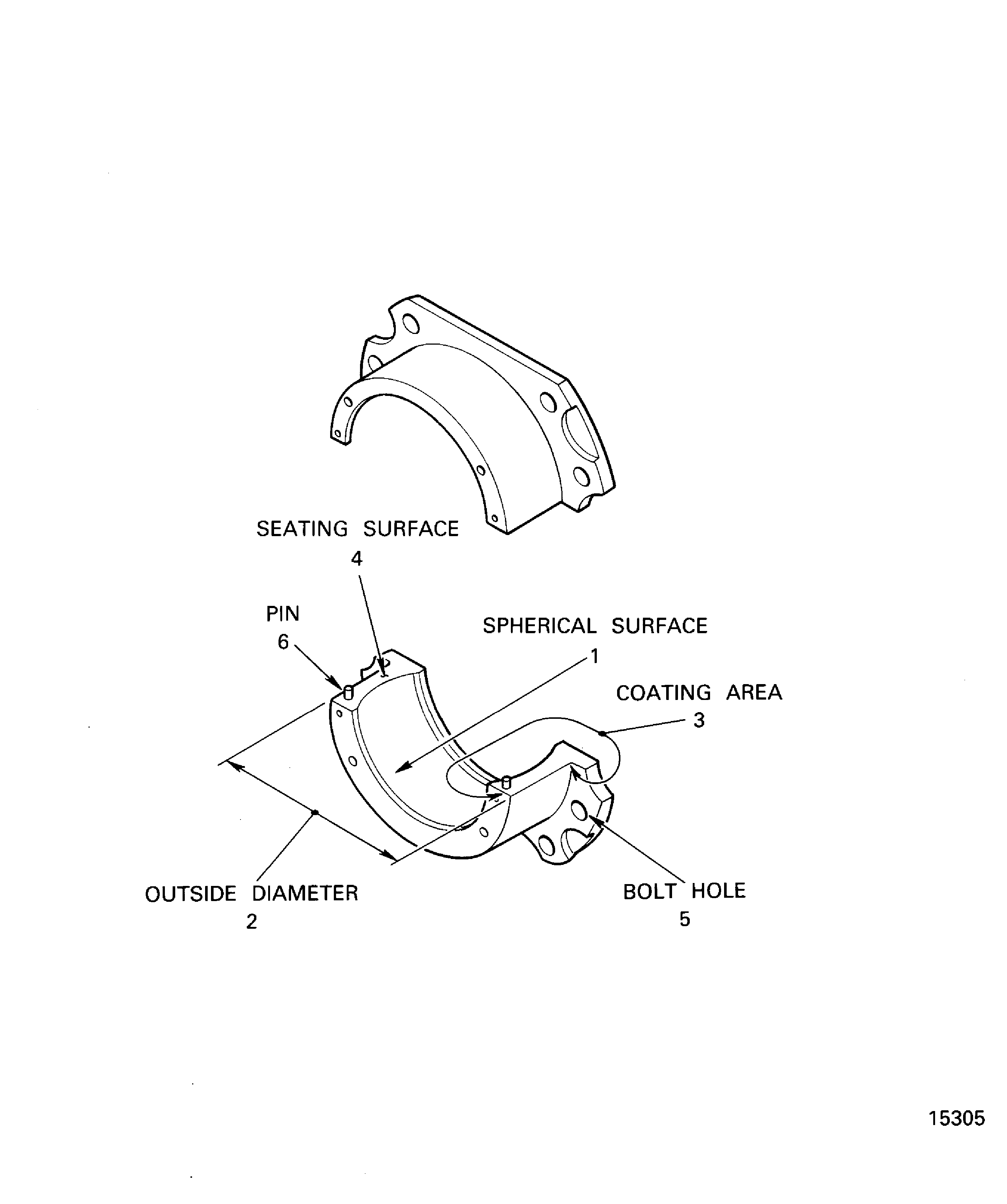

    8. Figure: Locations on the mount tube outer race assembly

    Locations on the mount tube outer race assembly

Requirements After Job Completion

Follow-On Conditions

NONE
