TASK 72-00-32-450-004 LPC/Intermediate Case Module Components - Install The Air Cooled Oil Cooler (ACOC) Oil Temperature Thermocouple, Installation-011
General
This TASK gives the procedure to install the ACOC oil temperature thermocouple.
Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.
For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.
Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-039 ENGINE OIL, unless other lubricants are referred to in the procedure.
For the torque tightening procedures, refer to the SPM TASK 70-41-01-400-501 and SPM TASK 70-41-00-400-501.
For lockwire data and procedures refer to SPM TASK 70-42-05-400-501.SBE 70-0813
For safety cable data and procedures refer to SPM TASK 70-42-08-400-501.
Safety the threaded fasteners in the ATA Chapter/Section/Subject 71-51-41 as applicable with CoMat 02-274 SAFETY CABLE KIT or CoMat 02-275 SAFETY CABLE KIT.
After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and attach parts. Use the correct color of the air drying enamel. Refer to the SPM TASK 70-38-21-380-501.
NOTE
To identify the consumable materials refer to the PCI.
SBE 70-0813 : Announcement of introduction of safety cable as a preferred method to lockwire.
Safety the threaded fasteners in this TASK with safety cable for the ATA Chapter/Section/Subject detailed in 2. General.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-274 SAFETY CABLE KIT | LOCAL | CoMat 02-274 | ||
| CoMat 02-275 SAFETY CABLE KIT | LOCAL | CoMat 02-275 | ||
| CoMat 07-038 AIR DRYING ENAMEL | K3504 | CoMat 07-038 | ||
| CoMat 10-039 ENGINE OIL | LOCAL | CoMat 10-039 |
Safety Requirements
NONEProcedure
Refer to Figure.
Lubricate the ACOC Oil Temperature Thermocouple (79-32-15, 01-220) packing 1 off with clean CoMat 10-039 ENGINE OIL (engine oil).
Install the packing to the ACOC oil temperature thermocouple ACOC Oil Temperature Thermocouple (79-32-15, 01-200).
Install the two bolts ACOC Oil Temperature Thermocouple (79-32-15, 01-210).
SUBTASK 72-00-32-450-065 Install the ACOC Temperature Thermocouple to the Air Cooled Oil Cooler (ACOC)
Refer to Figure.
Connect the electrical connector of EEC harness EEC Fan Harness (71-51-41, 01-005) to the ACOC oil temperature thermocouple ACOC Oil Temperature Thermocouple (79-32-15, 01-200).
SUBTASK 72-00-32-430-053 Connect the Electrical Connector
Do an oil leak test on the ACOC, refer to TASK 71-00-00-700-003.
SUBTASK 72-00-32-790-052 Do an Oil Leak Test

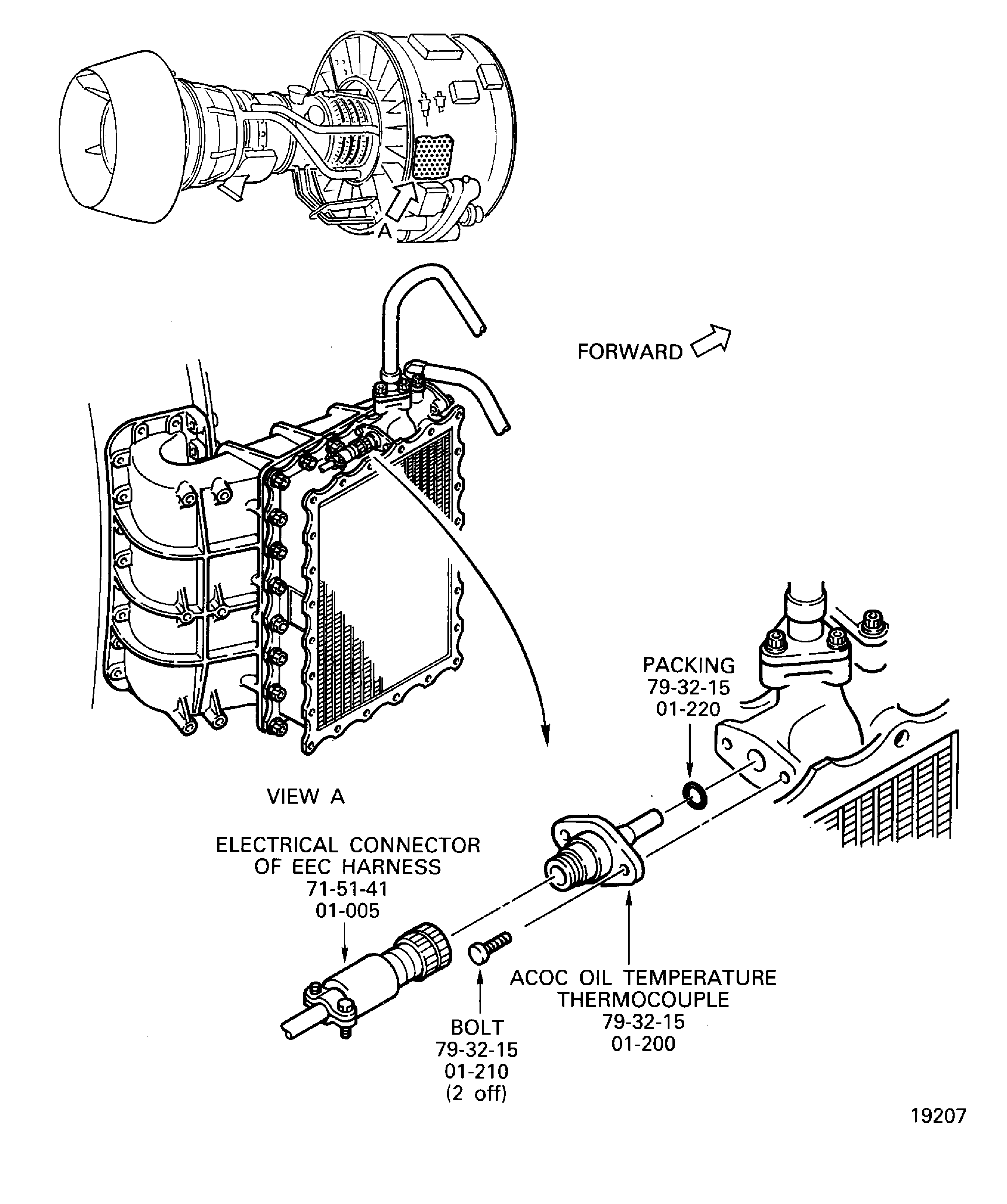

Figure: ACOC oil temperature thermocouple
ACOC oil temperature thermocouple
